IslandPath Analysis: Pyrococcus furiosus DSM 3638

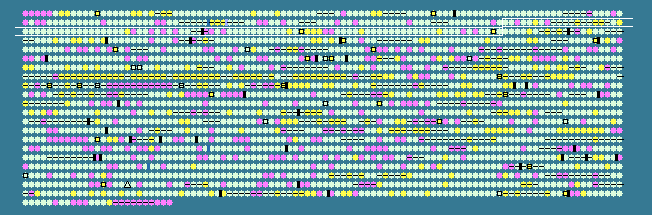

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.88 STD DEV: 3.74
Pyrococcus furiosus DSM 3638, complete genome - 1..1908256
2125 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
181	 44.17	0	188100..188579	+	159	18976550	-	PF0178	-	V-type ATP synthase subunit K
182	 37.91	0	188599..189210	+	203	33359457	-	PF0179	-	V-type ATP synthase subunit E
183	 36.57	-1	189217..190329	+	370	18976552	-	PF0180	-	V-type ATP synthase subunit C
184	 40.38	0	190326..190637	+	103	18976553	-	PF0181	-	V-type ATP synthase subunit F
185	 42.44	0	190644..193685	+	1013	18976554	-	PF0182	-	V-type ATP synthase subunit A
186	 45.28	+1	193691..195079	+	462	18976555	-	PF0183	-	V-type ATP synthase subunit B
187	 38.29	0	195110..195754	+	214	18976556	-	PF0184	-	V-type ATP synthase subunit D
188	 37.04	-1	195786..197000	+	404	18976557	-	PF0185	-	partial alanyl-tRNA synthetase matches COOH terminus half
189	 39.25	0	196975..197802	-	275	18976558	-	PF0186	-	n-type ATP pyrophosphatase superfamily protein
190	 40.37	0	197868..198776	-	302	18976559	-	PF0187	-	putative cofactor synthesis protein
191	 38.98	0	198787..199530	-	247	18976560	-	PF0188	-	dihydroorotate dehydrogenase electron transfer subunit
192	 37.93	0	199478..200827	-	449	18976561	-	PF0189	-	dihydroorotase
193	 44.50	0	201035..203524	+	829	18976562	-	PF0190	-	hypothetical protein
194	 40.86	0	203712..204761	+	349	18976563	-	PF0191	-	oligopeptide transport system permease protein
195	 43.65	0	204772..206196	+	474	18976564	-	PF0192	-	oligopeptide transporter permease appc
196	 45.73	+1	206207..207166	+	319	18976565	-	PF0193	-	putative ABC transport ATP binding protein
197	 44.74	+1	207177..208184	+	335	18976566	-	PF0194	-	dipeptide ABC transporter, ATP-binding protein
198	 39.23	0	208160..208702	+	180	18976567	-	PF0195	-	hypothetical protein
199	 44.21	0	208695..209264	+	189	18976568	-	PF0196	-	glucose-6-phosphate isomerase
200	 45.42	+1	209332..209571	+	79	18976569	-	PF0197	-	phosphoribosylformylglycinamidine synthase subunit PurS
201	 42.25	0	209565..210248	+	227	18976570	-	PF0198	-	phosphoribosylformylglycinamidine synthase subunit I
202	 43.45	0	210357..212471	+	704	18976571	-	PF0199	-	phosphoribosylformylglycinamidine synthase II
203	 42.20	0	212635..214077	-	480	18976572	-	PF0200	-	hypothetical protein
204	 42.07	0	214120..216615	-	831	18976573	-	PF0201	-	aconitate hydratase
205	 41.73	0	216620..217822	-	400	18976574	-	PF0202	-	isocitrate dehydrogenase
206	 38.80	0	217828..218961	-	377	18976575	-	PF0203	-	citrate synthase
207	 38.56	0	219318..220427	+	369	18976576	-	PF0204	-	hypothetical protein
208	 41.42	0	220424..221932	+	502	18976577	-	PF0205	-	glutamate synthase subunit alpha
209	 38.77	0	221929..222756	+	275	18976578	-	PF0206	-	hypothetical protein
210	 41.69	0	222845..224077	+	410	18976579	-	PF0207	-	argininosuccinate synthase
211	 40.00	0	224091..225470	+	459	18976580	-	PF0208	-	argininosuccinate lyase
212	 39.42	0	225439..226260	+	273	18976581	-	PF0209	-	ribosomal protein s6 modification protein
213	 41.70	0	226257..227870	-	537	18976582	-	PF0210	-	putative oxidative cyclase
214	 37.89	0	228005..228619	+	204	18976583	-	PF0211	-	hypothetical protein
215	 39.30	0	228606..230933	-	775	18976584	-	PF0212	-	DNA-directed DNA polymerase
216	 42.19	0	231034..231846	+	270	18976585	-	PF0213	-	hypothetical protein
217	 39.68	0	231843..232583	-	246	18976586	-	PF0214	-	n-type ATP pyrophosphatase
218	 45.55	+1	232621..233913	-	430	18976587	eno	PF0215	-	phosphopyruvate hydratase
219	 35.95	-1	233948..234520	-	190	18976588	maf	PF0216	-	Maf-like protein
220	 43.86	0	234645..234929	+	94	161484704	rpl44e	PF0217	-	50S ribosomal protein L44e
221	 40.10	0	234934..235125	+	63	18976590	rps27e	PF0218	-	30S ribosomal protein S27e
222	 34.43	-1	235100..235555	-	151	18976591	-	PF0219	-	putative 6-pyruvoyl tetrahydrobiopterin synthase
223	 41.23	0	235489..236793	+	434	18976592	-	PF0220	-	hexulose-6-phosphate synthase (d-arabino 3-hexulose 6-phosphate formaldehyde lyase)
224	 36.67	-1	236943..237632	+	229	18976593	-	PF0221	-	hypothetical protein
225	 38.79	0	237626..238285	+	219	18976594	-	PF0222	-	hydrolase related to 2-haloalkanoic acid dehalogenase
226	 34.43	-1	238269..238451	+	60	33359459	-	PF0222.1n	-	hypothetical protein
227	 39.04	0	238448..239236	+	262	18976595	-	PF0223	-	hypothetical protein
228	 41.46	0	239229..239843	-	204	18976596	-	PF0224	-	hypothetical protein
229	 38.76	0	239785..240171	+	128	18976597	-	PF0225	-	N-acetyltransferase
230	 42.12	0	240105..240377	+	90	18976598	-	PF0226	-	hypothetical protein
231	 30.23	-2	240484..240612	-	42	33359460	-	PF0226.1n	-	hypothetical protein
232	 36.46	-1	240581..240772	-	63	18976599	-	PF0227	-	hypothetical protein
233	 41.18	0	240797..241000	-	67	18976600	-	PF0228	-	hypothetical protein
234	 36.78	-1	240936..242504	-	522	18976601	-	PF0229	-	hypothetical protein
235	 38.00	0	242646..243224	+	192	18976602	-	PF0230	-	ArsR family transcriptional regulator
236	 41.83	0	243233..243538	+	101	18976603	-	PF0231	-	hypothetical protein
237	 37.59	0	243538..244101	+	187	18976604	-	PF0232	-	ArsR family transcriptional regulator
238	 43.28	0	244161..245558	+	465	18976605	-	PF0233	-	hypothetical protein
239	 37.52	0	245544..246617	-	357	18976606	-	PF0234	-	hypothetical protein
240	 39.43	0	246614..247876	-	420	18976607	-	PF0235	-	glucose-1-phosphate thymidylyltransferase
241	 39.17	0	247929..248768	-	279	18976608	-	PF0236	-	ribose-phosphate pyrophosphokinase
242	 38.79	0	248781..249476	-	231	33359461	-	PF0237	-	hypothetical protein
243	 37.53	0	249473..249877	-	134	33359462	-	PF0238	-	hypothetical protein
244	 39.72	0	249878..250159	-	93	33359463	-	PF0239	-	hypothetical protein
245	 44.72	+1	250877..251719	+	280	18976612	-	PF0240	-	hypothetical protein
246	 39.38	0	251788..252945	-	385	18976613	-	PF0241	-	tryptophanyl-tRNA synthetase
247	 46.03	+1	253396..253584	-	62	18976614	-	PF0242	-	transposase
248	 52.57	+2	253719..254945	-	408	18976615	-	PF0243	-	DEXX-box atpase
249	 47.45	+1	254994..255248	-	84	18976616	-	PF0244	-	hypothetical protein
250	 45.54	+1	255427..255729	-	100	18976617	-	PF0245	-	hypothetical protein
251	 32.69	-2	255759..256070	+	103	18976618	-	PF0246	-	hypothetical protein
252	 36.57	-1	256063..257019	-	318	33359464	-	PF0247	-	putative HTH transcription regulator
253	 41.10	0	257146..257634	+	162	18976620	-	PF0248	-	hypothetical protein
254	 37.81	0	257646..258203	+	185	18976621	-	PF0249	-	ham1 protein
255	 41.46	0	258208..258687	+	159	18976622	-	PF0250	-	Lrp family transcriptional regulator
256	 42.86	0	259043..260239	+	398	18976623	-	PF0251	-	hypothetical protein
257	 49.67	+2	262329..262481	-	50	18976624	-	PF0252	-	30S ribosomal protein S27ae
258	 41.00	0	262484..262783	-	99	18976625	rps24e	PF0253	-	30S ribosomal protein S24e
259	 39.51	0	262773..263306	-	177	18976626	-	PF0254	-	hypothetical protein
260	 40.86	0	263306..263491	-	61	18976627	-	PF0255	-	DNA-directed RNA polymerase subunit E''
261	 41.40	0	263488..264057	-	189	18976628	-	PF0256	-	DNA-directed RNA polymerase subunit E'
262	 43.20	0	264096..264632	-	178	18976629	-	PF0257	-	inorganic pyrophosphatase
263	 39.36	0	264702..265547	-	281	18976630	-	PF0258	-	putative endonuclease IV
264	 39.60	0	265619..265921	+	100	18976631	-	PF0259	-	hypothetical protein
265	 40.58	0	265918..267048	+	376	18976632	-	PF0260	-	hypothetical protein
266	 40.26	0	267040..269811	-	923	18976633	-	PF0261	-	hypothetical protein
267	 41.61	0	269798..272044	-	748	18976634	-	PF0262	-	MFS family transporter
268	 41.43	0	272118..272636	+	172	18976635	-	PF0263	-	hypothetical protein
269	 40.80	0	272706..274004	-	432	18976636	hisS	PF0264	-	histidyl-tRNA synthetase
270	 46.21	+1	274108..275295	+	395	18976637	-	PF0265	-	2-amino-3-ketobutyrate coenzyme A ligase
271	 41.33	0	276009..276521	-	170	18976638	-	PF0266	-	tRNA-splicing endonuclease subunit alpha
272	 40.16	0	276518..277030	-	170	18976639	-	PF0267	-	ribosomal protein s18 alanine acetyltransferase
273	 41.71	0	277117..278250	+	377	18976640	-	PF0268	-	Na+/H+ antiporter - like protein
274	 36.70	-1	278344..278610	+	88	18976641	-	PF0269	-	hypothetical protein
275	 43.46	0	278656..281400	+	914	18976642	alaS	PF0270	-	alanyl-tRNA synthetase
276	 34.85	-1	281405..281866	-	153	18976643	-	PF0271	-	hypothetical protein
277	 41.60	0	281958..283928	+	656	18976644	-	PF0272	-	alpha-amylase
278	 40.96	0	283979..284830	-	283	18976645	-	PF0273	-	n-type ATP pyrophosphatase superfamily protein
279	 44.59	0	285056..285757	+	233	18976646	-	PF0274	-	transposase
280	 40.61	0	285783..286922	+	379	18976647	-	PF0275	-	Na+/H+ antiporter
40.88	MEAN

3.74	STD DEV
