IslandPath Analysis: Pyrococcus furiosus DSM 3638

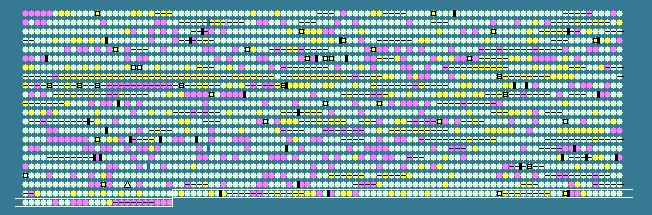

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.88 STD DEV: 3.74
Pyrococcus furiosus DSM 3638, complete genome - 1..1908256
2125 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2026	 38.17	0	1822744..1823466	-	240	18978345	-	PF1973	-	hypothetical protein
2027	 49.39	+2	1823620..1825269	+	549	18978346	-	PF1974	-	thermosome, single subunit
2028	 40.31	0	1825412..1826830	+	472	18978347	-	PF1975	-	phosphoenolpyruvate carboxylase
2029	 42.44	0	1826876..1828270	+	464	18978348	-	PF1976	-	L-aspartate oxidase
2030	 43.86	0	1828315..1829226	+	303	18978349	-	PF1977	-	quinolinate synthetase
2031	 42.84	0	1829236..1830066	+	276	18978350	-	PF1978	-	nicotinate-nucleotide pyrophosphorylase
2032	 49.45	+2	1830044..1830676	-	210	18978351	-	PF1979	-	hypothetical protein
2033	 37.54	0	1830669..1831238	-	189	18978352	-	PF1980	-	hypothetical protein
2034	 44.92	+1	1831391..1832089	-	232	18978353	-	PF1981	-	hypothetical protein
2035	 43.30	0	1832161..1832973	+	270	18978354	-	PF1982	-	hypothetical protein
2036	 42.16	0	1833103..1836093	+	996	18978355	-	PF1983	-	hypothetical protein
2037	 39.26	0	1836100..1836639	+	179	18978356	-	PF1984	-	hypothetical protein
2038	 38.69	0	1836717..1837220	+	167	18978357	-	PF1985	-	hypothetical protein
2039	 36.46	-1	1837039..1837326	+	95	33359585	-	PF1984.1n	-	hypothetical protein
2040	 36.30	-1	1837301..1837435	+	44	33359586	-	PF1984.2n	-	hypothetical protein
2041	 39.40	0	1837386..1838258	+	290	18978358	-	PF1986	-	hypothetical protein
2042	 42.27	0	1838622..1839035	+	137	18978359	-	PF1987	-	hypothetical protein
2043	 46.11	+1	1839104..1840222	+	372	18978360	-	PF1988	-	cell division protein FtsZ
2044	 42.47	0	1840279..1840464	+	61	18978361	secE	PF1989	-	preprotein translocase subunit SecE
2045	 42.48	0	1840468..1840926	+	152	18978362	nusG	PF1990	-	transcription antitermination protein NusG
2046	 46.67	+1	1840938..1841432	+	164	18978363	rpl11p	PF1991	-	50S ribosomal protein L11P
2047	 48.08	+1	1841511..1842161	+	216	18978364	rpl1P	PF1992	-	50S ribosomal protein L1P
2048	 46.18	+1	1842167..1843186	+	339	18978365	rplP0	PF1993	-	acidic ribosomal protein P0
2049	 50.93	+2	1843233..1843556	+	107	18978366	rpl12p	PF1994	-	50S ribosomal protein L12P
2050	 34.44	-1	1843661..1844203	+	180	18978367	-	PF1995	-	hypothetical protein
2051	 43.31	0	1844183..1844653	-	156	18978368	dcd	PF1996	-	deoxycytidine triphosphate deaminase
2052	 33.78	-1	1845123..1845794	+	223	18978369	-	PF1997	-	hypothetical protein
2053	 40.40	0	1845822..1846529	+	235	18978370	-	PF1998	-	hypothetical protein
2054	 44.47	0	1846588..1847934	+	448	18978371	-	PF1999	-	glycine dehydrogenase subunit 1
2055	 44.47	0	1847935..1849443	+	502	18978372	-	PF2000	-	glycine dehydrogenase subunit 2
2056	 36.76	-1	1849591..1849794	-	67	33359587	-	PF2000.1n	-	hypothetical protein
2057	 39.22	0	1849763..1850629	-	288	18978373	-	PF2001	-	hypothetical protein
2058	 42.81	0	1850643..1851971	-	442	18978374	-	PF2002	-	sucrose transport protein
2059	 39.90	0	1852111..1852872	+	253	18978375	-	PF2003	-	glycerophosphodiester phosphodiesterase
2060	 43.65	0	1852917..1854389	+	490	18978376	glpK	PF2004	-	glycerol kinase
2061	 43.80	0	1854402..1855892	+	496	18978377	-	PF2005	-	glycerol-3-phosphate dehydrogenase
2062	 44.44	0	1855885..1857126	+	413	18978378	-	PF2006	-	NADH oxidase
2063	 43.59	0	1857119..1857469	+	116	18978379	-	PF2007	-	hypothetical protein
2064	 50.40	+2	1857532..1857783	+	83	18978380	rpl37ae	PF2008	-	50S ribosomal protein L37Ae
2065	 44.00	0	1857791..1857940	+	49	18978381	-	PF2009	-	DNA-directed RNA polymerase subunit P
2066	 42.56	0	1857987..1858658	+	223	18978382	-	PF2010	-	ribosomal biogenesis protein
2067	 40.96	0	1858621..1858869	+	82	18978383	-	PF2011	-	hypothetical protein
2068	 46.52	+1	1858962..1861160	+	732	18978384	-	PF2012	-	elongation factor EF-2
2069	 38.56	0	1861224..1862027	+	267	18978385	-	PF2013	-	hypothetical protein
2070	 40.39	0	1862030..1862794	+	254	18978386	-	PF2014	-	bifunctional inositol-1 monophosphatase/fructose-1,6-bisphosphatase
2071	 41.61	0	1862800..1865094	+	764	18978387	-	PF2015	-	Hef nuclease
2072	 41.52	0	1865225..1865395	+	56	18978388	-	PF2016	-	preprotein translocase subunit SecG
2073	 37.42	0	1865392..1866051	-	219	33359588	-	PF2017	-	hypothetical protein
2074	 39.54	0	1866088..1866909	-	273	33359589	-	PF2018	-	hypothetical protein
2075	 40.65	0	1866894..1867262	-	122	18978391	-	PF2019	-	hypothetical protein
2076	 42.43	0	1867264..1868340	-	358	18978392	-	PF2020	-	replication factor A
2077	 39.86	0	1868394..1868960	-	188	18978393	-	PF2021	-	hypothetical protein
2078	 40.27	0	1868989..1869738	-	249	18978394	-	PF2022	-	hypothetical protein
2079	 43.83	0	1869772..1870419	+	215	18978395	-	PF2023	-	DNA invertase
2080	 43.94	0	1870412..1871665	+	417	18978396	-	PF2024	-	transposase
2081	 47.78	+1	1871822..1872361	-	179	18978397	-	PF2025	-	hypothetical protein
2082	 42.09	0	1872463..1872873	+	136	18978398	-	PF2026	-	putative polyferredoxin
2083	 45.45	+1	1872542..1872607	+	21	18978399	-	PF2027	-	hypothetical protein
2084	 39.20	0	1872964..1873389	+	141	18978400	-	PF2028	-	nitrogenase reductase (n-terminus)
2085	 43.96	0	1873389..1873595	+	68	18978401	-	PF2029	-	nitrogenase reductase (c-terminus)
2086	 40.92	0	1873546..1873914	+	122	18978402	-	PF2030	-	ferredoxin-family protein
2087	 42.86	0	1873880..1874278	+	132	18978403	-	PF2031	-	iron-sulfur cluster binding protein
2088	 44.44	0	1874290..1875891	-	533	18978404	-	PF2032	-	hypothetical protein
2089	 42.09	0	1876134..1877126	+	330	18978405	-	PF2033	-	hypothetical protein
2090	 38.99	0	1877092..1877781	-	229	18978406	-	PF2034	-	hypothetical protein
2091	 44.59	0	1877748..1878449	-	233	18978407	-	PF2035	-	transposase
2092	 36.73	-1	1879256..1880314	+	352	18978408	-	PF2036	-	magnesium and cobalt transporter
2093	 34.66	-1	1880348..1881100	+	250	18978409	-	PF2037	-	hypothetical protein
2094	 44.51	0	1881861..1882388	+	175	18978410	-	PF2038	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
2095	 42.13	0	1882385..1882873	-	162	18978411	-	PF2039	-	hypothetical protein
2096	 43.66	0	1882806..1883357	-	183	18978412	-	PF2040	-	hypothetical protein
2097	 40.03	0	1883422..1884018	-	198	33359590	-	PF2041	-	hypothetical protein
2098	 43.08	0	1884068..1884652	+	194	18978414	-	PF2042	-	hypothetical protein
2099	 40.53	0	1884653..1885528	-	291	18978415	-	PF2043	-	hypothetical protein
2100	 43.07	0	1885567..1886922	+	451	18978416	-	PF2044	-	glycogen synthase
2101	 40.52	0	1886959..1887417	-	152	18978417	-	PF2045	-	hypothetical protein
2102	 42.90	0	1887478..1888167	+	229	18978418	-	PF2046	-	hypothetical protein
2103	 40.06	0	1888256..1889236	+	326	18978419	-	PF2047	-	l-asparaginase
2104	 42.54	0	1889233..1889460	-	75	33359591	-	PF2047.1n	-	hypothetical protein
2105	 40.87	0	1889624..1890964	+	446	18978420	-	PF2048	-	peptidase
2106	 36.57	-1	1890953..1891168	-	71	33359592	-	PF2048.1n	-	hypothetical protein
2107	 40.25	0	1891159..1891866	-	235	18978421	-	PF2049	-	hypothetical protein
2108	 37.42	0	1891926..1892684	-	252	18978422	-	PF2050	-	hypothetical protein
2109	 33.83	-1	1892803..1893201	+	132	18978423	-	PF2051	-	transcription regulator ArsR
2110	 35.87	-1	1893179..1893454	+	91	18978424	-	PF2052	-	putative regulatory protein
2111	 34.90	-1	1893535..1893981	+	148	18978425	-	PF2053	-	AsnC family transcriptional regulator
2112	 41.21	0	1893978..1894574	-	198	18978426	-	PF2054	-	30S ribosomal protein S3Ae
2113	 38.89	0	1894574..1894825	-	83	33359593	-	PF2054.1n	-	hypothetical protein
2114	 42.05	0	1894803..1896236	-	477	18978427	-	PF2055	-	hypothetical protein
2115	 45.28	+1	1896268..1896744	-	158	18978428	rps15p	PF2056	-	30S ribosomal protein S15P
2116	 32.75	-2	1897201..1897371	-	56	18978429	-	PF2057	-	hypothetical protein
2117	 36.87	-1	1897530..1897727	-	65	18978430	-	PF2058	-	hypothetical protein
2118	 34.92	-1	1898123..1899826	-	567	18978431	-	PF2059	-	putative aminopeptidase
2119	 35.35	-1	1899840..1900433	-	197	18978432	-	PF2060	-	hypothetical protein
2120	 28.90	-2	1900616..1901224	-	202	33359594	-	PF2060.1n	-	arylsulfatase regulatory protein
2121	 36.40	-1	1901579..1902394	+	271	18978433	-	PF2061	-	putative ABC transporter
2122	 35.09	-1	1902398..1902682	+	94	18978434	-	PF2062	-	hypothetical protein
2123	 35.95	-1	1902688..1904442	-	584	18978435	-	PF2063	-	putative aminopeptidase
2124	 32.91	-2	1904500..1905918	-	472	18978436	-	PF2064	-	arylsulfatase regulatory protein, putative
2125	 34.63	-1	1906416..1908185	-	589	18978437	-	PF2065	-	putative aminopeptidase
40.88	MEAN

3.74	STD DEV
