IslandPath Analysis: Pyrococcus furiosus DSM 3638

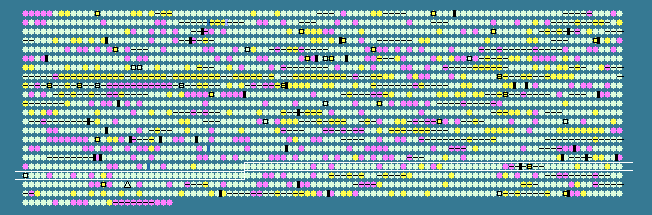

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.88 STD DEV: 3.74
Pyrococcus furiosus DSM 3638, complete genome - 1..1908256
2125 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1738	 43.73	0	1570563..1571351	+	262	18978062	-	PF1690	-	3-deoxy-7-phosphoheptulonate synthase
1739	 37.90	0	1571339..1572346	+	335	18978063	aroB	PF1691	-	3-dehydroquinate synthase
1740	 37.61	0	1572339..1572992	+	217	18978064	aroD	PF1692	-	3-dehydroquinate dehydratase
1741	 40.81	0	1572989..1573804	+	271	18978065	aroE	PF1693	-	shikimate 5-dehydrogenase
1742	 39.90	0	1573779..1574600	+	273	18978066	-	PF1694	-	shikimate kinase
1743	 43.02	0	1574650..1575846	+	398	18978067	-	PF1695	-	lipoprotein
1744	 38.51	0	1575891..1577396	+	501	18978068	-	PF1696	-	putative ABC sugar transporter
1745	 41.11	0	1577380..1578369	+	329	18978069	-	PF1697	-	putative ribose/galactose ABC transporter
1746	 42.46	0	1578362..1579270	+	302	18978070	-	PF1698	-	putative ribose ABC transporter
1747	 40.67	0	1579245..1580567	+	440	18978071	-	PF1699	-	3-phosphoshikimate 1-carboxyvinyltransferase
1748	 40.75	0	1580641..1581651	+	336	18978072	-	PF1700	-	chorismate synthase
1749	 32.90	-2	1581718..1581948	+	76	18978073	-	PF1701	-	chorismate mutase
1750	 39.11	0	1581932..1582969	+	345	18978074	-	PF1702	-	aspartate aminotransferase
1751	 39.60	0	1582954..1583400	+	148	18978075	-	PF1703	-	prephenate dehydrogenase
1752	 34.88	-1	1583405..1583728	+	107	18978076	-	PF1704	-	hypothetical protein
1753	 41.90	0	1583717..1584463	-	248	18978077	trpA	PF1705	-	tryptophan synthase subunit alpha
1754	 42.42	0	1584456..1585622	-	388	18978078	-	PF1706	-	tryptophan synthase subunit beta
1755	 39.87	0	1585609..1586235	-	208	18978079	-	PF1707	-	N-(5'-phosphoribosyl)anthranilate isomerase
1756	 41.62	0	1586235..1586801	-	188	18978080	-	PF1708	-	anthranilate synthase component II
1757	 39.57	0	1586803..1588101	-	432	18978081	-	PF1709	-	anthranilate synthase component I
1758	 39.49	0	1588083..1589057	-	324	18978082	-	PF1710	-	anthranilate phosphoribosyltransferase
1759	 39.30	0	1589057..1589743	-	228	18978083	trpC	PF1711	-	indole-3-glycerol-phosphate synthase
1760	 36.86	-1	1589900..1590580	+	226	18978084	-	PF1712	-	hypothetical protein
1761	 39.34	0	1590675..1591790	+	371	18978085	-	PF1713	-	carbamoyl phosphate synthase small subunit
1762	 40.68	0	1591787..1594957	+	1056	18978086	carB	PF1714	-	carbamoyl phosphate synthase large subunit
1763	 39.31	0	1594946..1595731	-	261	18978087	-	PF1715	-	pyrroline-5-carboxylate reductase
1764	 36.93	-1	1595798..1596214	-	138	18978088	-	PF1716	-	hypothetical protein
1765	 43.61	0	1596220..1597455	-	411	18978089	-	PF1717	-	translation initiation factor IF-2 subunit gamma
1766	 42.77	0	1597514..1598530	-	338	18978090	-	PF1718	-	tRNA-modifying enzyme
1767	 44.51	0	1598702..1599202	+	166	18978091	-	PF1719	-	intracellular protease
1768	 38.55	0	1599272..1600000	+	242	18978092	-	PF1720	-	hypothetical protein
1769	 36.73	-1	1599984..1600895	+	303	18978093	-	PF1721	-	hypothetical protein
1770	 45.10	+1	1601129..1601332	+	67	18978094	-	PF1722	-	histone a2
1771	 39.91	0	1601412..1602689	+	425	18978095	-	PF1723	-	hypothetical protein
1772	 43.94	0	1602755..1603150	+	131	18978096	-	PF1724	-	hypothetical protein
1773	 38.91	0	1603150..1604493	+	447	18978097	-	PF1725	-	DNA primase
1774	 37.66	0	1604557..1605318	-	253	18978098	-	PF1726	-	hypothetical protein
1775	 38.51	0	1605319..1605840	-	173	18978099	-	PF1727	-	hypothetical protein
1776	 37.57	0	1605924..1607009	+	361	18978100	-	PF1728	-	NDP-sugar synthase
1777	 42.16	0	1607011..1607724	+	237	33359571	-	PF1729	-	phospho-sugar mutase
1778	 39.34	0	1607740..1608372	+	210	18978102	tdk	PF1730	-	thymidylate kinase
1779	 39.71	0	1608359..1609690	+	443	18978103	-	PF1731	-	signal recognition particle protein Srp54
1780	 37.61	0	1609690..1609923	+	77	18978104	-	PF1732	-	AsnC family transcriptional regulator
1781	 34.42	-1	1609933..1610484	+	183	18978105	-	PF1733	-	hypothetical protein
1782	 34.23	-1	1610417..1610863	+	148	18978106	-	PF1734	-	AsnC family transcriptional regulator
1783	 39.08	0	1610860..1611573	-	237	18978107	-	PF1735	-	adenine phosphoribosyltransferase
1784	 38.24	0	1611840..1612247	-	135	33359572	-	PF1735.2n	-	hypothetical protein
1785	 44.53	0	1612383..1613132	+	249	18978108	-	PF1736	-	transposase
1786	 39.31	0	1613202..1613519	+	105	18978109	-	PF1737	-	hypothetical protein
1787	 42.39	0	1613503..1614441	-	312	18978110	-	PF1738	-	sugar kinase
1788	 41.54	0	1614675..1616027	+	450	18978111	-	PF1739	-	trehalose/maltose binding protein
1789	 37.47	0	1616069..1616962	+	297	18978112	-	PF1740	-	trehalose/maltose transport inner membrane protein
1790	 38.47	0	1616959..1617795	+	278	18978113	-	PF1741	-	trehalose/maltose transport inner membrane protein
1791	 40.84	0	1617800..1619038	+	412	18978114	-	PF1742	-	putative trehalose synthase
1792	 38.45	0	1619071..1620087	+	338	18978115	-	PF1743	-	hypothetical protein
1793	 48.35	+1	1620093..1621211	+	372	18978116	-	PF1744	-	trehalose/maltose transport ATP-hydrolyzing
1794	 43.51	0	1621258..1622760	+	500	18978117	-	PF1745	-	hypothetical protein
1795	 41.95	0	1622785..1624698	+	637	18978118	-	PF1746	-	hypothetical protein
1796	 40.00	0	1624649..1625638	+	329	18978119	-	PF1747	-	hypothetical protein
1797	 42.21	0	1625662..1626630	+	322	18978120	-	PF1748	-	putative sulfate transport system permease protein, ABC transporter
1798	 44.54	0	1626608..1627294	+	228	18978121	-	PF1749	-	putative sulfate transport integral membrane protein
1799	 42.41	0	1627288..1628301	+	337	18978122	-	PF1750	-	putative sugar-binding transport ATP-binding protein
1800	 42.74	0	1628290..1629363	-	357	18978123	-	PF1751	-	putative solute binding lipoprotein
1801	 44.26	0	1629292..1630206	+	304	18978124	-	PF1752	-	transposase
1802	 40.79	0	1630248..1631990	+	580	18978125	gltX	PF1753	-	glutamyl-tRNA synthetase
1803	 42.12	0	1632002..1632502	-	166	18978126	-	PF1754	-	fumarate hydratase
1804	 41.51	0	1632493..1633311	-	272	18978127	-	PF1755	-	fumarate hydratase
1805	 36.56	-1	1633325..1633510	-	61	33359573	-	PF1755.1n	-	hypothetical protein
1806	 42.61	0	1633559..1633903	+	114	18978128	-	PF1756	-	hypothetical protein
1807	 40.37	0	1633903..1634613	+	236	18978129	-	PF1757	-	hypothetical protein
1808	 40.83	0	1634603..1635562	-	319	18978130	-	PF1758	-	n-type ATP pyrophosphatase superfamily protein
1809	 37.34	0	1635746..1637191	+	481	18978131	-	PF1759	-	hypothetical protein
1810	 38.74	0	1637197..1638324	+	375	18978132	-	PF1760	-	hypothetical protein
1811	 38.73	0	1638428..1639594	+	388	18978133	-	PF1761	-	hypothetical protein
1812	 37.15	0	1639584..1640657	+	357	18978134	-	PF1762	-	hypothetical protein
1813	 42.10	0	1640658..1641821	-	387	18978135	-	PF1763	-	gtp1/obg family GTP-binding protein
1814	 44.54	0	1641930..1642607	+	225	18978136	-	PF1764	-	metal-dependent hydrolase
1815	 36.56	-1	1642596..1642874	-	92	18978137	-	PF1765	-	hypothetical protein
1816	 40.04	0	1642867..1643835	-	322	18978138	-	PF1766	-	signal recognition particle receptor
1817	 41.76	0	1644004..1644264	+	86	18978139	-	PF1767	-	2-keto acid:ferredoxin oxidoreductase subunit delta
1818	 43.32	0	1644267..1645457	+	396	18978140	-	PF1768	-	2-oxoglutarate ferredoxin oxidoreductase subunit alpha
1819	 42.87	0	1645457..1646305	+	282	18978141	-	PF1769	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
1820	 40.70	0	1646309..1646824	+	171	18978142	-	PF1770	-	2-oxoglutarate ferredoxin oxidoreductase subunit gamma
1821	 43.30	0	1646817..1647980	+	387	18978143	-	PF1771	-	2-oxoglutarate ferredoxin oxidoreductase subunit alpha
1822	 43.14	0	1647977..1648822	+	281	18978144	-	PF1772	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
1823	 40.70	0	1648819..1649361	+	180	18978145	-	PF1773	-	2-oxoglutarate ferredoxin oxidoreductase subunit gamma
1824	 40.66	0	1649441..1650532	+	363	18978146	-	PF1774	-	iron III ABC transporter, ATP-binding protein
1825	 38.60	0	1650498..1650953	-	151	18978147	-	PF1775	-	putative small multidrug export protein
1826	 39.41	0	1650968..1651543	-	191	18978148	-	PF1776	-	hypothetical protein
1827	 37.76	0	1651503..1652225	-	240	18978149	-	PF1777	-	hydrolase related to 2-haloalkanoic acid dehalogenase
1828	 44.16	0	1652268..1653551	-	427	18978150	glyA	PF1778	-	serine hydroxymethyltransferase
1829	 38.28	0	1653723..1654511	+	262	18978151	-	PF1779	-	putative ABC transporter
1830	 39.49	0	1654508..1655335	+	275	18978152	-	PF1780	-	putative ABC transporter
1831	 39.41	0	1655335..1656009	+	224	18978153	rnhB	PF1781	-	ribonuclease HII
1832	 38.39	0	1655977..1657518	-	513	18978154	-	PF1782	-	hypothetical protein
1833	 42.76	0	1657500..1658687	-	395	18978155	-	PF1783	-	molybdenum cofactor biosynthesis protein
1834	 39.12	0	1658728..1660092	-	454	18978156	-	PF1784	-	ADP-specific phosphofructokinase
1835	 41.06	0	1660205..1661227	+	340	18978157	-	PF1785	-	H/ACA RNA-protein complex component Cbf5p
1836	 40.54	0	1661230..1661562	-	110	18978158	-	PF1786	-	hypothetical protein
1837	 40.34	0	1661667..1662365	-	232	18978159	-	PF1787	-	acetyl-CoA synthetase
40.88	MEAN

3.74	STD DEV
