IslandPath Analysis: Pyrococcus furiosus DSM 3638

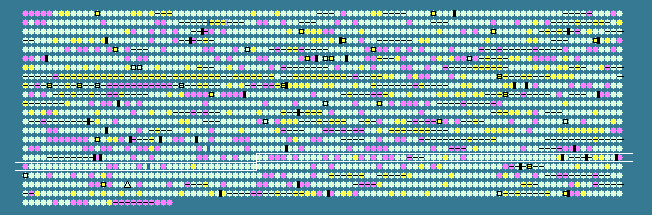

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.88 STD DEV: 3.74
Pyrococcus furiosus DSM 3638, complete genome - 1..1908256
2125 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1640	 41.01	0	1487345..1488607	-	420	18977965	-	PF1593	-	peptide chain release factor 1
1641	 38.72	0	1488674..1489546	+	290	18977966	-	PF1594	-	dolichol-phosphate mannose synthase
1642	 35.00	-1	1489560..1489919	+	119	18977967	-	PF1595	-	hypothetical protein
1643	 36.04	-1	1489965..1490333	+	122	18977968	-	PF1596	-	hypothetical protein
1644	 36.62	-1	1490339..1491130	+	263	18977969	-	PF1597	-	heat shock protein x
1645	 39.07	0	1491167..1491724	+	185	18977970	-	PF1598	-	dCMP deaminase
1646	 36.98	-1	1491721..1492515	-	264	18977971	-	PF1599	-	undecaprenyl diphosphate synthase
1647	 42.53	0	1492512..1493033	-	173	18977972	-	PF1600	-	ferripyochelin binding protein
1648	 37.56	0	1493159..1493584	-	141	18977973	-	PF1601	-	AsnC family transcriptional regulator
1649	 43.86	0	1493675..1494937	-	420	18977974	-	PF1602	-	glutamate dehydrogenase
1650	 39.49	0	1495219..1496502	-	427	18977975	-	PF1603	-	Na antiporter
1651	 36.04	-1	1496502..1496981	-	159	18977976	-	PF1604	-	hypothetical protein
1652	 38.75	0	1496972..1497211	-	79	18977977	-	PF1605	-	hypothetical protein
1653	 36.57	-1	1497260..1497907	+	215	18977978	-	PF1606	-	dolichol-phosphate mannose synthase
1654	 41.14	0	1497925..1499436	+	503	18977979	-	PF1607	-	thymidine phosphorylase
1655	 40.25	0	1499439..1499843	-	134	18977980	-	PF1608	-	hypothetical protein
1656	 46.48	+1	1500370..1501464	+	364	18977981	-	PF1609	-	hypothetical protein
1657	 34.23	-1	1501744..1501965	-	73	18977982	-	PF1610	-	hypothetical protein
1658	 42.77	0	1502177..1502971	+	264	18977983	-	PF1611	-	cell division inhibitor minD
1659	 37.40	0	1502971..1503216	+	81	18977984	-	PF1612	-	hypothetical protein
1660	 40.70	0	1503210..1503467	-	85	33359569	-	PF1612.1n	-	hypothetical protein
1661	 33.62	-1	1503510..1503863	-	117	18977985	-	PF1613	-	ribonuclease P protein component 4
1662	 37.30	0	1503856..1505319	-	487	18977986	-	PF1614	-	hypothetical protein
1663	 42.67	0	1505326..1508238	-	970	18977987	-	PF1615	-	hypothetical protein
1664	 43.75	0	1508482..1509633	+	383	18977988	-	PF1616	-	myo-inositol-1-phosphate synthase
1665	 36.99	-1	1509677..1511017	+	446	18977989	-	PF1617	-	hypothetical protein
1666	 39.73	0	1511043..1511792	+	249	18977990	-	PF1618	-	ATP-binding protein phnp
1667	 43.74	0	1511908..1512570	-	220	18977991	-	PF1619	-	hypothetical protein
1668	 40.89	0	1512589..1512879	-	96	18977992	-	PF1620	-	hypothetical protein
1669	 38.70	0	1513367..1513906	-	179	18977993	-	PF1621	-	hypothetical protein
1670	 39.31	0	1514164..1514949	+	261	18977994	-	PF1622	-	n-type ATP pyrophosphatase superfamily protein
1671	 44.44	0	1514933..1515409	-	158	18977995	-	PF1623	-	pyruvoyl-dependent arginine decarboxylase
1672	 37.50	0	1515549..1516076	+	175	18977996	-	PF1624	-	hypothetical protein
1673	 42.11	0	1516352..1516750	+	132	18977997	-	PF1625	-	hypothetical protein
1674	 34.54	-1	1516742..1517239	-	165	18977998	-	PF1626	-	hypothetical protein
1675	 41.48	0	1517263..1518969	-	568	18977999	-	PF1627	-	glycyl-tRNA synthetase
1676	 40.00	0	1519033..1520292	+	419	18978000	-	PF1628	-	molybdenum cofactor biosynthesis protein A
1677	 40.40	0	1520405..1521097	+	230	18978001	-	PF1629	-	hypothetical protein
1678	 39.11	0	1521080..1522222	-	380	18978002	-	PF1630	-	UDP-n-acetylglucosamine 2-epimerase
1679	 41.15	0	1522219..1523523	-	434	18978003	-	PF1631	-	NDP-sugar dehydrogenase
1680	 39.18	0	1523720..1524814	+	364	18978004	-	PF1632	-	hypothetical protein
1681	 39.43	0	1524746..1525303	-	185	18978005	-	PF1633	-	hypothetical protein
1682	 40.78	0	1525300..1525608	-	102	18978006	-	PF1634	-	hypothetical protein
1683	 41.22	0	1525737..1527422	+	561	18978007	-	PF1635	-	ATP-dependent DNA ligase
1684	 40.21	0	1527419..1528189	-	256	18978008	-	PF1636	-	acetylglutamate kinase, putative
1685	 41.69	0	1528186..1529190	-	334	18978009	-	PF1637	-	mevalonate kinase
1686	 43.69	0	1529201..1530079	-	292	18978010	-	PF1638	-	hypothetical protein
1687	 39.60	0	1530127..1531164	-	345	18978011	-	PF1639	-	threonine synthase
1688	 41.87	0	1531206..1531814	-	202	18978012	rps2P	PF1640	-	30S ribosomal protein S2
1689	 40.88	0	1531828..1532847	-	339	18978013	-	PF1641	-	hypothetical protein
1690	 45.98	+1	1532854..1533027	-	57	18978014	rpoK	PF1642	-	DNA-directed RNA polymerase subunit K
1691	 41.31	0	1533155..1533367	-	70	18978015	-	PF1643	-	DNA-directed RNA polymerase subunit N
1692	 43.38	0	1533412..1533819	-	135	18978016	rps9p	PF1644	-	30S ribosomal protein S9P
1693	 42.66	0	1533831..1534259	-	142	18978017	rpl13p	PF1645	-	50S ribosomal protein L13P
1694	 41.87	0	1534266..1534628	-	120	18978018	-	PF1646	-	50S ribosomal protein L18e
1695	 38.80	0	1534790..1535575	-	261	18978019	-	PF1647	-	DNA-directed RNA polymerase subunit D
1696	 47.34	+1	1535609..1536022	-	137	18978020	rps11p	PF1648	-	30S ribosomal protein S11P
1697	 44.38	0	1536019..1536561	-	180	18978021	rps4p	PF1649	-	30S ribosomal protein S4
1698	 44.30	0	1536580..1537026	-	148	18978022	rps13p	PF1650	-	30S ribosomal protein S13P
1699	 40.82	0	1537136..1537723	-	195	18978023	-	PF1651	-	hypothetical protein
1700	 35.82	-1	1537755..1538318	+	187	18978024	-	PF1652	-	hypothetical protein
1701	 35.59	-1	1538315..1538668	-	117	18978025	-	PF1653	-	hypothetical protein
1702	 38.89	0	1538770..1540515	+	581	18978026	-	PF1654	-	ABC transporter
1703	 38.23	0	1540505..1542241	+	578	18978027	-	PF1655	-	ABC transporter
1704	 39.89	0	1542238..1542801	-	187	18978028	-	PF1656	-	putative NADH oxidase
1705	 38.21	0	1543003..1543884	+	293	18978029	-	PF1657	-	histidyl-tRNA synthetase
1706	 37.89	0	1543881..1544495	+	204	18978030	hisG	PF1658	-	ATP phosphoribosyltransferase catalytic subunit
1707	 40.51	0	1544485..1545612	+	375	18978031	hisD	PF1659	-	histidinol dehydrogenase
1708	 41.43	0	1545679..1546209	+	176	18978032	hisB	PF1660	-	imidazoleglycerol-phosphate dehydratase
1709	 41.03	0	1546209..1546793	+	194	18978033	hisH	PF1661	-	imidazole glycerol phosphate synthase subunit HisH
1710	 39.83	0	1546795..1547517	+	240	18978034	-	PF1662	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
1711	 41.95	0	1547441..1548241	+	266	18978035	-	PF1663	-	imidazoleglycerol-phosphate synthase, cyclase subunit
1712	 38.29	0	1548216..1548881	+	221	18978036	-	PF1664	-	phosphoribosyl-AMP cyclohydrolase / phosphoribosyl-atp
1713	 38.05	0	1548878..1549894	+	338	18978037	-	PF1665	-	histidinol-phosphate aminotransferase
1714	 37.90	0	1549879..1550601	+	240	33359570	-	PF1666	-	hypothetical protein
1715	 32.73	-2	1550606..1550935	+	109	18978039	-	PF1667	-	partial methionyl-tRNA synthetase - matches COOH terminus
1716	 34.16	-1	1551050..1551412	+	120	18978040	-	PF1668	-	hypothetical protein
1717	 37.78	0	1551413..1553143	-	576	18978041	-	PF1669	-	hypothetical protein
1718	 44.17	0	1553191..1555155	-	654	18978042	-	PF1670	-	alkaline serine protease
1719	 38.23	0	1555433..1556290	-	285	18978043	-	PF1671	-	hypothetical protein
1720	 34.98	-1	1556349..1557017	+	222	18978044	-	PF1672	-	hypothetical protein
1721	 38.61	0	1557144..1557749	-	201	18978045	-	PF1673	-	protoporphyrinogen oxidase
1722	 37.63	0	1558032..1558520	-	162	18978046	-	PF1674	-	hypothetical protein
1723	 38.22	0	1558540..1559235	+	231	18978047	-	PF1675	-	putative aspartate racemase
1724	 34.96	-1	1559206..1559943	-	245	18978048	-	PF1676	-	biotin operon repressor/biotin--[acetyl CoA carboxylase] ligase
1725	 43.02	0	1560039..1560554	+	171	18978049	-	PF1677	-	hypothetical protein
1726	 40.14	0	1560860..1561858	+	332	161484707	-	PF1678	-	2-isopropylmalate synthase
1727	 43.04	0	1561855..1562997	+	380	18978051	-	PF1679	-	3-isopropylmalate dehydratase large subunit
1728	 39.80	0	1562994..1563488	+	164	18978052	leuD	PF1680	-	3-isopropylmalate dehydratase small subunit
1729	 49.40	+2	1563682..1563849	+	55	18978053	-	PF1681	-	hypothetical protein
1730	 39.90	0	1563887..1564708	+	273	18978054	-	PF1682	-	ribosomal protein s6 modification protein
1731	 42.30	0	1564705..1565697	+	330	18978055	argC	PF1683	-	N-acetyl-gamma-glutamyl-phosphate reductase
1732	 39.60	0	1565708..1566457	+	249	18978056	-	PF1684	-	acetylglutamate kinase
1733	 39.51	0	1566463..1567563	+	366	18978057	argD	PF1685	-	acetylornithine/acetyl-lysine aminotransferase
1734	 41.28	0	1567538..1568518	+	326	18978058	-	PF1686	-	acetyl-lysine deacetylase
1735	 40.00	0	1568672..1568986	+	104	18978059	-	PF1687	-	hypothetical protein
1736	 41.13	0	1568979..1569632	+	217	18978060	-	PF1688	-	transketolase N-terminal section
1737	 41.88	0	1569629..1570552	+	307	18978061	-	PF1689	-	transketolase C-terminal section
1738	 43.73	0	1570563..1571351	+	262	18978062	-	PF1690	-	3-deoxy-7-phosphoheptulonate synthase
1739	 37.90	0	1571339..1572346	+	335	18978063	aroB	PF1691	-	3-dehydroquinate synthase
40.88	MEAN

3.74	STD DEV
