IslandPath Analysis: Pyrococcus furiosus DSM 3638

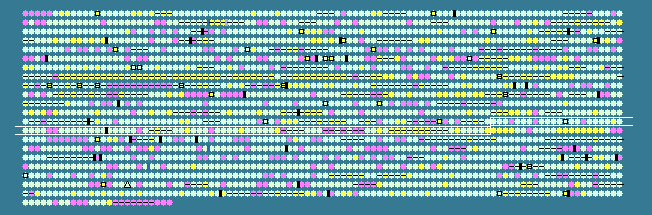

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 40.88   STD DEV: 3.74
Pyrococcus furiosus DSM 3638, complete genome - 1..1908256
2125 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1279	 39.37	0	1170548..1170928	+	126	18977608	-	PF1236	-	hypothetical protein
1280	 37.82	0	1170990..1171346	+	118	18977609	-	PF1237	-	hypothetical protein
1281	 39.60	0	1171391..1173289	+	632	18977610	-	PF1238	-	putative ABC transporter
1282	 36.82	-1	1173286..1173744	-	152	18977611	-	PF1239	-	hypothetical protein
1283	 43.77	0	1173816..1175099	+	427	18977612	-	PF1240	-	putative purine permease
1284	 40.49	0	1175104..1175802	+	232	18977613	upp	PF1241	-	uracil phosphoribosyltransferase
1285	 39.67	0	1175771..1177696	-	641	18977614	-	PF1242	-	dehydrogenase subunit alpha
1286	 33.68	-1	1177712..1177999	-	95	18977615	-	PF1243	-	hypothetical protein
1287	 38.01	0	1178002..1178322	-	106	18977616	-	PF1244	-	hypothetical protein
1288	 41.92	0	1178445..1179923	+	492	18977617	-	PF1245	-	d-nopaline dehydrogenase
1289	 40.64	0	1179929..1181077	+	382	18977618	-	PF1246	-	sarcosine oxidase, subunit beta
1290	 37.64	0	1181229..1182179	+	316	18977619	-	PF1247	-	hypothetical protein
1291	 44.15	0	1182150..1183021	-	290	33359553	-	PF1248	-	transposase
1292	 42.48	0	1182566..1183024	-	152	33359554	-	PF1247.1n	-	hypothetical protein
1293	 37.43	0	1183142..1184068	+	308	18977621	-	PF1249	-	putative ABC transporter
1294	 35.91	-1	1184065..1184685	+	206	18977622	-	PF1250	-	hypothetical protein
1295	 40.45	0	1185029..1186264	+	411	18977623	-	PF1251	-	hypothetical protein
1296	 39.29	0	1186268..1187257	+	329	18977624	-	PF1252	-	hypothetical protein
1297	 42.05	0	1187250..1188419	-	389	18977625	-	PF1253	-	aspartate aminotransferase
1298	 43.06	0	1188413..1190149	+	578	18977626	-	PF1254	-	putative sodium dependent transporter
1299	 44.44	0	1190160..1190258	+	32	18977627	-	PF1255	-	hypothetical protein
1300	 38.50	0	1190306..1191040	+	244	18977628	-	PF1256	-	hypothetical protein
1301	 40.51	0	1191037..1191969	-	310	18977629	-	PF1257	-	nol1-nop2-sun family nucleolar protein III
1302	 40.29	0	1191971..1192660	-	229	18977630	-	PF1258	-	ribose-5-phosphate isomerase A
1303	 38.01	0	1192664..1192984	-	106	18977631	-	PF1259	-	hypothetical protein
1304	 38.03	0	1193034..1193948	-	304	18977632	-	PF1260	-	hypothetical protein
1305	 35.60	-1	1193950..1194522	-	190	18977633	-	PF1261	-	hypothetical protein
1306	 35.73	-1	1194449..1195240	+	263	18977634	-	PF1262	-	ribosome biogenesis protein
1307	 37.41	0	1195302..1196675	+	457	18977635	-	PF1263	-	hypothetical protein
1308	 39.81	0	1196737..1197153	+	138	18977636	-	PF1264	-	translation initiation factor IF-5A
1309	 38.06	0	1197174..1198526	-	450	18977637	-	PF1265	-	nol1-nop2-sun family nucleolar protein II
1310	 40.51	0	1198668..1199768	+	366	18977638	-	PF1266	-	cystathionine gamma-synthase
1311	 40.71	0	1199777..1200793	+	338	18977639	-	PF1267	-	hypothetical protein
1312	 40.22	0	1200806..1201735	+	309	18977640	-	PF1268	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
1313	 39.43	0	1201737..1202753	+	338	18977641	-	PF1269	-	methionine synthase
1314	 37.44	0	1202750..1203649	-	299	33359555	-	PF1270	-	hypothetical protein
1315	 38.46	0	1203884..1204195	-	103	18977643	-	PF1271	-	hypothetical protein
1316	 41.54	0	1204579..1205346	+	255	18977644	-	PF1272	-	hypothetical protein
1317	 40.94	0	1205343..1206026	+	227	18977645	-	PF1273	-	hypothetical protein
1318	 43.13	0	1206019..1207008	+	329	18977646	-	PF1274	-	urea amidolyase
1319	 44.01	0	1207044..1207352	+	102	18977647	-	PF1275	-	hypothetical protein
1320	 36.88	-1	1207349..1207630	-	93	18977648	-	PF1276	-	hypothetical protein
1321	 41.05	0	1207631..1208395	-	254	18977649	-	PF1277	-	hypothetical protein
1322	 40.00	0	1208389..1208733	-	114	18977650	-	PF1278	-	hypothetical protein
1323	 45.42	+1	1208774..1209319	-	181	18977651	rpl10e	PF1279	-	50S ribosomal protein L10e
1324	 43.43	0	1209542..1209937	+	131	18977652	-	PF1280	-	hypothetical protein
1325	 44.00	0	1210188..1210562	-	124	18977653	-	PF1281	-	superoxide reductase
1326	 40.61	0	1210573..1210737	-	54	18977654	-	PF1282	-	rubredoxin
1327	 42.05	0	1210814..1211329	-	171	18977655	-	PF1283	-	rubrerythrin
1328	 46.15	+1	1211434..1211628	-	64	33359556	-	PF1284	-	hypothetical protein
1329	 38.74	0	1211743..1212834	-	363	18977657	-	PF1285	-	hypothetical protein
1330	 38.10	0	1212834..1214261	-	475	18977658	-	PF1286	-	hypothetical protein
1331	 37.84	0	1214251..1214982	-	243	18977659	-	PF1287	-	putative ABC transporter
1332	 35.71	-1	1215072..1216163	-	363	18977660	-	PF1288	-	putative thiamin biosynthesis protein thiI
1333	 38.73	0	1216166..1217128	-	320	18977661	-	PF1289	-	molybdopterin biosynthesis protein moeb
1334	 39.30	0	1217218..1217787	+	189	18977662	-	PF1290	-	hypothetical protein
1335	 42.82	0	1217850..1218608	+	252	18977663	-	PF1291	-	hypothetical protein
1336	 38.52	0	1218577..1219869	-	430	18977664	-	PF1292	-	hypothetical protein
1337	 45.07	+1	1219937..1221376	+	479	18977665	-	PF1293	-	prolyl-tRNA synthetase
1338	 41.35	0	1221392..1221952	+	186	18977666	-	PF1294	-	hypothetical protein
1339	 44.10	0	1222001..1222576	+	191	18977667	-	PF1295	-	transcription factor
1340	 41.82	0	1222581..1223405	+	274	18977668	-	PF1296	-	dihydropteroate synthase
1341	 42.55	0	1223395..1223817	-	140	18977669	-	PF1297	-	hypothetical protein
1342	 40.39	0	1223841..1224350	-	169	18977670	-	PF1298	-	putative endonuclease
1343	 45.30	+1	1224347..1224973	-	208	18977671	-	PF1299	-	pyrrolidone-carboxylate peptidase
1344	 37.25	0	1224970..1225224	-	84	18977672	-	PF1300	-	hypothetical protein
1345	 39.30	0	1225224..1225910	-	228	18977673	-	PF1301	-	hypothetical protein
1346	 42.79	0	1226160..1226603	-	147	18977674	-	PF1302	-	hypothetical protein
1347	 39.55	0	1226636..1227343	-	235	18977675	-	PF1303	-	hypothetical protein
1348	 38.16	0	1227353..1229839	-	828	18977676	-	PF1304	-	hypothetical protein
1349	 39.66	0	1229839..1232004	-	721	18977677	-	PF1305	-	hypothetical protein
1350	 39.52	0	1232001..1233455	-	484	18977678	-	PF1306	-	hypothetical protein
1351	 34.76	-1	1233501..1233920	-	139	18977679	-	PF1307	-	hypothetical protein
1352	 34.31	-1	1234037..1234240	+	67	18977680	-	PF1308	-	hypothetical protein
1353	 39.26	0	1234974..1235243	-	89	33359557	-	PF1308.2n	-	hypothetical protein
1354	 35.97	-1	1235031..1235333	+	100	18977681	-	PF1309	-	hypothetical protein
1355	 39.70	0	1235314..1236804	+	496	18977682	-	PF1310	-	hypothetical protein
1356	 35.33	-1	1237035..1237334	+	99	18977683	-	PF1311	-	hypothetical protein
1357	 37.29	0	1237357..1238064	+	235	18977684	-	PF1312	-	hypothetical protein
1358	 39.76	0	1238066..1238719	+	217	18977685	-	PF1313	-	DNA processing SMF protein
1359	 39.25	0	1238924..1239481	+	185	18977686	-	PF1314	-	hypothetical protein
1360	 44.90	+1	1239503..1239796	+	97	33359558	-	PF1315	-	hypothetical protein
1361	 38.29	0	1239812..1241182	+	456	18977688	-	PF1316	-	hypothetical protein
1362	 46.79	+1	1241194..1241661	+	155	18977689	-	PF1317	-	hypothetical protein
1363	 45.64	+1	1241714..1242160	+	148	18977690	-	PF1318	-	hypothetical protein
1364	 46.49	+1	1242157..1242270	+	37	18977691	-	PF1319	-	hypothetical protein
1365	 41.46	0	1242317..1242439	+	40	18977692	-	PF1320	-	hypothetical protein
1366	 49.21	+2	1242500..1242688	+	62	33359559	-	PF1320.1n	-	hypothetical protein
1367	 44.63	+1	1242886..1244292	+	468	18977693	-	PF1321	-	DEXX-box atpase
1368	 45.02	+1	1244575..1244805	+	76	18977694	-	PF1322	-	hypothetical protein
1369	 44.30	0	1244802..1245029	+	75	18977695	-	PF1323	-	hypothetical protein
1370	 40.17	0	1245494..1245976	+	160	18977696	-	PF1324	-	hypothetical protein
1371	 41.87	0	1245982..1247070	+	362	18977697	-	PF1325	-	hypothetical protein
1372	 37.92	0	1247067..1247567	-	166	18977698	-	PF1326	-	hypothetical protein
1373	 44.98	+1	1247601..1249025	-	474	18977699	-	PF1327	-	putative oxidoreductase
1374	 42.41	0	1249026..1249862	-	278	18977700	-	PF1328	-	ferredoxin--NADP(+) reductase subunit alpha
1375	 43.38	0	1250021..1251025	+	334	18977701	-	PF1329	-	H-II hydrogenase subunit beta
1376	 43.48	0	1251022..1251888	+	288	18977702	-	PF1330	-	cytochrome-c3 hydrogenase subunit gamma
1377	 43.28	0	1251888..1252601	+	237	18977703	-	PF1331	-	H-II delta (hydrogenase subunit delta)
1378	 44.79	+1	1252604..1253842	+	412	18977704	-	PF1332	-	H-II alpha (hydrogenase subunit alpha)
40.88	MEAN

3.74	STD DEV
