IslandPath Analysis: Pyrococcus furiosus DSM 3638

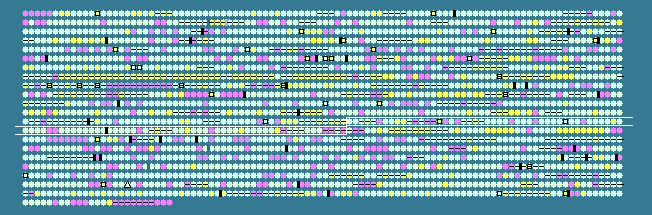

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 40.88   STD DEV: 3.74
Pyrococcus furiosus DSM 3638, complete genome - 1..1908256
2125 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1255	 44.18	0	1155668..1156165	-	165	18977586	nusA	PF1214	-	transcription elongation factor NusA-like protein
1256	 37.65	0	1156504..1156758	-	84	33359550	-	PF1214.2n	-	hypothetical protein
1257	 43.97	0	1156775..1156915	-	46	18977587	-	PF1215	-	hypothetical protein
1258	 46.67	+1	1157046..1157195	-	49	18977588	-	PF1216	-	hypothetical protein
1259	 40.97	0	1157412..1157555	-	47	18977589	-	PF1217	-	hypothetical protein
1260	 35.59	-1	1157583..1157759	+	58	18977590	-	PF1218	-	hypothetical protein
1261	 42.59	0	1158091..1158468	+	125	18977591	-	PF1219	-	hypothetical protein
1262	 41.53	0	1158419..1158601	-	60	33359551	-	PF1218.1n	-	hypothetical protein
1263	 44.44	0	1158674..1158880	-	68	18977592	-	PF1220	-	sulfate adenylyltransferase
1264	 44.74	+1	1158892..1159671	-	259	18977593	-	PF1221	-	dissimilatory sulfate adenylyltransferase
1265	 38.14	0	1159693..1160004	+	103	18977594	-	PF1222	-	hypothetical protein
1266	 36.56	-1	1159977..1160348	+	123	18977595	-	PF1223	-	hypothetical protein
1267	 37.50	0	1160968..1161111	-	47	18977596	-	PF1224	-	hypothetical protein
1268	 35.07	-1	1161130..1161417	-	95	18977597	-	PF1225	-	hypothetical protein
1269	 35.77	-1	1161426..1161548	-	40	33359552	-	PF1226	-	hypothetical protein
1270	 45.78	+1	1162126..1162350	+	74	18977599	-	PF1227	-	transposase
1271	 36.94	-1	1162413..1162994	+	193	18977600	-	PF1228	-	hypothetical protein
1272	 38.94	0	1162991..1163668	-	225	18977601	-	PF1229	-	glycosylase
1273	 35.10	-1	1163631..1164083	-	150	18977602	-	PF1230	-	putative atpase
1274	 37.58	0	1164067..1164513	-	148	18977603	-	PF1231	-	AsnC family transcriptional regulator
1275	 40.24	0	1164636..1165967	+	443	18977604	-	PF1232	-	4-aminobutyrate aminotransferase
1276	 44.38	0	1166614..1168767	-	717	18977605	-	PF1233	-	putative chitinase
1277	 40.94	0	1168805..1169842	-	345	18977606	-	PF1234	-	putative chitinase
1278	 41.67	0	1170171..1170542	+	123	18977607	ccrB	PF1235	-	camphor resistance protein CrcB
1279	 39.37	0	1170548..1170928	+	126	18977608	-	PF1236	-	hypothetical protein
1280	 37.82	0	1170990..1171346	+	118	18977609	-	PF1237	-	hypothetical protein
1281	 39.60	0	1171391..1173289	+	632	18977610	-	PF1238	-	putative ABC transporter
1282	 36.82	-1	1173286..1173744	-	152	18977611	-	PF1239	-	hypothetical protein
1283	 43.77	0	1173816..1175099	+	427	18977612	-	PF1240	-	putative purine permease
1284	 40.49	0	1175104..1175802	+	232	18977613	upp	PF1241	-	uracil phosphoribosyltransferase
1285	 39.67	0	1175771..1177696	-	641	18977614	-	PF1242	-	dehydrogenase subunit alpha
1286	 33.68	-1	1177712..1177999	-	95	18977615	-	PF1243	-	hypothetical protein
1287	 38.01	0	1178002..1178322	-	106	18977616	-	PF1244	-	hypothetical protein
1288	 41.92	0	1178445..1179923	+	492	18977617	-	PF1245	-	d-nopaline dehydrogenase
1289	 40.64	0	1179929..1181077	+	382	18977618	-	PF1246	-	sarcosine oxidase, subunit beta
1290	 37.64	0	1181229..1182179	+	316	18977619	-	PF1247	-	hypothetical protein
1291	 44.15	0	1182150..1183021	-	290	33359553	-	PF1248	-	transposase
1292	 42.48	0	1182566..1183024	-	152	33359554	-	PF1247.1n	-	hypothetical protein
1293	 37.43	0	1183142..1184068	+	308	18977621	-	PF1249	-	putative ABC transporter
1294	 35.91	-1	1184065..1184685	+	206	18977622	-	PF1250	-	hypothetical protein
1295	 40.45	0	1185029..1186264	+	411	18977623	-	PF1251	-	hypothetical protein
1296	 39.29	0	1186268..1187257	+	329	18977624	-	PF1252	-	hypothetical protein
1297	 42.05	0	1187250..1188419	-	389	18977625	-	PF1253	-	aspartate aminotransferase
1298	 43.06	0	1188413..1190149	+	578	18977626	-	PF1254	-	putative sodium dependent transporter
1299	 44.44	0	1190160..1190258	+	32	18977627	-	PF1255	-	hypothetical protein
1300	 38.50	0	1190306..1191040	+	244	18977628	-	PF1256	-	hypothetical protein
1301	 40.51	0	1191037..1191969	-	310	18977629	-	PF1257	-	nol1-nop2-sun family nucleolar protein III
1302	 40.29	0	1191971..1192660	-	229	18977630	-	PF1258	-	ribose-5-phosphate isomerase A
1303	 38.01	0	1192664..1192984	-	106	18977631	-	PF1259	-	hypothetical protein
1304	 38.03	0	1193034..1193948	-	304	18977632	-	PF1260	-	hypothetical protein
1305	 35.60	-1	1193950..1194522	-	190	18977633	-	PF1261	-	hypothetical protein
1306	 35.73	-1	1194449..1195240	+	263	18977634	-	PF1262	-	ribosome biogenesis protein
1307	 37.41	0	1195302..1196675	+	457	18977635	-	PF1263	-	hypothetical protein
1308	 39.81	0	1196737..1197153	+	138	18977636	-	PF1264	-	translation initiation factor IF-5A
1309	 38.06	0	1197174..1198526	-	450	18977637	-	PF1265	-	nol1-nop2-sun family nucleolar protein II
1310	 40.51	0	1198668..1199768	+	366	18977638	-	PF1266	-	cystathionine gamma-synthase
1311	 40.71	0	1199777..1200793	+	338	18977639	-	PF1267	-	hypothetical protein
1312	 40.22	0	1200806..1201735	+	309	18977640	-	PF1268	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
1313	 39.43	0	1201737..1202753	+	338	18977641	-	PF1269	-	methionine synthase
1314	 37.44	0	1202750..1203649	-	299	33359555	-	PF1270	-	hypothetical protein
1315	 38.46	0	1203884..1204195	-	103	18977643	-	PF1271	-	hypothetical protein
1316	 41.54	0	1204579..1205346	+	255	18977644	-	PF1272	-	hypothetical protein
1317	 40.94	0	1205343..1206026	+	227	18977645	-	PF1273	-	hypothetical protein
1318	 43.13	0	1206019..1207008	+	329	18977646	-	PF1274	-	urea amidolyase
1319	 44.01	0	1207044..1207352	+	102	18977647	-	PF1275	-	hypothetical protein
1320	 36.88	-1	1207349..1207630	-	93	18977648	-	PF1276	-	hypothetical protein
1321	 41.05	0	1207631..1208395	-	254	18977649	-	PF1277	-	hypothetical protein
1322	 40.00	0	1208389..1208733	-	114	18977650	-	PF1278	-	hypothetical protein
1323	 45.42	+1	1208774..1209319	-	181	18977651	rpl10e	PF1279	-	50S ribosomal protein L10e
1324	 43.43	0	1209542..1209937	+	131	18977652	-	PF1280	-	hypothetical protein
1325	 44.00	0	1210188..1210562	-	124	18977653	-	PF1281	-	superoxide reductase
1326	 40.61	0	1210573..1210737	-	54	18977654	-	PF1282	-	rubredoxin
1327	 42.05	0	1210814..1211329	-	171	18977655	-	PF1283	-	rubrerythrin
1328	 46.15	+1	1211434..1211628	-	64	33359556	-	PF1284	-	hypothetical protein
1329	 38.74	0	1211743..1212834	-	363	18977657	-	PF1285	-	hypothetical protein
1330	 38.10	0	1212834..1214261	-	475	18977658	-	PF1286	-	hypothetical protein
1331	 37.84	0	1214251..1214982	-	243	18977659	-	PF1287	-	putative ABC transporter
1332	 35.71	-1	1215072..1216163	-	363	18977660	-	PF1288	-	putative thiamin biosynthesis protein thiI
1333	 38.73	0	1216166..1217128	-	320	18977661	-	PF1289	-	molybdopterin biosynthesis protein moeb
1334	 39.30	0	1217218..1217787	+	189	18977662	-	PF1290	-	hypothetical protein
1335	 42.82	0	1217850..1218608	+	252	18977663	-	PF1291	-	hypothetical protein
1336	 38.52	0	1218577..1219869	-	430	18977664	-	PF1292	-	hypothetical protein
1337	 45.07	+1	1219937..1221376	+	479	18977665	-	PF1293	-	prolyl-tRNA synthetase
1338	 41.35	0	1221392..1221952	+	186	18977666	-	PF1294	-	hypothetical protein
1339	 44.10	0	1222001..1222576	+	191	18977667	-	PF1295	-	transcription factor
1340	 41.82	0	1222581..1223405	+	274	18977668	-	PF1296	-	dihydropteroate synthase
1341	 42.55	0	1223395..1223817	-	140	18977669	-	PF1297	-	hypothetical protein
1342	 40.39	0	1223841..1224350	-	169	18977670	-	PF1298	-	putative endonuclease
1343	 45.30	+1	1224347..1224973	-	208	18977671	-	PF1299	-	pyrrolidone-carboxylate peptidase
1344	 37.25	0	1224970..1225224	-	84	18977672	-	PF1300	-	hypothetical protein
1345	 39.30	0	1225224..1225910	-	228	18977673	-	PF1301	-	hypothetical protein
1346	 42.79	0	1226160..1226603	-	147	18977674	-	PF1302	-	hypothetical protein
1347	 39.55	0	1226636..1227343	-	235	18977675	-	PF1303	-	hypothetical protein
1348	 38.16	0	1227353..1229839	-	828	18977676	-	PF1304	-	hypothetical protein
1349	 39.66	0	1229839..1232004	-	721	18977677	-	PF1305	-	hypothetical protein
1350	 39.52	0	1232001..1233455	-	484	18977678	-	PF1306	-	hypothetical protein
1351	 34.76	-1	1233501..1233920	-	139	18977679	-	PF1307	-	hypothetical protein
1352	 34.31	-1	1234037..1234240	+	67	18977680	-	PF1308	-	hypothetical protein
1353	 39.26	0	1234974..1235243	-	89	33359557	-	PF1308.2n	-	hypothetical protein
1354	 35.97	-1	1235031..1235333	+	100	18977681	-	PF1309	-	hypothetical protein
40.88	MEAN

3.74	STD DEV
