IslandPath Analysis: Pyrococcus furiosus DSM 3638

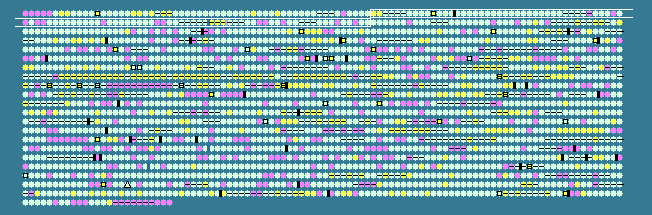

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.88 STD DEV: 3.74
Pyrococcus furiosus DSM 3638, complete genome - 1..1908256
2125 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
59	 46.05	+1	65527..66210	-	227	18976431	-	PF0059	-	fibrillarin
60	 45.16	+1	66216..67424	-	402	18976432	-	PF0060	-	NOP5/NOP56 related protein
61	 41.67	0	67490..68041	-	183	18976433	-	PF0061	-	riboflavin synthase subunit alpha
62	 40.75	0	68034..69098	-	354	18976434	-	PF0062	-	riboflavin-specific deaminase
63	 42.19	0	69088..69561	-	157	18976435	-	PF0063	-	6,7-dimethyl-8-ribityllumazine synthase
64	 41.35	0	69558..70730	-	390	18976436	-	PF0064	-	bifunctional 3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II protein
65	 40.44	0	70838..71470	+	210	18976437	-	PF0065	-	hypothetical protein
66	 37.78	0	71424..71558	-	44	18976438	-	PF0066	-	hypothetical protein
67	 38.89	0	71671..72156	-	161	18976439	-	PF0067	-	cobalt transport ABC transporter, integral membrane component
68	 41.38	0	72153..72935	-	260	18976440	-	PF0068	-	cobalt transport ATP-binding protein
69	 44.59	0	72993..73694	-	233	18976441	-	PF0069	-	transposase
70	 40.64	0	73872..74774	+	300	18976442	-	PF0070	-	hypothetical protein
71	 43.14	0	74780..76492	+	570	18976443	-	PF0071	-	hypothetical protein
72	 39.28	0	76489..77631	-	380	18976444	-	PF0072	-	hypothetical protein
73	 43.27	0	78019..79437	-	472	18976445	-	PF0073	-	beta-glucosidase
74	 43.65	0	79562..80317	+	251	18976446	-	PF0074	-	alcohol dehydrogenase, short chain
75	 43.14	0	80328..81500	+	390	18976447	-	PF0075	-	alcohol dehydrogenase
76	 40.83	0	81513..82406	+	297	18976448	-	PF0076	-	endo-beta-1,3-glucanase
77	 42.80	0	82448..83155	+	235	18976449	-	PF0077	-	biotin--protein ligase
78	 38.50	0	83138..84046	-	302	18976450	-	PF0078	-	2-phosphoglycerate kinase
79	 40.43	0	84030..85325	-	431	18976451	-	PF0079	-	cyclic 2,3-diphospoglycerate-synthetase
80	 39.50	0	85449..86486	+	345	18976452	-	PF0080	-	hypothetical protein
81	 40.53	0	86517..87308	+	263	18976453	-	PF0081	-	sulfate/thiosulfate transport-like protein
82	 42.71	0	87301..88335	+	344	18976454	-	PF0082	-	membrane protein
83	 42.57	0	88332..88883	-	183	161484714	-	PF0083	-	RNA 2'-phosphotransferase-like protein
84	 40.65	0	88867..88989	-	40	18976456	-	PF0084	-	hypothetical protein
85	 39.09	0	89099..92935	-	1278	18976457	-	PF0085	-	putative DNA helicase
86	 43.26	0	92940..93584	-	214	18976458	-	PF0086	-	partial alanyl-tRNA synthetase matches COOH terminus
87	 39.51	0	93646..94050	+	134	18976459	-	PF0087	-	inosine-5'-monophosphate dehydrogenase related protein IV
88	 39.71	0	94057..95562	+	501	18976460	-	PF0088	-	icc related protein
89	 40.02	0	95567..96568	+	333	18976461	-	PF0089	-	met-10+ protein
90	 39.72	0	96627..97550	+	307	18976462	moaA	PF0090	-	molybdenum cofactor biosynthesis protein A
91	 38.20	0	97598..98419	+	273	18976463	-	PF0091	-	hypothetical protein
92	 41.88	0	98420..99859	-	479	18976464	-	PF0092	-	replication factor C large subunit
93	 41.15	0	99866..102424	-	852	18976465	-	PF0093	-	replication factor C small subunit
94	 41.70	0	102519..103199	-	226	18976466	-	PF0094	-	glutaredoxin-like protein
95	 35.88	-1	103323..104030	+	235	33359448	-	PF0095	-	hypothetical protein
96	 42.80	0	103966..104208	+	80	18976468	-	PF0096	-	hypothetical protein
97	 41.37	0	104205..105386	+	393	18976469	-	PF0097	-	43 kDa subunit bacteriochlorophyll synthase-like protein
98	 39.53	0	105370..106143	-	257	18976470	nadE	PF0098	-	NAD synthetase
99	 36.17	-1	106140..107090	-	316	18976471	-	PF0099	-	hypothetical protein
100	 39.73	0	107145..107582	+	145	18976472	-	PF0100	-	molybdopterin converting factor subunit 2
101	 36.48	-1	107607..108590	+	327	18976473	-	PF0101	-	hypothetical protein
102	 37.48	0	108722..109468	+	248	18976474	-	PF0102	-	hypothetical protein
103	 34.98	-1	109478..109963	+	161	18976475	-	PF0103	-	hypothetical protein
104	 35.67	-1	109944..110243	+	99	18976476	-	PF0104	-	hypothetical protein
105	 38.18	0	110283..111437	+	384	18976477	-	PF0105	-	hypothetical protein
106	 39.75	0	111416..112537	+	373	18976478	-	PF0106	-	hypothetical protein
107	 42.01	0	112570..113157	+	195	18976479	-	PF0107	-	hypothetical protein
108	 43.51	0	113144..113713	+	189	18976480	-	PF0108	-	L-fuculose phosphate aldolase
109	 38.18	0	114043..114888	-	281	18976481	-	PF0109	-	hypothetical protein
110	 40.71	0	114881..115924	-	347	18976482	-	PF0110	-	DNA primase small subunit
111	 39.15	0	115875..117128	-	417	33359449	-	PF0111	-	DNA primase large subunit
112	 38.12	0	117115..118179	+	354	18976484	-	PF0112	-	hypothetical protein
113	 39.32	0	118242..118709	+	155	18976485	-	PF0113	-	hypothetical protein
114	 37.17	0	118681..119253	-	190	18976486	-	PF0114	-	GTP-binding protein
115	 41.65	0	119316..120506	-	396	18976487	-	PF0115	-	proteasome-activating nucleotidase
116	 39.91	0	120590..121684	-	364	18976488	-	PF0116	-	putative multiple sugar transport protein
117	 39.89	0	121696..122565	-	289	18976489	-	PF0117	-	putative sugar transport protein
118	 37.45	0	122562..123509	-	315	18976490	-	PF0118	-	putative ABC transporter permease protein
119	 42.31	0	123510..125135	-	541	18976491	-	PF0119	-	putative perplasmic sugar binding protein
120	 41.16	0	125631..126665	+	344	18976492	-	PF0120	-	hypothetical protein
121	 40.98	0	126676..127917	-	413	18976493	-	PF0121	-	putative aspartate aminotransferase
122	 38.82	0	128228..129193	-	321	18976494	-	PF0122	-	translation initiation factor IF-2B subunit delta
123	 37.34	0	129190..129588	-	132	18976495	-	PF0123	-	hypothetical protein
124	 36.65	-1	129706..130731	+	341	18976496	-	PF0124	-	hypothetical protein
125	 39.74	0	130715..130948	-	77	18976497	-	PF0125	-	hypothetical protein
126	 37.98	0	131060..132394	+	444	18976498	-	PF0126	-	DNA repair protein rad25
127	 39.48	0	132382..133227	-	281	18976499	speE	PF0127	-	spermidine synthase
128	 38.00	0	133314..134513	+	399	18976500	-	PF0128	-	hypothetical protein
129	 40.94	0	134510..135022	+	170	18976501	-	PF0129	-	hypothetical protein
130	 39.51	0	135009..135623	-	204	33359450	-	PF0130	-	hypothetical protein
131	 37.57	0	135637..136581	+	314	18976503	-	PF0131	-	hypothetical protein
132	 64.85	+2	138821..139534	-	237	33359451	-	PF0131.1n	-	hypothetical protein
133	 64.66	+2	140179..140877	-	232	33359452	-	PF0131.2n	-	hypothetical protein
134	 61.58	+2	141213..141389	+	58	33359453	-	PF0131.3n	-	hypothetical protein
135	 44.01	0	141849..143318	+	489	33359454	-	PF0132	-	hypothetical protein
136	 41.84	0	143315..143890	+	191	33359455	-	PF0133	-	hypothetical protein
137	 41.71	0	143884..144492	-	202	18976506	-	PF0134	-	hypothetical protein
138	 42.56	0	144607..146178	+	523	18976507	lysK	PF0135	-	lysyl-tRNA synthetase
139	 39.98	0	146184..147086	+	300	18976508	-	PF0136	-	hypothetical protein
140	 36.97	-1	147057..147743	-	228	18976509	-	PF0137	-	putative methyltransferase
141	 36.63	-1	147810..148781	+	323	18976510	-	PF0138	-	hypothetical protein
142	 41.67	0	148852..149451	+	199	18976511	-	PF0139	-	indolepyruvate oxidoreductase subunit B
143	 39.43	0	149426..150589	-	387	18976512	-	PF0140	-	putative sugar transporter protein
144	 35.95	-1	150678..151595	+	305	18976513	-	PF0141	-	hypothetical protein
145	 43.65	0	151648..152568	+	306	18976514	-	PF0142	-	asparaginase
146	 40.72	0	152568..153731	+	387	18976515	-	PF0143	-	quinolone resistance protein norA - like protein
147	 40.75	0	153721..154650	+	309	18976516	-	PF0144	-	hypothetical protein
148	 39.84	0	154652..155266	+	204	18976517	-	PF0145	-	hypothetical protein
149	 39.59	0	155263..155853	-	196	18976518	-	PF0146	-	potassium channel, putative
150	 38.35	0	155840..156457	-	205	18976519	-	PF0147	-	potassium channel related protein
151	 38.74	0	156649..157221	-	190	18976520	-	PF0148	-	hypothetical protein
152	 41.67	0	157236..158027	-	263	18976521	-	PF0149	-	short chain dehydrogenase
153	 36.91	-1	158092..158706	+	204	18976522	-	PF0150	-	hypothetical protein
154	 38.26	0	158703..159494	+	263	18976523	-	PF0151	-	hypothetical protein
155	 40.91	0	159491..160150	-	219	18976524	-	PF0152	-	hypothetical protein
156	 36.88	-1	160186..160890	-	234	18976525	-	PF0153	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
157	 40.59	0	160961..162310	+	449	18976526	-	PF0154	-	amidophosphoribosyltransferase
158	 43.46	0	162480..163793	-	437	18976527	asnC	PF0155	-	asparaginyl-tRNA synthetase
40.88	MEAN

3.74	STD DEV
