IslandPath Analysis: Pyrobaculum arsenaticum DSM 13514

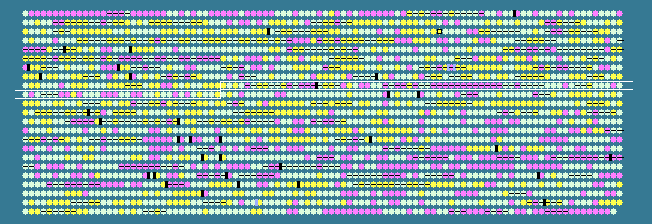

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.13 STD DEV: 5.40
Pyrobaculum arsenaticum DSM 13514, complete genome - 1..2121076
2299 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
834	 60.91	+1	768532..768861	-	109	145591100	-	Pars_0865	-	cupin 2 domain-containing protein
835	 54.61	0	768858..769139	-	93	145591101	-	Pars_0866	-	putative regulatory protein
836	 63.62	+1	769199..770215	+	338	145591102	-	Pars_0867	-	N-acetyl-ornithine/N-acetyl-lysine deacetylase
837	 54.05	0	770243..771478	+	411	145591103	-	Pars_0868	-	hypothetical protein
838	 48.96	-1	771475..771762	+	95	145591104	-	Pars_0869	-	hypothetical protein
839	 53.28	0	771863..772228	+	121	145591105	-	Pars_0870	-	hypothetical protein
840	 59.84	0	772212..772826	+	204	145591106	-	Pars_0871	-	methyltransferase type 11
841	 62.17	+1	772837..773370	+	177	145591107	-	Pars_0872	-	hypothetical protein
842	 57.61	0	773810..774295	+	161	145591108	-	Pars_0873	-	PaREP1 domain-containing protein
843	 57.25	0	774412..774942	+	176	145591109	-	Pars_0874	-	PaREP1 domain-containing protein
844	 65.02	+1	775240..775482	+	80	145591110	-	Pars_0875	-	hypothetical protein
845	 47.24	-1	776128..776580	+	150	145591111	-	Pars_0876	-	paREP15, putative coiled-coil protein
846	 53.24	0	776876..777523	-	215	145591112	-	Pars_0877	-	hypothetical protein
847	 47.85	-1	778435..778737	+	100	145591113	-	Pars_0878	-	PaREP1 domain-containing protein
848	 49.80	0	779128..781659	+	843	145591114	-	Pars_0879	-	hypothetical protein
849	 45.79	-1	781738..783054	+	438	145591115	-	Pars_0880	-	hypothetical protein
850	 52.46	0	783316..783885	+	189	145591116	-	Pars_0881	-	hypothetical protein
851	 61.34	+1	783873..784229	+	118	145591117	-	Pars_0882	-	hypothetical protein
852	 58.71	0	784278..784478	-	66	145591118	-	Pars_0883	-	hypothetical protein
853	 53.94	0	784573..784902	-	109	145591119	-	Pars_0884	-	hypothetical protein
854	 50.79	0	784915..785166	+	83	145591120	-	Pars_0885	-	hypothetical protein
855	 59.00	0	785141..786262	-	373	145591121	-	Pars_0886	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
856	 52.51	0	786278..787909	-	543	145591122	-	Pars_0887	-	coenzyme A transferase
857	 49.66	-1	789850..790284	-	144	145591123	-	Pars_0889	-	hypothetical protein
858	 49.04	-1	790271..790531	-	86	145591124	-	Pars_0890	-	hypothetical protein
859	 53.86	0	790524..791507	-	327	145591125	-	Pars_0891	-	arsenite-transporting ATPase
860	 55.72	0	791504..792508	-	334	145591126	-	Pars_0892	-	arsenite-transporting ATPase
861	 47.39	-1	792505..792753	-	82	145591127	-	Pars_0893	-	hypothetical protein
862	 53.40	0	792770..794548	-	592	145591128	-	Pars_0894	-	carbon starvation protein CstA
863	 50.91	0	794562..795113	-	183	145591129	-	Pars_0895	-	hypothetical protein
864	 50.00	0	795238..795861	+	207	145591130	-	Pars_0896	-	abortive infection protein
865	 59.74	0	795858..796694	-	278	145591131	-	Pars_0897	-	hypothetical protein
866	 50.81	0	796716..796961	-	81	145591132	-	Pars_0898	-	hypothetical protein
867	 56.54	0	796958..797806	-	282	145591133	-	Pars_0899	-	thiosulfate sulfurtransferase
868	 55.69	0	797986..798231	-	81	145591134	-	Pars_0900	-	hypothetical protein
869	 48.64	-1	800795..802231	+	478	145591135	-	Pars_0904	-	hypothetical protein
870	 47.49	-1	802228..803223	-	331	145591136	-	Pars_0905	-	radical SAM domain-containing protein
871	 39.41	-2	803351..804124	+	257	145591137	-	Pars_0906	-	nitrate reductase, gamma subunit
872	 45.36	-1	804168..805406	+	412	145591138	-	Pars_0907	-	sulfite reductase, dissimilatory-type alpha subunit
873	 47.44	-1	805403..806536	+	377	145591139	-	Pars_0908	-	sulfite reductase, dissimilatory-type beta subunit
874	 27.03	-2	806526..806969	+	147	145591140	-	Pars_0909	-	hypothetical protein
875	 44.35	-1	807013..807348	+	111	145591141	-	Pars_0910	-	DsrC family protein
876	 28.76	-2	807378..807989	+	203	145591142	-	Pars_0911	-	hypothetical protein
877	 40.82	-2	808042..809229	+	395	145591143	-	Pars_0912	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
878	 36.46	-2	809226..809705	+	159	145591144	-	Pars_0913	-	hypothetical protein
879	 27.93	-2	809781..810335	+	184	145591145	-	Pars_0914	-	hypothetical protein
880	 39.25	-2	810391..811809	+	472	145591146	-	Pars_0915	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
881	 54.61	0	811858..812139	-	93	145591147	-	Pars_0916	-	Fis family transcriptional regulator
882	 58.24	0	812223..812495	-	90	145591148	-	Pars_0917	-	hypothetical protein
883	 48.59	-1	812725..813078	-	117	145591149	-	Pars_0918	-	HEPN domain-containing protein
884	 54.17	0	813126..813509	-	127	145591150	-	Pars_0919	-	phosphomethylpyrimidine kinase
885	 54.08	0	814300..814728	-	142	145591151	-	Pars_0921	-	hypothetical protein
886	 52.33	0	814725..815945	-	406	145591152	-	Pars_0922	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
887	 56.08	0	815945..816775	-	276	145591153	-	Pars_0923	-	polysulphide reductase, NrfD
888	 57.80	0	816772..817470	-	232	145591154	-	Pars_0924	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
889	 56.44	0	817467..820655	-	1062	145591155	-	Pars_0925	-	molybdopterin oxidoreductase
890	 52.64	0	820758..821192	-	144	145591156	-	Pars_0926	-	hypothetical protein
891	 50.34	0	821227..821820	-	197	145591157	-	Pars_0927	-	hypothetical protein
892	 53.09	0	821801..822964	-	387	145591158	-	Pars_0928	-	glutamyl-tRNA reductase
893	 53.76	0	822955..824085	-	376	145591159	-	Pars_0929	-	cytochrome c biogenesis protein, transmembrane region
894	 58.47	0	824082..824630	-	182	145591160	-	Pars_0930	-	hypothetical protein
895	 58.66	0	824614..825225	-	203	145591161	-	Pars_0931	-	ABC transporter related
896	 54.67	0	825291..825665	-	124	145591162	-	Pars_0932	-	hypothetical protein
897	 53.17	0	825662..826039	-	125	145591163	-	Pars_0933	-	hypothetical protein
898	 58.10	0	826082..826501	+	139	145591164	-	Pars_0934	-	PaREP1 domain-containing protein
899	 49.91	0	826944..827510	-	188	145591165	-	Pars_0935	-	paREP5ab
900	 55.21	0	827664..828536	-	290	145591166	-	Pars_0936	-	polysulphide reductase, NrfD
901	 57.67	0	828533..829099	-	188	145591167	-	Pars_0937	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
902	 51.22	0	829096..831549	-	817	145591168	-	Pars_0938	-	molybdopterin oxidoreductase
903	 52.94	0	832000..832407	+	135	145591169	-	Pars_0939	-	signal-transduction protein
904	 55.09	0	832428..832643	+	71	145591170	-	Pars_0940	-	paREP6
905	 56.12	0	832624..833154	+	176	145591171	-	Pars_0941	-	hypothetical protein
906	 54.50	0	833133..833354	+	73	145591172	-	Pars_0942	-	paREP6
907	 50.85	0	833462..833872	+	136	145591173	-	Pars_0943	-	DNA polymerase beta subunit
908	 50.72	0	833860..834273	+	137	145591174	-	Pars_0944	-	hypothetical protein
909	 59.52	0	834334..834543	-	69	145591175	-	Pars_0945	-	hypothetical protein
910	 49.40	-1	834760..835008	+	82	145591176	-	Pars_0946	-	hypothetical protein
911	 56.76	0	835510..837579	-	689	145591177	-	Pars_0947	-	CBS domain-containing protein
912	 54.00	0	837576..839588	-	670	145591178	-	Pars_0948	-	acetyl-CoA synthetase
913	 53.03	0	839794..840717	-	307	145591179	-	Pars_0949	-	homoserine dehydrogenase
914	 50.30	0	840763..841263	+	166	145591180	-	Pars_0950	-	PaREP1 domain-containing protein
915	 46.21	-1	841295..841861	-	188	145591181	-	Pars_0951	-	formate dehydrogenase protein fdhE
916	 49.86	0	841848..842549	-	233	145591182	-	Pars_0952	-	formate dehydrogenase, cytochrome b556 subunit (formate dehydrogenase gamma subunit)
917	 55.44	0	842589..843443	-	284	145591183	-	Pars_0953	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
918	 53.12	0	843446..846952	-	1168	145591184	-	Pars_0954	-	molybdopterin oxidoreductase
919	 46.46	-1	847221..847898	-	225	145591185	-	Pars_0955	-	formate dehydrogenase delta subunit
920	 46.70	-1	847880..848425	-	181	145591186	-	Pars_0956	-	hypothetical protein
921	 57.16	0	848460..849479	-	339	145591187	-	Pars_0957	-	aspartate-semialdehyde dehydrogenase
922	 56.16	0	849495..850484	-	329	145591188	-	Pars_0958	-	aspartate kinase
923	 60.04	0	850481..851476	-	331	145591189	-	Pars_0959	-	threonine synthase
924	 53.02	0	851863..852375	+	170	145591190	-	Pars_0960	-	hypothetical protein
925	 52.44	0	852429..853391	-	320	145591191	-	Pars_0961	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
926	 51.39	0	853388..854356	-	322	145591192	-	Pars_0962	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
927	 54.80	0	854353..855414	-	353	145591193	-	Pars_0963	-	binding-protein-dependent transport systems inner membrane component
928	 49.85	0	855416..856414	-	332	145591194	-	Pars_0964	-	binding-protein-dependent transport systems inner membrane component
929	 52.92	0	856424..858649	-	741	145591195	-	Pars_0965	-	extracellular solute-binding protein
930	 60.64	+1	858940..860001	+	353	145591196	argC	Pars_0966	-	N-acetyl-gamma-glutamyl-phosphate reductase
931	 58.52	0	859998..860783	+	261	145591197	-	Pars_0967	-	acetylglutamate kinase
932	 56.99	0	860853..861038	+	61	145591198	-	Pars_0968	-	putative lysine biosynthesis protein
933	 62.08	+1	861273..862232	+	319	145591199	-	Pars_0969	-	argininosuccinate synthase
55.13	MEAN

5.40	STD DEV
