IslandPathversion 1.0

IslandPath Analysis: Pyrobaculum arsenaticum DSM 13514

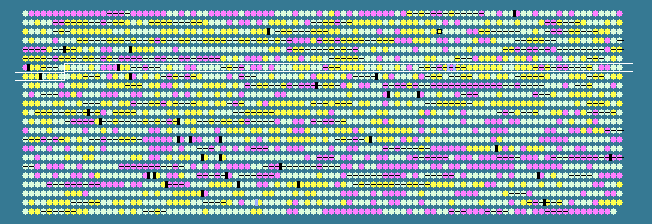

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.13 STD DEV: 5.40
Pyrobaculum arsenaticum DSM 13514, complete genome - 1..2121076
2299 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
608	 64.60	+1	562541..563509	+	322	145590875	-	Pars_0634	-	hypothetical protein
609	 53.06	0	563599..563745	-	48	145590876	-	Pars_0635	-	hypothetical protein
610	 55.56	0	563824..564678	+	284	145590877	-	Pars_0636	-	hypothetical protein
611	 56.22	0	564675..565277	-	200	145590878	-	Pars_0637	-	translin family protein
612	 61.61	+1	565414..566619	+	401	145590879	-	Pars_0638	-	amidase
613	 58.58	0	566601..567404	-	267	145590880	-	Pars_0639	-	beta-lactamase domain-containing protein
614	 45.19	-1	567655..568725	+	356	145590881	-	Pars_0640	-	TRAP transporter solute receptor TAXI family protein
615	 46.99	-1	569062..571119	+	685	145590882	-	Pars_0641	-	TRAP transporter, 4TM/12TM fusion protein
616	 48.57	-1	571130..572317	+	395	145590883	-	Pars_0642	-	L-carnitine dehydratase/bile acid-inducible protein F
617	 59.09	0	572644..573237	-	197	145590884	-	Pars_0643	-	ABC transporter related
618	 62.79	+1	573234..573878	-	214	145590885	-	Pars_0644	-	binding-protein-dependent transport systems inner membrane component
619	 58.31	0	573868..574872	-	334	145590886	-	Pars_0645	-	binding protein, putative
620	 56.30	0	574958..575989	+	343	145590887	-	Pars_0646	-	NADH dehydrogenase subunit H
621	 51.18	0	575989..576453	+	154	145590888	-	Pars_0647	-	NADH dehydrogenase subunit I
622	 52.35	0	576538..576963	+	141	145590889	-	Pars_0648	-	NADH-ubiquinone/plastoquinone oxidoreductase, chain 6
623	 53.74	0	576960..577253	+	97	145590890	-	Pars_0649	-	NADH-ubiquinone oxidoreductase, chain 4L
624	 55.21	0	577250..578680	+	476	145590891	-	Pars_0650	-	NADH dehydrogenase (quinone)
625	 58.73	0	578671..580521	+	616	145590892	-	Pars_0651	-	NADH dehydrogenase (quinone)
626	 56.80	0	580518..581753	+	411	145590893	-	Pars_0652	-	NADH/ubiquinone/plastoquinone (complex I)
627	 53.99	0	581783..582334	+	183	145590894	-	Pars_0653	-	nucleoside-diphosphate kinase
628	 46.86	-1	582326..582739	-	137	145590895	-	Pars_0654	-	hypothetical protein
629	 49.75	0	582868..583884	-	338	145590896	-	Pars_0655	-	AAA ATPase
630	 55.59	0	583961..584980	+	339	145590897	-	Pars_0656	-	dolichyl-phosphate beta-D-mannosyltransferase
631	 57.16	0	584999..586039	+	346	145590898	-	Pars_0657	-	saccharopine dehydrogenase
632	 54.76	0	586036..587295	+	419	145590899	-	Pars_0658	-	histidyl-tRNA synthetase
633	 56.52	0	587287..588183	-	298	145590900	-	Pars_0659	-	carbamate kinase
634	 55.71	0	588192..589277	-	361	145590901	-	Pars_0660	-	major facilitator transporter
635	 59.84	0	589322..589687	-	121	145590902	-	Pars_0661	-	hypothetical protein
636	 56.15	0	589721..590566	+	281	145590903	-	Pars_0662	-	hypothetical protein
637	 43.42	-2	590965..591807	+	280	145590904	-	Pars_0663	-	hypothetical protein
638	 54.90	0	592510..592662	+	50	145590905	-	Pars_0664	-	hypothetical protein
639	 49.88	0	592752..593597	-	281	145590906	-	Pars_0665	-	Sec-independent periplasmic protein translocase
640	 43.67	-2	593670..593969	+	99	145590907	-	Pars_0666	-	twin arginine-targeting protein translocase
641	 56.46	0	594175..594987	-	270	145590908	-	Pars_0667	-	hypothetical protein
642	 51.37	0	594990..595172	-	60	145590909	-	Pars_0668	-	CopG/Arc/MetJ family transcriptional regulator
643	 57.98	0	595165..596211	-	348	145590910	-	Pars_0669	-	FAD dependent oxidoreductase
644	 58.14	0	596329..597900	-	523	145590911	-	Pars_0670	-	PaRep2b
645	 55.31	0	598692..599360	-	222	145590912	-	Pars_0672	-	hypothetical protein
646	 62.00	+1	599383..600003	-	206	145590913	-	Pars_0673	-	beta-lactamase domain-containing protein
647	 62.86	+1	600033..601292	+	419	145590914	-	Pars_0674	-	cytochrome c biogenesis protein, transmembrane region
648	 62.14	+1	601337..601822	+	161	145590915	-	Pars_0675	-	dual specificity protein phosphatase
649	 56.26	0	602950..603420	-	156	145590916	-	Pars_0677	-	hypothetical protein
650	 56.35	0	603556..603972	-	138	145590917	-	Pars_0678	-	hypothetical protein
651	 48.32	-1	604021..604347	+	108	145590918	-	Pars_0679	-	hypothetical protein
652	 61.28	+1	604406..604795	+	129	145590919	-	Pars_0680	-	HEPN domain-containing protein
653	 68.35	+2	604824..605060	+	78	145590920	-	Pars_0681	-	DNA polymerase beta subunit
654	 63.04	+1	605057..606739	+	560	145590921	-	Pars_0682	-	proteinase inhibitor I4, serpin
655	 62.60	+1	606819..607064	+	81	145590922	-	Pars_0683	-	hypothetical protein
656	 59.32	0	607183..607971	+	262	145590923	-	Pars_0684	-	hypothetical protein
657	 61.45	+1	608246..609070	+	274	145590924	-	Pars_0685	-	hypothetical protein
658	 57.97	0	609042..609317	+	91	145590925	-	Pars_0686	-	hypothetical protein
659	 57.60	0	609764..610171	+	135	145590926	-	Pars_0687	-	hypothetical protein
660	 62.39	+1	610345..610695	-	116	145590927	-	Pars_0688	-	hypothetical protein
661	 57.04	0	611092..611766	-	224	145590928	-	Pars_0689	-	hypothetical protein
662	 55.48	0	611935..612828	-	297	145590929	-	Pars_0690	-	hypothetical protein
663	 60.00	0	612821..613105	-	94	145590930	-	Pars_0691	-	hypothetical protein
664	 54.19	0	613514..614026	+	170	145590931	-	Pars_0692	-	hypothetical protein
665	 40.48	-2	614007..614258	+	83	145590932	-	Pars_0693	-	hypothetical protein
666	 56.70	0	614255..614545	-	96	145590933	-	Pars_0694	-	hypothetical protein
667	 57.42	0	614642..615160	-	172	145590934	-	Pars_0695	-	hypothetical protein
668	 62.71	+1	615576..616181	+	201	145590935	-	Pars_0696	-	hypothetical protein
669	 53.38	0	616402..616875	-	157	145590936	-	Pars_0697	-	PaREP1 domain-containing protein
670	 46.51	-1	617839..618096	-	85	145590937	-	Pars_0698	-	hypothetical protein
671	 58.69	0	619807..620019	-	70	145590938	-	Pars_0702	-	hypothetical protein
672	 44.09	-2	624476..625135	-	219	154845015	-	Pars_0702a	-	homing endonuclease
673	 59.56	0	625773..626180	+	135	145590939	-	Pars_0703	-	putative transcriptional regulator
674	 62.00	+1	626201..627100	+	299	145590940	-	Pars_0704	-	hypothetical protein
675	 64.36	+1	627173..628603	+	476	145590941	-	Pars_0705	-	UbiD family decarboxylase
676	 70.16	+2	628603..629232	+	209	145590942	-	Pars_0706	-	hypothetical protein
677	 60.51	0	629292..630752	+	486	145590943	-	Pars_0707	-	lysyl-tRNA synthetase
678	 60.77	+1	630706..632247	-	513	145590944	-	Pars_0708	-	glycosyl transferase family protein
679	 59.92	0	632430..633170	+	246	145590945	-	Pars_0709	-	thymidylate synthase, flavin-dependent
680	 60.26	0	633160..634017	+	285	145590946	-	Pars_0710	-	hypothetical protein
681	 54.81	0	634113..634694	-	193	145590947	-	Pars_0711	-	50S ribosomal protein L15e
682	 56.86	0	634756..635112	+	118	145590948	-	Pars_0712	-	hypothetical protein
683	 64.60	+1	635096..635626	+	176	145590949	-	Pars_0713	-	hypothetical protein
684	 59.57	0	635657..636079	+	140	145590950	-	Pars_0714	-	antibiotic resistance (efflux) protein, conjectural
685	 65.15	+1	636076..636273	+	65	145590951	-	Pars_0715	-	hypothetical protein
686	 60.57	+1	636311..636589	+	92	145590952	-	Pars_0716	-	hypothetical protein
687	 49.85	0	636827..637165	+	112	145590953	-	Pars_0717	-	HEPN domain-containing protein
688	 58.70	0	637156..637494	+	112	145590954	-	Pars_0718	-	DNA polymerase beta subunit
689	 54.04	0	637626..638195	-	189	145590955	-	Pars_0719	-	hypothetical protein
690	 48.89	-1	638242..638511	-	89	145590956	-	Pars_0720	-	hypothetical protein
691	 48.03	-1	638553..638933	-	126	145590957	-	Pars_0721	-	hypothetical protein
692	 51.71	0	639039..639593	-	184	145590958	-	Pars_0722	-	hypothetical protein
693	 58.22	0	639731..640630	-	299	145590959	-	Pars_0723	-	alpha-L-glutamate ligase
694	 51.98	0	640765..642330	-	521	145590960	-	Pars_0724	-	hypothetical protein
695	 60.27	0	642489..643082	-	197	145590961	-	Pars_0725	-	hypothetical protein
696	 57.14	0	643111..644580	-	489	145590962	-	Pars_0726	-	FeS assembly protein SufB
697	 48.95	-1	644598..645500	-	300	145590963	-	Pars_0727	-	hypothetical protein
698	 48.91	-1	645491..645811	-	106	145590964	-	Pars_0728	-	hypothetical protein
699	 53.60	0	645992..646519	+	175	145590965	-	Pars_0729	-	ZPR1-like zinc finger protein
700	 56.44	0	646511..647038	-	175	145590966	-	Pars_0730	-	metal dependent phosphohydrolase
701	 60.70	+1	647035..648291	-	418	145590967	-	Pars_0731	-	glutamyl-tRNA(Gln) amidotransferase subunit D
702	 61.30	+1	648284..650164	-	626	145590968	-	Pars_0732	-	peptidase S9 prolyl oligopeptidase
703	 60.26	0	650193..650645	-	150	145590969	-	Pars_0733	-	hypothetical protein
704	 55.03	0	650948..654016	-	1022	145590970	-	Pars_0734	-	glycoside hydrolase family protein
705	 60.09	0	654165..654377	-	70	145590971	-	Pars_0735	-	hypothetical protein
706	 60.81	+1	654400..655731	-	443	145590972	-	Pars_0736	-	ATPase
707	 54.40	0	656117..656956	+	279	145590973	-	Pars_0737	-	TM helix repeat-containing protein
55.13	MEAN

5.40	STD DEV
