IslandPath Analysis: Pyrobaculum arsenaticum DSM 13514

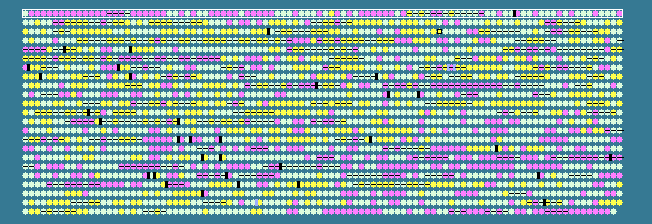

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 55.13   STD DEV: 5.40
Pyrobaculum arsenaticum DSM 13514, complete genome - 1..2121076
2299 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 54.02	0	24..695	+	223	145590268	-	Pars_0001	-	30S ribosomal protein S7P
2	 50.30	0	725..1714	+	329	145590269	rfc	Pars_0002	-	replication factor C small subunit
3	 49.17	-1	1715..2983	+	422	145590270	-	Pars_0003	-	replication factor C large subunit
4	 43.59	-2	2985..3296	+	103	145590271	-	Pars_0004	-	hypothetical protein
5	 46.24	-1	3361..4530	+	389	145590272	cdc6	Pars_0005	-	cell division control protein 6
6	 37.37	-2	4527..4823	+	98	145590273	-	Pars_0006	-	regulatory protein, ArsR
7	 44.34	-1	4874..5527	+	217	145590274	-	Pars_0007	-	hypothetical protein
8	 47.82	-1	5541..6596	+	351	145590275	-	Pars_0008	-	translation initiation factor IF-2B subunit alpha
9	 43.40	-2	6698..7015	+	105	145590276	-	Pars_0009	-	hypothetical protein
10	 45.50	-1	7015..8148	+	377	145590277	-	Pars_0010	-	PUA domain-containing protein
11	 48.91	-1	8407..9048	+	213	145590278	-	Pars_0011	-	AMMECR1 domain-containing protein
12	 47.40	-1	9049..9510	-	153	145590279	-	Pars_0012	-	hypothetical protein
13	 45.16	-1	9589..9774	-	61	145590280	-	Pars_0013	-	hypothetical protein
14	 50.16	0	9814..11097	-	427	145590281	-	Pars_0014	-	hypothetical protein
15	 50.19	0	11097..11885	-	262	145590282	-	Pars_0015	-	band 7 protein
16	 35.53	-2	12100..12417	+	105	145590283	-	Pars_0016	-	hypothetical protein
17	 44.41	-1	12414..13442	+	342	145590284	-	Pars_0017	-	H+-transporting ATP synthase subunit C
18	 52.81	0	13444..13710	-	88	145590285	-	Pars_0018	-	H+-transporting two-sector ATPase, C subunit
19	 24.85	-2	13717..13881	-	54	145590286	-	Pars_0019	-	hypothetical protein
20	 45.17	-1	13905..14504	-	199	145590287	-	Pars_0020	-	V-type ATPase, D subunit
21	 49.36	-1	14542..15327	+	261	145590288	-	Pars_0021	-	GTP-binding protein, HSR1-related
22	 47.89	-1	15350..15823	+	157	145590289	-	Pars_0022	-	hypothetical protein
23	 48.75	-1	15925..16482	-	185	145590290	-	Pars_0023	-	hypothetical protein
24	 50.50	0	16600..18003	+	467	145590291	-	Pars_0024	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
25	 54.78	0	17988..19274	-	428	145590292	-	Pars_0025	-	phosphomannomutase
26	 54.57	0	19392..20507	+	371	145590293	-	Pars_0026	-	hypothetical protein
27	 50.67	0	20504..21103	-	199	145590294	-	Pars_0027	-	orotidine 5'-phosphate decarboxylase
28	 52.07	0	21321..22238	+	305	145590295	pyrB	Pars_0028	-	aspartate carbamoyltransferase catalytic subunit
29	 50.09	0	22235..22765	+	176	145590296	-	Pars_0029	-	ribosomal-protein-alanine acetyltransferase
30	 52.99	0	22809..24329	+	506	145590297	-	Pars_0030	-	hypothetical protein
31	 52.12	0	24477..25961	+	494	145590298	-	Pars_0031	-	type II secretion system protein E
32	 44.25	-2	26341..26853	+	170	145590299	-	Pars_0032	-	hypothetical protein
33	 47.78	-1	26880..28367	+	495	145590300	-	Pars_0033	-	7-cyano-7-deazaguanine tRNA-ribosyltransferase
34	 49.37	-1	28356..29072	-	238	145590301	-	Pars_0034	-	hypothetical protein
35	 42.69	-2	29069..29581	-	170	145590302	-	Pars_0035	-	transcription factor TFIIE, alpha subunit
36	 50.61	0	29639..30784	-	381	145590303	-	Pars_0036	-	small GTP-binding protein
37	 58.23	0	30774..31259	-	161	145590304	-	Pars_0037	-	helix-turn-helix domain-containing protein
38	 50.00	0	31265..31756	+	163	145590305	-	Pars_0038	-	PUA domain-containing protein
39	 51.25	0	31725..32003	-	92	145590306	-	Pars_0039	-	hypothetical protein
40	 49.66	-1	31987..32280	-	97	145590307	-	Pars_0040	-	hypothetical protein
41	 46.50	-1	32360..32602	+	80	145590308	-	Pars_0041	-	like-Sm ribonucleoprotein, core
42	 50.94	0	32599..32757	+	52	145590309	rpl37e	Pars_0042	-	50S ribosomal protein L37e
43	 52.12	0	32838..33428	+	196	145590310	-	Pars_0043	-	multiple antibiotic resistance (MarC)-related protein
44	 53.40	0	33452..34378	+	308	145590311	-	Pars_0044	-	hypothetical protein
45	 53.65	0	34375..34758	-	127	145590312	-	Pars_0045	-	cytidine deaminase
46	 48.77	-1	34796..35728	+	310	145590313	-	Pars_0046	-	hypothetical protein
47	 55.04	0	35752..36534	+	260	145590314	-	Pars_0047	-	short-chain dehydrogenase/reductase SDR
48	 56.20	0	36523..37812	-	429	145590315	glyA	Pars_0048	-	serine hydroxymethyltransferase
49	 54.51	0	37851..38582	-	243	145590316	-	Pars_0049	-	molybdenum cofactor biosynthesis protein (moaC)
50	 49.09	-1	38579..38908	-	109	145590317	-	Pars_0050	-	hypothetical protein
51	 54.77	0	38939..39997	-	352	145590318	-	Pars_0051	-	isopentenyl pyrophosphate isomerase
52	 59.65	0	39997..40737	-	246	145590319	rpl2p	Pars_0052	-	50S ribosomal protein L2P
53	 46.30	-1	40871..41086	+	71	145590320	rps17E	Pars_0053	-	30S ribosomal protein S17e
54	 55.07	0	41089..41778	+	229	145590321	-	Pars_0054	-	peptidylprolyl isomerase, FKBP-type
55	 49.92	0	41882..42490	+	202	145590322	-	Pars_0055	-	proteasome endopeptidase complex
56	 54.52	0	42511..43770	+	419	145590323	-	Pars_0056	-	phosphopyruvate hydratase
57	 46.14	-1	43801..44214	+	137	145590324	-	Pars_0057	-	ModE family transcriptional regulator
58	 50.16	0	44199..45131	-	310	145590325	-	Pars_0058	-	putative molybdenum cofactor biosynthesis protein A
59	 49.30	-1	45588..46664	+	358	145590326	-	Pars_0059	-	protein kinase
60	 50.57	0	46684..47211	+	175	145590327	-	Pars_0060	-	FHA domain-containing protein
61	 51.04	0	47247..47873	+	208	145590328	rps2P	Pars_0061	-	30S ribosomal protein S2
62	 51.54	0	47928..48773	+	281	145590329	-	Pars_0062	-	hypothetical protein
63	 52.74	0	48770..50119	-	449	145590330	-	Pars_0063	-	pyruvate kinase
64	 51.52	0	50116..52023	-	635	145590331	-	Pars_0064	-	beta-lactamase domain-containing protein
65	 59.26	0	52072..53502	+	476	145590332	-	Pars_0065	-	cysteinyl-tRNA synthetase
66	 52.86	0	54516..54899	-	127	145590333	-	Pars_0068	-	hypothetical protein
67	 64.14	+1	55169..55405	+	78	145590334	-	Pars_0069	-	hypothetical protein
68	 52.78	0	55467..59045	-	1192	145590335	-	Pars_0070	-	hypothetical protein
69	 49.97	0	59049..61013	+	654	145590336	-	Pars_0071	-	hypothetical protein
70	 51.20	0	61054..69057	+	2667	145590337	-	Pars_0072	-	hypothetical protein
71	 55.11	0	69117..69713	+	198	145590338	-	Pars_0073	-	hypothetical protein
72	 61.98	+1	69743..70510	+	255	145590339	-	Pars_0074	-	hypothetical protein
73	 53.11	0	70491..71021	+	176	145590340	-	Pars_0075	-	putative adenylyl cyclase CyaB
74	 58.06	0	71029..72783	+	584	145590341	-	Pars_0076	-	ATP-dependent DNA ligase
75	 54.19	0	72771..73259	-	162	145590342	-	Pars_0077	-	hypothetical protein
76	 56.99	0	73337..74245	+	302	145590343	-	Pars_0078	-	ribokinase-like domain-containing protein
77	 50.00	0	74268..74603	+	111	145590344	-	Pars_0079	-	hypothetical protein
78	 52.65	0	74600..75277	+	225	145590345	-	Pars_0080	-	nucleotidyl transferase
79	 53.75	0	75309..76028	+	239	145590346	-	Pars_0081	-	hypothetical protein
80	 48.11	-1	76025..76579	+	184	145590347	-	Pars_0082	-	hypothetical protein
81	 57.65	0	76563..76928	-	121	145590348	-	Pars_0083	-	hypothetical protein
82	 56.59	0	76955..78016	+	353	145590349	-	Pars_0084	-	hypothetical protein
83	 47.40	-1	78797..79123	-	108	145590350	-	Pars_0085	-	hypothetical protein
84	 55.26	0	79428..80330	-	300	145590351	-	Pars_0086	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
85	 51.74	0	80332..80733	-	133	145590352	-	Pars_0087	-	hypothetical protein
86	 48.72	-1	81058..81369	+	103	145590353	-	Pars_0088	-	50S ribosomal protein L14e
87	 56.12	0	81366..82361	+	331	145590354	-	Pars_0089	-	H/ACA RNA-protein complex component Cbf5p
88	 53.06	0	82385..82678	+	97	145590355	-	Pars_0090	-	hypothetical protein
89	 54.14	0	82675..83169	+	164	145590356	-	Pars_0091	-	hypothetical protein
90	 48.80	-1	83190..83648	+	152	145590357	-	Pars_0092	-	hypothetical protein
91	 53.59	0	83645..84577	+	310	145590358	-	Pars_0093	-	oxidoreductase domain-containing protein
92	 50.09	0	84632..85174	+	180	145590359	-	Pars_0094	-	hypothetical protein
93	 54.12	0	85228..85713	+	161	145590360	-	Pars_0095	-	hypothetical protein
94	 56.14	0	85703..86500	-	265	145590361	-	Pars_0096	-	competence damage-inducible protein A
95	 57.49	0	86510..87370	-	286	145590362	-	Pars_0097	-	hypothetical protein
96	 51.45	0	87429..87842	+	137	145590363	-	Pars_0098	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
97	 53.85	0	87839..88072	+	77	145590364	-	Pars_0099	-	hypothetical protein
98	 55.64	0	88041..88430	-	129	145590365	-	Pars_0100	-	hypothetical protein
99	 52.21	0	88515..89171	-	218	145590366	-	Pars_0101	-	HhH-GPD family protein
100	 51.20	0	89217..89714	+	165	145590367	-	Pars_0102	-	hypothetical protein
55.13	MEAN

5.40	STD DEV
