IslandPath Analysis: Pyrobaculum arsenaticum DSM 13514

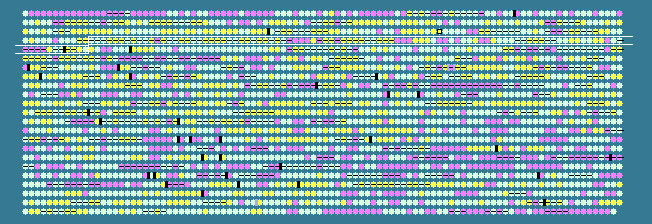

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.13 STD DEV: 5.40
Pyrobaculum arsenaticum DSM 13514, complete genome - 1..2121076
2299 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
312	 55.97	0	275773..276333	-	186	145590579	-	Pars_0317	-	peptidase M50
313	 52.27	0	276463..276726	-	87	145590580	-	Pars_0318	-	hypothetical protein
314	 52.91	0	277767..278195	+	142	145590581	-	Pars_0319	-	hypothetical protein
315	 58.77	0	278176..278580	+	134	145590582	-	Pars_0320	-	DNA polymerase beta subunit
316	 58.86	0	279685..280158	+	157	145590583	-	Pars_0321	-	PaREP1 domain-containing protein
317	 67.44	+2	280262..280519	+	85	145590584	-	Pars_0322	-	hypothetical protein
318	 55.80	0	280541..280945	+	134	145590585	-	Pars_0323	-	hypothetical protein
319	 59.80	0	280933..281340	+	135	145590586	-	Pars_0324	-	hypothetical protein
320	 58.04	0	282464..282718	+	84	145590587	-	Pars_0325	-	AbrB family transcriptional regulator
321	 53.43	0	283857..284498	+	213	145590588	-	Pars_0327	-	hypothetical protein
322	 62.03	+1	284495..284947	+	150	145590589	-	Pars_0328	-	hypothetical protein
323	 48.01	-1	284947..285498	+	183	145590590	-	Pars_0329	-	hypothetical protein
324	 62.25	+1	285857..286105	+	82	145590591	-	Pars_0330	-	hypothetical protein
325	 54.31	0	286461..286727	+	88	145590592	-	Pars_0331	-	hypothetical protein
326	 55.13	0	286769..286924	+	51	145590593	-	Pars_0332	-	hypothetical protein
327	 60.63	+1	286953..287963	+	336	145590594	-	Pars_0333	-	hypothetical protein
328	 61.80	+1	288003..288557	+	184	145590595	-	Pars_0334	-	PaREP1 domain-containing protein
329	 54.88	0	289090..289386	+	98	145590596	-	Pars_0335	-	hypothetical protein
330	 58.51	0	289881..290885	+	334	145590597	-	Pars_0336	-	hypothetical protein
331	 64.66	+1	291019..292365	+	448	145590598	-	Pars_0337	-	hypothetical protein
332	 66.22	+2	292422..292871	-	149	145590599	-	Pars_0338	-	membrane protein-like protein
333	 64.86	+1	293033..293809	+	258	145590600	-	Pars_0339	-	hypothetical protein
334	 63.78	+1	293852..294751	+	299	145590601	-	Pars_0340	-	NAD-dependent epimerase/dehydratase
335	 58.31	0	294772..295680	+	302	145590602	-	Pars_0341	-	glycosyl transferase family protein
336	 57.08	0	297252..297470	-	72	145590603	-	Pars_0343	-	hypothetical protein
337	 59.73	0	297553..298806	+	417	145590604	-	Pars_0344	-	type I phosphodiesterase/nucleotide pyrophosphatase
338	 61.95	+1	298803..299396	+	197	145590605	-	Pars_0345	-	adenylyl-sulfate kinase
339	 55.98	0	299726..299959	+	77	145590606	-	Pars_0348	-	hypothetical protein
340	 61.21	+1	300162..300692	+	176	145590607	-	Pars_0349	-	hypothetical protein
341	 61.90	+1	301199..301366	+	55	145590608	-	Pars_0350	-	hypothetical protein
342	 54.05	0	301359..302618	+	419	145590609	-	Pars_0351	-	sulfatase
343	 59.84	0	302844..303341	+	165	145590610	-	Pars_0353	-	dTDP-4-dehydrorhamnose 3,5-epimerase
344	 52.27	0	303587..304225	-	212	145590611	-	Pars_0354	-	hypothetical protein
345	 38.89	-2	305868..307055	-	395	145590612	-	Pars_0356	-	glycosyl transferase, group 1
346	 45.57	-1	307117..308244	-	375	145590613	-	Pars_0357	-	glycosyl transferase, group 1
347	 45.17	-1	308325..309152	-	275	145590614	-	Pars_0358	-	glycosyl transferase family protein
348	 28.13	-2	310082..310408	+	108	145590615	-	Pars_0360	-	hypothetical protein
349	 63.38	+1	311458..312522	-	354	145590616	-	Pars_0361	-	glycosyl transferase, group 1
350	 49.68	-1	312632..313726	-	364	145590617	-	Pars_0362	-	glycosyl transferase family protein
351	 61.80	+1	313884..314438	-	184	145590618	-	Pars_0363	-	PaREP1 domain-containing protein
352	 63.57	+1	314595..315629	-	344	145590619	-	Pars_0364	-	hypothetical protein
353	 45.59	-1	315642..316196	-	184	145590620	-	Pars_0365	-	hypothetical protein
354	 60.00	0	316430..316789	-	119	145590621	-	Pars_0366	-	hypothetical protein
355	 65.02	+1	316927..317169	+	80	145590622	-	Pars_0367	-	hypothetical protein
356	 61.19	+1	317412..317831	+	139	145590623	-	Pars_0368	-	hypothetical protein
357	 58.65	0	318044..318592	-	182	145590624	-	Pars_0369	-	PaREP1 domain-containing protein
358	 56.12	0	318823..319116	+	97	145590625	-	Pars_0370	-	AbrB family transcriptional regulator
359	 55.31	0	319157..319561	+	134	145590626	-	Pars_0371	-	hypothetical protein
360	 60.82	+1	319680..320243	-	187	145590627	-	Pars_0372	-	PaREP1 domain-containing protein
361	 66.67	+2	322235..322444	+	69	145590628	-	Pars_0374	-	hypothetical protein
362	 59.36	0	323340..324626	+	428	145590629	-	Pars_0375	-	hypothetical protein
363	 49.44	-1	324749..325828	+	359	145590630	-	Pars_0376	-	glycosyl transferase, group 1
364	 50.98	0	325809..326987	-	392	145590631	-	Pars_0377	-	glycosyl transferase, group 1
365	 50.75	0	328300..329235	+	311	145590632	-	Pars_0380	-	glycosyl transferase family protein
366	 58.74	0	329288..330523	+	411	145590633	-	Pars_0381	-	glycosyl transferase, group 1
367	 61.64	+1	330915..332624	+	569	145590634	-	Pars_0382	-	peptidase S9 prolyl oligopeptidase
368	 59.49	0	332660..333802	+	380	145590635	-	Pars_0383	-	radical SAM domain-containing protein
369	 57.09	0	333848..334933	+	361	145590636	-	Pars_0384	-	ATPase
370	 50.34	0	335062..335496	+	144	145590637	-	Pars_0385	-	hypothetical protein
371	 43.91	-2	335483..335983	+	166	145590638	-	Pars_0386	-	hypothetical protein
372	 55.40	0	336124..336771	+	215	145590639	-	Pars_0387	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
373	 50.59	0	336768..337874	+	368	145590640	-	Pars_0388	-	hypothetical protein
374	 53.04	0	337867..341388	+	1173	145590641	-	Pars_0389	-	molydopterin dinucleotide-binding region
375	 51.70	0	341782..342369	+	195	145590642	-	Pars_0390	-	hypothetical protein
376	 58.75	0	342398..343003	+	201	145590643	-	Pars_0391	-	lysine exporter protein LysE/YggA
377	 50.95	0	343504..343923	-	139	145590644	-	Pars_0392	-	PilT domain-containing protein
378	 45.27	-1	343907..344149	-	80	145590645	-	Pars_0393	-	AbrB family transcriptional regulator
379	 59.37	0	344178..345410	+	410	145590646	-	Pars_0394	-	hypothetical protein
380	 53.14	0	346203..346616	+	137	145590647	-	Pars_0395	-	Fis family transcriptional regulator
381	 55.34	0	346613..347671	+	352	145590648	-	Pars_0396	-	alcohol dehydrogenase
382	 53.83	0	348060..349181	+	373	145590649	-	Pars_0397	-	hypothetical protein
383	 54.17	0	349217..349528	+	103	145590650	-	Pars_0398	-	hypothetical protein
384	 53.25	0	349583..349813	+	76	145590651	-	Pars_0399	-	CopG family transcriptional regulator
385	 59.37	0	349844..351310	+	488	145590652	pheS	Pars_0400	-	phenylalanyl-tRNA synthetase subunit alpha
386	 61.78	+1	351942..352166	+	74	145590653	-	Pars_0402	-	hypothetical protein
387	 59.16	0	352405..352950	+	181	145590654	-	Pars_0403	-	PaREP1 domain-containing protein
388	 57.66	0	353025..353246	-	73	145590655	-	Pars_0404	-	aspartate 1-decarboxylase
389	 55.68	0	353276..353812	+	178	145590656	-	Pars_0405	-	nicotinamide-nucleotide adenylyltransferase
390	 53.19	0	354037..354585	-	182	145590657	-	Pars_0406	-	hypothetical protein
391	 55.06	0	354588..355724	-	378	145590658	-	Pars_0407	-	acyl-CoA dehydrogenase domain-containing protein
392	 60.52	0	356595..357992	+	465	145590659	-	Pars_0409	-	phytoene dehydrogenase-related protein
393	 58.90	0	357985..358293	+	102	145590660	-	Pars_0410	-	hypothetical protein
394	 58.19	0	358296..359003	+	235	145590661	-	Pars_0411	-	hypothetical protein
395	 52.74	0	359611..360852	+	413	145590662	-	Pars_0412	-	major facilitator transporter
396	 58.76	0	360854..362800	+	648	145590663	-	Pars_0413	-	5-oxoprolinase (ATP-hydrolyzing)
397	 59.21	0	362797..364338	+	513	145590664	-	Pars_0414	-	5-oxoprolinase (ATP-hydrolyzing)
398	 42.93	-2	365860..366234	+	124	145590665	-	Pars_0416	-	hypothetical protein
399	 51.96	0	367331..367636	+	101	145590666	-	Pars_0417	-	hypothetical protein
400	 52.48	0	367817..367957	-	46	145590667	-	Pars_0418	-	hypothetical protein
401	 42.60	-2	367965..368978	-	337	145590668	-	Pars_0419	-	radical SAM domain-containing protein
402	 33.72	-2	368978..369235	-	85	145590669	-	Pars_0420	-	hypothetical protein
403	 41.49	-2	369232..369783	-	183	145590670	-	Pars_0421	-	hypothetical protein
404	 48.75	-1	369815..370294	+	159	145590671	-	Pars_0422	-	hypothetical protein
405	 62.50	+1	370291..371130	+	279	145590672	-	Pars_0423	-	abortive infection protein
406	 57.08	0	371190..371627	-	145	145590673	-	Pars_0424	-	PilT domain-containing protein
407	 58.33	0	371611..371838	-	75	145590674	-	Pars_0425	-	CopG/DNA-binding domain-containing protein
408	 62.44	+1	372113..372964	-	283	145590675	-	Pars_0426	-	hypothetical protein
409	 63.64	+1	372992..373222	-	76	145590676	-	Pars_0427	-	hypothetical protein
410	 61.46	+1	373219..373737	-	172	145590677	-	Pars_0428	-	AsnC family transcriptional regulator
411	 56.09	0	373886..374443	+	185	145590678	-	Pars_0429	-	hypothetical protein
55.13	MEAN

5.40	STD DEV
