IslandPath Analysis: Pyrobaculum arsenaticum DSM 13514

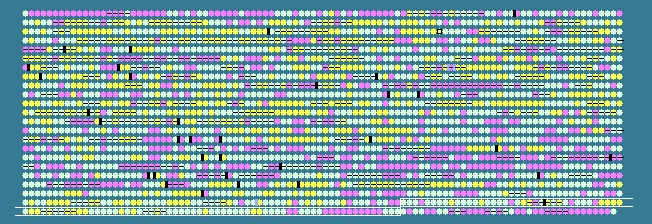

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.13 STD DEV: 5.40
Pyrobaculum arsenaticum DSM 13514, complete genome - 1..2121076
2299 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2164	 53.74	0	2001690..2002919	-	409	145592430	-	Pars_2234	-	2-methylcitrate synthase/citrate synthase II
2165	 53.19	0	2003060..2003623	-	187	145592431	-	Pars_2235	-	hypothetical protein
2166	 55.36	0	2003681..2005033	+	450	145592432	-	Pars_2236	-	TIP49-like protein
2167	 49.35	-1	2005025..2005486	-	153	145592433	-	Pars_2237	-	hypothetical protein
2168	 53.02	0	2005483..2006991	-	502	145592434	-	Pars_2238	-	peptidase M50
2169	 55.77	0	2007055..2007972	-	305	145592435	-	Pars_2239	-	cation diffusion facilitator family transporter
2170	 57.73	0	2007974..2008723	-	249	145592436	-	Pars_2240	-	indole-3-glycerol-phosphate synthase
2171	 58.45	0	2008791..2009447	+	218	145592437	-	Pars_2241	-	hypothetical protein
2172	 60.74	+1	2009425..2010234	-	269	145592438	-	Pars_2242	-	undecaprenyl pyrophosphate phosphatase
2173	 53.88	0	2010272..2010748	+	158	145592439	-	Pars_2243	-	hypothetical protein
2174	 56.26	0	2011068..2012210	+	380	145592440	-	Pars_2244	-	radical SAM domain-containing protein
2175	 56.49	0	2012207..2013100	+	297	145592441	-	Pars_2245	-	porphobilinogen deaminase
2176	 57.00	0	2013097..2014068	-	323	145592442	-	Pars_2246	-	AsnC family transcriptional regulator
2177	 59.29	0	2014893..2015909	-	338	145592443	-	Pars_2247	-	delta-aminolevulinic acid dehydratase
2178	 55.09	0	2015916..2016563	-	215	145592444	-	Pars_2248	-	siroheme synthase
2179	 53.85	0	2016594..2016788	-	64	145592445	-	Pars_2249	-	hypothetical protein
2180	 57.66	0	2016815..2017447	-	210	145592446	-	Pars_2250	-	uroporphyrinogen III synthase HEM4
2181	 57.24	0	2017598..2018371	-	257	145592447	-	Pars_2251	-	uroporphyrin-III C-methyltransferase
2182	 43.50	-2	2018565..2018987	+	140	145592448	-	Pars_2252	-	hypothetical protein
2183	 51.85	0	2018991..2019854	+	287	145592449	-	Pars_2253	-	hypothetical protein
2184	 60.22	0	2019890..2021161	+	423	145592450	-	Pars_2254	-	glutamate-1-semialdehyde-2,1-aminomutase
2185	 59.19	0	2021165..2022274	+	369	145592451	-	Pars_2255	-	radical SAM domain-containing protein
2186	 51.41	0	2022330..2022578	+	82	145592452	-	Pars_2256	-	hypothetical protein
2187	 58.01	0	2022608..2023150	+	180	145592453	-	Pars_2257	-	hypothetical protein
2188	 61.75	+1	2023380..2023664	-	94	145592454	-	Pars_2258	-	paREP2b
2189	 58.00	0	2023918..2025129	-	403	145592455	-	Pars_2261	-	glutamyl-tRNA reductase
2190	 59.39	0	2025209..2026252	+	347	145592456	purP	Pars_2262	-	5-formaminoimidazole-4-carboxamide-1-(beta)-D-ribofuranosyl 5'-monophosphate synthetase-like protein
2191	 56.32	0	2026242..2026502	-	86	145592457	-	Pars_2263	-	hypothetical protein
2192	 48.19	-1	2026568..2026843	+	91	145592458	-	Pars_2264	-	hypothetical protein
2193	 54.07	0	2026871..2027878	-	335	145592459	purP	Pars_2265	-	5-formaminoimidazole-4-carboxamide-1-(beta)-D-ribofuranosyl 5'-monophosphate synthetase
2194	 52.44	0	2028062..2029066	+	334	145592460	-	Pars_2266	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
2195	 52.36	0	2029063..2030712	+	549	145592461	-	Pars_2267	-	thiamine pyrophosphate binding domain-containing protein
2196	 51.12	0	2030717..2031205	+	162	145592462	-	Pars_2268	-	hypothetical protein
2197	 63.36	+1	2031202..2032896	-	564	145592463	-	Pars_2269	-	dihydroxy-acid dehydratase
2198	 58.77	0	2033196..2034233	-	345	145592464	-	Pars_2270	-	radical SAM domain-containing protein
2199	 60.00	0	2034233..2034502	-	89	145592465	-	Pars_2271	-	hypothetical protein
2200	 61.02	+1	2034506..2035726	-	406	145592466	-	Pars_2272	-	NADH dehydrogenase (ubiquinone)
2201	 56.09	0	2035719..2036153	-	144	145592467	-	Pars_2273	-	NADH-quinone oxidoreductase, B subunit
2202	 60.06	0	2036244..2036591	-	115	145592468	-	Pars_2274	-	NADH-ubiquinone oxidoreductase subunit
2203	 61.11	+1	2036576..2037547	-	323	145592469	-	Pars_2275	-	respiratory-chain NADH dehydrogenase, subunit 1
2204	 58.15	0	2037640..2038038	-	132	145592470	-	Pars_2276	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
2205	 58.98	0	2038038..2039039	-	333	145592471	-	Pars_2277	-	thiamine pyrophosphate binding domain-containing protein
2206	 57.65	0	2039110..2040318	-	402	145592472	-	Pars_2278	-	pyruvate flavodoxin/ferredoxin oxidoreductase domain-containing protein
2207	 56.98	0	2040315..2041253	-	312	145592473	-	Pars_2279	-	pyruvate/ketoisovalerate oxidoreductase, gamma subunit
2208	 62.08	+1	2041338..2042471	-	377	145592474	-	Pars_2280	-	NADH/ubiquinone/plastoquinone (complex I)
2209	 64.03	+1	2042459..2044087	-	542	145592475	-	Pars_2281	-	NADH/ubiquinone/plastoquinone (complex I)
2210	 60.72	+1	2044084..2045361	-	425	145592476	-	Pars_2282	-	NADH/ubiquinone/plastoquinone (complex I)
2211	 61.60	+1	2045354..2045590	-	78	145592477	-	Pars_2283	-	hypothetical protein
2212	 54.98	0	2045587..2045988	-	133	145592478	-	Pars_2284	-	hypothetical protein
2213	 54.27	0	2046171..2048018	+	615	145592479	-	Pars_2285	-	aldehyde ferredoxin oxidoreductase
2214	 54.46	0	2048054..2048782	+	242	145592480	-	Pars_2286	-	ATP-NAD/AcoX kinase
2215	 58.48	0	2048779..2049120	+	113	145592481	-	Pars_2287	-	PilT domain-containing protein
2216	 58.44	0	2049108..2049824	-	238	145592482	-	Pars_2288	-	hypothetical protein
2217	 58.81	0	2049817..2050287	-	156	145592483	-	Pars_2289	-	hypothetical protein
2218	 56.93	0	2050333..2051451	+	372	145592484	-	Pars_2290	-	tyrosyl-tRNA synthetase
2219	 60.72	+1	2051416..2052492	-	358	145592485	-	Pars_2291	-	hypothetical protein
2220	 52.12	0	2052504..2053967	+	487	145592486	-	Pars_2292	-	metal dependent phosphohydrolase
2221	 52.00	0	2053956..2054255	-	99	145592487	-	Pars_2293	-	hypothetical protein
2222	 57.64	0	2054322..2055185	+	287	145592488	-	Pars_2294	-	hypothetical protein
2223	 60.06	0	2055182..2056225	-	347	145592489	-	Pars_2295	-	Fis family transcriptional regulator
2224	 55.20	0	2056236..2056610	-	124	145592490	-	Pars_2296	-	hypothetical protein
2225	 55.15	0	2056831..2057325	+	164	145592491	-	Pars_2297	-	hypothetical protein
2226	 55.46	0	2057319..2057675	+	118	145592492	-	Pars_2298	-	transcriptional regulator, TrmB
2227	 53.50	0	2057650..2058135	-	161	145592493	-	Pars_2299	-	hypothetical protein
2228	 58.23	0	2058277..2058774	+	165	145592494	-	Pars_2300	-	hypothetical protein
2229	 55.84	0	2058753..2059343	-	196	145592495	-	Pars_2301	-	hypothetical protein
2230	 56.88	0	2059356..2060234	+	292	145592496	-	Pars_2302	-	alpha-L-glutamate ligase
2231	 58.82	0	2060431..2060583	-	50	145592497	-	Pars_2303	-	paREP10
2232	 52.06	0	2060625..2061302	-	225	145592498	-	Pars_2304	-	hypothetical protein
2233	 57.69	0	2061359..2061937	+	192	145592499	-	Pars_2305	-	phage SPO1 DNA polymerase-related protein
2234	 53.38	0	2062248..2063135	+	295	145592500	-	Pars_2306	-	hypothetical protein
2235	 56.67	0	2063132..2064742	+	536	145592501	-	Pars_2307	-	hypothetical protein
2236	 55.34	0	2064772..2065239	+	155	145592502	-	Pars_2308	-	hypothetical protein
2237	 56.93	0	2065236..2066057	-	273	145592503	-	Pars_2309	-	protein of unknown function Met10
2238	 55.29	0	2066247..2067248	+	333	145592504	radA	Pars_2310	-	DNA repair and recombination protein RadA
2239	 60.22	0	2067270..2067812	+	180	145592505	-	Pars_2311	-	flavin reductase domain-containing protein
2240	 60.74	+1	2067815..2068405	-	196	145592506	-	Pars_2312	-	hypothetical protein
2241	 55.28	0	2068452..2070050	+	532	145592507	-	Pars_2313	-	radical SAM domain-containing protein
2242	 51.68	0	2070033..2070479	-	148	145592508	-	Pars_2314	-	hypothetical protein
2243	 53.97	0	2070525..2070839	+	104	145592509	-	Pars_2315	-	zinc finger C2H2-type domain-containing protein
2244	 52.12	0	2070839..2071333	+	164	145592510	-	Pars_2316	-	hypothetical protein
2245	 44.67	-1	2071627..2071917	+	96	145592511	-	Pars_2317	-	H+-transporting ATP synthase subunit F (atpF)
2246	 46.21	-1	2071951..2072517	+	188	145592512	-	Pars_2318	-	H+-transporting two-sector ATPase, E subunit
2247	 56.85	0	2072514..2074295	+	593	145592513	-	Pars_2319	-	V-type ATP synthase subunit A
2248	 52.19	0	2074325..2074552	+	75	145592514	rpoH	Pars_2320	-	DNA-directed RNA polymerase subunit H
2249	 56.18	0	2074588..2077971	+	1127	145592515	-	Pars_2321	-	DNA-directed RNA polymerase subunit beta
2250	 54.58	0	2078001..2080655	+	884	145592516	-	Pars_2322	-	DNA-directed RNA polymerase subunit alpha
2251	 51.49	0	2080652..2081791	+	379	145592517	-	Pars_2323	-	DNA-directed RNA polymerase subunit A''
2252	 49.84	0	2081831..2082145	+	104	145592518	-	Pars_2324	-	ribosomal protein L7Ae/L30e/S12e/Gadd45
2253	 46.67	-1	2082138..2082572	+	144	145592519	-	Pars_2325	-	transcription elongation factor NusA-like protein
2254	 49.32	-1	2083006..2083449	+	147	145592520	rps12P	Pars_2326	-	30S ribosomal protein S12P
2255	 48.72	-1	2083449..2084228	+	259	145592521	-	Pars_2327	-	RNA polymerase, insert
2256	 49.05	-1	2084262..2084630	+	122	145592522	-	Pars_2328	-	50S ribosomal protein L18e
2257	 49.73	0	2084627..2085187	+	186	145592523	-	Pars_2329	-	ribosomal protein L13
2258	 50.80	0	2085190..2085624	+	144	145592524	rps9p	Pars_2330	-	30S ribosomal protein S9P
2259	 50.51	0	2085621..2085818	+	65	145592525	-	Pars_2331	-	DNA-directed RNA polymerase subunit N
2260	 47.89	-1	2085863..2086123	+	86	145592526	-	Pars_2332	-	like-Sm ribonucleoprotein, core
2261	 52.06	0	2086120..2087331	+	403	145592527	-	Pars_2333	-	S-adenosylmethionine synthetase
2262	 51.99	0	2087323..2089080	-	585	145592528	-	Pars_2334	-	hypothetical protein
2263	 53.20	0	2089083..2090003	-	306	145592529	-	Pars_2335	-	protein of unknown function RIO1
55.13	MEAN

5.40	STD DEV
