IslandPath Analysis: Pyrobaculum arsenaticum DSM 13514

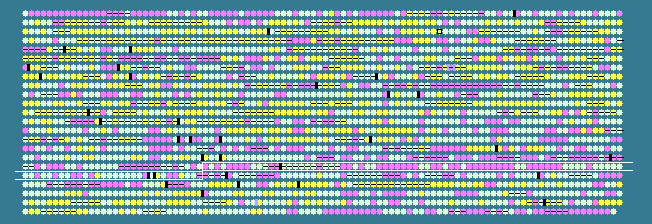

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.13 STD DEV: 5.40
Pyrobaculum arsenaticum DSM 13514, complete genome - 1..2121076
2299 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1731	 48.42	-1	1612987..1613649	-	220	145591997	-	Pars_1796	-	phosphoribosyltransferase
1732	 52.95	0	1613682..1614665	-	327	145591998	-	Pars_1797	-	hypothetical protein
1733	 48.72	-1	1614777..1615166	-	129	145591999	-	Pars_1798	-	zinc finger SWIM domain-containing protein
1734	 53.04	0	1615147..1615902	-	251	145592000	-	Pars_1799	-	inositol monophosphatase
1735	 47.50	-1	1616014..1617051	-	345	145592001	-	Pars_1800	-	hypothetical protein
1736	 48.22	-1	1617286..1617762	-	158	145592002	-	Pars_1801	-	hypothetical protein
1737	 48.94	-1	1617861..1618424	+	187	145592003	-	Pars_1802	-	hypothetical protein
1738	 50.00	0	1618433..1619158	-	241	145592004	-	Pars_1803	-	hypothetical protein
1739	 52.74	0	1619406..1620791	+	461	145592005	-	Pars_1804	-	CoA-binding domain-containing protein
1740	 52.99	0	1620788..1621489	+	233	145592006	-	Pars_1805	-	hypothetical protein
1741	 54.46	0	1621510..1622328	+	272	145592007	-	Pars_1806	-	aldo/keto reductase
1742	 50.46	0	1622288..1622836	+	182	145592008	-	Pars_1807	-	GCN5-related N-acetyltransferase
1743	 49.17	-1	1622858..1623097	+	79	145592009	-	Pars_1808	-	hypothetical protein
1744	 52.27	0	1623483..1625219	-	578	145592010	-	Pars_1809	-	radical SAM domain-containing protein
1745	 52.08	0	1625298..1626017	+	239	145592011	-	Pars_1810	-	transcriptional regulator, TrmB
1746	 52.41	0	1626100..1628484	-	794	145592012	-	Pars_1811	-	SMC domain-containing protein
1747	 56.73	0	1628462..1628632	-	56	145592013	-	Pars_1812	-	hypothetical protein
1748	 52.92	0	1628658..1629239	-	193	145592014	-	Pars_1813	-	actin-like protein
1749	 53.73	0	1629242..1630540	-	432	145592015	-	Pars_1814	-	actin/actin family protein
1750	 49.42	-1	1630564..1630905	-	113	145592016	-	Pars_1815	-	hypothetical protein
1751	 51.88	0	1630936..1631652	-	238	145592017	-	Pars_1816	-	nitroreductase
1752	 52.97	0	1631700..1631918	+	72	145592018	-	Pars_1817	-	hypothetical protein
1753	 52.20	0	1631972..1632358	+	128	145592019	-	Pars_1818	-	heat shock protein Hsp20
1754	 49.64	-1	1632355..1632906	-	183	145592020	-	Pars_1819	-	tRNA-splicing endonuclease subunit alpha
1755	 51.28	0	1632903..1633253	-	116	145592021	-	Pars_1820	-	hypothetical protein
1756	 57.68	0	1633283..1635040	-	585	145592022	-	Pars_1821	-	glycyl-tRNA synthetase
1757	 49.05	-1	1635087..1635977	+	296	145592023	-	Pars_1822	-	cation diffusion facilitator family transporter
1758	 56.75	0	1635970..1636776	+	268	145592024	-	Pars_1823	-	putative agmatinase
1759	 57.70	0	1636883..1637395	+	170	145592025	-	Pars_1824	-	cytidyltransferase-like protein
1760	 49.06	-1	1637414..1637572	+	52	145592026	rpoP	Pars_1825	-	DNA-directed RNA polymerase subunit P
1761	 49.57	-1	1637572..1637805	+	77	145592027	-	Pars_1826	-	hypothetical protein
1762	 49.66	-1	1637906..1638934	-	342	145592028	-	Pars_1827	-	3-dehydroquinate synthase
1763	 45.59	-1	1638921..1639475	-	184	145592029	-	Pars_1828	-	hypothetical protein
1764	 46.57	-1	1639499..1640095	-	198	145592030	-	Pars_1829	-	adenylate kinase
1765	 48.35	-1	1640092..1640757	-	221	145592031	-	Pars_1830	-	orotidine 5'-phosphate decarboxylase
1766	 44.59	-1	1640796..1641248	+	150	145592032	-	Pars_1831	-	hypothetical protein
1767	 54.57	0	1641245..1641649	+	134	145592033	-	Pars_1832	-	YbaK/prolyl-tRNA synthetase associated region
1768	 52.54	0	1641646..1641921	+	91	145592034	-	Pars_1833	-	hypothetical protein
1769	 47.56	-1	1642086..1642310	+	74	145592035	-	Pars_1834	-	hypothetical protein
1770	 49.31	-1	1642307..1642669	-	120	145592036	-	Pars_1835	-	hypothetical protein
1771	 52.26	0	1642701..1644248	-	515	145592037	pheT	Pars_1836	-	phenylalanyl-tRNA synthetase subunit beta
1772	 45.75	-1	1644294..1644599	+	101	145592038	-	Pars_1837	-	hypothetical protein
1773	 51.02	0	1644804..1645391	-	195	145592039	-	Pars_1838	-	hypothetical protein
1774	 52.98	0	1645438..1646394	+	318	145592040	-	Pars_1839	-	DNA-cytosine methyltransferase
1775	 38.16	-2	1646387..1647256	+	289	145592041	-	Pars_1840	-	hypothetical protein
1776	 42.62	-2	1647389..1647862	+	157	145592042	-	Pars_1841	-	GCN5-related N-acetyltransferase
1777	 48.79	-1	1647859..1649178	-	439	145592043	-	Pars_1842	-	isocitrate dehydrogenase, NADP-dependent
1778	 49.04	-1	1649225..1649899	+	224	145592044	-	Pars_1843	-	enoyl-CoA hydratase/isomerase
1779	 50.94	0	1649924..1651093	+	389	145592045	-	Pars_1844	-	TGS domain-containing protein
1780	 48.68	-1	1651086..1651541	+	151	145592046	-	Pars_1845	-	hypothetical protein
1781	 49.43	-1	1651538..1652506	+	322	145592047	rfc	Pars_1846	-	replication factor C small subunit
1782	 44.07	-2	1652674..1652943	-	89	145592048	-	Pars_1847	-	DNA-directed RNA polymerase, M/15 kDa subunit
1783	 52.45	0	1652989..1654803	+	604	145592049	-	Pars_1848	-	thiamine pyrophosphate binding domain-containing protein
1784	 55.62	0	1654776..1655318	+	180	145592050	-	Pars_1849	-	indolepyruvate oxidoreductase subunit B
1785	 49.81	0	1655307..1656113	-	268	145592051	-	Pars_1850	-	protein of unknown function RIO1
1786	 47.75	-1	1656128..1656682	+	184	145592052	-	Pars_1851	-	putative RNA-processing protein
1787	 48.87	-1	1656871..1657533	-	220	145592053	-	Pars_1852	-	30S ribosomal protein S3Ae
1788	 49.11	-1	1657629..1658135	+	168	145592054	-	Pars_1853	-	AsnC family transcriptional regulator
1789	 47.00	-1	1658170..1658469	+	99	145592055	-	Pars_1854	-	hypothetical protein
1790	 46.51	-1	1658500..1658757	+	85	145592056	-	Pars_1855	-	AsnC family transcriptional regulator
1791	 55.20	0	1658757..1659419	+	220	145592057	-	Pars_1856	-	hypothetical protein
1792	 55.69	0	1659408..1660409	-	333	145592058	-	Pars_1857	-	hypothetical protein
1793	 57.45	0	1660457..1661704	+	415	145592059	-	Pars_1858	-	molybdenum cofactor synthesis domain-containing protein
1794	 56.04	0	1661857..1663776	-	639	145592060	-	Pars_1859	-	molybdenum cofactor synthesis domain-containing protein
1795	 43.14	-2	1663787..1664092	-	101	145592061	-	Pars_1860	-	hypothetical protein
1796	 54.25	0	1664300..1665346	+	348	145592062	-	Pars_1861	-	peptidase M48, Ste24p
1797	 57.18	0	1665367..1665798	+	143	145592063	-	Pars_1862	-	hypothetical protein
1798	 53.04	0	1665823..1666629	-	268	145592064	-	Pars_1863	-	binding-protein-dependent transport systems inner membrane component
1799	 52.49	0	1666619..1667542	-	307	145592065	-	Pars_1864	-	binding-protein-dependent transport systems inner membrane component
1800	 52.97	0	1667542..1668906	-	454	145592066	-	Pars_1865	-	extracellular solute-binding protein
1801	 54.25	0	1668938..1671940	-	1000	145592067	-	Pars_1866	-	glycoside hydrolase family protein
1802	 52.49	0	1671988..1672791	+	267	145592068	-	Pars_1867	-	molybdopterin-guanine dinucleotide biosynthesis protein A
1803	 45.24	-1	1672866..1673075	+	69	145592069	-	Pars_1868	-	hypothetical protein
1804	 53.04	0	1673213..1673557	-	114	145592070	-	Pars_1869	-	HEPN domain-containing protein
1805	 57.18	0	1673557..1674726	-	389	145592071	-	Pars_1870	-	Serine--glyoxylate transaminase
1806	 49.96	0	1674845..1676131	-	428	145592072	-	Pars_1871	-	Glu/Leu/Phe/Val dehydrogenase, C terminal
1807	 55.33	0	1676234..1677124	+	296	145592073	-	Pars_1872	-	ROK family protein
1808	 53.21	0	1677160..1677627	+	155	145592074	rpl15p	Pars_1873	-	50S ribosomal protein L15P
1809	 49.86	0	1677627..1679024	+	465	145592075	-	Pars_1874	-	preprotein translocase subunit SecY
1810	 39.01	-2	1679061..1679201	+	46	145592076	-	Pars_1875	-	hypothetical protein
1811	 52.26	0	1679202..1679999	+	265	145592077	-	Pars_1876	-	hypothetical protein
1812	 51.14	0	1679996..1681219	-	407	145592078	-	Pars_1877	-	nucleotidyl transferase
1813	 58.87	0	1681267..1682715	-	482	145592079	-	Pars_1878	-	starch synthase
1814	 58.28	0	1682717..1684087	-	456	145592080	-	Pars_1879	-	Alpha-amylase
1815	 57.96	0	1684175..1686001	+	608	145592081	-	Pars_1880	-	aldehyde ferredoxin oxidoreductase
1816	 57.11	0	1686028..1687482	+	484	145592082	-	Pars_1881	-	glycosyl transferase, group 1
1817	 57.75	0	1687623..1689047	+	474	145592083	-	Pars_1882	-	thiamine biosynthesis protein ThiI
1818	 54.47	0	1689242..1690225	-	327	145592084	-	Pars_1883	-	putative mRNA 3-end processing factor
1819	 57.05	0	1690356..1692716	-	786	145592085	-	Pars_1884	-	DNA polymerase II
1820	 52.99	0	1692860..1693210	+	116	145592086	-	Pars_1885	-	hypothetical protein
1821	 51.23	0	1693685..1694902	-	405	145592087	-	Pars_1886	-	DNA primase
1822	 56.35	0	1695530..1696120	+	196	145592088	-	Pars_1887	-	HAD family hydrolase
1823	 60.57	+1	1696686..1697522	+	278	145592089	-	Pars_1888	-	abortive infection protein
1824	 56.10	0	1697490..1698227	-	245	145592090	-	Pars_1889	-	hypothetical protein
1825	 51.13	0	1698266..1698619	+	117	145592091	-	Pars_1890	-	hypothetical protein
1826	 51.24	0	1698650..1698850	+	66	145592092	-	Pars_1891	-	hypothetical protein
1827	 59.05	0	1698847..1699752	-	301	145592093	-	Pars_1892	-	peptidase T2, asparaginase 2
1828	 53.54	0	1699749..1700228	-	159	145592094	rps4p	Pars_1893	-	30S ribosomal protein S4
1829	 54.03	0	1700260..1700718	-	152	145592095	rps13p	Pars_1894	-	30S ribosomal protein S13P
1830	 49.22	-1	1700747..1702162	-	471	145592096	-	Pars_1895	-	binding-protein-dependent transport systems inner membrane component
55.13	MEAN

5.40	STD DEV
