IslandPath Analysis: Pyrobaculum arsenaticum DSM 13514

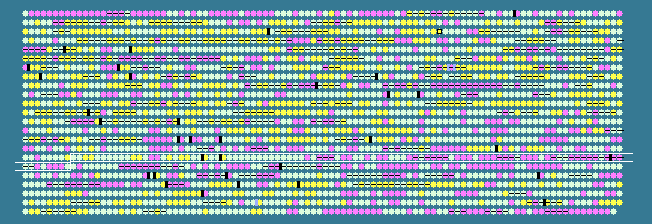

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.13 STD DEV: 5.40
Pyrobaculum arsenaticum DSM 13514, complete genome - 1..2121076
2299 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1609	 55.22	0	1511983..1512576	-	197	145591875	-	Pars_1674	-	hypothetical protein
1610	 55.12	0	1512648..1513955	+	435	145591876	-	Pars_1675	-	hypothetical protein
1611	 59.31	0	1513947..1514612	-	221	145591877	-	Pars_1676	-	B3/4 domain-containing protein
1612	 59.57	0	1514640..1515062	-	140	145591878	-	Pars_1677	-	hypothetical protein
1613	 57.28	0	1515065..1515916	-	283	145591879	-	Pars_1678	-	hypothetical protein
1614	 58.45	0	1515964..1517277	+	437	145591880	-	Pars_1679	-	S-adenosyl-L-homocysteine hydrolase
1615	 57.26	0	1517314..1517685	-	123	145591881	-	Pars_1680	-	hypothetical protein
1616	 52.16	0	1517667..1517990	-	107	145591882	-	Pars_1681	-	hypothetical protein
1617	 57.24	0	1518058..1518492	-	144	145591883	rpl14p	Pars_1682	-	50S ribosomal protein L14P
1618	 55.44	0	1518640..1519476	-	278	145591884	-	Pars_1683	-	hypothetical protein
1619	 62.32	+1	1519476..1520717	-	413	145591885	-	Pars_1684	-	pseudouridylate synthase
1620	 60.85	+1	1521100..1521288	-	62	145591886	-	Pars_1685	-	hypothetical protein
1621	 57.97	0	1521296..1521778	-	160	145591887	-	Pars_1686	-	hypothetical protein
1622	 42.52	-2	1522073..1522453	-	126	145591888	-	Pars_1687	-	hypothetical protein
1623	 49.23	-1	1523009..1523914	+	301	145591889	-	Pars_1688	-	hypothetical protein
1624	 58.48	0	1524665..1525507	+	280	145591890	-	Pars_1689	-	xylose isomerase domain-containing protein
1625	 61.08	+1	1525553..1527397	+	614	145591891	-	Pars_1690	-	hypothetical protein
1626	 56.19	0	1527587..1528168	+	193	145591892	-	Pars_1691	-	hypothetical protein
1627	 63.65	+1	1528140..1529033	-	297	145591893	-	Pars_1692	-	dihydroorotate dehydrogenase
1628	 61.49	+1	1529021..1529599	-	192	145591894	pyrE	Pars_1693	-	orotate phosphoribosyltransferase
1629	 55.70	0	1529596..1530051	-	151	145591895	-	Pars_1694	-	aspartate carbamoyltransferase regulatory subunit
1630	 54.48	0	1530592..1531272	-	226	145591896	-	Pars_1695	-	paREP7
1631	 64.39	+1	1532368..1533201	-	277	145591897	-	Pars_1696	-	abortive infection protein
1632	 56.92	0	1533201..1533641	-	146	145591898	-	Pars_1697	-	hypothetical protein
1633	 54.89	0	1534047..1534496	+	149	145591899	-	Pars_1698	-	hypothetical protein
1634	 59.14	0	1534699..1534884	-	61	145591900	-	Pars_1699	-	hypothetical protein
1635	 55.56	0	1534958..1535209	-	83	145591901	-	Pars_1700	-	HEPN domain-containing protein
1636	 56.73	0	1535298..1536605	-	435	145591902	-	Pars_1701	-	extracellular ligand-binding receptor
1637	 54.35	0	1536635..1537438	+	267	145591903	-	Pars_1702	-	ABC transporter related
1638	 53.64	0	1537579..1537908	-	109	145591904	rpoK	Pars_1703	-	DNA-directed RNA polymerase subunit K
1639	 58.56	0	1538195..1539871	-	558	145591905	-	Pars_1704	-	thermosome
1640	 57.22	0	1540109..1541008	-	299	145591906	-	Pars_1705	-	2-ketoisovalerate ferredoxin oxidoreductase subunit beta
1641	 57.49	0	1541005..1542159	-	384	145591907	-	Pars_1706	-	pyruvate flavodoxin/ferredoxin oxidoreductase domain-containing protein
1642	 56.63	0	1542156..1542404	-	82	145591908	-	Pars_1707	-	pyruvate ferredoxin/flavodoxin oxidoreductase, delta subunit
1643	 56.65	0	1542553..1543101	+	182	145591909	-	Pars_1708	-	pyruvate/ketoisovalerate oxidoreductase, gamma subunit
1644	 55.78	0	1543075..1544424	-	449	145591910	-	Pars_1709	-	UDP-glucose/GDP-mannose dehydrogenase
1645	 57.49	0	1544473..1545180	+	235	145591911	-	Pars_1710	-	beta-lactamase domain-containing protein
1646	 53.56	0	1545177..1545695	+	172	145591912	-	Pars_1711	-	hypothetical protein
1647	 52.47	0	1545821..1546447	+	208	145591913	-	Pars_1712	-	hypothetical protein
1648	 46.79	-1	1546437..1546592	-	51	145591914	-	Pars_1713	-	hypothetical protein
1649	 54.39	0	1546711..1547712	+	333	145591915	-	Pars_1714	-	eRF1 domain-containing 1 protein
1650	 45.98	-1	1547746..1547919	-	57	145591916	-	Pars_1715	-	paREP4
1651	 49.90	0	1548130..1548624	+	164	145591917	-	Pars_1716	-	Miro domain-containing protein
1652	 50.67	0	1548610..1549128	-	172	145591918	-	Pars_1717	-	putative NTPase
1653	 52.65	0	1549168..1549959	-	263	145591919	-	Pars_1718	-	polyprenyl synthetase
1654	 44.97	-1	1549994..1550182	-	62	145591920	-	Pars_1719	-	hypothetical protein
1655	 50.55	0	1550266..1550718	+	150	145591921	ribH	Pars_1720	-	riboflavin synthase subunit beta
1656	 52.85	0	1550715..1551626	-	303	145591922	-	Pars_1721	-	branched-chain amino acid aminotransferase
1657	 52.79	0	1551630..1552616	-	328	145591923	-	Pars_1722	-	ketol-acid reductoisomerase
1658	 46.75	-1	1552629..1552859	-	76	145591924	-	Pars_1723	-	acetolactate synthase small subunit
1659	 54.22	0	1552849..1554495	-	548	145591925	-	Pars_1724	-	acetolactate synthase, large subunit, biosynthetic type
1660	 51.47	0	1554636..1555076	-	146	145591926	-	Pars_1725	-	NUDIX hydrolase
1661	 50.10	0	1555125..1555631	+	168	145591927	-	Pars_1726	-	hypothetical protein
1662	 51.75	0	1555606..1555920	-	104	145591928	-	Pars_1727	-	hypothetical protein
1663	 52.19	0	1556090..1557367	-	425	145591929	-	Pars_1728	-	beta-lactamase domain-containing protein
1664	 51.76	0	1557675..1558043	+	122	145591930	rpl24p	Pars_1729	-	50S ribosomal protein L24P
1665	 47.70	-1	1558048..1558764	+	238	145591931	-	Pars_1730	-	30S ribosomal protein S4e
1666	 47.79	-1	1558761..1559189	-	142	145591932	-	Pars_1731	-	hypothetical protein
1667	 52.07	0	1559222..1560187	-	321	145591933	-	Pars_1732	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
1668	 47.37	-1	1560189..1561157	-	322	145591934	-	Pars_1733	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
1669	 46.10	-1	1561173..1562018	+	281	145591935	-	Pars_1734	-	ribokinase-like domain-containing protein
1670	 47.04	-1	1561996..1562856	-	286	145591936	-	Pars_1735	-	signal transduction protein
1671	 49.46	-1	1562996..1563919	+	307	145591937	-	Pars_1736	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
1672	 52.94	0	1563916..1564935	+	339	145591938	-	Pars_1737	-	aminotransferase, class V
1673	 50.06	0	1564916..1565710	+	264	145591939	-	Pars_1738	-	hypothetical protein
1674	 45.95	-1	1565694..1566113	-	139	145591940	-	Pars_1739	-	hypothetical protein
1675	 50.12	0	1566150..1567406	-	418	145591941	-	Pars_1740	-	tRNA CCA-pyrophosphorylase
1676	 52.84	0	1567403..1567966	-	187	145591942	-	Pars_1741	-	2'-5' RNA ligase
1677	 50.34	0	1567963..1568403	-	146	145591943	-	Pars_1742	-	MarR family transcriptional regulator
1678	 49.61	-1	1568431..1569327	-	298	145591944	-	Pars_1743	-	zinc finger TFIIB-type domain-containing protein
1679	 43.90	-2	1569324..1569569	-	81	145591945	-	Pars_1744	-	H/ACA RNA-protein complex component Gar1
1680	 50.00	0	1569668..1570063	+	131	145591946	-	Pars_1745	-	30S ribosomal protein S8e
1681	 49.83	0	1570060..1570350	+	96	145591947	-	Pars_1746	-	ribonucleoprotein complex SRP, Srp19 component
1682	 50.67	0	1570351..1571100	+	249	145591948	-	Pars_1747	-	GTPase
1683	 51.82	0	1571085..1571387	-	100	145591949	-	Pars_1748	-	50S ribosomal protein L21e
1684	 43.45	-2	1571472..1571807	+	111	145591950	-	Pars_1749	-	RNA polymerase Rpb4
1685	 45.75	-1	1571804..1572391	+	195	145591951	-	Pars_1750	-	putative nucleotide binding protein
1686	 49.12	-1	1572392..1572790	-	132	145591952	-	Pars_1751	-	translation initiation factor IF-5A
1687	 55.99	0	1572820..1573662	-	280	145591953	-	Pars_1752	-	5'-methylthioadenosine phosphorylase II
1688	 47.15	-1	1573694..1574185	+	163	145591954	-	Pars_1753	-	hypothetical protein
1689	 45.18	-1	1574211..1574573	+	120	145591955	-	Pars_1754	-	translation initiation factor SUI1
1690	 52.25	0	1574831..1575385	-	184	145591956	-	Pars_1755	-	hypothetical protein
1691	 54.09	0	1575382..1577274	-	630	145591957	argS	Pars_1756	-	arginyl-tRNA synthetase
1692	 48.29	-1	1577340..1577573	+	77	145591958	rps28e	Pars_1757	-	30S ribosomal protein S28e
1693	 46.46	-1	1577570..1577767	+	65	145591959	-	Pars_1758	-	ribosomal protein L24E
1694	 51.52	0	1577757..1578218	-	153	145591960	rpl7ae	Pars_1759	-	50S ribosomal protein L7Ae
1695	 50.00	0	1578250..1579335	-	361	145591961	-	Pars_1760	-	inner-membrane translocator
1696	 51.56	0	1579332..1580291	-	319	145591962	-	Pars_1761	-	inner-membrane translocator
1697	 55.93	0	1580401..1581750	+	449	145591963	-	Pars_1762	-	extracellular ligand-binding receptor
1698	 49.54	-1	1581779..1582543	+	254	145591964	-	Pars_1763	-	ABC transporter related
1699	 48.48	-1	1582955..1585330	+	791	145591965	-	Pars_1764	-	hypothetical protein
1700	 48.52	-1	1585323..1586738	+	471	145591966	-	Pars_1765	-	major facilitator transporter
1701	 57.99	0	1586746..1587840	+	364	145591967	-	Pars_1766	-	major facilitator transporter
1702	 52.97	0	1587819..1588256	+	145	145591968	-	Pars_1767	-	methyltransferase type 11
1703	 50.30	0	1588313..1589155	+	280	145591969	-	Pars_1768	-	putative circadian clock protein, KaiC
1704	 51.92	0	1589191..1590492	+	433	145591970	-	Pars_1769	-	GTP-binding signal recognition particle
1705	 49.58	-1	1590489..1590962	+	157	145591971	-	Pars_1770	-	hypothetical protein
1706	 49.68	-1	1590984..1592219	+	411	145591972	-	Pars_1771	-	hypothetical protein
1707	 50.72	0	1592247..1593764	+	505	145591973	guaA	Pars_1772	-	bifunctional GMP synthase/glutamine amidotransferase protein
1708	 56.03	0	1593876..1595267	+	463	145591974	-	Pars_1773	-	gamma-glutamyltransferase
55.13	MEAN

5.40	STD DEV
