IslandPathversion 1.0

IslandPath Analysis: Pyrobaculum arsenaticum DSM 13514

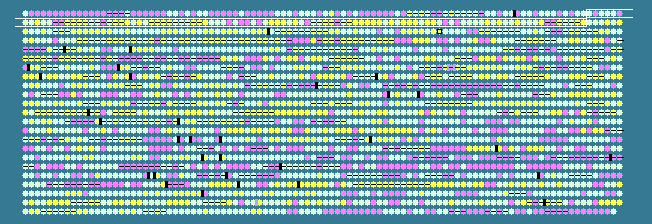

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.13 STD DEV: 5.40
Pyrobaculum arsenaticum DSM 13514, complete genome - 1..2121076
2299 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
95	 57.49	0	86510..87370	-	286	145590362	-	Pars_0097	-	hypothetical protein
96	 51.45	0	87429..87842	+	137	145590363	-	Pars_0098	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
97	 53.85	0	87839..88072	+	77	145590364	-	Pars_0099	-	hypothetical protein
98	 55.64	0	88041..88430	-	129	145590365	-	Pars_0100	-	hypothetical protein
99	 52.21	0	88515..89171	-	218	145590366	-	Pars_0101	-	HhH-GPD family protein
100	 51.20	0	89217..89714	+	165	145590367	-	Pars_0102	-	hypothetical protein
101	 53.56	0	90082..90867	+	261	145590368	-	Pars_0103	-	hypothetical protein
102	 53.16	0	90897..92369	+	490	145590369	-	Pars_0104	-	carboxypeptidase Taq
103	 58.71	0	92366..92956	-	196	145590370	-	Pars_0105	-	hypothetical protein
104	 57.36	0	93044..93505	+	153	145590371	-	Pars_0106	-	phosphopantetheine adenylyltransferase
105	 56.29	0	93482..94792	-	436	145590372	-	Pars_0107	-	hypothetical protein
106	 47.13	-1	94819..95166	-	115	145590373	-	Pars_0108	-	hypothetical protein
107	 51.61	0	95281..95559	+	92	145590374	-	Pars_0109	-	hypothetical protein
108	 59.63	0	95540..96349	-	269	145590375	-	Pars_0110	-	hypothetical protein
109	 62.38	+1	96558..97397	+	279	145590376	-	Pars_0111	-	prephenate dehydratase
110	 62.73	+1	97498..99630	-	710	145590377	-	Pars_0112	-	DEAD/DEAH box helicase domain-containing protein
111	 60.11	0	99714..101756	+	680	145590378	-	Pars_0113	-	MCM family protein
112	 56.10	0	101779..102270	+	163	145590379	-	Pars_0114	-	PaREP1 domain-containing protein
113	 58.53	0	102487..102990	+	167	145590380	-	Pars_0115	-	hypothetical protein
114	 46.44	-1	103752..104201	+	149	145590381	-	Pars_0116	-	hypothetical protein
115	 56.75	0	104445..104918	+	157	145590382	-	Pars_0117	-	hypothetical protein
116	 63.83	+1	104912..105193	+	93	145590383	-	Pars_0118	-	hypothetical protein
117	 60.05	0	105224..107929	+	901	145590384	-	Pars_0119	-	hypothetical protein
118	 61.65	+1	107883..108899	-	338	145590385	-	Pars_0120	-	aminotransferase, class I and II
119	 53.27	0	108920..109255	-	111	145590386	-	Pars_0121	-	paREP15, putative coiled-coil protein
120	 63.22	+1	109276..110727	-	483	145590387	-	Pars_0122	-	radical SAM domain-containing protein
121	 54.50	0	110838..111026	+	62	145590388	-	Pars_0123	-	hypothetical protein
122	 60.00	0	111013..111552	+	179	145590389	-	Pars_0124	-	hypothetical protein
123	 63.07	+1	111540..111845	+	101	145590390	-	Pars_0125	-	hypothetical protein
124	 66.46	+2	111890..112369	+	159	145590391	-	Pars_0126	-	methyltransferase type 11
125	 59.66	0	112389..113759	+	456	145590392	-	Pars_0127	-	hypothetical protein
126	 58.17	0	113756..114214	+	152	145590393	-	Pars_0128	-	hypothetical protein
127	 56.94	0	114277..117627	+	1116	145590394	-	Pars_0129	-	hypothetical protein
128	 55.81	0	117624..118277	+	217	145590395	-	Pars_0130	-	hypothetical protein
129	 59.92	0	118274..118792	+	172	145590396	-	Pars_0131	-	hypothetical protein
130	 64.77	+1	118825..119934	+	369	145590397	-	Pars_0132	-	SufBD protein
131	 61.43	+1	119927..121225	-	432	145590398	-	Pars_0133	-	hypothetical protein
132	 57.57	0	121873..122883	+	336	145590399	-	Pars_0134	-	hypothetical protein
133	 58.52	0	123297..124106	-	269	145590400	-	Pars_0135	-	hypothetical protein
134	 57.76	0	124358..124660	-	100	145590401	-	Pars_0136	-	hypothetical protein
135	 51.27	0	124765..125394	-	209	145590402	-	Pars_0137	-	hypothetical protein
136	 52.80	0	126196..127140	-	314	145590403	-	Pars_0138	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
137	 48.95	-1	127137..129038	-	633	145590404	-	Pars_0139	-	pyruvate flavodoxin/ferredoxin oxidoreductase domain-containing protein
138	 44.95	-1	129211..129804	-	197	145590405	-	Pars_0140	-	multiple antibiotic resistance (MarC)-related protein
139	 52.74	0	129917..131137	-	406	145590406	-	Pars_0141	-	hypothetical protein
140	 43.79	-2	131162..131620	+	152	145590407	-	Pars_0142	-	GCN5-related N-acetyltransferase
141	 58.17	0	131745..132827	+	360	145590408	-	Pars_0143	-	carbamoyl phosphate synthase small subunit
142	 59.81	0	132820..135897	+	1025	145590409	carB	Pars_0144	-	carbamoyl phosphate synthase large subunit
143	 59.12	0	135891..136685	+	264	145590410	-	Pars_0145	-	alpha-L-glutamate ligase
144	 62.60	+1	136772..137779	-	335	145590411	-	Pars_0146	-	AIR synthase-like protein
145	 58.33	0	137807..138694	+	295	145590412	-	Pars_0147	-	GntR family transcriptional regulator
146	 58.73	0	138708..139274	+	188	145590413	-	Pars_0148	-	hypothetical protein
147	 55.99	0	139264..140406	+	380	145590414	-	Pars_0149	-	extracellular solute-binding protein
148	 50.31	0	140396..140878	-	160	145590415	-	Pars_0150	-	magnesium-dependent phosphatase-1
149	 53.44	0	140914..141291	+	125	145590416	-	Pars_0151	-	hypothetical protein
150	 58.14	0	141313..141828	+	171	145590417	-	Pars_0152	-	molybdenum cofactor synthesis domain-containing protein
151	 60.26	0	141825..142355	+	176	145590418	-	Pars_0153	-	hypothetical protein
152	 61.42	+1	142339..142929	-	196	145590419	-	Pars_0154	-	abortive infection protein
153	 51.52	0	142975..143469	+	164	145590420	-	Pars_0155	-	hypothetical protein
154	 55.67	0	143450..144040	-	196	145590421	-	Pars_0156	-	dTMP kinase
155	 59.72	0	144088..144663	+	191	145590422	hisH	Pars_0157	-	imidazole glycerol phosphate synthase subunit HisH
156	 62.47	+1	144632..145060	-	142	145590423	-	Pars_0158	-	phosphoribosyl-AMP cyclohydrolase
157	 60.95	+1	145119..146132	+	337	145590424	-	Pars_0159	-	aminotransferase, class I and II
158	 59.89	0	146136..147020	+	294	145590425	hisG	Pars_0160	-	ATP phosphoribosyltransferase
159	 60.20	0	147036..148256	+	406	145590426	-	Pars_0161	-	adenylosuccinate lyase
160	 62.49	+1	148285..149289	+	334	145590427	-	Pars_0162	-	adenylosuccinate synthetase
161	 57.96	0	149315..149785	+	156	145590428	-	Pars_0163	-	PaREP1 domain-containing protein
162	 60.14	0	149884..151323	+	479	145590429	-	Pars_0164	-	FAD dependent oxidoreductase
163	 54.92	0	151422..152102	+	226	145590430	-	Pars_0165	-	hypothetical protein
164	 63.86	+1	152188..152472	-	94	145590431	-	Pars_0166	-	phosphoribosyl-ATP pyrophosphohydrolase
165	 66.13	+2	152469..153578	-	369	145590432	-	Pars_0167	-	histidinol dehydrogenase
166	 64.15	+1	153575..154330	-	251	145590433	-	Pars_0168	-	imidazoleglycerol phosphate synthase, cyclase subunit
167	 55.94	0	154381..154809	+	142	145590434	-	Pars_0169	-	hypothetical protein
168	 65.23	+1	154858..155415	+	185	145590435	-	Pars_0170	-	imidazoleglycerol-phosphate dehydratase
169	 62.15	+1	155412..156098	+	228	145590436	-	Pars_0171	-	histidine biosynthesis
170	 58.45	0	156272..157768	+	498	145590437	-	Pars_0172	-	hypothetical protein
171	 48.82	-1	157775..158155	-	126	145590438	-	Pars_0173	-	hypothetical protein
172	 55.05	0	158218..158949	+	243	145590439	-	Pars_0174	-	hypothetical protein
173	 48.00	-1	159150..159374	+	74	145590440	-	Pars_0175	-	hypothetical protein
174	 58.05	0	159357..160703	-	448	145590441	-	Pars_0176	-	4-aminobutyrate aminotransferase
175	 55.86	0	160878..161636	-	252	145590442	-	Pars_0177	-	FeS assembly ATPase SufC
176	 56.82	0	161771..162034	+	87	145590443	-	Pars_0178	-	hypothetical protein
177	 52.58	0	162057..162617	+	186	145590444	-	Pars_0179	-	hypothetical protein
178	 61.04	+1	162660..163388	-	242	145590445	-	Pars_0180	-	aspartate/glutamate/uridylate kinase
179	 57.01	0	163388..164392	-	334	145590446	-	Pars_0181	-	polyprenyl synthetase
180	 60.86	+1	164433..165173	+	246	145590447	-	Pars_0182	-	hypothetical protein
181	 53.13	0	165296..165694	+	132	145590448	-	Pars_0183	-	hypothetical protein
182	 56.16	0	165792..166124	+	110	145590449	-	Pars_0184	-	hypothetical protein
183	 60.94	+1	166127..166981	+	284	145590450	-	Pars_0185	-	thiamine monophosphate kinase-like protein
184	 56.72	0	167014..167727	+	237	145590451	-	Pars_0186	-	hypothetical protein
185	 58.48	0	167724..168395	-	223	145590452	-	Pars_0187	-	ribose 5-phosphate isomerase
186	 53.75	0	168429..168815	-	128	145590453	-	Pars_0188	-	signal-transduction protein
187	 58.73	0	168912..170762	+	616	145590454	-	Pars_0189	-	aldehyde ferredoxin oxidoreductase-like protein
188	 46.80	-1	171080..171658	+	192	145590455	-	Pars_0190	-	hypothetical protein
189	 51.14	0	171655..172446	+	263	145590456	-	Pars_0191	-	hypothetical protein
190	 59.15	0	172449..172847	-	132	145590457	-	Pars_0192	-	dinitrogenase iron-molybdenum cofactor biosynthesis
191	 54.73	0	172906..173433	+	175	145590458	-	Pars_0193	-	pyruvate/ketoisovalerate oxidoreductase, gamma subunit
192	 57.28	0	173430..173738	+	102	145590459	-	Pars_0194	-	pyruvate ferredoxin/flavodoxin oxidoreductase, delta subunit
193	 59.48	0	173735..174916	+	393	145590460	-	Pars_0195	-	pyruvate flavodoxin/ferredoxin oxidoreductase domain-containing protein
194	 59.26	0	174913..175857	+	314	145590461	-	Pars_0196	-	thiamine pyrophosphate binding domain-containing protein
55.13	MEAN

5.40	STD DEV
