IslandPath Analysis: Pyrobaculum arsenaticum DSM 13514

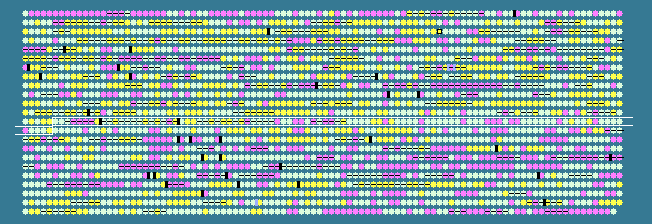

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.13 STD DEV: 5.40
Pyrobaculum arsenaticum DSM 13514, complete genome - 1..2121076
2299 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1206	 58.01	0	1136961..1137341	+	126	145591472	-	Pars_1258	-	putative endoribonuclease L-PSP
1207	 57.47	0	1137418..1137678	+	86	145591473	-	Pars_1259	-	hypothetical protein
1208	 55.28	0	1137657..1138262	+	201	145591474	-	Pars_1260	-	hypothetical protein
1209	 45.50	-1	1138278..1138499	+	73	145591475	-	Pars_1261	-	hypothetical protein
1210	 50.69	0	1138483..1138770	+	95	145591476	-	Pars_1262	-	hypothetical protein
1211	 42.72	-2	1139322..1139843	+	173	145591477	-	Pars_1263	-	hypothetical protein
1212	 44.49	-1	1139854..1140516	+	220	145591478	-	Pars_1264	-	hypothetical protein
1213	 59.36	0	1141324..1141542	+	72	145591479	-	Pars_1265	-	paREP2b
1214	 55.86	0	1142624..1143280	+	218	145591480	-	Pars_1266	-	hypothetical protein
1215	 54.87	0	1143318..1143800	-	160	145591481	-	Pars_1267	-	PaREP1 domain-containing protein
1216	 60.06	0	1143852..1144184	-	110	145591482	-	Pars_1268	-	DNA polymerase beta subunit
1217	 55.69	0	1144177..1144659	-	160	145591483	-	Pars_1269	-	HEPN domain-containing protein
1218	 54.22	0	1144822..1145046	+	74	145591484	-	Pars_1270	-	paREP6
1219	 57.55	0	1145120..1145536	+	138	145591485	-	Pars_1271	-	hypothetical protein
1220	 52.43	0	1146365..1146961	-	198	145591486	-	Pars_1272	-	hypothetical protein
1221	 59.03	0	1147051..1150506	+	1151	145591487	-	Pars_1273	-	hypothetical protein
1222	 55.33	0	1150744..1152348	+	534	145591488	-	Pars_1274	-	TrkA domain-containing protein
1223	 60.66	+1	1152406..1152888	-	160	145591489	-	Pars_1275	-	hypothetical protein
1224	 55.78	0	1153129..1153863	+	244	145591490	-	Pars_1276	-	hypothetical protein
1225	 50.70	0	1154036..1154248	+	70	145591491	-	Pars_1277	-	hypothetical protein
1226	 64.88	+1	1154367..1155149	-	260	145591492	-	Pars_1278	-	Nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
1227	 52.49	0	1155907..1156668	-	253	145591493	-	Pars_1279	-	hypothetical protein
1228	 59.44	0	1156982..1159222	-	746	145591494	-	Pars_1280	-	(NiFe) hydrogenase maturation protein HypF
1229	 59.51	0	1159312..1160052	+	246	145591495	-	Pars_1281	-	hypothetical protein
1230	 55.52	0	1160075..1161043	+	322	145591496	-	Pars_1282	-	hypothetical protein
1231	 55.77	0	1161073..1162302	+	409	145591497	-	Pars_1283	-	periplasmic binding protein
1232	 61.75	+1	1162293..1163309	+	338	145591498	-	Pars_1284	-	transport system permease protein
1233	 57.39	0	1163303..1164046	+	247	145591499	-	Pars_1285	-	ABC transporter related
1234	 60.73	+1	1164413..1165624	+	403	145591500	-	Pars_1287	-	hydrogenase formation HypD protein
1235	 60.63	+1	1165627..1165974	+	115	145591501	-	Pars_1288	-	hypothetical protein
1236	 56.59	0	1166128..1166256	+	42	145591502	-	Pars_1289	-	hypothetical protein
1237	 60.44	0	1166403..1166996	+	197	145591503	-	Pars_1290	-	hypothetical protein
1238	 50.72	0	1167123..1167467	+	114	145591504	-	Pars_1291	-	hypothetical protein
1239	 56.33	0	1167838..1168737	+	299	145591505	-	Pars_1292	-	cobalamin (vitamin B12) biosynthesis CbiM protein
1240	 57.65	0	1168734..1169387	+	217	145591506	-	Pars_1293	-	hypothetical protein
1241	 56.33	0	1169372..1170019	+	215	145591507	-	Pars_1294	-	ABC transporter related
1242	 54.70	0	1169996..1170580	-	194	145591508	-	Pars_1295	-	hypothetical protein
1243	 47.79	-1	1170580..1170828	-	82	145591509	-	Pars_1296	-	hypothetical protein
1244	 54.39	0	1170821..1171333	-	170	145591510	-	Pars_1297	-	hydrogenase maturation protease
1245	 57.75	0	1171312..1173228	-	638	145591511	-	Pars_1298	-	nickel-dependent hydrogenase, large subunit
1246	 50.95	0	1173283..1174542	-	419	145591512	-	Pars_1299	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1247	 41.57	-2	1174597..1175361	-	254	145591513	-	Pars_1300	-	hypothetical protein
1248	 55.81	0	1175363..1176679	-	438	145591514	-	Pars_1301	-	nickel-dependent hydrogenase small subunit
1249	 50.89	0	1176660..1177274	-	204	145591515	-	Pars_1302	-	hypothetical protein
1250	 55.97	0	1177267..1177752	-	161	145591516	-	Pars_1303	-	hypothetical protein
1251	 44.88	-1	1177915..1178217	-	100	145591517	-	Pars_1304	-	hypothetical protein
1252	 48.46	-1	1178267..1178656	+	129	145591518	-	Pars_1305	-	CopG family transcriptional regulator
1253	 57.42	0	1178686..1179096	+	136	145591519	-	Pars_1306	-	hydrogenase expression/synthesis, HypA
1254	 60.43	0	1179093..1179749	+	218	145591520	-	Pars_1307	-	hypothetical protein
1255	 58.57	0	1179827..1181728	+	633	145591521	-	Pars_1308	-	AMP-dependent synthetase and ligase
1256	 57.35	0	1181788..1182828	+	346	145591522	-	Pars_1309	-	hydrogenase expression/formation protein HypE
1257	 57.99	0	1182822..1183409	+	195	145591523	-	Pars_1310	-	beta-lactamase fold-like Zn-dependent hydrolase
1258	 55.06	0	1184148..1184681	+	177	145591524	-	Pars_1311	-	THUMP domain-containing protein
1259	 60.68	+1	1184711..1185295	+	194	145591525	-	Pars_1312	-	hypothetical protein
1260	 58.69	0	1185269..1186171	-	300	145591526	-	Pars_1313	-	dihydropteroate synthase
1261	 48.57	-1	1186221..1186535	+	104	145591527	-	Pars_1314	-	hypothetical protein
1262	 59.07	0	1186556..1187806	+	416	145591528	-	Pars_1315	-	RNA modification protein
1263	 53.01	0	1187836..1188333	+	165	145591529	-	Pars_1316	-	PaREP1 domain-containing protein
1264	 58.09	0	1188330..1190042	-	570	145591530	-	Pars_1317	-	methionyl-tRNA synthetase
1265	 54.97	0	1190093..1190716	-	207	145591531	-	Pars_1318	-	hypothetical protein
1266	 53.70	0	1190719..1191435	-	238	145591532	-	Pars_1319	-	undecaprenyl diphosphate synthase
1267	 50.76	0	1191413..1191739	-	108	145591533	-	Pars_1320	-	methionyl-tRNA synthetase, beta subunit
1268	 55.81	0	1191763..1192158	-	131	145591534	-	Pars_1321	-	hypothetical protein
1269	 53.49	0	1192164..1194614	-	816	145591535	-	Pars_1322	-	hypothetical protein
1270	 55.31	0	1194683..1195492	+	269	145591536	-	Pars_1323	-	HAD family hydrolase
1271	 55.21	0	1195479..1196246	-	255	145591537	-	Pars_1324	-	hypothetical protein
1272	 53.99	0	1196243..1196455	-	70	145591538	-	Pars_1325	-	hypothetical protein
1273	 52.38	0	1196494..1196808	-	104	145591539	-	Pars_1326	-	hypothetical protein
1274	 51.49	0	1196856..1197995	+	379	145591540	-	Pars_1327	-	hypothetical protein
1275	 55.60	0	1198314..1199063	+	249	145591541	-	Pars_1328	-	extracellular solute-binding protein
1276	 52.15	0	1199048..1199488	+	146	145591542	-	Pars_1329	-	hypothetical protein
1277	 55.12	0	1199526..1200287	+	253	145591543	-	Pars_1330	-	NAD-dependent deacetylase
1278	 50.38	0	1200268..1200789	-	173	145591544	-	Pars_1331	-	hypothetical protein
1279	 49.05	-1	1200786..1201205	-	139	145591545	-	Pars_1332	-	signal-transduction protein
1280	 47.27	-1	1201228..1201557	-	109	145591546	-	Pars_1333	-	hypothetical protein
1281	 55.87	0	1201554..1201979	-	141	145591547	-	Pars_1334	-	hypothetical protein
1282	 40.58	-2	1201976..1202113	-	45	145591548	-	Pars_1335	-	hypothetical protein
1283	 43.66	-2	1202110..1202322	-	70	145591549	-	Pars_1336	-	hypothetical protein
1284	 53.86	0	1202581..1203267	+	228	145591550	-	Pars_1337	-	nucleotidyl transferase
1285	 56.28	0	1203257..1204969	+	570	145591551	gltX	Pars_1338	-	glutamyl-tRNA synthetase
1286	 56.55	0	1205088..1206095	+	335	145591552	-	Pars_1339	-	hypothetical protein
1287	 52.16	0	1206124..1206516	+	130	145591553	-	Pars_1340	-	hypothetical protein
1288	 53.37	0	1206458..1207081	-	207	145591554	-	Pars_1341	-	hypothetical protein
1289	 53.94	0	1207217..1208512	-	431	145591555	-	Pars_1342	-	asparaginyl-tRNA synthetase
1290	 50.60	0	1208515..1208763	-	82	145591556	-	Pars_1343	-	hypothetical protein
1291	 55.35	0	1208760..1209572	-	270	145591557	-	Pars_1344	-	6-phosphogluconate dehydrogenase, NAD-binding
1292	 58.87	0	1209575..1210651	+	358	145591558	-	Pars_1345	-	Sua5/YciO/YrdC/YwlC family protein
1293	 52.90	0	1210648..1211424	+	258	145591559	-	Pars_1346	-	methyltransferase type 11
1294	 52.63	0	1211454..1212308	+	284	145591560	-	Pars_1347	-	ribose-phosphate pyrophosphokinase
1295	 58.85	0	1212303..1213313	-	336	145591561	-	Pars_1348	-	histone deacetylase superfamily protein
1296	 43.59	-2	1213372..1213566	+	64	145591562	-	Pars_1349	-	hypothetical protein
1297	 53.05	0	1213544..1214182	-	212	145591563	-	Pars_1350	-	creatininase
1298	 53.30	0	1214302..1214967	+	221	145591564	-	Pars_1351	-	GTP cyclohydrolase IIA
1299	 53.04	0	1214964..1215638	+	224	145591565	-	Pars_1352	-	hypothetical protein
1300	 54.81	0	1215674..1216297	+	207	145591566	-	Pars_1353	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
1301	 50.00	0	1216281..1216694	-	137	145591567	-	Pars_1354	-	hypothetical protein
1302	 55.71	0	1216748..1217824	+	358	145591568	-	Pars_1355	-	geranylgeranyl reductase
1303	 54.40	0	1217819..1218976	-	385	145591569	-	Pars_1356	-	nicotinate phosphoribosyltransferase
1304	 52.66	0	1219011..1220738	+	575	145591570	-	Pars_1357	-	DEAD_2 domain-containing protein
1305	 62.17	+1	1220722..1221210	-	162	145591571	-	Pars_1358	-	hypothetical protein
55.13	MEAN

5.40	STD DEV
