IslandPath Analysis: Pyrobaculum aerophilum str. IM2

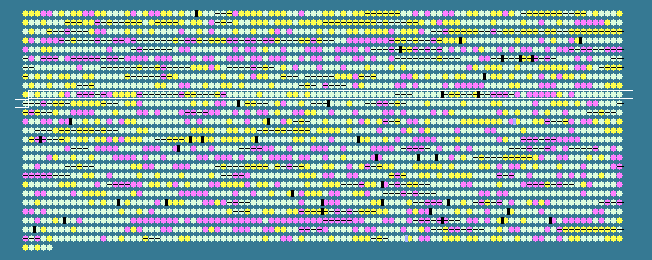

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 51.51   STD DEV: 5.01
Pyrobaculum aerophilum str. IM2, complete genome - 1..2222430
2605 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
902	 53.93	0	780025..780393	+	122	18312545	-	PAE1310	-	hypothetical protein
903	 56.38	0	780366..780608	+	80	18312546	-	PAE1311	-	hypothetical protein
904	 50.31	0	780617..780775	+	52	18312547	-	PAE1313	-	hypothetical protein
905	 50.12	0	780817..781239	+	140	18312548	-	PAE1315	-	hypothetical protein
906	 53.49	0	781252..781509	+	85	18312549	-	PAE1316	-	hypothetical protein
907	 55.19	0	781498..781767	-	89	18312550	-	PAE1318	-	hypothetical protein
908	 45.24	-1	782022..782357	+	111	18312551	-	PAE1319	-	hypothetical protein
909	 48.67	0	782380..782718	+	112	18312552	-	PAE1320	-	hypothetical protein
910	 45.90	-1	782751..783824	-	357	18312553	-	PAE1321	-	multiple sugar-binding transport ATP-binding
911	 44.36	-1	783821..784654	-	277	18312554	-	PAE1322	-	multiple sugar transport permease
912	 42.66	-1	784651..785529	-	292	18312555	-	PAE1323	-	multiple sugar transport permease
913	 48.25	0	785526..786839	-	437	18312556	-	PAE1324	-	multiple sugar binding protein
914	 32.50	-2	786815..786934	-	39	18312557	-	PAE1325	-	hypothetical protein
915	 44.44	-1	787362..787487	+	41	18312558	-	PAE1326	-	hypothetical protein
916	 59.18	+1	787474..788154	+	226	18312559	-	PAE1327	-	uracil-DNA glycosylase
917	 57.98	+1	788151..788990	+	279	18312560	-	PAE1328	-	hypothetical protein
918	 57.88	+1	789004..789447	+	147	18312561	-	PAE1329	-	hypothetical protein
919	 56.91	+1	789498..791075	+	525	18312562	-	PAE1330	-	alpha-isopropylmalate/homocitrate synthase family transferase
920	 41.68	-1	791086..792498	-	470	18312563	-	PAE1331	-	iron-sulfur protein
921	 54.31	0	792839..793267	-	142	18312564	-	PAE1332	-	hypothetical protein
922	 52.45	0	793267..794103	-	278	18312565	ubiA	PAE1333	-	prenyltransferase
923	 51.69	0	794139..794672	-	177	18312566	-	PAE1334	-	respiratory chain protein
924	 49.23	0	794632..794826	-	64	18312567	-	PAE1336	-	respiratory chain protein
925	 54.43	0	794823..797225	-	800	18312568	-	PAE1337	-	cytochrome C oxidase subunit I /III
926	 49.78	0	797225..797674	-	149	18312569	-	PAE1338	-	cytochrome C oxidase subunit II
927	 46.67	0	797661..797900	-	79	18312570	-	PAE1340	-	respiratory chain protein (soxI homolog)
928	 56.76	+1	798072..798929	+	285	18312571	-	PAE1344	-	respiratory chain protein
929	 55.35	0	798929..800872	+	647	18312572	-	PAE1345	-	hypothetical protein
930	 54.96	0	800977..801540	+	187	18312573	-	PAE1347	-	hypothetical protein
931	 52.23	0	801542..802102	+	186	18312574	-	PAE1349	-	Rieske iron sulfur protein (parR)
932	 52.90	0	802099..803340	+	413	18312575	-	PAE1350	-	cytochrome b/b6
933	 60.91	+1	803343..803672	+	109	18312576	-	PAE1351	-	hypothetical protein
934	 46.12	-1	803665..803922	+	85	18312577	-	PAE1352	-	hypothetical protein
935	 52.41	0	804233..804709	+	158	18312578	-	PAE1355	-	cytochrome C oxidase subunit II
936	 52.33	0	804755..806428	+	557	18312579	-	PAE1357	-	cytochrome C oxidase subunit I
937	 51.44	0	806460..807083	+	207	18312580	-	PAE1358	-	senC-like protein
938	 53.55	0	807083..807448	+	121	18312581	-	PAE1359	-	hypothetical protein
939	 54.09	0	807518..808201	+	227	18312582	-	PAE1360	-	hypothetical protein
940	 55.93	0	808204..808818	+	204	18312583	-	PAE1361	-	hypothetical protein
941	 54.37	0	808772..809926	+	384	18312584	-	PAE1362	-	nosD-like protein
942	 53.94	0	809911..810570	+	219	18312585	-	PAE1363	-	branched-chain amino acid ABC transporter, ATP-binding protein, putative
943	 54.35	0	810560..811306	+	248	18312586	-	PAE1364	-	hypothetical protein
944	 49.43	0	811303..811650	+	115	18312587	-	PAE1365	-	hypothetical protein
945	 59.73	+1	811790..812236	+	148	18312588	-	PAE1366	-	hypothetical protein
946	 58.05	+1	812240..812866	+	208	18312589	-	PAE1367	-	hypothetical protein
947	 54.29	0	812845..813054	+	69	18312590	-	PAE1368	-	hypothetical protein
948	 55.60	0	813080..813883	+	267	18312591	-	PAE1369	-	hypothetical protein
949	 53.19	0	814072..816438	+	788	18312592	-	PAE1371	-	hypothetical protein
950	 50.62	0	816378..817262	-	294	18312593	-	PAE1372	-	hypothetical protein
951	 51.11	0	817263..817667	-	134	18312594	-	PAE1373	-	translation initiation factor IF-2 subunit beta
952	 48.27	0	817701..818249	-	182	18312595	-	PAE1375	-	protein associated with acetyl-CoA C-acyltransferase
953	 52.50	0	818251..819429	-	392	18312596	-	PAE1377	-	acetyl-CoA acetyltransferase
954	 50.69	0	819483..820715	-	410	18312597	-	PAE1378	-	acyl-CoA dehydrogenase
955	 51.15	0	820820..822553	+	577	18312598	-	PAE1379	-	long-chain-fatty-acid--CoA ligase
956	 53.97	0	822576..823520	+	314	18312599	-	PAE1381	-	aldo-keto reductase family protein
957	 52.09	0	823575..825563	+	662	18312600	-	PAE1383	-	3-hydroxyacyl-CoA dehydrogenase and enoyl-CoA hydratase
958	 51.70	0	825595..826683	+	362	18312601	-	PAE1385	-	aminopeptidase
959	 51.07	0	826684..827292	-	202	18312602	-	PAE1386	-	phosphate transport system regulator, conjectural
960	 48.58	0	827373..827864	-	163	18312603	-	PAE1387	-	paREP1
961	 53.33	0	827896..828600	-	234	18312604	-	PAE1388	-	branched-chain amino acid transport ATP-binding protein
962	 52.30	0	828591..829328	-	245	18312605	-	PAE1389	-	branched-chain amino acid transport ATP-binding protein
963	 51.82	0	829316..830278	-	320	18312606	-	PAE1390	-	branched-chain amino acid transport permease protein
964	 50.06	0	830275..831147	-	290	18312607	-	PAE1391	-	branched-chain amino acid transport permease protein
965	 53.70	0	831147..832565	-	472	18312608	-	PAE1392	-	branched-chain amino acid binding protein
966	 48.61	0	832687..833439	-	250	18312609	-	PAE1393	-	phosphate ABC transporter, ATP-binding protein
967	 54.25	0	833478..834395	-	305	18312610	-	PAE1395	-	phosphate ABC transporter, permease protein
968	 51.54	0	834392..835330	-	312	18312611	-	PAE1396	-	phosphate ABC transporter, permease protein
969	 53.20	0	835353..836585	-	410	18312612	-	PAE1397	-	phosphate-binding periplasmic protein, putative
970	 54.36	0	836731..837567	+	278	18312613	-	PAE1399	-	hypothetical protein
971	 50.30	0	837936..838265	+	109	18312614	-	PAE1403	-	hypothetical protein
972	 56.37	0	838426..838998	+	190	18312615	-	PAE1404	-	hypothetical protein
973	 58.15	+1	838988..839398	+	136	18312616	-	PAE1406	-	hypothetical protein
974	 54.04	0	839519..840619	+	366	18312617	-	PAE1407	-	hypothetical protein
975	 50.90	0	840609..841052	+	147	18312618	-	PAE1408	-	hypothetical protein
976	 56.49	0	841049..841765	+	238	18312619	-	PAE1409	-	hypothetical protein
977	 53.22	0	842580..842750	-	56	18312620	-	PAE1413	-	paREP6, authentic frameshift
978	 53.29	0	842991..843461	+	156	18312621	-	PAE1414	-	hypothetical protein
979	 41.79	-1	843676..844065	+	129	18312622	-	PAE1418	-	hypothetical protein
980	 17.31	-2	844347..844502	-	51	18312623	-	PAE1419	-	hypothetical protein
981	 34.88	-2	844477..844605	-	42	18312624	-	PAE1420	-	hypothetical protein
982	 48.28	0	844790..845050	+	86	18312625	-	PAE1421	-	hypothetical protein
983	 43.17	-1	845031..845528	+	165	18312626	-	PAE1422	-	hypothetical protein
984	 48.36	0	845502..847358	-	618	18312627	-	PAE1423	-	carbon starvation protein A-like protein
985	 38.23	-2	847432..847758	+	108	18312628	-	PAE1425	-	hypothetical protein
986	 43.08	-1	847981..848883	+	300	18312629	-	PAE1427	-	arsenical pump-driving ATPase
987	 45.83	-1	849158..849253	-	31	18312630	-	PAE1429	-	hypothetical protein
988	 35.67	-2	849549..849719	-	56	18312631	-	PAE1430	-	hypothetical protein
989	 45.34	-1	849883..850365	+	160	18312632	-	PAE1432	-	hypothetical protein
990	 59.78	+1	850362..850898	+	178	18312633	-	PAE1433	-	hypothetical protein
991	 52.98	0	850941..851225	+	94	18312634	-	PAE1434	-	hypothetical protein
992	 47.97	0	851454..851822	-	122	18312635	-	PAE1435	-	hypothetical protein
993	 52.83	0	851844..852002	-	52	18312636	-	PAE1436	-	paREP10
994	 51.74	0	852149..852436	+	95	18312637	-	PAE1437	-	hypothetical protein
995	 54.19	0	852942..853478	-	178	18312638	-	PAE1438	-	nicotinamide-nucleotide adenylyltransferase
996	 52.79	0	853893..855362	-	489	18312639	pheS	PAE1441	-	phenylalanyl-tRNA synthetase subunit alpha
997	 48.51	0	855393..855728	-	111	18312640	-	PAE1443	-	hypothetical protein
998	 51.57	0	855753..856070	-	105	18312641	-	PAE1445	-	hypothetical protein
999	 49.25	0	856107..857237	-	376	18312642	-	PAE1446	-	hypothetical protein
1000	 52.33	0	857347..858846	-	499	18312643	-	PAE1448	-	hypothetical protein
1001	 49.16	0	858908..859204	+	98	18312644	-	PAE1449	-	hypothetical protein
51.51	MEAN

5.01	STD DEV
