IslandPath Analysis: Pyrobaculum aerophilum str. IM2

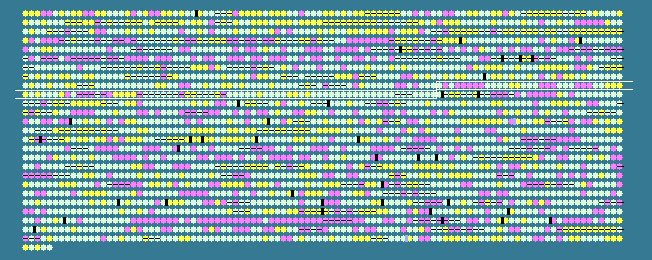

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 51.51   STD DEV: 5.01
Pyrobaculum aerophilum str. IM2, complete genome - 1..2222430
2605 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
870	 54.37	0	741680..742891	+	403	18312513	-	PAE1269	-	hypothetical protein
871	 43.33	-1	742897..743886	-	329	18312514	-	PAE1270	-	hypothetical protein
872	 52.32	0	744202..745212	-	336	18312515	-	PAE1271	-	hypothetical protein
873	 46.48	-1	745666..747879	+	737	18312516	-	PAE1272	-	trehalose-6-phosphate synthase
874	 45.91	-1	747870..749078	-	402	18312517	-	PAE1273	-	glycosyl transferase, conjectural
875	 36.68	-2	749075..749671	-	198	18312518	-	PAE1275	-	hypothetical protein
876	 44.44	-1	750002..750667	+	221	18312519	-	PAE1277	-	hypothetical protein
877	 47.10	0	750664..751869	+	401	18312520	-	PAE1278	-	trehalose synthase
878	 51.34	0	752766..753476	+	236	18312521	-	PAE1279	-	hypothetical protein
879	 49.18	0	753489..754403	+	304	18312522	-	PAE1280	-	hypothetical protein
880	 49.16	0	754400..754696	+	98	18312523	-	PAE1281	-	glycolate oxidase subunit, putative
881	 53.23	0	754676..755836	-	386	18312524	-	PAE1282	-	glycolate oxidase subunit glcF
882	 58.03	+1	755833..756816	-	327	18312525	-	PAE1284	-	glycolate oxidase subunit glcE
883	 57.07	+1	756813..758240	-	475	18312526	-	PAE1286	-	glycolate oxidase subunit glcD
884	 52.87	0	758297..760738	+	813	18312527	-	PAE1287	-	malate synthase (glcB)
885	 51.51	0	760768..761697	+	309	18312528	-	PAE1288	-	hypothetical protein
886	 52.81	0	761694..762833	+	379	18312529	-	PAE1289	-	hypothetical protein
887	 36.52	-2	762837..763589	-	250	18312530	-	PAE1290	-	hypothetical protein
888	 38.64	-2	763665..763796	-	43	18312531	-	PAE1292	-	hypothetical protein
889	 41.98	-1	763997..765454	+	485	18312532	-	PAE1293	-	hypothetical protein
890	 52.40	0	765456..766226	-	256	18312533	-	PAE1295	-	hypothetical protein
891	 50.05	0	766253..767215	-	320	18312534	-	PAE1296	-	dipeptide transport ATP-binding protein
892	 49.64	0	767212..768180	-	322	18312535	-	PAE1297	-	dipeptide transport ATP-binding protein
893	 46.29	-1	768177..769241	-	354	18312536	-	PAE1298	-	dipeptide ABC transporter, permease protein
894	 40.54	-2	769243..770241	-	332	18312537	-	PAE1299	-	dipeptide ABC transporter, permease protein
895	 42.86	-1	770248..772461	-	737	18312538	-	PAE1300	-	dipeptide binding protein
896	 54.57	0	772552..775602	-	1016	18312539	-	PAE1302	-	tricorn protease
897	 54.81	0	775643..776047	+	134	18312540	-	PAE1303	-	hypothetical protein
898	 55.18	0	776039..776482	-	147	18312541	-	PAE1304	-	hypothetical protein
899	 56.47	0	776589..777755	-	388	18312542	-	PAE1306	-	hypothetical protein
900	 56.93	+1	777805..778626	-	273	18312543	-	PAE1307	-	hypothetical protein
901	 59.64	+1	778647..779984	-	445	18312544	-	PAE1309	-	hypothetical protein
902	 53.93	0	780025..780393	+	122	18312545	-	PAE1310	-	hypothetical protein
903	 56.38	0	780366..780608	+	80	18312546	-	PAE1311	-	hypothetical protein
904	 50.31	0	780617..780775	+	52	18312547	-	PAE1313	-	hypothetical protein
905	 50.12	0	780817..781239	+	140	18312548	-	PAE1315	-	hypothetical protein
906	 53.49	0	781252..781509	+	85	18312549	-	PAE1316	-	hypothetical protein
907	 55.19	0	781498..781767	-	89	18312550	-	PAE1318	-	hypothetical protein
908	 45.24	-1	782022..782357	+	111	18312551	-	PAE1319	-	hypothetical protein
909	 48.67	0	782380..782718	+	112	18312552	-	PAE1320	-	hypothetical protein
910	 45.90	-1	782751..783824	-	357	18312553	-	PAE1321	-	multiple sugar-binding transport ATP-binding
911	 44.36	-1	783821..784654	-	277	18312554	-	PAE1322	-	multiple sugar transport permease
912	 42.66	-1	784651..785529	-	292	18312555	-	PAE1323	-	multiple sugar transport permease
913	 48.25	0	785526..786839	-	437	18312556	-	PAE1324	-	multiple sugar binding protein
914	 32.50	-2	786815..786934	-	39	18312557	-	PAE1325	-	hypothetical protein
915	 44.44	-1	787362..787487	+	41	18312558	-	PAE1326	-	hypothetical protein
916	 59.18	+1	787474..788154	+	226	18312559	-	PAE1327	-	uracil-DNA glycosylase
917	 57.98	+1	788151..788990	+	279	18312560	-	PAE1328	-	hypothetical protein
918	 57.88	+1	789004..789447	+	147	18312561	-	PAE1329	-	hypothetical protein
919	 56.91	+1	789498..791075	+	525	18312562	-	PAE1330	-	alpha-isopropylmalate/homocitrate synthase family transferase
920	 41.68	-1	791086..792498	-	470	18312563	-	PAE1331	-	iron-sulfur protein
921	 54.31	0	792839..793267	-	142	18312564	-	PAE1332	-	hypothetical protein
922	 52.45	0	793267..794103	-	278	18312565	ubiA	PAE1333	-	prenyltransferase
923	 51.69	0	794139..794672	-	177	18312566	-	PAE1334	-	respiratory chain protein
924	 49.23	0	794632..794826	-	64	18312567	-	PAE1336	-	respiratory chain protein
925	 54.43	0	794823..797225	-	800	18312568	-	PAE1337	-	cytochrome C oxidase subunit I /III
926	 49.78	0	797225..797674	-	149	18312569	-	PAE1338	-	cytochrome C oxidase subunit II
927	 46.67	0	797661..797900	-	79	18312570	-	PAE1340	-	respiratory chain protein (soxI homolog)
928	 56.76	+1	798072..798929	+	285	18312571	-	PAE1344	-	respiratory chain protein
929	 55.35	0	798929..800872	+	647	18312572	-	PAE1345	-	hypothetical protein
930	 54.96	0	800977..801540	+	187	18312573	-	PAE1347	-	hypothetical protein
931	 52.23	0	801542..802102	+	186	18312574	-	PAE1349	-	Rieske iron sulfur protein (parR)
932	 52.90	0	802099..803340	+	413	18312575	-	PAE1350	-	cytochrome b/b6
933	 60.91	+1	803343..803672	+	109	18312576	-	PAE1351	-	hypothetical protein
934	 46.12	-1	803665..803922	+	85	18312577	-	PAE1352	-	hypothetical protein
935	 52.41	0	804233..804709	+	158	18312578	-	PAE1355	-	cytochrome C oxidase subunit II
936	 52.33	0	804755..806428	+	557	18312579	-	PAE1357	-	cytochrome C oxidase subunit I
937	 51.44	0	806460..807083	+	207	18312580	-	PAE1358	-	senC-like protein
938	 53.55	0	807083..807448	+	121	18312581	-	PAE1359	-	hypothetical protein
939	 54.09	0	807518..808201	+	227	18312582	-	PAE1360	-	hypothetical protein
940	 55.93	0	808204..808818	+	204	18312583	-	PAE1361	-	hypothetical protein
941	 54.37	0	808772..809926	+	384	18312584	-	PAE1362	-	nosD-like protein
942	 53.94	0	809911..810570	+	219	18312585	-	PAE1363	-	branched-chain amino acid ABC transporter, ATP-binding protein, putative
943	 54.35	0	810560..811306	+	248	18312586	-	PAE1364	-	hypothetical protein
944	 49.43	0	811303..811650	+	115	18312587	-	PAE1365	-	hypothetical protein
945	 59.73	+1	811790..812236	+	148	18312588	-	PAE1366	-	hypothetical protein
946	 58.05	+1	812240..812866	+	208	18312589	-	PAE1367	-	hypothetical protein
947	 54.29	0	812845..813054	+	69	18312590	-	PAE1368	-	hypothetical protein
948	 55.60	0	813080..813883	+	267	18312591	-	PAE1369	-	hypothetical protein
949	 53.19	0	814072..816438	+	788	18312592	-	PAE1371	-	hypothetical protein
950	 50.62	0	816378..817262	-	294	18312593	-	PAE1372	-	hypothetical protein
951	 51.11	0	817263..817667	-	134	18312594	-	PAE1373	-	translation initiation factor IF-2 subunit beta
952	 48.27	0	817701..818249	-	182	18312595	-	PAE1375	-	protein associated with acetyl-CoA C-acyltransferase
953	 52.50	0	818251..819429	-	392	18312596	-	PAE1377	-	acetyl-CoA acetyltransferase
954	 50.69	0	819483..820715	-	410	18312597	-	PAE1378	-	acyl-CoA dehydrogenase
955	 51.15	0	820820..822553	+	577	18312598	-	PAE1379	-	long-chain-fatty-acid--CoA ligase
956	 53.97	0	822576..823520	+	314	18312599	-	PAE1381	-	aldo-keto reductase family protein
957	 52.09	0	823575..825563	+	662	18312600	-	PAE1383	-	3-hydroxyacyl-CoA dehydrogenase and enoyl-CoA hydratase
958	 51.70	0	825595..826683	+	362	18312601	-	PAE1385	-	aminopeptidase
959	 51.07	0	826684..827292	-	202	18312602	-	PAE1386	-	phosphate transport system regulator, conjectural
960	 48.58	0	827373..827864	-	163	18312603	-	PAE1387	-	paREP1
961	 53.33	0	827896..828600	-	234	18312604	-	PAE1388	-	branched-chain amino acid transport ATP-binding protein
962	 52.30	0	828591..829328	-	245	18312605	-	PAE1389	-	branched-chain amino acid transport ATP-binding protein
963	 51.82	0	829316..830278	-	320	18312606	-	PAE1390	-	branched-chain amino acid transport permease protein
964	 50.06	0	830275..831147	-	290	18312607	-	PAE1391	-	branched-chain amino acid transport permease protein
965	 53.70	0	831147..832565	-	472	18312608	-	PAE1392	-	branched-chain amino acid binding protein
966	 48.61	0	832687..833439	-	250	18312609	-	PAE1393	-	phosphate ABC transporter, ATP-binding protein
967	 54.25	0	833478..834395	-	305	18312610	-	PAE1395	-	phosphate ABC transporter, permease protein
968	 51.54	0	834392..835330	-	312	18312611	-	PAE1396	-	phosphate ABC transporter, permease protein
969	 53.20	0	835353..836585	-	410	18312612	-	PAE1397	-	phosphate-binding periplasmic protein, putative
51.51	MEAN

5.01	STD DEV
