IslandPath Analysis: Pyrobaculum aerophilum str. IM2

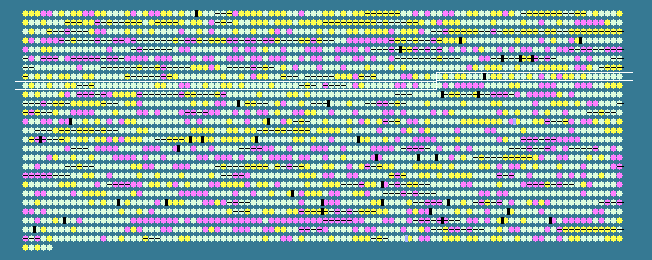

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 51.51   STD DEV: 5.01
Pyrobaculum aerophilum str. IM2, complete genome - 1..2222430
2605 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
770	 52.82	0	656846..657235	+	129	18312413	-	PAE1109	-	hypothetical protein
771	 58.11	+1	657215..657763	-	182	18312414	-	PAE1111	-	hypothetical protein
772	 54.19	0	657894..659552	+	552	18312415	-	PAE1112	-	hypothetical protein
773	 60.95	+1	659634..661295	+	553	18312416	-	PAE1113	-	DNA-directed DNA polymerase (B2)
774	 57.99	+1	661334..661771	+	145	18312417	-	PAE1115	-	hypothetical protein
775	 54.39	0	661748..661861	-	37	18312418	-	PAE1116	-	hypothetical protein
776	 54.07	0	661906..662175	-	89	18312419	-	PAE1118	-	paREP1, authentic frameshift
777	 54.97	0	662248..663546	-	432	18312420	-	PAE1120	-	hypothetical protein
778	 51.36	0	664031..664729	+	232	18312421	-	PAE1124	-	integral membrane protein (rhomboid related), putative
779	 56.60	+1	664742..665059	+	105	18312422	-	PAE1126	-	hypothetical protein
780	 55.48	0	665192..666112	+	306	18312423	-	PAE1127	-	hypothetical protein
781	 48.25	0	666109..666651	-	180	18312424	-	PAE1128	-	hypothetical protein
782	 56.97	+1	666676..667077	-	133	18312425	-	PAE1130	-	hypothetical protein
783	 52.96	0	667150..668316	+	388	18312426	-	PAE1131	-	flavoprotein reductase, conjectural
784	 50.07	0	668660..669352	-	230	18312427	-	PAE1135	-	hypothetical protein
785	 56.08	0	669742..670506	-	254	18312428	-	PAE1139	-	diphthine synthase
786	 53.12	0	670549..671028	+	159	18312429	-	PAE1140	-	hypothetical protein
787	 45.93	-1	671029..671679	-	216	18312430	-	PAE1141	-	hypothetical protein
788	 52.92	0	671709..672479	-	256	18312431	-	PAE1142	-	tRNA pseudouridine synthase A
789	 57.39	+1	672506..673195	+	229	18312432	-	PAE1143	-	hypothetical protein
790	 47.78	0	673219..673488	+	89	18312433	-	PAE1144	-	hypothetical protein
791	 55.56	0	673599..674453	-	284	18312434	-	PAE1145	-	3-hydroxyisobutyrate dehydrogenase family protein
792	 55.63	0	674498..675901	+	467	18312435	-	PAE1146	-	V-type ATP synthase subunit B
793	 50.57	0	676103..676624	+	173	18312436	-	PAE1147	-	hypothetical protein
794	 55.91	0	676919..677299	+	126	18312437	-	PAE1151	-	hypothetical protein
795	 53.58	0	677296..677616	-	106	18312438	-	PAE1153	-	hypothetical protein
796	 50.74	0	677597..678004	-	135	18312439	-	PAE1155	-	hypothetical protein
797	 54.15	0	678001..678807	-	268	18312440	-	PAE1156	-	hypothetical protein
798	 48.84	0	679224..679526	+	100	18312441	-	PAE1158	-	hypothetical protein
799	 50.44	0	679601..679939	-	112	18312442	-	PAE1159	-	hypothetical protein
800	 53.80	0	680018..680320	+	100	18312443	-	PAE1161	-	hypothetical protein
801	 48.79	0	680340..680669	+	109	18312444	-	PAE1162	-	hypothetical protein
802	 55.00	0	680655..681734	-	359	18312445	-	PAE1163	-	hypothetical protein
803	 52.31	0	681801..682859	+	352	18312446	-	PAE1164	-	hypothetical protein
804	 54.71	0	682909..683460	+	183	18312447	-	PAE1165	-	hypothetical protein
805	 59.00	+1	683603..684319	+	238	18312448	-	PAE1166	-	hypothetical protein
806	 54.55	0	684300..684959	-	219	18312449	-	PAE1168	-	ABC transporter ATP-binding protein, putative
807	 52.97	0	685018..686163	-	381	18312450	-	PAE1171	-	hypothetical protein
808	 56.47	0	686193..687320	+	375	18312451	-	PAE1173	-	hypothetical protein
809	 56.07	0	687342..688247	+	301	18312452	-	PAE1175	-	2-hydroxyacid dehydrogenase
810	 52.42	0	688263..688592	+	109	18312453	-	PAE1176	-	hypothetical protein
811	 51.85	0	688641..688883	+	80	18312454	-	PAE1177	-	hypothetical protein
812	 56.86	+1	688944..689147	-	67	18312455	-	PAE1179	-	paREP2b
813	 51.70	0	689199..692819	-	1206	18312456	-	PAE1180	-	paREP2b
814	 54.40	0	692902..693822	+	306	18312457	-	PAE1181	-	paREP2a
815	 51.29	0	693806..694462	+	218	18312458	rps5p	PAE1182	-	30S ribosomal protein S5P
816	 52.33	0	694459..694995	+	178	18312459	rpl30p	PAE1183	-	50S ribosomal protein L30P
817	 53.50	0	694975..695931	-	318	18312460	-	PAE1184	-	galactose-1-phosphate uridylyltransferase
818	 54.79	0	695921..697006	-	361	18312461	-	PAE1185	-	galactokinase
819	 48.58	0	696991..697587	-	198	18312462	-	PAE1186	-	hypothetical protein
820	 48.92	0	697721..697951	-	76	18312463	-	PAE1188	-	hypothetical protein
821	 51.08	0	698047..699759	+	570	18312464	-	PAE1189	-	acylamino-acid-releasing enzyme, conjectural
822	 53.85	0	699818..700714	-	298	18312465	-	PAE1191	-	paREP2b
823	 63.06	+2	700843..700953	-	36	18312466	-	PAE1192	-	hypothetical protein
824	 57.06	+1	700969..701499	-	176	18312467	-	PAE1194	-	hypothetical protein
825	 49.17	0	701485..701787	+	100	18312468	-	PAE1195	-	hypothetical protein
826	 48.65	0	702031..702585	-	184	18312469	-	PAE1197	-	hypothetical protein
827	 40.90	-2	702708..703394	-	228	18312470	-	PAE1199	-	ABC transporter ATP-binding protein, putative
828	 41.56	-1	703671..703901	-	76	18312471	-	PAE1200	-	hypothetical protein
829	 50.74	0	704053..704322	+	89	18312472	-	PAE1201	-	paREP2a
830	 49.20	0	704430..705305	+	291	18312473	-	PAE1203	-	spermidine synthase
831	 55.61	0	705298..706509	+	403	18312474	-	PAE1204	-	pantothenate metabolism flavoprotein (dfp)
832	 52.50	0	706465..707163	-	232	18312475	-	PAE1205	-	hypothetical protein
833	 54.40	0	707583..708014	+	143	18312476	-	PAE1208	-	hypothetical protein
834	 56.15	0	708014..709420	+	468	18312477	-	PAE1209	-	4-alpha-glucanotransferase (malQ)
835	 55.99	0	709547..710389	-	280	18312478	-	PAE1211	-	paREP2a
836	 50.26	0	710379..710756	-	125	18312479	-	PAE1213	-	paREP2a
837	 56.85	+1	710914..711942	+	342	18312480	-	PAE1214	-	paREP2b
838	 53.29	0	711986..714982	+	998	18312481	-	PAE1215	-	paREP2b
839	 53.83	0	715015..715653	-	212	18312482	-	PAE1216	-	ribonuclease HII (rnhB)
840	 53.75	0	715849..716328	-	159	18312483	-	PAE1218	-	hypothetical protein
841	 51.62	0	716321..717124	-	267	18312484	-	PAE1219	-	NH(3)-dependent NAD(+) synthetase
842	 55.27	0	717144..718328	-	394	18312485	-	PAE1220	-	acetyl-CoA C-acetyltransferase
843	 51.63	0	718372..719442	-	356	18312486	-	PAE1222	-	ABC transporter ATP-binding protein, putative
844	 53.71	0	719499..720617	+	372	18312487	-	PAE1223	-	hypothetical protein
845	 51.83	0	720607..721098	+	163	18312488	-	PAE1224	-	hypothetical protein
846	 51.76	0	721121..722173	+	350	18312489	-	PAE1226	-	DNA endonuclease, conjectural
847	 52.82	0	722189..722578	+	129	18312490	-	PAE1227	-	hypothetical protein
848	 56.53	+1	722971..723651	-	226	18312491	-	PAE1231	-	deoxyribose-phosphate aldolase
849	 54.86	0	723707..723994	+	95	18312492	-	PAE1232	-	acylphosphatase, putative
850	 50.82	0	724081..724509	-	142	18312493	-	PAE1234	-	hypothetical protein
851	 43.24	-1	724499..724720	-	73	18312494	-	PAE1236	-	hypothetical protein
852	 52.60	0	724771..724962	-	63	18312495	-	PAE1238a	-	hypothetical protein
853	 53.06	0	725011..725157	+	48	18312496	-	PAE1239	-	hypothetical protein
854	 53.36	0	725307..726110	+	267	18312497	-	PAE1240	-	ribosomal protein S6 modification protein (rimK)
855	 50.30	0	726111..726446	-	111	18312498	-	PAE1241	-	hypothetical protein
856	 47.77	0	726447..726737	-	96	18312499	-	PAE1242	-	hypothetical protein
857	 55.64	0	726753..727532	-	259	18312500	-	PAE1244	-	translation initiation factor aIF-2B subunit, conjectural
858	 51.99	0	727642..728370	+	242	18312501	-	PAE1246	-	manganese ABC transporter ATP-binding protein
859	 52.51	0	728357..729232	+	291	18312502	-	PAE1247	-	manganese transport permease protein
860	 53.74	0	729511..730701	+	396	18312503	-	PAE1251	-	hypothetical protein
861	 51.82	0	730871..731941	+	356	18312504	-	PAE1252	-	hypothetical protein
862	 50.10	0	732350..732874	+	174	18312505	-	PAE1257	-	hypothetical protein
863	 44.05	-1	733169..733588	+	139	18312506	-	PAE1260	-	hypothetical protein
864	 40.18	-2	733591..734160	+	189	18312507	-	PAE1261	-	hypothetical protein
865	 48.84	0	734235..734879	+	214	18312508	-	PAE1263	-	molybdopterin oxidoreductase, iron-sulfur binding subunit
866	 44.41	-1	734876..735985	+	369	18312509	-	PAE1264	-	hypothetical protein
867	 49.89	0	735978..739499	+	1173	18312510	-	PAE1265	-	molybdopterin oxidoreductase, molybdopterin binding subunit
868	 54.73	0	739549..740151	+	200	18312511	-	PAE1266	-	hypothetical protein
869	 52.13	0	740220..741437	-	405	18312512	-	PAE1267	-	hypothetical protein
51.51	MEAN

5.01	STD DEV
