IslandPathversion 1.0

IslandPath Analysis: Pyrobaculum aerophilum str. IM2

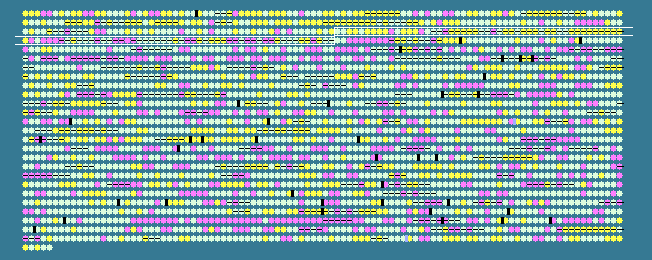

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.51 STD DEV: 5.01
Pyrobaculum aerophilum str. IM2, complete genome - 1..2222430
2605 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
253	 54.63	0	209386..210216	+	276	18311896	-	PAE0369	-	paREP1
254	 53.12	0	210547..211011	-	154	18311897	-	PAE0370	-	cob(I)alamin adenosyltransferase
255	 58.03	+1	211040..212035	-	331	18311898	-	PAE0371	-	hypothetical protein
256	 56.44	0	212025..213041	-	338	18311899	-	PAE0372	-	hypothetical protein
257	 52.81	0	213289..213894	+	201	18311900	-	PAE0374	-	hypothetical protein
258	 56.00	0	213891..214715	+	274	18311901	-	PAE0376	-	asparagine synthetase (asnB)
259	 56.86	+1	214660..215607	+	315	18311902	-	PAE0377	-	cobC aminotransferase, conjectural
260	 57.19	+1	215594..216268	+	224	18311903	-	PAE0379	-	cobalamin (5'-phosphate) synthase (cobS)
261	 55.97	0	216243..217214	+	323	18311904	-	PAE0381	-	cobalamin biosynthesis protein B (cbiB)
262	 45.61	-1	217626..217796	+	56	18311905	-	PAE0384	-	paREP4
263	 52.78	0	217818..218105	+	95	18311906	-	PAE0385	-	metal ion binding transcriptional regulator, conjectural
264	 55.27	0	218143..218379	-	78	18311907	-	PAE0388	-	hypothetical protein
265	 58.21	+1	218432..219046	-	204	18311908	-	PAE0389	-	sulfite oxidase, conjectural
266	 55.56	0	219219..219353	-	44	18311909	-	PAE0390	-	paREP1, degenerate
267	 46.28	-1	219654..219962	+	102	18311910	-	PAE0391a	-	hypothetical protein
268	 51.67	0	219938..220237	+	99	18311911	-	PAE0393	-	paREP6
269	 52.43	0	220346..220633	+	95	18311912	-	PAE0394	-	hypothetical protein
270	 53.28	0	220627..221037	+	136	18311913	-	PAE0396	-	hypothetical protein
271	 46.67	0	221058..221297	+	79	18311914	-	PAE0397	-	hypothetical protein
272	 56.47	0	221845..222207	+	120	18311915	-	PAE0398	-	hypothetical protein
273	 62.28	+2	222410..222637	+	75	18311916	-	PAE0399	-	hypothetical protein
274	 60.68	+1	222640..222990	+	116	18311917	-	PAE0401	-	hypothetical protein
275	 59.62	+1	222995..224002	+	335	18311918	-	PAE0402	-	hypothetical protein
276	 59.18	+1	224428..225429	+	333	18311919	-	PAE0404	-	hypothetical protein
277	 53.21	0	225611..225922	+	103	18311920	-	PAE0407	-	paREP8
278	 48.57	0	225966..226175	-	69	18311921	-	PAE0409	-	hypothetical protein
279	 43.25	-1	226397..226648	+	83	18311922	-	PAE0410	-	hypothetical protein
280	 53.68	0	226651..226935	+	94	18311923	-	PAE0411	-	hypothetical protein
281	 57.78	+1	226953..227087	+	44	18311924	-	PAE0412	-	hypothetical protein
282	 60.17	+1	227117..227578	+	153	18311925	-	PAE0413	-	hypothetical protein
283	 53.33	0	227611..227850	-	79	18311926	-	PAE0415	-	hypothetical protein
284	 55.38	0	227875..228441	+	188	18311927	-	PAE0417	-	paREP1
285	 58.59	+1	228549..228746	+	65	18311928	-	PAE0418	-	hypothetical protein
286	 63.84	+2	228788..229885	+	365	18311929	-	PAE0419	-	glycosyl transferase, putative
287	 54.55	0	229882..230079	+	65	18311930	-	PAE0420	-	hypothetical protein
288	 58.24	+1	230101..230646	+	181	18311931	-	PAE0422	-	paREP1
289	 56.46	0	230643..231641	+	332	18311932	-	PAE0423	-	hypothetical protein
290	 54.17	0	231720..231935	+	71	18311933	-	PAE0424a	-	hypothetical protein
291	 51.52	0	232180..232344	+	54	18311934	-	PAE0426	-	hypothetical protein
292	 55.71	0	232338..232556	+	72	18311935	-	PAE0427	-	hypothetical protein
293	 61.73	+2	232901..233893	+	330	18311936	-	PAE0430	-	glycosyltransferase (type 1)
294	 60.60	+1	233901..235070	+	389	18311937	-	PAE0431	-	glycosyltransferase (type 1)
295	 64.35	+2	235050..236390	-	446	18311938	-	PAE0432	-	hypothetical protein
296	 58.95	+1	236353..236883	+	176	18311939	-	PAE0433	-	hypothetical protein
297	 67.87	+2	236871..237203	-	110	18311940	-	PAE0434	-	hypothetical protein
298	 69.34	+2	237185..237970	-	261	18311941	-	PAE0435	-	hypothetical protein
299	 67.53	+2	237967..239244	-	425	18311942	-	PAE0436	-	hypothetical protein
300	 59.75	+1	239296..240480	+	394	18311943	-	PAE0437	-	glycosyltransferase (type 2)
301	 59.10	+1	240552..240908	+	118	18311944	-	PAE0438	-	hypothetical protein
302	 45.09	-1	241225..242160	+	311	18311945	-	PAE0439	-	dolichol-phosphate mannosyltransferase
303	 52.26	0	242168..243250	+	360	18311946	-	PAE0440	-	glycosyltransferase (type 1)
304	 38.44	-2	243247..244068	+	273	18311947	-	PAE0441	-	glycosyltransferase (type 2)
305	 34.49	-2	244436..245560	+	374	18311948	-	PAE0442	-	glycosyltransferase (type 1)
306	 38.75	-2	245595..246314	+	239	18311949	-	PAE0443	-	hypothetical protein
307	 41.75	-1	246298..249042	+	914	18311950	-	PAE0445	-	hypothetical protein
308	 51.69	0	249094..249921	+	275	18311951	-	PAE0446	-	glycosyltransferase (type 2)
309	 59.74	+1	251058..252212	-	384	18311952	-	PAE0455	-	hypothetical protein
310	 50.39	0	252334..252462	+	42	18311953	-	PAE0457	-	hypothetical protein
311	 52.94	0	252540..252743	+	67	18311954	-	PAE0458	-	hypothetical protein
312	 48.91	0	252772..254286	+	504	18311955	-	PAE0459	-	hypothetical protein
313	 46.50	0	255103..255459	+	118	18311956	-	PAE0462	-	hypothetical protein
314	 49.69	0	255493..256293	+	266	18311957	-	PAE0463	-	hypothetical protein
315	 54.12	0	256569..257102	+	177	18311958	-	PAE0465	-	hypothetical protein
316	 45.28	-1	257226..258146	+	306	18311959	-	PAE0466	-	hypothetical protein
317	 42.48	-1	258622..258960	-	112	18311960	-	PAE0467	-	glycosyltransferase (type 1)
318	 42.72	-1	259081..259293	-	70	18311961	-	PAE0468	-	hypothetical protein
319	 47.31	0	259434..259526	-	30	18311962	-	PAE0469	-	hypothetical protein
320	 51.52	0	259516..259680	+	54	18311963	-	PAE0470	-	hypothetical protein
321	 50.98	0	259809..259961	+	50	18311964	-	PAE0471	-	hypothetical protein
322	 51.59	0	260079..260423	+	114	18311965	-	PAE0473	-	hypothetical protein
323	 54.55	0	260877..260975	-	32	18311966	-	PAE0475	-	hypothetical protein
324	 50.00	0	261049..261144	-	31	18311967	-	PAE0476	-	hypothetical protein
325	 52.55	0	261302..261634	+	110	18311968	-	PAE0477	-	hypothetical protein
326	 55.85	0	261627..264002	+	791	18311969	-	PAE0478	-	hypothetical protein
327	 51.59	0	264309..264434	-	41	18311970	-	PAE0479	-	hypothetical protein
328	 45.48	-1	264825..265244	-	139	18311971	-	PAE0481	-	paREP15, putative coiled-coil protein
329	 44.68	-1	265267..265407	-	46	18311972	-	PAE0482	-	hypothetical protein
330	 56.48	0	266150..266257	+	35	18311973	-	PAE0485	-	hypothetical protein
331	 52.32	0	266293..266529	+	78	18311974	-	PAE0486	-	paREP8
332	 64.96	+2	267069..267302	+	77	18311975	-	PAE0487	-	hypothetical protein
333	 58.85	+1	267650..268186	-	178	18311976	-	PAE0489	-	paREP1
334	 63.49	+2	268243..268494	+	83	18311977	-	PAE0490	-	hypothetical protein
335	 44.22	-1	268704..269144	+	146	18311978	-	PAE0492	-	paREP15, putative coiled-coil protein
336	 46.78	0	270282..270452	+	56	18311979	-	PAE0496	-	hypothetical protein
337	 54.22	0	270814..271062	+	82	18311980	-	PAE0497	-	hypothetical protein
338	 43.59	-1	271218..271451	+	77	18311981	-	PAE0498	-	hypothetical protein
339	 42.65	-1	271587..271790	+	67	18311982	-	PAE0499	-	hypothetical protein
340	 49.56	0	273325..273663	+	112	18311983	-	PAE0505	-	hypothetical protein
341	 43.58	-1	273975..274706	+	243	18311984	-	PAE0506	-	paREP15, putative coiled-coil protein
342	 46.45	-1	275620..275802	+	60	18311985	-	PAE0507	-	hypothetical protein
343	 59.79	+1	276135..276323	+	62	18311986	-	PAE0510	-	hypothetical protein
344	 53.33	0	276685..277419	-	244	18311987	-	PAE0512	-	hypothetical protein
345	 48.52	0	277542..278759	-	405	18311988	-	PAE0513	-	hypothetical protein
346	 48.11	0	278747..279382	-	211	18311989	-	PAE0514	-	hypothetical protein
347	 57.31	+1	279434..280438	-	334	18311990	-	PAE0515	-	hypothetical protein
348	 55.56	0	281068..281526	-	152	18311991	-	PAE0518	-	hypothetical protein
349	 40.13	-2	281977..282447	+	156	18311992	-	PAE0522	-	paREP15, putative coiled-coil protein
350	 55.32	0	282999..283562	-	187	18311993	-	PAE0527	-	paREP1
351	 48.43	0	284293..284643	+	116	18311994	-	PAE0531	-	hypothetical protein
352	 53.70	0	284660..284875	-	71	18311995	-	PAE0532	-	hypothetical protein
51.51	MEAN

5.01	STD DEV
