IslandPath Analysis: Pyrobaculum aerophilum str. IM2

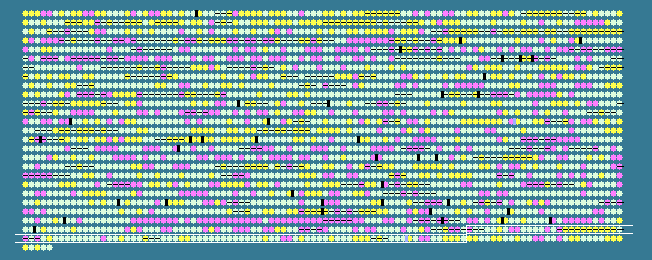

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 51.51   STD DEV: 5.01
Pyrobaculum aerophilum str. IM2, complete genome - 1..2222430
2605 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2475	 44.58	-1	2103456..2103695	+	79	18314118	-	PAE3504	-	hypothetical protein
2476	 54.73	0	2103787..2103987	+	66	18314119	-	PAE3506	-	hypothetical protein
2477	 53.81	0	2104211..2105875	+	554	18314120	-	PAE3507	-	hypothetical protein
2478	 50.51	0	2105865..2106161	-	98	18314121	-	PAE3509	-	hypothetical protein
2479	 51.66	0	2106303..2106815	+	170	18314122	-	PAE3512	-	hypothetical protein
2480	 55.82	0	2106812..2107567	+	251	18314123	-	PAE3513	-	resolvase, conjectural
2481	 51.83	0	2107642..2108187	-	181	18314124	-	PAE3514	-	xanthine-guanine phosphoribosyltransferase, conjectural
2482	 41.53	-1	2108235..2108954	-	239	18314125	-	PAE3515	-	hypothetical protein
2483	 46.34	-1	2108947..2109192	-	81	18314126	-	PAE3516	-	hypothetical protein
2484	 52.98	0	2109508..2111100	+	530	18314127	-	PAE3518	-	CTP synthetase
2485	 54.92	0	2111090..2111455	-	121	18314128	-	PAE3520	-	NADH dehydrogenase subunit A
2486	 53.10	0	2111502..2112275	+	257	18314129	-	PAE3521	-	hypothetical protein
2487	 54.67	0	2112298..2113047	+	249	18314130	-	PAE3523	-	surE stationary-phase survival protein
2488	 38.84	-2	2113177..2113521	+	114	18314131	-	PAE3524	-	hypothetical protein
2489	 48.51	0	2113530..2114735	+	401	18314132	-	PAE3526	-	hypothetical protein
2490	 39.34	-2	2114757..2115638	+	293	18314133	-	PAE3527	-	hypothetical protein
2491	 58.69	+1	2116048..2116950	-	300	18314134	-	PAE3530	-	paREP12, internal deletion
2492	 69.98	+2	2117092..2118300	-	402	18314135	-	PAE3532	-	hypothetical protein
2493	 66.79	+2	2118384..2119985	-	533	18314136	-	PAE3533	-	hypothetical protein
2494	 62.25	+2	2120034..2120825	-	263	18314137	-	PAE3535	-	hypothetical protein
2495	 63.24	+2	2121046..2121861	-	271	18314138	-	PAE3538	-	hypothetical protein
2496	 67.22	+2	2121970..2122689	-	239	18314139	-	PAE3540	-	hypothetical protein
2497	 56.41	0	2122854..2123009	-	51	18314140	-	PAE3541	-	hypothetical protein
2498	 70.29	+2	2123333..2123773	+	146	18314141	-	PAE3542	-	hypothetical protein
2499	 55.34	0	2124131..2125225	+	364	18314142	-	PAE3544	-	paREP2b
2500	 52.84	0	2125232..2127118	+	628	18314143	-	PAE3545	-	paREP2b
2501	 42.82	-1	2127179..2127547	+	122	18314144	-	PAE3546	-	hypothetical protein
2502	 49.16	0	2127576..2128466	+	296	18314145	-	PAE3547	-	heat shock protein, htpX homolog, conjectural
2503	 40.36	-2	2128450..2128833	+	127	18314146	-	PAE3548	-	hypothetical protein
2504	 48.55	0	2128919..2129365	-	148	18314147	-	PAE3550	-	hypothetical protein
2505	 55.65	0	2129551..2130276	+	241	18314148	-	PAE3553	-	hypothetical protein
2506	 52.79	0	2130268..2131341	-	357	18314149	-	PAE3554	-	mannose-1-phosphate guanyltransferase
2507	 51.58	0	2131349..2132044	-	231	18314150	-	PAE3556	-	hypothetical protein
2508	 51.21	0	2132119..2132325	+	68	18314151	-	PAE3558	-	hypothetical protein
2509	 52.76	0	2132355..2132807	+	150	18314152	-	PAE3559	-	HIT family protein
2510	 51.72	0	2132804..2133847	+	347	18314153	-	PAE3560	-	hypothetical protein
2511	 53.75	0	2133853..2134185	+	110	18314154	-	PAE3561	-	hypothetical protein
2512	 51.74	0	2134271..2134846	+	191	18314155	-	PAE3562	-	DNA-directed RNA polymerase subunit E'
2513	 49.10	0	2134843..2135064	+	73	18314156	-	PAE3563	-	DNA-directed RNA polymerase subunit E'' (rpoE2)
2514	 47.18	0	2135037..2135426	-	129	18314157	-	PAE3564	-	hypothetical protein
2515	 54.05	0	2135471..2138149	+	892	18314158	alaS	PAE3565	-	alanyl-tRNA synthetase
2516	 49.61	0	2138146..2138526	+	126	18314159	nac	PAE3566	-	nascent polypeptide-associated complex protein
2517	 56.17	0	2138574..2139116	+	180	18314160	rpl10e	PAE3567	-	50S ribosomal protein L10e
2518	 49.93	0	2139091..2139831	+	246	18314161	-	PAE3568	-	hypothetical protein
2519	 51.60	0	2139835..2140803	-	322	18314162	-	PAE3569	-	hypothetical protein
2520	 51.11	0	2140957..2141676	+	239	18314163	-	PAE3570	-	sulfate ABC transporter, permease protein, putative
2521	 55.00	0	2141661..2142320	+	219	18314164	-	PAE3571	-	ABC transporter ATP-binding protein, putative
2522	 54.82	0	2142315..2142905	-	196	18314165	-	PAE3573	-	hypothetical protein
2523	 51.70	0	2142978..2143799	+	273	18314166	-	PAE3574	-	hypothetical protein
2524	 48.70	0	2143835..2144374	+	179	18314167	rpl5p	PAE3575	-	50S ribosomal protein L5P
2525	 53.25	0	2144497..2145003	+	168	18314168	-	PAE3577	-	hypothetical protein
2526	 52.21	0	2145000..2146244	+	414	18314169	-	PAE3578	-	sun family protein
2527	 56.14	0	2146234..2147373	-	379	18314170	-	PAE3580	-	hypothetical protein
2528	 56.27	0	2147397..2148743	-	448	18314171	-	PAE3581	-	hypothetical protein
2529	 48.72	0	2148740..2149012	-	90	18314172	-	PAE3582	-	hypothetical protein
2530	 54.23	0	2149129..2150157	+	342	18314173	-	PAE3584	-	citrate synthase part 1, authentic frameshift
2531	 51.92	0	2150161..2150316	+	51	18314174	-	PAE3585	-	citrate synthase part 2, authentic frameshift
2532	 50.58	0	2150355..2151125	+	256	18314175	-	PAE3586	-	electron transfer flavoprotein beta subunit (etfB)
2533	 52.56	0	2151122..2152021	+	299	18314176	-	PAE3587	-	electron transfer flavoprotein alpha subunit (etfA)
2534	 50.24	0	2151986..2152405	-	139	18314177	-	PAE3588	-	hypothetical protein
2535	 52.40	0	2152872..2153642	+	256	18314178	-	PAE3592	-	acetyl-coenzyme A synthetase, degenerate
2536	 53.43	0	2154202..2154813	-	203	18314179	-	PAE3595	-	proteasome, beta subunit
2537	 54.73	0	2154878..2155924	+	348	18314180	-	PAE3596	-	RNA 3'-terminal-phosphate cyclase
2538	 49.56	0	2155912..2156823	-	303	18314181	ubiA	PAE3597	-	prenyltransferase
2539	 49.35	0	2156836..2157453	-	205	18314182	-	PAE3598	-	nitrite reductase (cytochrome C), conjectural
2540	 50.43	0	2157539..2159176	+	545	18314183	-	PAE3600	-	nitrite reductase (cytochrome d1), conjectural
2541	 55.90	0	2159149..2159733	+	194	18314184	-	PAE3601	-	uroporphyrin-III C-methyltransferase
2542	 54.26	0	2159730..2160857	-	375	18314185	-	PAE3602	-	hypothetical protein
2543	 52.03	0	2161205..2163370	+	721	18314186	-	PAE3603	-	nitric oxide reductase, cytochrome b subunit
2544	 47.10	0	2163448..2163912	+	154	18314187	-	PAE3604	-	hypothetical protein
2545	 47.22	0	2163904..2164227	-	107	18314188	-	PAE3605	-	hypothetical protein
2546	 54.23	0	2164455..2165033	+	192	18314189	-	PAE3607	-	hypothetical protein
2547	 55.70	0	2165030..2166370	+	446	18314190	-	PAE3608	-	hypothetical protein
2548	 50.57	0	2166357..2166797	-	146	18314191	-	PAE3609	-	hypothetical protein
2549	 51.55	0	2166844..2167392	-	182	18314192	-	PAE3610	-	nitrate reductase delta subunit (narJ)
2550	 54.36	0	2167486..2171370	+	1294	18314193	-	PAE3611	-	nitrate reductase alpha subunit (narG)
2551	 54.22	0	2171367..2172788	+	473	18314194	-	PAE3612	-	nitrate reductase beta subunit (narH)
2552	 58.87	+1	2172785..2173708	+	307	18314195	-	PAE3613	-	nitrate reductase subunit, conjectural
2553	 49.93	0	2173709..2174407	+	232	18314196	-	PAE3614	-	hypothetical protein
2554	 54.74	0	2174379..2175200	+	273	18314197	-	PAE3615	-	hypothetical protein
2555	 52.04	0	2175236..2175946	+	236	18314198	-	PAE3617	-	hypothetical protein
2556	 56.33	0	2175987..2176547	-	186	18314199	-	PAE3618	-	hypothetical protein
2557	 56.51	0	2176532..2177122	-	196	18314200	-	PAE3619	-	nitrate ABC transport, ATP-binding protein, putative
2558	 55.16	0	2177199..2178128	+	309	18314201	-	PAE3621	-	transport protein, putative
2559	 54.78	0	2178125..2178511	+	128	18314202	-	PAE3623	-	hypothetical protein
2560	 58.04	+1	2178483..2180591	+	702	18314203	-	PAE3624	-	cytochrome C-type biogenesis protein,
2561	 54.92	0	2180581..2181525	+	314	18314204	-	PAE3625	-	hypothetical protein
2562	 53.60	0	2181533..2182573	-	346	18314205	-	PAE3626	-	hypothetical protein
2563	 54.10	0	2182617..2183396	+	259	18314206	-	PAE3627	-	hypothetical protein
2564	 49.59	0	2183638..2183760	+	40	18314207	-	PAE3628	-	hypothetical protein
2565	 55.39	0	2184155..2184775	-	206	18314208	-	PAE3630	-	hypothetical protein
2566	 50.28	0	2184831..2185739	+	302	18314209	-	PAE3631	-	NAD dependent epimerase/dehydratase, putative
2567	 40.44	-2	2185741..2186796	-	351	18314210	-	PAE3632	-	hypothetical protein
2568	 47.57	0	2187622..2187909	+	95	18314211	-	PAE3634	-	hypothetical protein
2569	 54.12	0	2187939..2188520	+	193	18314212	-	PAE3635	-	hypothetical protein
2570	 51.96	0	2188688..2189428	-	246	18314213	-	PAE3636	-	hypothetical protein
2571	 55.11	0	2189484..2190452	+	322	18314214	-	PAE3638	-	hypothetical protein
2572	 58.92	+1	2190449..2190745	+	98	18314215	-	PAE3640	-	hypothetical protein
2573	 57.11	+1	2190775..2191695	+	306	18314216	-	PAE3641	-	hypothetical protein
2574	 53.79	0	2191692..2192483	-	263	18314217	-	PAE3642	-	hypothetical protein
51.51	MEAN

5.01	STD DEV
