IslandPath Analysis: Pyrobaculum aerophilum str. IM2

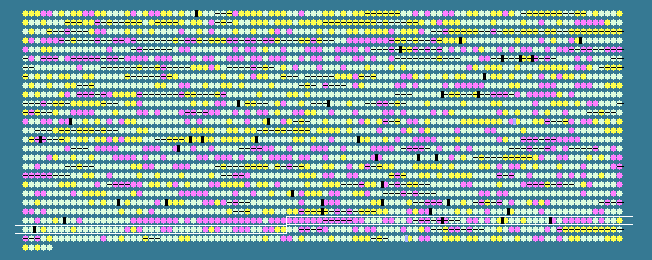

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.51 STD DEV: 5.01
Pyrobaculum aerophilum str. IM2, complete genome - 1..2222430
2605 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2345	 47.67	0	1989828..1990622	+	264	18313988	-	PAE3323	-	hypothetical protein
2346	 43.26	-1	1990603..1991025	-	140	18313989	-	PAE3324	-	hypothetical protein
2347	 45.71	-1	1991088..1992347	-	419	18313990	-	PAE3325	-	tRNA CCA-pyrophosphorylase
2348	 43.26	-1	1992344..1992907	-	187	18313991	-	PAE3326	-	hypothetical protein
2349	 44.52	-1	1992904..1993341	-	145	18313992	-	PAE3327	-	DNA binding transcriptional repressor, conjectural
2350	 46.71	0	1993374..1994270	-	298	18313993	-	PAE3329	-	transcription initiation factor IIB (TFIIB)
2351	 42.17	-1	1994267..1994515	-	82	161485619	-	PAE3330	-	H/ACA RNA-protein complex component Gar1
2352	 47.98	0	1994625..1995020	+	131	18313995	-	PAE3331	-	30S ribosomal protein S8e
2353	 47.22	0	1995017..1995304	+	95	18313996	-	PAE3332	-	signal recognition particle
2354	 46.13	-1	1995304..1996053	+	249	18313997	-	PAE3333	-	GTPase
2355	 45.21	-1	1996038..1996340	-	100	18313998	-	PAE3334	-	50S ribosomal protein L21e
2356	 41.96	-1	1996428..1996763	+	111	18313999	-	PAE3335	-	hypothetical protein
2357	 43.08	-1	1996760..1997344	+	194	18314000	-	PAE3336	-	hypothetical protein
2358	 48.12	0	1997346..1997744	-	132	18314001	-	PAE3337	-	translation initiation factor IF-5A
2359	 50.83	0	1997775..1998614	-	279	18314002	-	PAE3338	-	5'-methylthioadenosine phosphorylase II
2360	 49.90	0	1998646..1999134	+	162	18314003	-	PAE3339	-	hypothetical protein
2361	 43.80	-1	1999160..1999522	+	120	18314004	-	PAE3340	-	translation initiation factor SUI1-like protein
2362	 47.39	0	1999780..2000277	-	165	18314005	-	PAE3342	-	hypothetical protein
2363	 49.13	0	2000331..2002223	-	630	18314006	argS	PAE3343	-	arginyl-tRNA synthetase
2364	 49.57	0	2002290..2002523	+	77	18314007	rps28e	PAE3344	-	30S ribosomal protein S28e
2365	 46.89	0	2002520..2002696	+	58	18314008	-	PAE3345	-	ribosomal protein L24
2366	 51.32	0	2002697..2003152	-	151	18314009	rpl7ae	PAE3347	-	50S ribosomal protein L7Ae
2367	 44.41	-1	2003184..2004275	-	363	18314010	-	PAE3348	-	branched-chain amino acid transport permease protein
2368	 43.12	-1	2004272..2005231	-	319	18314011	-	PAE3350	-	branched-chain amino acid transport permease protein
2369	 49.85	0	2005342..2006691	+	449	18314012	-	PAE3353	-	branched-chain amino acid binding protein
2370	 45.40	-1	2006724..2007494	+	256	18314013	-	PAE3354	-	branched-chain amino acid transport ATP-binding protein
2371	 47.58	0	2007897..2010269	+	790	18314014	-	PAE3356	-	hypothetical protein
2372	 49.33	0	2010262..2011686	+	474	18314015	-	PAE3357	-	antibiotic resistance (efflux) protein, conjectural
2373	 52.93	0	2011696..2012787	+	363	18314016	-	PAE3359	-	hypothetical protein
2374	 48.10	0	2012769..2013188	+	139	18314017	-	PAE3361	-	hypothetical protein
2375	 45.98	-1	2013263..2014108	+	281	18314018	-	PAE3364	-	hypothetical protein
2376	 47.93	0	2014139..2015440	+	433	18314019	-	PAE3365	-	signal recognition particle
2377	 48.35	0	2015524..2015916	+	130	18314020	-	PAE3367	-	hypothetical protein
2378	 47.90	0	2015936..2017171	+	411	18314021	-	PAE3368	-	hypothetical protein
2379	 50.99	0	2017200..2018717	+	505	18314022	guaA	PAE3369	-	bifunctional GMP synthase/glutamine amidotransferase protein
2380	 55.53	0	2018908..2020299	+	463	18314023	-	PAE3371	-	gamma-glutamyltransferase
2381	 56.72	+1	2020895..2021095	-	66	18314024	-	PAE3373	-	paREP2b
2382	 48.07	0	2021219..2021503	+	94	18314025	-	PAE3375	-	hypothetical protein
2383	 49.84	0	2021500..2022444	-	314	18314026	-	PAE3376	-	beta-lactamase-like protein
2384	 55.00	0	2022708..2023427	+	239	18314027	-	PAE3378	-	sugar fermentation stimulation protein, conjectural
2385	 53.87	0	2023407..2024258	-	283	18314028	-	PAE3380	-	hypothetical protein
2386	 52.48	0	2024297..2024881	+	194	18314029	-	PAE3381	-	beta-lactamase-like protein
2387	 50.87	0	2025224..2027971	+	915	18314030	-	PAE3383	-	pyruvate phosphate dikinase
2388	 48.15	0	2028163..2028432	+	89	18314031	-	PAE3386	-	hypothetical protein
2389	 43.66	-1	2028820..2029158	-	112	18314032	-	PAE3387	-	hypothetical protein
2390	 53.62	0	2029215..2029490	-	91	18314033	-	PAE3390	-	hypothetical protein
2391	 37.68	-2	2029529..2029873	-	114	18314034	-	PAE3391	-	hypothetical protein
2392	 41.70	-1	2029927..2030595	-	222	18314035	-	PAE3393	-	hypothetical protein
2393	 47.70	0	2030663..2031031	-	122	18314036	-	PAE3394a	-	hypothetical protein
2394	 45.24	-1	2031071..2031532	-	153	18314037	-	PAE3397	-	hypothetical protein
2395	 47.56	0	2031561..2033282	-	573	18314038	-	PAE3399	-	hypothetical protein
2396	 51.67	0	2033393..2034172	+	259	18314039	-	PAE3402	-	hypothetical protein
2397	 47.62	0	2034162..2034644	+	160	18314040	-	PAE3403	-	hypothetical protein
2398	 52.65	0	2034655..2035596	-	313	18314041	-	PAE3404	-	acyl coenzyme A thioester hydrolase
2399	 51.69	0	2035643..2036410	+	255	18314042	-	PAE3406	-	hypothetical protein
2400	 57.69	+1	2036523..2037302	-	259	18314043	-	PAE3407	-	hypothetical protein
2401	 54.88	0	2037295..2038134	-	279	18314044	-	PAE3409	-	2-dehydropantoate 2-reductase (ketopantoate reductase)
2402	 54.25	0	2038167..2038955	+	262	18314045	panB	PAE3410	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
2403	 51.45	0	2039154..2040014	-	286	18314046	-	PAE3411	-	sugar transport permease protein
2404	 55.35	0	2040005..2040967	-	320	18314047	-	PAE3412	-	ribose ABC transporter, permease protein
2405	 49.18	0	2040964..2042358	-	464	18314048	-	PAE3413	-	ribose ABC transport system ATP-binding protein
2406	 52.93	0	2042360..2043655	-	431	18314049	-	PAE3414	-	hypothetical protein
2407	 51.99	0	2043807..2045189	-	460	18314050	-	PAE3416	-	phosphoenolpyruvate carboxylase
2408	 53.97	0	2045228..2046172	-	314	18314051	-	PAE3418	-	hypothetical protein
2409	 56.25	0	2046236..2046379	-	47	18314052	-	PAE3419	-	paREP2b
2410	 53.06	0	2046661..2048115	-	484	18314053	-	PAE3421	-	thiamine biosynthesis protein ThiI
2411	 51.96	0	2048133..2049587	-	484	18314054	-	PAE3422	-	hypothetical protein
2412	 48.41	0	2050011..2050607	+	198	18314055	-	PAE3424	-	hypothetical protein
2413	 54.86	0	2051210..2053039	-	609	18314056	-	PAE3427	-	aldehyde ferredoxin oxidoreductase (aor)
2414	 52.62	0	2053132..2054505	+	457	18314057	-	PAE3428	-	hypothetical protein
2415	 53.17	0	2054507..2055958	+	483	18314058	-	PAE3429	-	glycogen synthase, putative
2416	 48.28	0	2055988..2057211	+	407	18314059	-	PAE3430	-	glucose-1-phosphate adenylyltransferase
2417	 50.80	0	2057188..2058000	-	270	18314060	-	PAE3431	-	hypothetical protein
2418	 47.92	0	2058001..2058144	-	47	18314061	-	PAE3432	-	hypothetical protein
2419	 58.59	+1	2058230..2058328	-	32	18314062	-	PAE3434	-	paREP2b
2420	 45.00	-1	2058399..2059778	-	459	18314063	-	PAE3435	-	preprotein translocase subunit SecY
2421	 49.26	0	2059775..2060245	-	156	18314064	rpl15p	PAE3436	-	50S ribosomal protein L15P
2422	 50.06	0	2060281..2061171	-	296	18314065	-	PAE3437	-	glucokinase (ROK family protein), conjectural
2423	 51.09	0	2061272..2062555	+	427	18314066	-	PAE3438	-	glutamate dehydrogenase
2424	 35.90	-2	2062538..2062654	-	38	18314067	-	PAE3440	-	hypothetical protein
2425	 41.78	-1	2062651..2063100	-	149	18314068	-	PAE3441	-	hypothetical protein
2426	 54.96	0	2063246..2064535	-	429	18314069	-	PAE3442	-	glutamine synthetase
2427	 48.68	0	2064862..2066601	+	579	18314070	-	PAE3443	-	glutamate synthase subunit, conjectural
2428	 49.52	0	2066598..2068667	+	689	18314071	-	PAE3444	-	glutamate synthase subunit, conjectural
2429	 48.63	0	2068641..2069006	-	121	18314072	-	PAE3445	-	hypothetical protein
2430	 50.30	0	2069006..2070160	-	384	18314073	-	PAE3447	-	aminotransferase, class-V
2431	 46.20	-1	2070160..2070462	-	100	18314074	-	PAE3450	-	hypothetical protein
2432	 55.14	0	2070642..2070962	-	106	18314075	-	PAE3449a	-	hypothetical protein
2433	 40.00	-2	2071010..2071219	-	69	18314076	-	PAE3452	-	hypothetical protein
2434	 53.46	0	2071305..2072099	-	264	18314077	-	PAE3453	-	molybdopterin-guanine dinucleotide biosynthesis protein A
2435	 48.07	0	2072150..2075149	+	999	18314078	-	PAE3454	-	pullulanase
2436	 45.80	-1	2075181..2076455	+	424	18314079	-	PAE3455	-	maltose ABC transporter, maltose binding protein
2437	 46.97	0	2076456..2077379	+	307	18314080	-	PAE3456	-	maltose ABC transporter, permease protein
2438	 46.59	0	2077369..2078175	+	268	18314081	-	PAE3457	-	maltose ABC transporter, permease protein
2439	 53.45	0	2078172..2078345	-	57	18314082	-	PAE3458	-	hypothetical protein
2440	 51.28	0	2078386..2078814	-	142	18314083	-	PAE3460	-	hypothetical protein
2441	 46.07	-1	2078839..2079882	-	347	18314084	-	PAE3461	-	heat shock protein, htpX homolog, conjectural
2442	 44.12	-1	2080434..2080739	+	101	18314085	-	PAE3464	-	hypothetical protein
2443	 55.26	0	2080744..2082663	+	639	18314086	-	PAE3465	-	molybdenum cofactor biosynthesis protein (moaA)
2444	 55.74	0	2082664..2083908	-	414	18314087	-	PAE3466	-	molybdenum cofactor biosynthesis protein (moaA)
51.51	MEAN

5.01	STD DEV
