IslandPath Analysis: Pyrobaculum aerophilum str. IM2

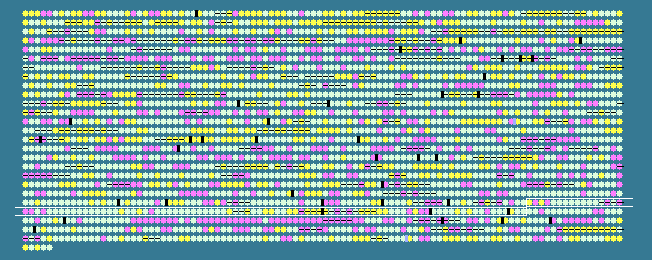

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 51.51   STD DEV: 5.01
Pyrobaculum aerophilum str. IM2, complete genome - 1..2222430
2605 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2185	 55.24	0	1848054..1848998	+	314	18313828	-	PAE3108	-	mevalonate kinase
2186	 44.87	-1	1848995..1849228	+	77	18313829	-	PAE3109	-	hypothetical protein
2187	 56.87	+1	1849244..1850029	+	261	18313830	-	PAE3111	-	uridine phosphorylase
2188	 45.15	-1	1850001..1850237	+	78	18313831	-	PAE3112	-	hypothetical protein
2189	 49.18	0	1850260..1850688	+	142	18313832	-	PAE3113	-	hypothetical protein
2190	 52.71	0	1850685..1852232	-	515	18313833	-	PAE3114	-	nicotinate-nucleotide pyrophosphorylase and protein
2191	 50.22	0	1852229..1853152	-	307	18313834	-	PAE3115	-	quinolinate synthetase
2192	 52.95	0	1853256..1854137	-	293	18313835	-	PAE3116	-	hypothetical protein
2193	 51.15	0	1854146..1854493	-	115	18313836	-	PAE3117	-	small heat shock protein, hsp20 homolog, conjectural
2194	 51.40	0	1854520..1855410	-	296	18313837	-	PAE3118	-	ribose ABC transporter, permease protein
2195	 54.96	0	1855407..1856414	-	335	18313838	-	PAE3119	-	ribose ABC transporter, permease protein
2196	 50.38	0	1856411..1857847	-	478	18313839	-	PAE3120	-	ribose ABC transport system ATP-binding
2197	 51.93	0	1857847..1859088	-	413	18313840	-	PAE3121	-	sugar binding protein
2198	 46.90	0	1859111..1859449	-	112	18313841	-	PAE3123	-	hypothetical protein
2199	 48.68	0	1859433..1861523	-	696	18313842	-	PAE3124	-	penicillin amidase
2200	 45.51	-1	1861604..1862137	-	177	18313843	-	PAE3125	-	hypothetical protein
2201	 43.03	-1	1862107..1863570	-	487	18313844	-	PAE3127	-	hypothetical protein
2202	 44.71	-1	1863667..1864431	-	254	18313845	-	PAE3129	-	hypothetical protein
2203	 51.78	0	1864581..1864889	+	102	18313846	-	PAE3130	-	hypothetical protein
2204	 48.00	0	1864890..1865189	+	99	18313847	-	PAE3132	-	hypothetical protein
2205	 52.33	0	1865372..1866613	+	413	18313848	-	PAE3134	-	hypothetical protein
2206	 50.50	0	1866650..1867447	+	265	18313849	-	PAE3135	-	hypothetical protein
2207	 53.56	0	1867554..1867988	+	144	18313850	rpl14p	PAE3136	-	50S ribosomal protein L14P
2208	 49.84	0	1868056..1868376	+	106	18313851	-	PAE3137	-	hypothetical protein
2209	 48.66	0	1868358..1868729	+	123	18313852	-	PAE3138	-	hypothetical protein
2210	 51.29	0	1868763..1870076	-	437	18313853	-	PAE3140	-	S-adenosyl-L-homocysteine hydrolase
2211	 52.02	0	1870244..1870837	-	197	18313854	-	PAE3141	-	hypothetical protein
2212	 54.61	0	1871674..1872519	+	281	18313855	-	PAE3143	-	hypothetical protein
2213	 50.34	0	1872521..1872955	+	144	18313856	-	PAE3144	-	hypothetical protein
2214	 50.08	0	1872946..1873608	+	220	18313857	-	PAE3145	-	hypothetical protein
2215	 51.65	0	1873600..1874904	-	434	18313858	-	PAE3146	-	hypothetical protein
2216	 51.68	0	1875008..1875601	+	197	18313859	-	PAE3148	-	hypothetical protein
2217	 55.49	0	1875563..1876045	-	160	18313860	-	PAE3151	-	hypothetical protein
2218	 50.10	0	1876042..1876542	-	166	18313861	-	PAE3152	-	thiol:disulphide interchange protein, putative
2219	 50.96	0	1876657..1877388	+	243	18313862	-	PAE3153	-	hypothetical protein
2220	 55.10	0	1877462..1880011	+	849	18313863	-	PAE3155	-	ribonucleotide reductase
2221	 48.85	0	1880063..1880539	+	158	18313864	-	PAE3156	-	hypothetical protein
2222	 45.93	-1	1880574..1880843	+	89	18313865	-	PAE3157	-	hypothetical protein
2223	 49.12	0	1880874..1882229	+	451	18313866	-	PAE3158	-	seryl-tRNA synthetase
2224	 50.61	0	1882342..1882995	-	217	18313867	pyrH	PAE3159	-	uridylate kinase
2225	 49.62	0	1882979..1883500	-	173	18313868	-	PAE3161	-	hypothetical protein
2226	 51.93	0	1883749..1884162	+	137	18313869	-	PAE3162	-	HIT family protein
2227	 52.04	0	1884193..1884657	+	154	18313870	-	PAE3163	-	LuxR family regulatory protein conjectural
2228	 52.67	0	1884650..1885849	-	399	18313871	-	PAE3165	-	translation-associated GTPase
2229	 52.85	0	1885991..1886113	+	40	18313872	-	PAE3166	-	paREP2a
2230	 54.84	0	1886180..1887397	+	405	18313873	-	PAE3167	-	hypothetical protein
2231	 53.17	0	1887427..1889397	+	656	18313874	-	PAE3169	-	hypothetical protein
2232	 53.54	0	1889431..1891647	+	738	18313875	-	PAE3171	-	AAA family ATPase, CDC48 subfamily protein
2233	 49.62	0	1891678..1892205	+	175	18313876	-	PAE3172	-	small heat shock protein, hsp20 homolog, conjectural
2234	 48.44	0	1892202..1892651	-	149	18313877	-	PAE3173	-	hypothetical protein
2235	 57.25	+1	1892717..1893820	+	367	18313878	-	PAE3175	-	hypothetical protein
2236	 52.80	0	1893887..1894225	+	112	18313879	-	PAE3176	-	hypothetical protein
2237	 53.27	0	1894255..1894575	+	106	18313880	-	PAE3177	-	hypothetical protein
2238	 57.96	+1	1894599..1895000	+	133	18313881	rps11p	PAE3179	-	30S ribosomal protein S11P
2239	 52.01	0	1895000..1895272	+	90	18313882	-	PAE3180	-	hypothetical protein
2240	 51.93	0	1895552..1897057	+	501	18313883	-	PAE3182	-	hypothetical protein
2241	 57.89	+1	1897231..1897344	-	37	18313884	-	PAE3183	-	hypothetical protein
2242	 56.04	0	1897479..1898570	+	363	18313885	-	PAE3184	-	pyruvate formate-lyase activating enzyme-like protein
2243	 54.50	0	1899907..1900284	+	125	18313886	-	PAE3185	-	paREP9, associated with SRSRs
2244	 51.45	0	1900588..1901244	+	218	18313887	-	PAE3187	-	hypothetical protein
2245	 58.95	+1	1901244..1902008	+	254	18313888	-	PAE3188	-	hypothetical protein
2246	 56.40	0	1901965..1902636	-	223	18313889	-	PAE3189	-	hypothetical protein
2247	 47.70	0	1902668..1902841	-	57	18313890	-	PAE3192	-	paREP4
2248	 64.44	+2	1902925..1903014	+	29	18313891	-	PAE3193	-	hypothetical protein
2249	 62.62	+2	1903036..1903455	+	139	18313892	-	PAE3193a	-	hypothetical protein
2250	 57.44	+1	1903367..1903951	+	194	18313893	-	PAE3195	-	hypothetical protein
2251	 65.27	+2	1904252..1905253	+	333	18313894	-	PAE3196	-	hypothetical protein
2252	 49.03	0	1905244..1907256	-	670	18313895	-	PAE3197	-	hypothetical protein
2253	 45.32	-1	1907253..1911080	-	1275	18313896	-	PAE3198	-	ATP-dependant helicase,
2254	 51.08	0	1911260..1911952	-	230	18313897	-	PAE3199	-	U/G & T/G mismatch specific glycosylase (PA-MIG)
2255	 43.02	-1	1911993..1913024	+	343	18313898	-	PAE3200	-	hypothetical protein
2256	 52.16	0	1913015..1914406	-	463	18313899	-	PAE3201	-	C-5 cytosine-specific DNA methylase
2257	 57.09	+1	1914869..1915129	+	86	18313900	-	PAE3202	-	hypothetical protein
2258	 61.04	+1	1915250..1916245	+	331	18313901	-	PAE3203	-	hypothetical protein
2259	 63.44	+2	1916232..1917500	+	422	18313902	-	PAE3204	-	hypothetical protein
2260	 65.60	+2	1917475..1918131	+	218	18313903	-	PAE3205	-	hypothetical protein
2261	 56.36	0	1918181..1918636	+	151	18313904	-	PAE3206	-	paREP8
2262	 53.55	0	1918759..1919223	+	154	18313905	-	PAE3207	-	paREP8
2263	 51.90	0	1919555..1921105	+	516	18313906	-	PAE3208	-	helix-turn-helix protein
2264	 53.26	0	1921102..1921944	+	280	18313907	-	PAE3209	-	hypothetical protein
2265	 44.09	-1	1921952..1922044	-	30	18313908	-	PAE3209a	-	hypothetical protein
2266	 58.33	+1	1922134..1922829	+	231	18313909	-	PAE3211	-	hypothetical protein
2267	 45.97	-1	1922864..1923607	+	247	18313910	-	PAE3212	-	hypothetical protein
2268	 44.44	-1	1923611..1924420	+	269	18313911	-	PAE3214	-	hypothetical protein
2269	 52.17	0	1924912..1925904	-	330	18313912	-	PAE3215	-	hypothetical protein
2270	 51.70	0	1925964..1927520	+	518	18313913	-	PAE3216	-	ATPase
2271	 48.53	0	1927517..1928266	+	249	18313914	-	PAE3217	-	hypothetical protein
2272	 52.43	0	1928256..1929119	-	287	18313915	-	PAE3218	-	hypothetical protein
2273	 55.52	0	1929123..1930181	-	352	18313916	-	PAE3219	-	paREP2b
2274	 52.30	0	1930221..1930394	-	57	18313917	-	PAE3220	-	paREP2b
2275	 55.90	0	1930451..1931137	-	228	18313918	-	PAE3221	-	dimethyladenosine transferase
2276	 53.48	0	1931170..1932996	+	608	18313919	-	PAE3222	-	glutamyl-tRNA(Gln) amidotransferase subunit E
2277	 49.02	0	1933217..1933471	+	84	18313920	-	PAE3224	-	ribosomal protein L34
2278	 47.03	0	1933477..1934031	+	184	18313921	-	PAE3225	-	cytidylate kinase
2279	 54.12	0	1934085..1935128	+	347	18313922	-	PAE3227	-	putative glutamate synthase subunit beta
2280	 50.42	0	1935129..1935836	-	235	18313923	-	PAE3228	-	fibrillarin
2281	 51.34	0	1936064..1937329	-	421	18313924	-	PAE3232	-	nop family pre-rRNA processing protein
2282	 55.68	0	1937914..1938468	+	184	18313925	-	PAE3235	-	paREP1
2283	 49.74	0	1938496..1939842	-	448	18313926	-	PAE3237	-	beta-lactamase-like protein
2284	 53.85	0	1939845..1940780	-	311	18313927	-	PAE3238	-	DNA repair protein radA
51.51	MEAN

5.01	STD DEV
