IslandPath Analysis: Pyrobaculum aerophilum str. IM2

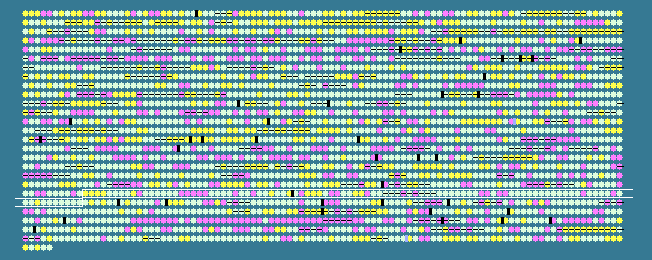

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 51.51   STD DEV: 5.01
Pyrobaculum aerophilum str. IM2, complete genome - 1..2222430
2605 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2011	 55.12	0	1702190..1702492	+	100	18313654	-	PAE2875	-	hypothetical protein
2012	 56.27	0	1702533..1703552	-	339	18313655	-	PAE2876	-	aspartate-semialdehyde dehydrogenase
2013	 55.32	0	1703565..1704560	-	331	18313656	-	PAE2877	-	aspartate kinase
2014	 55.01	0	1704557..1705603	-	348	18313657	-	PAE2878	-	threonine synthase
2015	 51.44	0	1706071..1706451	+	126	18313658	-	PAE2879	-	hypothetical protein
2016	 52.18	0	1706448..1707503	+	351	18313659	argC	PAE2881	-	N-acetyl-gamma-glutamyl-phosphate reductase
2017	 51.65	0	1707500..1708285	+	261	18313660	-	PAE2882	-	acetylglutamate kinase
2018	 51.61	0	1708356..1708541	+	61	18313661	-	PAE2883	-	hypothetical protein
2019	 56.78	+1	1708785..1709735	+	316	18313662	-	PAE2884	-	argininosuccinate synthase (argG)
2020	 44.87	-1	1709784..1709939	+	51	18313663	-	PAE2886	-	hypothetical protein
2021	 54.03	0	1709939..1711228	+	429	18313664	-	PAE2887	-	argininosuccinate lyase
2022	 53.11	0	1711482..1712027	-	181	18313665	-	PAE2889	-	hypothetical protein
2023	 52.47	0	1712141..1713112	+	323	18313666	-	PAE2890	-	spermidine/putrescine transport ATP-binding protein
2024	 52.05	0	1713109..1713840	+	243	18313667	-	PAE2891	-	spermidine/putrescine transport permease protein
2025	 51.97	0	1713837..1714598	+	253	18313668	-	PAE2893	-	spermidine/putrescine transport permease protein
2026	 52.96	0	1714849..1715928	-	359	18313669	-	PAE2895	-	hypothetical protein
2027	 47.72	0	1715925..1717175	-	416	18313670	-	PAE2897	-	hypothetical protein
2028	 45.71	-1	1717205..1717624	-	139	18313671	-	PAE2898	-	hypothetical protein
2029	 44.93	-1	1717645..1718937	-	430	18313672	-	PAE2899	-	hypothetical protein
2030	 46.25	-1	1718937..1720043	-	368	18313673	-	PAE2901	-	hypothetical protein
2031	 47.88	0	1720197..1721468	+	423	18313674	-	PAE2902	-	hypothetical protein
2032	 51.51	0	1721465..1723291	+	608	18313675	-	PAE2903	-	hypothetical protein
2033	 53.71	0	1723288..1724445	+	385	18313676	-	PAE2904	-	exonuclease sbcD, conjectural
2034	 51.26	0	1724438..1726546	+	702	18313677	-	PAE2905	-	purine NTPase,
2035	 50.30	0	1726549..1727715	-	388	18313678	-	PAE2906	-	peptide chain release factor 1
2036	 47.66	0	1727794..1728114	+	106	18313679	rps10p	PAE2907	-	30S ribosomal protein S10P
2037	 54.56	0	1728146..1728946	+	266	18313680	-	PAE2908	-	surE stationary-phase survival protein
2038	 49.45	0	1728943..1729767	+	274	18313681	-	PAE2910	-	hypothetical protein
2039	 46.97	0	1729739..1730002	-	87	18313682	-	PAE2911	-	hypothetical protein
2040	 54.53	0	1730031..1730681	-	216	18313683	-	PAE2913	-	hypothetical protein
2041	 52.76	0	1730700..1731605	-	301	18313684	-	PAE2915	-	dihydrodipicolinate synthase
2042	 59.26	+1	1731685..1731846	+	53	18313685	-	PAE2916	-	hypothetical protein
2043	 52.77	0	1731870..1733243	+	457	18313686	-	PAE2918	-	tldD, putative modulator of DNA gyrase
2044	 50.93	0	1733240..1734523	+	427	18313687	-	PAE2919	-	pmbA, putative modulator of DNA gyrase
2045	 56.44	0	1734657..1734881	-	74	18313688	-	PAE2921	-	paREP10
2046	 50.85	0	1735149..1736330	-	393	18313689	-	PAE2923	-	hypothetical protein
2047	 43.49	-1	1736327..1736779	-	150	18313690	-	PAE2924	-	hypothetical protein
2048	 57.40	+1	1736928..1738211	+	427	18313691	-	PAE2925	-	resistance protein, conjectural
2049	 55.62	0	1738200..1738733	-	177	18313692	-	PAE2926	-	NADH-ubiquinone oxidoreductase subunit
2050	 56.37	0	1738736..1739308	-	190	18313693	-	PAE2928	-	NADH-ubiquinone oxidoreductase subunit
2051	 52.20	0	1739405..1740358	-	317	18313694	-	PAE2929	-	aldo-keto reductase, putative
2052	 48.02	0	1740816..1741877	-	353	18313695	-	PAE2931	-	alcohol dehydrogenase (Zinc)
2053	 47.96	0	1741874..1742290	-	138	18313696	-	PAE2932	-	hypothetical protein
2054	 49.67	0	1742585..1743343	-	252	18313697	-	PAE2934	-	hypothetical protein
2055	 49.33	0	1743400..1743924	+	174	18313698	-	PAE2935	-	hypothetical protein
2056	 55.21	0	1743917..1744501	+	194	18313699	-	PAE2936	-	hypothetical protein
2057	 56.30	0	1744484..1745380	-	298	18313700	-	PAE2937	-	dihydropteroate synthase
2058	 46.86	0	1745467..1745769	+	100	18313701	-	PAE2938	-	hypothetical protein
2059	 53.08	0	1745792..1747042	+	416	18313702	-	PAE2939	-	hypothetical protein
2060	 50.55	0	1747151..1748863	-	570	18313703	-	PAE2940	-	methionyl-tRNA synthetase
2061	 49.03	0	1748886..1749503	-	205	18313704	-	PAE2941	-	hypothetical protein
2062	 49.23	0	1749503..1750219	-	238	18313705	-	PAE2942	-	hypothetical protein
2063	 51.99	0	1750197..1750523	-	108	18313706	-	PAE2942a	-	methionyl-tRNA synthetase beta subunit
2064	 45.13	-1	1750569..1751534	+	321	18313707	-	PAE2944	-	hypothetical protein
2065	 50.38	0	1751675..1752067	-	130	18313708	-	PAE2945	-	hypothetical protein
2066	 47.92	0	1752073..1754499	-	808	18313709	-	PAE2946	-	hypothetical protein
2067	 49.54	0	1754465..1755217	+	250	18313710	-	PAE2947	-	hypothetical protein
2068	 52.94	0	1755204..1755968	-	254	18313711	-	PAE2948	-	hypothetical protein
2069	 52.17	0	1755965..1756171	-	68	18313712	-	PAE2949	-	hypothetical protein
2070	 48.25	0	1756212..1756526	-	104	18313713	-	PAE2950	-	hypothetical protein
2071	 50.40	0	1756574..1757710	+	378	18313714	-	PAE2951	-	hypothetical protein
2072	 51.74	0	1758011..1758814	+	267	18313715	-	PAE2954	-	solute-binding family 3 protein
2073	 54.90	0	1758799..1759206	+	135	18313716	-	PAE2955	-	hypothetical protein
2074	 52.38	0	1759755..1760363	+	202	18313717	-	PAE2958	-	hypothetical protein
2075	 53.20	0	1760324..1761088	+	254	18313718	-	PAE2959	-	NAD-dependent deacetylase
2076	 49.43	0	1761069..1761590	-	173	18313719	-	PAE2960	-	hypothetical protein
2077	 47.62	0	1761587..1762006	-	139	18313720	-	PAE2961	-	hypothetical protein
2078	 47.27	0	1762029..1762358	-	109	18313721	-	PAE2964	-	hypothetical protein
2079	 50.70	0	1762355..1762780	-	141	18313722	-	PAE2965	-	hypothetical protein
2080	 46.38	-1	1762777..1762914	-	45	18313723	-	PAE2966	-	hypothetical protein
2081	 43.19	-1	1762911..1763123	-	70	18313724	-	PAE2967	-	hypothetical protein
2082	 53.28	0	1763197..1763883	+	228	18313725	-	PAE2968	-	sugar-phosphate nucleotidyl transferase, putative
2083	 52.60	0	1763873..1765585	+	570	18313726	gltX	PAE2969	-	glutamyl-tRNA synthetase
2084	 53.17	0	1765578..1766570	+	330	18313727	-	PAE2970	-	hypothetical protein
2085	 48.72	0	1766599..1766988	+	129	18313728	-	PAE2971	-	hypothetical protein
2086	 52.82	0	1766954..1767538	-	194	18313729	-	PAE2972	-	hypothetical protein
2087	 52.78	0	1767516..1768811	-	431	18313730	-	PAE2973	-	asparaginyl-tRNA synthetase
2088	 48.59	0	1768815..1769063	-	82	18313731	-	PAE2975	-	hypothetical protein
2089	 52.28	0	1769060..1769872	-	270	18313732	-	PAE2977	-	3-hydroxyisobutyrate dehydrogenase, putative
2090	 54.75	0	1769921..1770952	+	343	18313733	-	PAE2978	-	sua5 family protein
2091	 48.72	0	1770949..1771728	+	259	18313734	-	PAE2979	-	methyltransferase
2092	 51.35	0	1771753..1772607	+	284	18313735	-	PAE2980	-	ribose-phosphate pyrophosphokinase
2093	 53.61	0	1772602..1773612	-	336	18313736	-	PAE2981	-	acetylpolyamine aminohydrolase, putative
2094	 47.40	0	1773672..1773863	+	63	18313737	-	PAE2982	-	hypothetical protein
2095	 49.52	0	1773841..1774470	-	209	18313738	-	PAE2983	-	hypothetical protein
2096	 51.50	0	1774557..1775222	+	221	18313739	-	PAE2984	-	hypothetical protein
2097	 49.85	0	1775219..1775902	+	227	18313740	-	PAE2985	-	hypothetical protein
2098	 53.89	0	1775910..1776551	+	213	18313741	-	PAE2986	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
2099	 44.44	-1	1776535..1776948	-	137	18313742	-	PAE2987	-	hypothetical protein
2100	 54.22	0	1777001..1778077	+	358	18313743	-	PAE2989	-	hypothetical protein
2101	 53.75	0	1778072..1779232	-	386	18313744	-	PAE2990	-	nicotinate phosphoribosyltransferase
2102	 50.26	0	1779264..1781006	+	580	18313745	-	PAE2991	-	hypothetical protein
2103	 59.07	+1	1780978..1781451	-	157	18313746	-	PAE2992	-	hypothetical protein
2104	 50.91	0	1781522..1783330	+	602	18313747	-	PAE2993	-	DNA topoisomerase (topA)
2105	 52.63	0	1783323..1784234	+	303	18313748	-	PAE2994	-	hypothetical protein
2106	 48.91	0	1784241..1784561	+	106	18313749	-	PAE2996	-	hypothetical protein
2107	 51.47	0	1784601..1786166	+	521	18313750	-	PAE2998	-	hypothetical protein
2108	 52.36	0	1786176..1787510	-	444	18313751	-	PAE3000	-	elongation factor 1-alpha
2109	 54.62	0	1787626..1788231	-	201	18313752	-	PAE3001	-	isochorismatase, putative
2110	 54.67	0	1788559..1788708	+	49	18313753	-	PAE3002	-	paREP2a
51.51	MEAN

5.01	STD DEV
