IslandPath Analysis: Pyrobaculum aerophilum str. IM2

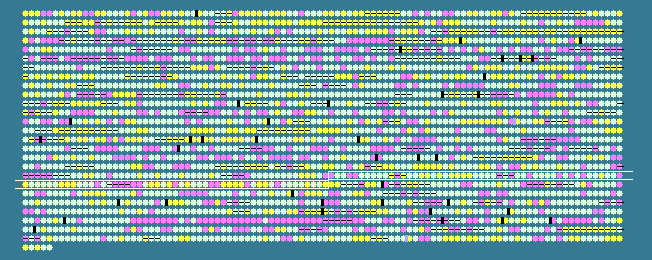

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 51.51   STD DEV: 5.01
Pyrobaculum aerophilum str. IM2, complete genome - 1..2222430
2605 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1852	 46.35	-1	1578568..1579128	+	186	18313495	-	PAE2655	-	hypothetical protein
1853	 54.25	0	1579149..1580018	+	289	18313496	-	PAE2656	-	pirin-like protein
1854	 53.76	0	1580015..1580812	+	265	18313497	-	PAE2658	-	hypothetical protein
1855	 46.35	-1	1580933..1581493	-	186	18313498	-	PAE2659	-	formate dehydrogenase protein fdhE
1856	 47.09	0	1581480..1582184	-	234	18313499	-	PAE2660	-	hypothetical protein
1857	 52.96	0	1582221..1583066	-	281	18313500	-	PAE2661	-	formate dehydrogenase beta subunit
1858	 50.77	0	1583072..1586575	-	1167	18313501	-	PAE2662	-	formate dehydrogenase alpha subunit
1859	 49.36	0	1586785..1587489	-	234	18313502	-	PAE2664	-	formate dehydrogenase delta subunit
1860	 48.23	0	1587468..1588004	-	178	18313503	-	PAE2665	-	hypothetical protein
1861	 53.29	0	1588143..1588583	+	146	18313504	-	PAE2668	-	hypothetical protein
1862	 58.97	+1	1588612..1589391	+	259	18313505	-	PAE2669	-	hypothetical protein
1863	 46.78	0	1589410..1589766	-	118	18313506	-	PAE2671	-	paREP8
1864	 57.83	+1	1589896..1590585	+	229	18313507	-	PAE2672	-	hypothetical protein
1865	 51.30	0	1590606..1591067	+	153	18313508	-	PAE2673	-	paREP8
1866	 53.44	0	1591505..1591882	-	125	18313509	-	PAE2676	-	hypothetical protein
1867	 57.26	+1	1591879..1592229	-	116	18313510	-	PAE2678	-	hypothetical protein
1868	 55.43	0	1592309..1592833	-	174	18313511	-	PAE2679	-	transcriptional regulator, conjectural
1869	 49.36	0	1592818..1593360	-	180	18313512	-	PAE2680	-	hypothetical protein
1870	 56.67	+1	1593573..1593902	-	109	18313513	-	PAE2682	-	hypothetical protein
1871	 50.53	0	1594344..1594628	-	94	18313514	-	PAE2684	-	transcriptional regulator, conjectural
1872	 58.44	+1	1594684..1595376	-	230	18313515	-	PAE2685	-	hypothetical protein
1873	 60.63	+1	1595400..1595780	-	126	18313516	-	PAE2686	-	hypothetical protein
1874	 62.15	+2	1595777..1596772	-	331	18313517	-	PAE2687	-	alcohol dehydrogenase (Zinc)
1875	 56.24	0	1596769..1597689	-	306	18313518	-	PAE2688	-	2-hydroxyhepta-2,4-diene-1,7-dioate isomerase, conjectural
1876	 53.32	0	1597757..1598872	-	371	18313519	-	PAE2689	-	hypothetical protein
1877	 52.04	0	1598973..1599437	+	154	18313520	-	PAE2690	-	iron-sulfur protein, putative
1878	 51.03	0	1599412..1599846	-	144	18313521	-	PAE2691	-	hypothetical protein
1879	 54.62	0	1599843..1601345	-	500	18313522	-	PAE2693	-	4-hydroxyphenylacetate-3-hydroxylase, conjectural
1880	 44.15	-1	1601630..1602082	-	150	18313523	-	PAE2695	-	hypothetical protein
1881	 50.72	0	1602414..1603310	+	298	18313524	-	PAE2696	-	pseudocatalase
1882	 40.30	-2	1603314..1604045	-	243	18313525	-	PAE2697	-	transport protein, putative
1883	 49.68	0	1604039..1604662	-	207	18313526	-	PAE2699	-	iron (III) ABC transporter ATP-binding protein, putative
1884	 49.34	0	1604799..1605785	+	328	18313527	-	PAE2700	-	hypothetical protein
1885	 46.95	0	1605821..1606312	+	163	18313528	-	PAE2701	-	hypothetical protein
1886	 51.85	0	1606370..1606801	+	143	18313529	-	PAE2702	-	hypothetical protein
1887	 54.10	0	1606961..1608058	+	365	18313530	-	PAE2703	-	hypothetical protein
1888	 53.51	0	1608051..1608278	-	75	18313531	-	PAE2705	-	hypothetical protein
1889	 54.88	0	1608233..1608529	-	98	18313532	-	PAE2706	-	ferredoxin oxidoreductase, conjectural
1890	 47.42	0	1608595..1608885	-	96	18313533	-	PAE2707	-	hypothetical protein
1891	 50.94	0	1608885..1609151	-	88	18313534	-	PAE2708	-	hypothetical protein
1892	 45.78	-1	1609118..1609342	-	74	18313535	-	PAE2711a	-	hypothetical protein
1893	 50.22	0	1609397..1609858	-	153	18313536	-	PAE2712	-	hypothetical protein
1894	 46.18	-1	1609852..1610178	+	108	18313537	-	PAE2713	-	4a-hydroxytetrahydrobiopterin dehydratase
1895	 51.14	0	1610178..1611008	+	276	18313538	-	PAE2715	-	cation efflux system protein
1896	 52.93	0	1611076..1611621	+	181	18313539	-	PAE2716	-	paREP1
1897	 59.13	+1	1611632..1613635	-	667	18313540	-	PAE2717	-	hypothetical protein
1898	 51.74	0	1613797..1614285	+	162	18313541	-	PAE2718	-	paREP1
1899	 50.62	0	1614998..1615483	-	161	18313542	-	PAE2723	-	hypothetical protein
1900	 42.95	-1	1615483..1617084	-	533	18313543	-	PAE2724	-	hypothetical protein
1901	 58.95	+1	1617678..1618208	-	176	18313544	-	PAE2726	-	hypothetical protein
1902	 53.57	0	1618627..1619313	+	228	18313545	-	PAE2728	-	hypothetical protein
1903	 53.39	0	1619652..1621037	+	461	18313546	-	PAE2730	-	selenium binding protein,
1904	 51.77	0	1621041..1621577	+	178	18313547	-	PAE2731	-	hypothetical protein
1905	 49.69	0	1621616..1622104	-	162	18313548	-	PAE2732	-	bacterioferritin comigratory protein
1906	 52.72	0	1622312..1623157	+	281	18313549	-	PAE2733	-	thiosulfate sulfurtransferase
1907	 56.13	0	1623185..1623535	-	116	18313550	-	PAE2734	-	Rieske iron sulfur protein, putative
1908	 57.65	+1	1623594..1623848	+	84	18313551	-	PAE2735	-	hypothetical protein
1909	 56.54	+1	1623848..1625713	+	621	18313552	-	PAE2736	-	2-oxoacid ferredoxin oxidoreductase alpha subunit
1910	 52.31	0	1625703..1626656	+	317	18313553	-	PAE2737	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
1911	 49.35	0	1626952..1627413	+	153	18313554	-	PAE2740	-	paREP5a
1912	 51.48	0	1627423..1627692	+	89	18313555	-	PAE2741	-	paREP5b
1913	 45.65	-1	1627811..1628143	+	110	18313556	-	PAE2742	-	hypothetical protein
1914	 53.65	0	1628145..1629473	+	442	18313557	fumC	PAE2743	-	fumarate hydratase
1915	 48.89	0	1629885..1630874	-	329	18313558	-	PAE2744	-	thioredoxin reductase (trxB)
1916	 45.56	-1	1631049..1631228	-	59	18313559	-	PAE2746	-	ribosomal protein L24, conjectural
1917	 47.57	0	1631265..1631861	-	198	18313560	-	PAE2747	-	hypothetical protein
1918	 44.86	-1	1631965..1632441	+	158	18313561	-	PAE2748	-	hypothetical protein
1919	 44.31	-1	1632711..1633220	+	169	18313562	-	PAE2750	-	hypothetical protein
1920	 41.33	-2	1633202..1634227	+	341	18313563	-	PAE2751	-	cytochrome C-type biogenesis protein (ccdA), conjectural
1921	 54.74	0	1634659..1634985	+	108	18313564	-	PAE2753	-	hypothetical protein
1922	 58.46	+1	1635106..1635507	-	133	18313565	-	PAE2754	-	hypothetical protein
1923	 59.56	+1	1635497..1635721	-	74	18313566	-	PAE2755	-	hypothetical protein
1924	 52.15	0	1635846..1636031	+	61	18313567	-	PAE2756	-	hypothetical protein
1925	 56.67	+1	1636096..1638465	+	789	18313568	-	PAE2758	-	cation-transporting ATPase (P-type)
1926	 44.90	-1	1638507..1638869	+	120	18313569	-	PAE2759	-	hypothetical protein
1927	 50.41	0	1638885..1639247	+	120	18313570	-	PAE2760	-	paREP11
1928	 59.76	+1	1639309..1639815	-	168	18313571	-	PAE2762	-	hypothetical protein
1929	 52.94	0	1640019..1640171	+	50	18313572	-	PAE2766	-	hypothetical protein
1930	 51.77	0	1640226..1641494	-	422	18313573	-	PAE2767	-	transport protein, putative
1931	 51.78	0	1641660..1642727	-	355	18313574	-	PAE2769	-	hypothetical protein
1932	 47.25	0	1643440..1643712	+	90	18313575	-	PAE2770	-	paREP12, degenerate
1933	 47.50	0	1644153..1644632	-	159	18313576	-	PAE2773	-	hypothetical protein
1934	 57.47	+1	1644770..1645606	+	278	18313577	-	PAE2775	-	hypothetical protein
1935	 57.01	+1	1645709..1646029	+	106	18313578	-	PAE2777	-	hypothetical protein
1936	 55.98	0	1646026..1646895	+	289	18313579	-	PAE2778	-	type II secretion system protein, conjectural
1937	 55.60	0	1646892..1647677	+	261	18313580	-	PAE2779	-	hypothetical protein
1938	 42.71	-1	1647743..1648030	+	95	18313581	-	PAE2780	-	hypothetical protein
1939	 48.93	0	1648097..1648564	-	155	18313582	-	PAE2782	-	hypothetical protein
1940	 55.16	0	1648620..1649045	+	141	18313583	-	PAE2783	-	hypothetical protein
1941	 60.75	+1	1649015..1649386	+	123	18313584	-	PAE2784	-	hypothetical protein
1942	 53.30	0	1649370..1650035	-	221	18313585	-	PAE2785	-	ABC transporter ATP-binding protein, putative
1943	 44.39	-1	1650118..1650768	+	216	18313586	-	PAE2786	-	paREP5ab, internal deletion and authentic frameshift
1944	 52.47	0	1650864..1651511	-	215	18313587	-	PAE2788	-	hypothetical protein
1945	 49.89	0	1651508..1651978	-	156	18313588	-	PAE2789	-	hypothetical protein
1946	 53.58	0	1651980..1652468	-	162	18313589	-	PAE2791	-	hypothetical protein
1947	 53.40	0	1652504..1653106	+	200	18313590	-	PAE2792	-	hypothetical protein
1948	 55.06	0	1653082..1653417	+	111	18313591	-	PAE2794a	-	hypothetical protein
1949	 53.61	0	1653368..1655014	-	548	18313592	-	PAE2794	-	protease IV, conjectural
1950	 54.64	0	1654995..1655942	+	315	18313593	-	PAE2795	-	serine protease
1951	 55.86	0	1655939..1656271	-	110	18313594	-	PAE2796	-	hypothetical protein
51.51	MEAN

5.01	STD DEV
