IslandPath Analysis: Pyrobaculum aerophilum str. IM2

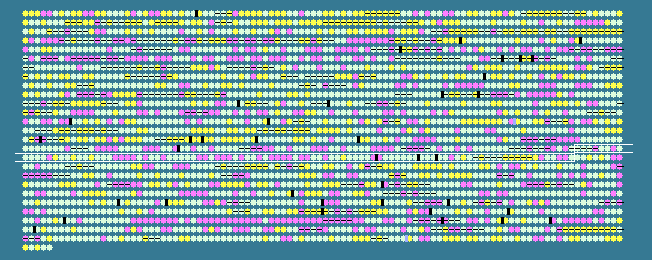

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 51.51   STD DEV: 5.01
Pyrobaculum aerophilum str. IM2, complete genome - 1..2222430
2605 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1593	 48.12	0	1353279..1355111	-	610	18313236	-	PAE2285	-	hypothetical protein
1594	 52.03	0	1355108..1355872	-	254	18313237	-	PAE2286	-	ABC transporter ATP-binding protein, putative
1595	 49.82	0	1355863..1357002	-	379	18313238	-	PAE2288	-	hypothetical protein
1596	 46.57	0	1357060..1359642	+	860	18313239	-	PAE2290	-	hypothetical protein
1597	 50.82	0	1359659..1359841	+	60	18313240	-	PAE2291	-	hypothetical protein
1598	 49.83	0	1359868..1360443	+	191	18313241	-	PAE2293	-	hypothetical protein
1599	 43.18	-1	1360556..1360687	+	43	18313242	-	PAE2294	-	hypothetical protein
1600	 50.97	0	1360689..1361663	+	324	18313243	-	PAE2295	-	hypothetical protein
1601	 48.25	0	1361660..1362316	-	218	18313244	-	PAE2296	-	hypothetical protein
1602	 50.25	0	1362414..1364813	+	799	18313245	valS	PAE2297	-	valyl-tRNA synthetase
1603	 52.89	0	1364810..1367044	-	744	18313246	-	PAE2298	-	ATP-dependent helicase
1604	 52.34	0	1367128..1367853	+	241	18313247	-	PAE2299	-	hypothetical protein
1605	 43.09	-1	1367941..1369026	+	361	18313248	-	PAE2301	-	ABC transporter ATP-binding component, degenerate
1606	 55.68	0	1370056..1371138	-	360	18313249	-	PAE2306	-	resistance protein, conjectural
1607	 49.49	0	1371135..1371629	-	164	18313250	-	PAE2307	-	hypothetical protein
1608	 48.37	0	1371714..1372112	+	132	18313251	-	PAE2309	-	ferric uptake regulator, putative
1609	 55.56	0	1372219..1373469	+	416	18313252	-	PAE2310	-	proline dehydrogenase
1610	 49.71	0	1373466..1373636	+	56	18313253	-	PAE2311	-	hypothetical protein
1611	 53.26	0	1373689..1374837	+	382	18313254	-	PAE2312	-	succinyl-CoA synthetase beta subunit (sucC)
1612	 57.71	+1	1374834..1375715	+	293	18313255	-	PAE2313	-	succinyl-CoA synthetase alpha subunit (sucD)
1613	 48.58	0	1376017..1377216	+	399	18313256	-	PAE2315	-	aminotransferase, class I
1614	 48.93	0	1377213..1378424	+	403	18313257	-	PAE2316	-	threonine dehydratase
1615	 50.63	0	1378453..1379169	+	238	18313258	-	PAE2317	-	alanyl-tRNA synthetase related protein
1616	 47.54	0	1379169..1380695	+	508	18313259	-	PAE2319	-	hypothetical protein
1617	 43.86	-1	1381310..1382278	+	322	18313260	-	PAE2322	-	hypothetical protein
1618	 47.86	0	1382268..1383086	-	272	18313261	-	PAE2323	-	hypothetical protein
1619	 44.23	-1	1383206..1383517	+	103	18313262	-	PAE2325	-	divalent cation tolerance protein, conjectural
1620	 50.24	0	1383510..1384745	+	411	18313263	-	PAE2326	-	cofactor-independent phosphoglycerate mutase
1621	 45.83	-1	1384745..1385032	+	95	18313264	-	PAE2326a	-	hypothetical protein
1622	 48.47	0	1384988..1385608	-	206	18313265	-	PAE2328	-	hypothetical protein
1623	 49.87	0	1385598..1386752	-	384	18313266	-	PAE2330	-	sugar transporter, conjectural
1624	 46.30	-1	1387006..1387761	-	251	18313267	-	PAE2331	-	hypothetical protein
1625	 50.77	0	1387774..1388742	-	322	18313268	-	PAE2332	-	alcohol dehydrogenase (Zinc)
1626	 48.14	0	1388739..1390379	-	546	18313269	-	PAE2333	-	medium-chain acyl-CoA ligase
1627	 50.50	0	1390466..1391659	+	397	18313270	-	PAE2335	-	succinyl-diaminopimelate desuccinylase
1628	 50.42	0	1391649..1392473	-	274	18313271	-	PAE2336	-	hypothetical protein
1629	 49.85	0	1392479..1392805	+	108	18313272	-	PAE2337	-	hypothetical protein
1630	 44.44	-1	1392809..1393492	+	227	18313273	-	PAE2338	-	hypothetical protein
1631	 47.52	0	1393479..1394444	-	321	18313274	-	PAE2340	-	hypothetical protein
1632	 52.75	0	1394441..1394749	-	102	18313275	-	PAE2341	-	hypothetical protein
1633	 45.60	-1	1394791..1395426	-	211	18313276	-	PAE2343	-	hypothetical protein
1634	 42.70	-1	1395426..1395788	-	120	18313277	-	PAE2344	-	hypothetical protein
1635	 48.03	0	1395988..1396620	+	210	18313278	-	PAE2346	-	hypothetical protein
1636	 54.09	0	1396591..1397226	-	211	18313279	-	PAE2348	-	hypothetical protein
1637	 47.14	0	1397211..1397630	-	139	18313280	-	PAE2349	-	hypothetical protein
1638	 52.94	0	1397662..1398069	-	135	18313281	-	PAE2350	-	hypothetical protein
1639	 49.75	0	1398131..1399903	-	590	18313282	-	PAE2352	-	putative ATPase RIL
1640	 46.58	0	1400027..1400260	-	77	18313283	-	PAE2354	-	hypothetical protein
1641	 50.52	0	1400251..1401315	-	354	18313284	-	PAE2355	-	glycosyl transferase
1642	 44.44	-1	1401447..1401950	+	167	18313285	-	PAE2357	-	hypothetical protein
1643	 40.70	-2	1401981..1402265	+	94	18313286	-	PAE2358	-	hypothetical protein
1644	 44.72	-1	1402253..1402981	-	242	18313287	-	PAE2359	-	hypothetical protein
1645	 46.27	-1	1403021..1404025	+	334	18313288	-	PAE2361	-	sugar phospate transferase
1646	 48.69	0	1404002..1406788	-	928	18313289	-	PAE2362	-	ATP-dependent helicase
1647	 47.67	0	1406848..1407363	+	171	18313290	-	PAE2363	-	hypothetical protein
1648	 43.46	-1	1407337..1408185	-	282	18313291	-	PAE2364	-	hypothetical protein
1649	 50.35	0	1408202..1408765	-	187	18313292	-	PAE2365	-	nucleoside-triphosphatase (NTPase)
1650	 49.86	0	1408765..1409496	-	243	18313293	-	PAE2366	-	glutaredoxin-like protein
1651	 45.80	-1	1409521..1409913	-	130	18313294	-	PAE2367	-	hypothetical protein
1652	 50.43	0	1409941..1410870	-	309	18313295	-	PAE2370	-	malate dehydrogenase
1653	 52.49	0	1410938..1412284	-	448	18313296	-	PAE2371	-	NADH oxidase (nox)
1654	 56.10	0	1412613..1412735	-	40	18313297	-	PAE2374	-	hypothetical protein
1655	 50.91	0	1412808..1413683	+	291	18313298	-	PAE2375	-	4-hydroxybenzoate octaprenyltransferase (ubiA)
1656	 51.65	0	1413622..1414773	-	383	18313299	-	PAE2376	-	drug resistance protein, conjectural
1657	 48.90	0	1414733..1415323	-	196	18313300	-	PAE2377	-	ribosomal protein L6
1658	 50.87	0	1415390..1415965	-	191	18313301	-	PAE2378	-	hypothetical protein
1659	 45.21	-1	1415981..1416199	-	72	18313302	-	PAE2380	-	hypothetical protein
1660	 41.49	-1	1416466..1416894	+	142	18313303	-	PAE2382	-	hypothetical protein
1661	 50.97	0	1416923..1417336	+	137	18313304	-	PAE2384	-	universal stress protein
1662	 48.50	0	1417333..1418064	-	243	18313305	-	PAE2385	-	transport protein part 2, authentic frameshift
1663	 52.62	0	1417995..1418528	-	177	18313306	-	PAE2385a	-	transport protein part 1, authentic frameshift
1664	 51.00	0	1418606..1419256	+	216	18313307	-	PAE2387	-	hypothetical protein
1665	 50.14	0	1419224..1419955	-	243	18313308	-	PAE2388	-	hypothetical protein
1666	 51.98	0	1420061..1420237	+	58	18313309	-	PAE2389	-	preprotein translocase subunit SecG
1667	 52.10	0	1420414..1422006	+	530	18313310	-	PAE2391	-	dipeptide binding protein
1668	 53.49	0	1422003..1422791	-	262	18313311	-	PAE2392	-	dipeptide transport permease
1669	 50.39	0	1422791..1423804	-	337	18313312	-	PAE2393	-	dipeptide transport permease
1670	 53.13	0	1424332..1425018	+	228	18313313	-	PAE2394	-	hypothetical protein
1671	 49.41	0	1425023..1425619	+	198	18313314	-	PAE2396	-	hypothetical protein
1672	 38.67	-2	1425612..1425911	+	99	18313315	-	PAE2397	-	hypothetical protein
1673	 49.50	0	1425908..1426612	+	234	18313316	-	PAE2398	-	hypothetical protein
1674	 57.08	+1	1426609..1428141	+	510	18313317	-	PAE2399	-	type II secretion system protein, conjectural
1675	 53.21	0	1428177..1428503	+	108	18313318	-	PAE2400	-	hypothetical protein
1676	 54.28	0	1428496..1428834	+	112	18313319	-	PAE2402	-	hypothetical protein
1677	 58.90	+1	1428881..1430077	+	398	18313320	-	PAE2403	-	hypothetical protein
1678	 53.80	0	1430131..1430604	+	157	18313321	-	PAE2405	-	hypothetical protein
1679	 54.23	0	1430663..1431643	+	326	18313322	-	PAE2406	-	hypothetical protein
1680	 52.38	0	1431693..1431860	+	55	18313323	-	PAE2407	-	hypothetical protein
1681	 56.76	+1	1431845..1432288	+	147	18313324	-	PAE2408	-	hypothetical protein
1682	 55.92	0	1432293..1433390	+	365	18313325	-	PAE2409	-	hypothetical protein
1683	 55.20	0	1433392..1434150	+	252	18313326	-	PAE2410	-	hypothetical protein
1684	 58.57	+1	1434182..1437280	+	1032	18313327	-	PAE2412	-	hypothetical protein
1685	 55.75	0	1437273..1437785	+	170	18313328	-	PAE2414	-	hypothetical protein
1686	 59.18	+1	1437982..1438248	+	88	18313329	-	PAE2416	-	hypothetical protein
1687	 44.90	-1	1438245..1438538	+	97	18313330	-	PAE2417	-	hypothetical protein
1688	 48.81	0	1438593..1439729	-	378	18313331	-	PAE2419	-	hypothetical protein
1689	 50.35	0	1439757..1440908	-	383	18313332	-	PAE2420	-	cystathionine gamma-synthase
1690	 40.00	-2	1441097..1441726	+	209	18313333	-	PAE2421	-	potassium transport peripheral protein, conjectural
1691	 43.89	-1	1441716..1442435	-	239	18313334	-	PAE2422	-	potassium transport membrane protein, conjectural
1692	 49.71	0	1442456..1444891	-	811	18313335	-	PAE2423	-	phosphoenolpyruvate synthase
51.51	MEAN

5.01	STD DEV
