IslandPath Analysis: Pyrobaculum aerophilum str. IM2

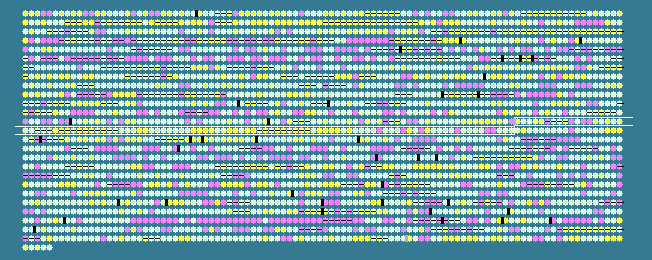

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.51 STD DEV: 5.01
Pyrobaculum aerophilum str. IM2, complete genome - 1..2222430
2605 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1283	 55.59	0	1095290..1098232	+	980	18312926	-	PAE1856	-	hypothetical protein
1284	 51.50	0	1098229..1099263	+	344	18312927	-	PAE1857	-	hypothetical protein
1285	 49.66	0	1099235..1100269	+	344	18312928	-	PAE1858	-	hypothetical protein
1286	 55.25	0	1100615..1101385	-	256	18312929	-	PAE1861	-	ankyrin repeat-containing protein
1287	 55.80	0	1101537..1102640	+	367	18312930	-	PAE1862	-	hypothetical protein
1288	 47.38	0	1102654..1103301	+	215	18312931	-	PAE1863	-	hypothetical protein
1289	 52.46	0	1103588..1103932	+	114	18312932	-	PAE1864	-	paREP7
1290	 54.42	0	1103829..1104122	+	97	18312933	-	PAE1865	-	paREP7
1291	 55.56	0	1104153..1104314	+	53	18312934	-	PAE1867	-	paREP7
1292	 44.05	-1	1104840..1105259	-	139	18312935	-	PAE1869	-	paREP11
1293	 48.51	0	1105246..1105647	-	133	18312936	-	PAE1870	-	hypothetical protein
1294	 47.81	0	1106809..1107858	+	349	18312937	-	PAE1872	-	isocitrate lyase
1295	 45.45	-1	1107855..1108283	+	142	18312938	-	PAE1873	-	hypothetical protein
1296	 55.33	0	1108295..1108735	+	146	18312939	-	PAE1875	-	paREP7
1297	 52.71	0	1108868..1109605	+	245	18312940	-	PAE1876	-	hypothetical protein
1298	 55.16	0	1109800..1110477	+	225	18312941	-	PAE1878	-	ATP binding protein, degenerate
1299	 54.70	0	1111447..1111914	+	155	18312942	-	PAE1882	-	hypothetical protein
1300	 55.04	0	1111939..1112643	-	234	18312943	-	PAE1883	-	hypothetical protein
1301	 53.11	0	1112828..1113727	-	299	18312944	-	PAE1884	-	phosphate permease, conjectural
1302	 50.14	0	1114128..1115561	-	477	18312945	-	PAE1888	-	multicopper oxidase
1303	 50.00	0	1115856..1116137	+	93	18312946	-	PAE1890	-	paREP6
1304	 54.86	0	1116137..1116712	+	191	18312947	-	PAE1891	-	hypothetical protein
1305	 48.57	0	1116660..1116869	+	69	18312948	-	PAE1892	-	paREP6
1306	 57.04	+1	1117002..1117406	-	134	18312949	-	PAE1893	-	hypothetical protein
1307	 55.04	0	1117375..1117761	-	128	18312950	-	PAE1894	-	hypothetical protein
1308	 56.06	0	1118721..1119116	+	131	18312951	-	PAE1895	-	hypothetical protein
1309	 54.47	0	1119201..1119815	+	204	18312952	-	PAE1897	-	hypothetical protein
1310	 57.47	+1	1120067..1120240	+	57	18312953	-	PAE1899	-	hypothetical protein
1311	 58.75	+1	1120327..1121412	+	361	18312954	-	PAE1900	-	paREP2b
1312	 61.25	+1	1121422..1121901	-	159	18312955	-	PAE1901	-	paREP8
1313	 51.54	0	1121999..1122388	+	129	18312956	-	PAE1902	-	hypothetical protein
1314	 58.48	+1	1122364..1122705	+	113	18312957	-	PAE1903	-	hypothetical protein
1315	 54.79	0	1122765..1123244	-	159	18312958	-	PAE1905	-	hypothetical protein
1316	 51.31	0	1123244..1123510	-	88	18312959	-	PAE1906	-	hypothetical protein
1317	 51.69	0	1123555..1123761	-	68	18312960	-	PAE1907	-	hypothetical protein
1318	 52.54	0	1123808..1124260	+	150	18312961	-	PAE1909	-	hypothetical protein
1319	 54.61	0	1124285..1124956	+	223	18312962	-	PAE1910	-	hypothetical protein
1320	 57.45	+1	1124995..1126101	-	368	18312963	-	PAE1912	-	chorismate synthase
1321	 55.89	0	1126098..1126886	-	262	18312964	-	PAE1913	-	shikimate 5-dehydrogenase (aroE)
1322	 48.75	0	1127000..1127557	+	185	18312965	-	PAE1915	-	hypothetical protein
1323	 52.62	0	1127679..1128632	+	317	18312966	-	PAE1916	-	hypothetical protein
1324	 54.39	0	1128676..1129392	+	238	18312967	-	PAE1917	-	pyrroline-5-carboxylate reductase
1325	 54.01	0	1129375..1129785	-	136	18312968	-	PAE1918	-	mutT/nudix family protein
1326	 51.52	0	1129833..1130948	+	371	18312969	-	PAE1920	-	phoH like protein
1327	 54.38	0	1130976..1131968	+	330	18312970	-	PAE1921	-	putative alcohol dehydrogenase
1328	 49.74	0	1132026..1132970	-	314	18312971	-	PAE1922	-	UDP-glucose 4-epimerase (galE-1)
1329	 55.11	0	1133000..1134202	-	400	18312972	-	PAE1924	-	3-phosphoshikimate 1-carboxyvinyltransferase (aroA)
1330	 55.59	0	1134174..1135211	-	345	18312973	aroB	PAE1926	-	3-dehydroquinate synthase
1331	 55.45	0	1135208..1136152	-	314	18312974	-	PAE1927	-	transketolase (C terminal section)
1332	 55.72	0	1136146..1136949	-	267	18312975	-	PAE1929	-	transketolase (N terminal section)
1333	 53.94	0	1137050..1138000	+	316	18312976	-	PAE1931	-	tyrosyl-tRNA synthetase
1334	 54.10	0	1138021..1139007	+	328	161485621	-	PAE1932	-	3-deoxy-7-phosphoheptulonate synthase
1335	 56.79	+1	1139004..1139570	-	188	18312978	-	PAE1934	-	hypothetical protein
1336	 55.57	0	1139552..1141723	-	723	18312979	-	PAE1935	-	carbon monoxide dehydrogenase large subunit, conjectural
1337	 51.35	0	1141720..1142163	-	147	18312980	-	PAE1936	-	carbon monoxide dehydrogenase small subunit, conjectural
1338	 59.46	+1	1142160..1142978	-	272	18312981	-	PAE1939	-	carbon monoxide dehydrogenase medium subunit, conjectural
1339	 57.85	+1	1143009..1143791	-	260	18312982	-	PAE1941	-	chorismate mutase, conjectural
1340	 52.06	0	1143859..1144392	-	177	18312983	-	PAE1943	-	paREP5
1341	 60.40	+1	1144439..1144933	-	164	18312984	-	PAE1944	-	hypothetical protein
1342	 54.29	0	1144930..1147167	-	745	18312985	-	PAE1946	-	hypothetical protein
1343	 60.12	+1	1147164..1147835	-	223	18312986	-	PAE1948	-	hypothetical protein
1344	 56.59	+1	1147898..1148155	-	85	18312987	-	PAE1949	-	paREP11
1345	 52.84	0	1148269..1148673	-	134	18312988	-	PAE1951	-	hypothetical protein
1346	 58.95	+1	1148686..1149048	-	120	18312989	-	PAE1954	-	hypothetical protein
1347	 57.21	+1	1149050..1149451	-	133	18312990	-	PAE1955	-	hypothetical protein
1348	 57.38	+1	1149483..1150721	-	412	18312991	-	PAE1956	-	hypothetical protein
1349	 48.28	0	1150721..1151329	-	202	18312992	-	PAE1957	-	hypothetical protein
1350	 56.08	0	1151396..1151905	+	169	18312993	-	PAE1958	-	hypothetical protein
1351	 59.71	+1	1151969..1152874	-	301	18312994	-	PAE1960	-	3-dehydroquinate dehydratase/chorismate mutase
1352	 56.83	+1	1152886..1153749	-	287	18312995	-	PAE1962	-	hypothetical protein
1353	 58.71	+1	1153763..1154755	+	330	18312996	-	PAE1964	-	aspartate aminotransferase (aspC), conjectural
1354	 53.85	0	1154773..1154850	-	25	18312997	-	PAE1966a	-	hypothetical protein
1355	 56.74	+1	1155217..1156032	+	271	18312998	-	PAE1967	-	shikimate kinase
1356	 54.50	0	1156011..1158065	-	684	18312999	-	PAE1968	-	alpha-glucosidase
1357	 49.68	0	1158084..1158395	-	103	18313000	-	PAE1969	-	hypothetical protein
1358	 53.98	0	1158466..1159482	+	338	18313001	rpl3p	PAE1970	-	50S ribosomal protein L3P
1359	 54.11	0	1159502..1160353	+	283	18313002	rpl4lp	PAE1971	-	50S ribosomal protein L4P
1360	 42.68	-1	1160350..1160595	+	81	18313003	-	PAE1972	-	ribosomal protein L23
1361	 51.24	0	1161311..1161673	-	120	18313004	-	PAE1974	-	hypothetical protein
1362	 54.75	0	1161704..1162240	-	178	18313005	-	PAE1975	-	hypothetical protein
1363	 51.74	0	1162297..1162899	+	200	18313006	-	PAE1976	-	hypothetical protein
1364	 41.94	-1	1163002..1163280	+	92	18313007	-	PAE1978	-	DNA-directed RNA polymerase subunit L (rpoL)
1365	 55.11	0	1163277..1163942	+	221	18313008	-	PAE1979	-	ribosome biogenesis protein
1366	 49.33	0	1163939..1164688	+	249	18313009	-	PAE1981	-	hypothetical protein
1367	 43.43	-1	1164729..1165253	+	174	18313010	-	PAE1982	-	aerolysin, part 1, authentic frameshift
1368	 55.04	0	1165246..1165890	+	214	18313011	-	PAE1983	-	aerolysin, part 2, authentic frameshift
1369	 54.49	0	1165919..1167166	+	415	18313012	-	PAE1984	-	3-isopropylmalate dehydratase large subunit
1370	 53.05	0	1167176..1168093	-	305	18313013	-	PAE1985	-	ornithine carbamoyltransferase
1371	 48.43	0	1168139..1169476	-	445	18313014	-	PAE1986	-	2-isopropylmalate synthase
1372	 54.08	0	1169631..1171418	+	595	18313015	-	PAE1989	-	hypothetical protein
1373	 47.65	0	1171408..1171875	+	155	18313016	-	PAE1990	-	archaemetzincin-like protein
1374	 53.09	0	1171858..1172343	-	161	18313017	leuD	PAE1991	-	3-isopropylmalate dehydratase small subunit
1375	 51.23	0	1172492..1173586	+	364	18313018	-	PAE1993	-	trans-homoaconitate synthase
1376	 52.12	0	1173680..1174552	+	290	18313019	-	PAE1995	-	3-isopropylmalate dehydrogenase (leuB)
1377	 53.12	0	1174606..1175853	+	415	18313020	-	PAE1996	-	glutamate dehydrogenase
1378	 43.00	-1	1175850..1176056	-	68	18313021	-	PAE1998	-	hypothetical protein
1379	 45.55	-1	1176079..1176471	-	130	18313022	-	PAE1999	-	hypothetical protein
1380	 48.26	0	1176530..1177219	+	229	18313023	-	PAE2000	-	glutamine transport system permease protein, putative
1381	 50.34	0	1177222..1177956	+	244	18313024	-	PAE2001	-	glutamine transport ATP-binding
1382	 54.78	0	1177979..1179838	+	619	18313025	-	PAE2002	-	molybdopterin oxidoreductase
51.51	MEAN

5.01	STD DEV
