IslandPath Analysis: Pseudomonas syringae pv. syringae B728a

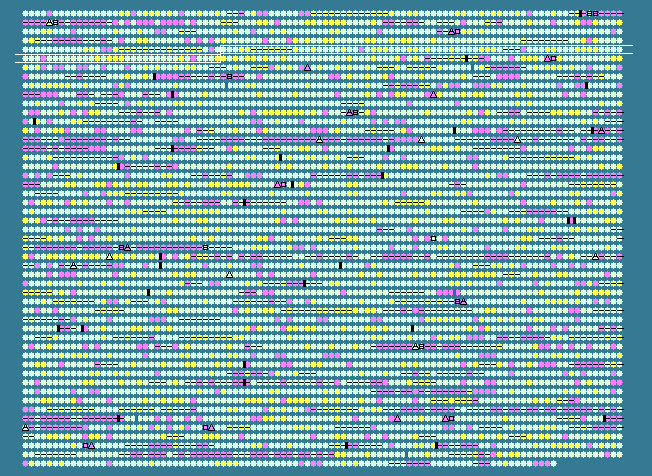

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.35 STD DEV: 4.19
Pseudomonas syringae pv. syringae B728a, complete genome - 1..6093698
5089 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
434	 61.99	0	475522..476334	-	270	66043705	-	Psyr_0438	-	phospholipid/glycerol acyltransferase
435	 60.42	0	476310..477029	-	239	66043706	-	Psyr_0439	-	hypothetical protein
436	 57.82	0	477339..478118	+	259	66043707	-	Psyr_0440	-	cobyrinic acid a,c-diamide synthase
437	 62.88	0	478811..479206	-	131	66043708	-	Psyr_0441	-	hypothetical protein
438	 63.33	0	479613..481289	+	558	66043709	-	Psyr_0442	-	malonate decarboxylase, alpha subunit
439	 66.55	+1	481289..482164	+	291	66043710	-	Psyr_0443	-	triphosphoribosyl-dephospho-CoA synthase
440	 62.33	0	482166..482465	+	99	66043711	-	Psyr_0444	-	malonate decarboxylase subunit delta
441	 63.38	0	482458..483309	+	283	66043712	-	Psyr_0445	-	malonate decarboxylase subunit beta
442	 64.17	+1	483306..484106	+	266	66043713	-	Psyr_0446	-	malonate decarboxylase gamma subunit
443	 67.76	+2	484100..484741	+	213	66043714	-	Psyr_0447	-	phosphoribosyl-dephospho-CoA transferase
444	 66.77	+1	484738..485673	+	311	66043715	-	Psyr_0448	-	acyl-carrier-protein S-malonyltransferase
445	 62.11	0	485743..486159	+	138	66043716	-	Psyr_0449	-	malonate transporter MadL subunit
446	 64.31	+1	486161..486925	+	254	66043717	-	Psyr_0450	-	malonate/sodium symporter MadM subunit
447	 60.30	0	486927..487853	-	308	66043718	-	Psyr_0451	-	regulatory protein, LysR:LysR, substrate-binding
448	 58.05	0	487976..488590	+	204	66043719	-	Psyr_0452	-	HylII
449	 63.19	0	488697..489416	-	239	66043720	-	Psyr_0453	-	hypothetical protein
450	 61.27	0	489548..490954	-	468	66043721	-	Psyr_0454	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
451	 62.29	0	491164..493038	+	624	66043722	-	Psyr_0455	-	amine oxidase
452	 57.38	0	493396..493944	+	182	66043723	-	Psyr_0456	-	cytochrome B561
453	 56.30	0	493972..494550	+	192	66043724	-	Psyr_0457	-	hypothetical protein
454	 64.34	+1	494944..496833	-	629	66043725	-	Psyr_0458	-	helicase, C-terminal:Type III restriction enzyme, res subunit:DEAD/DEAH box helicase, N-terminal
455	 59.81	0	497145..497990	-	281	66043726	-	Psyr_0459	-	5,10-methylenetetrahydrofolate reductase
456	 58.72	0	498180..499589	-	469	66043727	-	Psyr_0460	-	S-adenosyl-L-homocysteine hydrolase
457	 55.56	0	499944..500339	+	131	66043728	-	Psyr_0461	-	thioesterase superfamily protein
458	 61.58	0	500492..501277	-	261	66043729	-	Psyr_0462	-	hydroxypyruvate isomerase
459	 64.47	+1	501300..502757	-	485	66043730	-	Psyr_0463	-	gluconate transporter
460	 64.63	+1	502892..503530	-	212	66043731	-	Psyr_0464	-	putative aldolase
461	 65.12	+1	503530..504819	-	429	66043732	-	Psyr_0465	-	type III effector HopAN1
462	 62.69	0	504830..505735	-	301	66043733	-	Psyr_0466	-	3-hydroxyisobutyrate dehydrogenase
463	 59.65	0	505961..506416	-	151	66043734	-	Psyr_0467	-	hypothetical protein
464	 61.21	0	506590..507798	-	402	66043735	-	Psyr_0468	-	aminotransferase
465	 63.15	0	508137..509984	+	615	66043736	-	Psyr_0469	-	dihydroxy-acid dehydratase
466	 63.89	+1	510060..510383	-	107	66043737	-	Psyr_0470	-	hypothetical protein
467	 61.15	0	510393..511607	-	404	66043738	-	Psyr_0471	-	coproporphyrinogen III oxidase
468	 64.65	+1	511604..512197	-	197	66043739	-	Psyr_0472	-	putative deoxyribonucleotide triphosphate pyrophosphatase
469	 61.03	0	512231..512851	-	206	66043740	-	Psyr_0473	-	methionine biosynthesis MetW
470	 61.14	0	512859..513998	-	379	66043741	metX	Psyr_0474	-	homoserine O-acetyltransferase
471	 59.73	0	514265..514855	-	196	66043742	-	Psyr_0475	-	hypothetical protein
472	 64.47	+1	514881..515699	-	272	66043743	-	Psyr_0476	-	pyrroline-5-carboxylate reductase
473	 61.28	0	515721..516407	-	228	66043744	-	Psyr_0477	-	hypothetical protein
474	 60.48	0	516463..517497	+	344	66043745	-	Psyr_0478	-	pilus retraction protein PilT
475	 60.03	0	517592..518269	-	225	66043746	-	Psyr_0479	-	NLP/P60
476	 58.02	0	518520..518924	+	134	66043747	-	Psyr_0480	-	TM2
477	 67.22	+1	519207..520478	-	423	66043748	pyrC	Psyr_0481	-	dihydroorotase
478	 63.48	0	520475..521479	-	334	66043749	pyrB	Psyr_0482	-	aspartate carbamoyltransferase catalytic subunit
479	 63.55	+1	521492..522004	-	170	66043750	-	Psyr_0483	-	pyrimidine regulatory protein PyrR
480	 61.45	0	522103..522543	-	146	66043751	-	Psyr_0484	-	Holliday junction resolvase-like protein
481	 59.16	0	522543..523115	-	190	66043752	-	Psyr_0485	-	hypothetical protein
482	 59.03	0	523191..524093	-	300	66043753	-	Psyr_0486	-	TonB, C-terminal
483	 62.19	0	524260..525219	-	319	66043754	-	Psyr_0487	-	glutathione synthetase
484	 54.99	-1	525474..525884	+	136	66043755	-	Psyr_0488	-	response regulator receiver
485	 57.65	0	525931..526296	+	121	66043756	-	Psyr_0489	-	response regulator receiver
486	 60.56	0	526311..526850	+	179	66043757	-	Psyr_0490	-	CheW-like protein
487	 61.67	0	526901..528943	+	680	66043758	-	Psyr_0491	-	chemotaxis sensory transducer
488	 63.71	+1	528991..534969	+	1992	66043759	-	Psyr_0492	-	response regulator receiver:CheW-like protein:ATP-binding region, ATPase-like:Hpt
489	 64.97	+1	534962..535432	+	156	66043760	-	Psyr_0493	-	CheW-like protein
490	 61.48	0	535554..537017	-	487	66043761	-	Psyr_0494	-	hypothetical protein
491	 58.67	0	537156..537905	-	249	66043762	-	Psyr_0495	-	transcriptional regulator GntR
492	 62.29	0	538075..539307	+	410	66043763	-	Psyr_0496	-	hypothetical protein
493	 65.75	+1	539323..540087	+	254	66043764	-	Psyr_0497	-	hypothetical protein
494	 65.28	+1	540090..540884	+	264	66043765	-	Psyr_0498	-	hypothetical protein
495	 64.80	+1	540894..542498	+	534	66043766	-	Psyr_0499	-	Urea amidolyase-related protein
496	 64.88	+1	542495..544228	+	577	66043767	-	Psyr_0500	-	carbamoyl-phosphate synthase subunit L
497	 61.67	0	544287..547691	-	1134	66043768	-	Psyr_0501	-	potassium efflux protein KefA
498	 62.77	0	547715..549457	-	580	161486740	-	Psyr_0502	-	potassium/proton antiporter
499	 57.16	0	549707..552841	+	1044	66043770	-	Psyr_0503	-	hypothetical protein
500	 58.10	0	552941..555589	+	882	66043771	-	Psyr_0504	-	hypothetical protein
501	 59.46	0	555612..557414	-	600	66043772	-	Psyr_0505	-	Acyl-CoA dehydrogenase, C-terminal:Acyl-CoA dehydrogenase, central region
502	 62.75	0	557685..561638	-	1317	161486739	putA	Psyr_0506	-	trifunctional transcriptional regulator/proline dehydrogenase/pyrroline-5-carboxylate dehydrogenase
503	 59.29	0	562015..563574	+	519	66043774	-	Psyr_0507	-	Na+/solute symporter
504	 52.23	-1	563658..564329	-	223	66043775	-	Psyr_0508	-	lyase, putative
505	 58.24	0	564626..566785	+	719	66043776	-	Psyr_0509	-	PAS:GGDEF
506	 59.62	0	566818..567342	+	174	66043777	-	Psyr_0510	-	hypothetical protein
507	 59.60	0	567369..567665	+	98	66043778	-	Psyr_0511	-	hypothetical protein
508	 60.13	0	567673..568131	-	152	66043779	-	Psyr_0512	-	GCN5-related N-acetyltransferase
509	 58.07	0	568358..569113	+	251	66043780	-	Psyr_0513	-	extracellular solute-binding protein
510	 62.66	0	569076..571274	-	732	66043781	-	Psyr_0514	-	intergral membrane protein, YccS:integral membrane protein, YccS/YhfK
511	 60.90	0	571412..572590	-	392	66043782	-	Psyr_0515	-	hypothetical protein
512	 61.46	0	572766..574187	-	473	66043783	-	Psyr_0516	-	ATP-dependent RNA helicase DbpA
513	 63.80	+1	574465..576138	-	557	66043784	-	Psyr_0517	-	dihydrolipoamide acetyltransferase
514	 59.75	0	576281..578926	-	881	66043785	aceE	Psyr_0518	-	pyruvate dehydrogenase subunit E1
515	 63.08	0	579311..582268	+	985	66043786	-	Psyr_0519	-	glutamate-ammonia-ligase adenylyltransferase
516	 63.96	+1	582398..583432	+	344	66043787	-	Psyr_0520	-	glycosyl transferase family protein
517	 64.69	+1	583435..584499	+	354	66043788	-	Psyr_0521	-	glycosyl transferase family protein
518	 60.61	0	584499..585620	+	373	66043789	-	Psyr_0522	-	glycosyl transferase, group 1
519	 61.59	0	585620..586426	+	268	66043790	-	Psyr_0523	-	lipopolysaccharide kinase
520	 58.78	0	586426..587160	+	244	66043791	-	Psyr_0524	-	lipopolysaccharide kinase
521	 60.64	0	587157..587936	+	259	66043792	-	Psyr_0525	-	lipopolysaccharide kinase
522	 62.17	0	587936..589381	+	481	66043793	-	Psyr_0526	-	hypothetical protein
523	 61.72	0	589549..595677	-	2042	66043794	-	Psyr_0527	-	type III effector HopAC1
524	 59.84	0	595978..597735	+	585	66043795	-	Psyr_0528	-	carbamoyltransferase
525	 62.25	0	597719..598849	+	376	66043796	-	Psyr_0529	-	glycosyl transferase, group 1
526	 62.21	0	598849..599745	+	298	66043797	-	Psyr_0530	-	Mig-14
527	 64.54	+1	599742..601151	+	469	66043798	-	Psyr_0531	-	LmbE-like protein
528	 58.20	0	601182..602138	+	318	66043799	-	Psyr_0532	-	hypothetical protein
529	 54.26	-1	602170..602943	+	257	66043800	-	Psyr_0533	-	hypothetical protein
530	 58.97	0	602933..604102	+	389	66043801	-	Psyr_0534	-	hypothetical protein
531	 59.52	0	604151..604906	-	251	66043802	-	Psyr_0535	-	toluene tolerance protein, putative
532	 60.29	0	604905..606707	+	600	66043803	-	Psyr_0536	-	ABC transporter, transmembrane region:ABC transporter
533	 63.23	0	606836..608260	+	474	66043804	-	Psyr_0537	-	bifunctional heptose 7-phosphate kinase/heptose 1-phosphate adenyltransferase
59.35	MEAN

4.19	STD DEV
