IslandPath Analysis: Pseudomonas syringae pv. syringae B728a

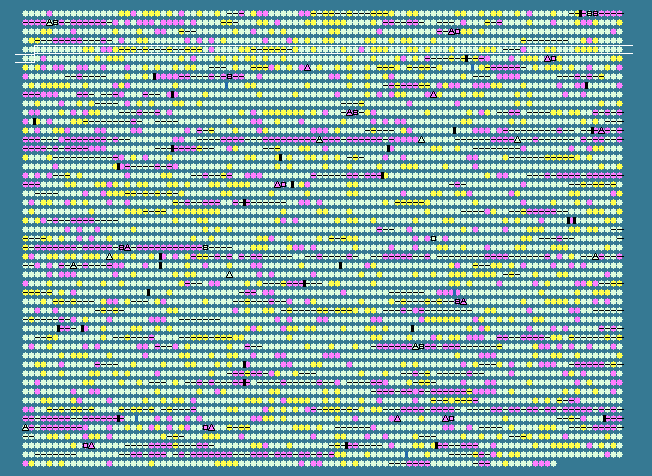

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.35 STD DEV: 4.19
Pseudomonas syringae pv. syringae B728a, complete genome - 1..6093698
5089 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
403	 60.64	0	436404..438560	+	718	66043674	-	Psyr_0407	-	type II and III secretion system protein:NolW-like:NolW-like
404	 60.12	0	438565..439083	+	172	66043675	aroK	Psyr_0408	-	shikimate kinase
405	 61.50	0	439198..440301	+	367	66043676	aroB	Psyr_0409	-	3-dehydroquinate synthase
406	 62.72	0	440312..441934	+	540	66043677	-	Psyr_0410	-	hypothetical protein
407	 61.49	0	442293..446738	+	1481	66043678	gltB	Psyr_0411	-	glutamate synthase subunit alpha
408	 61.31	0	446857..448275	+	472	66043679	gltD	Psyr_0412	-	glutamate synthase subunit beta
409	 57.36	0	448609..451833	+	1074	66043680	-	Psyr_0413	-	hypothetical protein
410	 62.44	0	451965..453029	+	354	66043681	hemE	Psyr_0414	-	uroporphyrinogen decarboxylase
411	 63.08	0	453090..454565	-	491	66043682	-	Psyr_0415	-	N-acyl-D-amino-acid deacylase
412	 63.88	+1	454569..455429	-	286	66043683	-	Psyr_0416	-	helix-turn-helix protein RpiR:sugar isomerase (SIS)
413	 61.70	0	455430..456779	-	449	66043684	-	Psyr_0417	-	gluconate transporter
414	 54.17	-1	457049..457696	-	215	66043685	-	Psyr_0418	-	hypothetical protein
415	 54.11	-1	457693..458958	-	421	66043686	-	Psyr_0419	-	hypothetical protein
416	 62.96	0	459036..460304	-	422	66043687	-	Psyr_0420	-	major facilitator transporter
417	 62.96	0	460420..461310	+	296	66043688	-	Psyr_0421	-	regulatory protein, LysR:LysR, substrate-binding
418	 63.41	0	461547..462773	-	408	66043689	-	Psyr_0422	-	3-oxoacyl-(acyl carrier protein) synthase II
419	 63.65	+1	462773..463501	-	242	66043690	fabG	Psyr_0423	-	3-ketoacyl-(acyl-carrier-protein) reductase
420	 62.28	0	463498..463953	-	151	66043691	-	Psyr_0424	-	hypothetical protein
421	 65.25	+1	463950..465146	-	398	66043692	-	Psyr_0425	-	3-oxoacyl-(acyl carrier protein) synthase I
422	 61.28	0	465143..465625	-	160	66043693	-	Psyr_0426	-	putative lipoprotein
423	 61.22	0	465622..466356	-	244	66043694	-	Psyr_0427	-	hypothetical protein
424	 62.50	0	466353..467600	-	415	66043695	-	Psyr_0428	-	monooxygenase, FAD-binding
425	 64.98	+1	467655..470030	-	791	66043696	-	Psyr_0429	-	hypothetical protein
426	 60.81	0	470002..470616	-	204	66043697	-	Psyr_0430	-	hypothetical protein
427	 56.00	0	470613..471062	-	149	66043698	-	Psyr_0431	-	thioesterase superfamily protein
428	 63.40	0	471117..472064	-	315	66043699	-	Psyr_0432	-	hypothetical protein
429	 63.13	0	472061..472795	-	244	66043700	-	Psyr_0433	-	glycosyl transferase family protein
430	 66.84	+1	472788..474479	-	563	66043701	-	Psyr_0434	-	AMP-dependent synthetase and ligase
431	 62.09	0	474481..475026	-	181	66043702	-	Psyr_0435	-	hypothetical protein
432	 52.55	-1	475023..475277	-	84	66043703	-	Psyr_0436	-	acyl carrier protein
433	 56.32	0	475287..475547	-	86	66043704	-	Psyr_0437	-	acyl carrier protein, putative
434	 61.99	0	475522..476334	-	270	66043705	-	Psyr_0438	-	phospholipid/glycerol acyltransferase
435	 60.42	0	476310..477029	-	239	66043706	-	Psyr_0439	-	hypothetical protein
436	 57.82	0	477339..478118	+	259	66043707	-	Psyr_0440	-	cobyrinic acid a,c-diamide synthase
437	 62.88	0	478811..479206	-	131	66043708	-	Psyr_0441	-	hypothetical protein
438	 63.33	0	479613..481289	+	558	66043709	-	Psyr_0442	-	malonate decarboxylase, alpha subunit
439	 66.55	+1	481289..482164	+	291	66043710	-	Psyr_0443	-	triphosphoribosyl-dephospho-CoA synthase
440	 62.33	0	482166..482465	+	99	66043711	-	Psyr_0444	-	malonate decarboxylase subunit delta
441	 63.38	0	482458..483309	+	283	66043712	-	Psyr_0445	-	malonate decarboxylase subunit beta
442	 64.17	+1	483306..484106	+	266	66043713	-	Psyr_0446	-	malonate decarboxylase gamma subunit
443	 67.76	+2	484100..484741	+	213	66043714	-	Psyr_0447	-	phosphoribosyl-dephospho-CoA transferase
444	 66.77	+1	484738..485673	+	311	66043715	-	Psyr_0448	-	acyl-carrier-protein S-malonyltransferase
445	 62.11	0	485743..486159	+	138	66043716	-	Psyr_0449	-	malonate transporter MadL subunit
446	 64.31	+1	486161..486925	+	254	66043717	-	Psyr_0450	-	malonate/sodium symporter MadM subunit
447	 60.30	0	486927..487853	-	308	66043718	-	Psyr_0451	-	regulatory protein, LysR:LysR, substrate-binding
448	 58.05	0	487976..488590	+	204	66043719	-	Psyr_0452	-	HylII
449	 63.19	0	488697..489416	-	239	66043720	-	Psyr_0453	-	hypothetical protein
450	 61.27	0	489548..490954	-	468	66043721	-	Psyr_0454	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
451	 62.29	0	491164..493038	+	624	66043722	-	Psyr_0455	-	amine oxidase
452	 57.38	0	493396..493944	+	182	66043723	-	Psyr_0456	-	cytochrome B561
453	 56.30	0	493972..494550	+	192	66043724	-	Psyr_0457	-	hypothetical protein
454	 64.34	+1	494944..496833	-	629	66043725	-	Psyr_0458	-	helicase, C-terminal:Type III restriction enzyme, res subunit:DEAD/DEAH box helicase, N-terminal
455	 59.81	0	497145..497990	-	281	66043726	-	Psyr_0459	-	5,10-methylenetetrahydrofolate reductase
456	 58.72	0	498180..499589	-	469	66043727	-	Psyr_0460	-	S-adenosyl-L-homocysteine hydrolase
457	 55.56	0	499944..500339	+	131	66043728	-	Psyr_0461	-	thioesterase superfamily protein
458	 61.58	0	500492..501277	-	261	66043729	-	Psyr_0462	-	hydroxypyruvate isomerase
459	 64.47	+1	501300..502757	-	485	66043730	-	Psyr_0463	-	gluconate transporter
460	 64.63	+1	502892..503530	-	212	66043731	-	Psyr_0464	-	putative aldolase
461	 65.12	+1	503530..504819	-	429	66043732	-	Psyr_0465	-	type III effector HopAN1
462	 62.69	0	504830..505735	-	301	66043733	-	Psyr_0466	-	3-hydroxyisobutyrate dehydrogenase
463	 59.65	0	505961..506416	-	151	66043734	-	Psyr_0467	-	hypothetical protein
464	 61.21	0	506590..507798	-	402	66043735	-	Psyr_0468	-	aminotransferase
465	 63.15	0	508137..509984	+	615	66043736	-	Psyr_0469	-	dihydroxy-acid dehydratase
466	 63.89	+1	510060..510383	-	107	66043737	-	Psyr_0470	-	hypothetical protein
467	 61.15	0	510393..511607	-	404	66043738	-	Psyr_0471	-	coproporphyrinogen III oxidase
468	 64.65	+1	511604..512197	-	197	66043739	-	Psyr_0472	-	putative deoxyribonucleotide triphosphate pyrophosphatase
469	 61.03	0	512231..512851	-	206	66043740	-	Psyr_0473	-	methionine biosynthesis MetW
470	 61.14	0	512859..513998	-	379	66043741	metX	Psyr_0474	-	homoserine O-acetyltransferase
471	 59.73	0	514265..514855	-	196	66043742	-	Psyr_0475	-	hypothetical protein
472	 64.47	+1	514881..515699	-	272	66043743	-	Psyr_0476	-	pyrroline-5-carboxylate reductase
473	 61.28	0	515721..516407	-	228	66043744	-	Psyr_0477	-	hypothetical protein
474	 60.48	0	516463..517497	+	344	66043745	-	Psyr_0478	-	pilus retraction protein PilT
475	 60.03	0	517592..518269	-	225	66043746	-	Psyr_0479	-	NLP/P60
476	 58.02	0	518520..518924	+	134	66043747	-	Psyr_0480	-	TM2
477	 67.22	+1	519207..520478	-	423	66043748	pyrC	Psyr_0481	-	dihydroorotase
478	 63.48	0	520475..521479	-	334	66043749	pyrB	Psyr_0482	-	aspartate carbamoyltransferase catalytic subunit
479	 63.55	+1	521492..522004	-	170	66043750	-	Psyr_0483	-	pyrimidine regulatory protein PyrR
480	 61.45	0	522103..522543	-	146	66043751	-	Psyr_0484	-	Holliday junction resolvase-like protein
481	 59.16	0	522543..523115	-	190	66043752	-	Psyr_0485	-	hypothetical protein
482	 59.03	0	523191..524093	-	300	66043753	-	Psyr_0486	-	TonB, C-terminal
483	 62.19	0	524260..525219	-	319	66043754	-	Psyr_0487	-	glutathione synthetase
484	 54.99	-1	525474..525884	+	136	66043755	-	Psyr_0488	-	response regulator receiver
485	 57.65	0	525931..526296	+	121	66043756	-	Psyr_0489	-	response regulator receiver
486	 60.56	0	526311..526850	+	179	66043757	-	Psyr_0490	-	CheW-like protein
487	 61.67	0	526901..528943	+	680	66043758	-	Psyr_0491	-	chemotaxis sensory transducer
488	 63.71	+1	528991..534969	+	1992	66043759	-	Psyr_0492	-	response regulator receiver:CheW-like protein:ATP-binding region, ATPase-like:Hpt
489	 64.97	+1	534962..535432	+	156	66043760	-	Psyr_0493	-	CheW-like protein
490	 61.48	0	535554..537017	-	487	66043761	-	Psyr_0494	-	hypothetical protein
491	 58.67	0	537156..537905	-	249	66043762	-	Psyr_0495	-	transcriptional regulator GntR
492	 62.29	0	538075..539307	+	410	66043763	-	Psyr_0496	-	hypothetical protein
493	 65.75	+1	539323..540087	+	254	66043764	-	Psyr_0497	-	hypothetical protein
494	 65.28	+1	540090..540884	+	264	66043765	-	Psyr_0498	-	hypothetical protein
495	 64.80	+1	540894..542498	+	534	66043766	-	Psyr_0499	-	Urea amidolyase-related protein
496	 64.88	+1	542495..544228	+	577	66043767	-	Psyr_0500	-	carbamoyl-phosphate synthase subunit L
497	 61.67	0	544287..547691	-	1134	66043768	-	Psyr_0501	-	potassium efflux protein KefA
498	 62.77	0	547715..549457	-	580	161486740	-	Psyr_0502	-	potassium/proton antiporter
499	 57.16	0	549707..552841	+	1044	66043770	-	Psyr_0503	-	hypothetical protein
500	 58.10	0	552941..555589	+	882	66043771	-	Psyr_0504	-	hypothetical protein
501	 59.46	0	555612..557414	-	600	66043772	-	Psyr_0505	-	Acyl-CoA dehydrogenase, C-terminal:Acyl-CoA dehydrogenase, central region
502	 62.75	0	557685..561638	-	1317	161486739	putA	Psyr_0506	-	trifunctional transcriptional regulator/proline dehydrogenase/pyrroline-5-carboxylate dehydrogenase
59.35	MEAN

4.19	STD DEV
