IslandPathversion 1.0

IslandPath Analysis: Pseudomonas syringae pv. syringae B728a

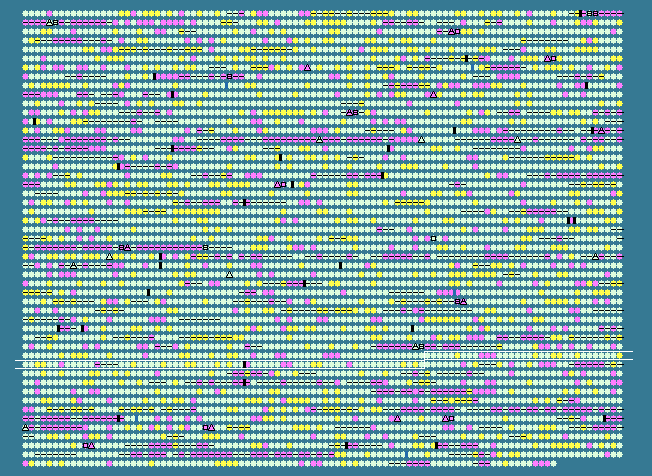

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.35 STD DEV: 4.19
Pseudomonas syringae pv. syringae B728a, complete genome - 1..6093698
5089 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3868	 60.50	0	4656319..4657647	+	442	66047140	-	Psyr_3913	-	helix-turn-helix, Fis-type
3869	 59.72	0	4657867..4658514	-	215	66047141	-	Psyr_3914	-	DSBA oxidoreductase
3870	 60.73	0	4658582..4659574	-	330	66047142	-	Psyr_3915	-	Alpha/beta hydrolase fold
3871	 59.15	0	4659698..4660495	-	265	66047143	-	Psyr_3916	-	5-methyltetrahydropteroyltriglutamate--homocysteine S-methyltransferase
3872	 62.20	0	4660539..4661456	+	305	66047144	-	Psyr_3917	-	regulatory protein, LysR:LysR, substrate-binding
3873	 63.75	+1	4661497..4661907	-	136	66047145	-	Psyr_3918	-	NUDIX hydrolase
3874	 59.89	0	4661904..4662995	-	363	66047146	ddl	Psyr_3919	-	D-alanyl-alanine synthetase A
3875	 58.87	0	4663147..4663428	-	93	66047147	rpmE2	Psyr_3920	-	50S ribosomal protein L31 type B
3876	 60.04	0	4663723..4664853	+	376	66047148	-	Psyr_3921	-	hypothetical protein
3877	 44.29	-2	4664964..4665629	+	221	66047149	-	Psyr_3922	-	hypothetical protein
3878	 49.04	-2	4665676..4666611	-	311	66047150	-	Psyr_3923	-	hypothetical protein
3879	 48.88	-2	4666828..4667541	+	237	66047151	-	Psyr_3924	-	hypothetical protein
3880	 62.01	0	4667696..4670833	+	1045	66047152	-	Psyr_3925	-	hypothetical protein
3881	 61.76	0	4670921..4671511	+	196	66047153	-	Psyr_3926	-	transcriptional regulator PadR-like
3882	 62.37	0	4671508..4672275	+	255	66047154	-	Psyr_3927	-	siderophore-interacting protein
3883	 59.39	0	4672291..4672950	-	219	66047155	-	Psyr_3928	-	hypothetical protein
3884	 56.96	0	4673004..4673312	-	102	66047156	-	Psyr_3929	-	hypothetical protein
3885	 62.29	0	4673672..4676095	+	807	66047157	-	Psyr_3930	-	quinoprotein
3886	 63.49	0	4676822..4678018	-	398	66047158	-	Psyr_3931	-	hypothetical protein
3887	 62.50	0	4678015..4679022	-	335	66047159	-	Psyr_3932	-	cobalamin synthesis protein/P47K:cobalamin synthesis protein/P47K
3888	 60.67	0	4679019..4679318	-	99	66047160	-	Psyr_3933	-	hypothetical protein
3889	 64.27	+1	4679341..4680090	-	249	66047161	-	Psyr_3934	-	Short-chain dehydrogenase/reductase SDR
3890	 65.49	+1	4680215..4680976	-	253	66047162	-	Psyr_3935	-	Short-chain dehydrogenase/reductase SDR
3891	 61.37	0	4680987..4682327	-	446	66047163	-	Psyr_3936	-	major facilitator transporter
3892	 57.37	0	4682355..4683236	-	293	66047164	-	Psyr_3937	-	polysaccharide deacetylase
3893	 65.79	+1	4683313..4684686	-	457	66047165	-	Psyr_3938	-	hypothetical protein
3894	 61.67	0	4684947..4686026	+	359	66047166	-	Psyr_3939	-	regulatory protein, GntR
3895	 62.00	0	4686916..4687344	-	142	66047167	-	Psyr_3940	-	hypothetical protein
3896	 61.53	0	4687344..4688219	-	291	66047168	-	Psyr_3941	-	hypothetical protein
3897	 59.79	0	4688223..4690577	-	784	66047169	-	Psyr_3942	-	GGDEF
3898	 60.59	0	4690574..4691248	-	224	66047170	-	Psyr_3943	-	hypothetical protein
3899	 60.59	0	4691427..4693844	+	805	66047171	-	Psyr_3944	-	peptidase S16, ATP-dependent protease La
3900	 63.87	+1	4694046..4694438	+	130	66047172	-	Psyr_3945	-	hypothetical protein
3901	 59.68	0	4694539..4695282	+	247	66047173	-	Psyr_3946	-	methyltransferase
3902	 62.40	0	4695279..4696238	+	319	66047174	-	Psyr_3947	-	methyltransferase, putative
3903	 63.83	+1	4696247..4696987	-	246	66047175	-	Psyr_3948	-	pyridoxal phosphate biosynthetic protein PdxJ
3904	 63.89	+1	4697047..4697730	-	227	66047176	recO	Psyr_3949	-	DNA repair protein RecO
3905	 59.69	0	4697791..4698693	-	300	66047177	era	Psyr_3950	-	GTP-binding protein Era
3906	 61.16	0	4698686..4699375	-	229	66047178	rnc	Psyr_3951	-	ribonuclease III
3907	 50.26	-2	4699372..4699749	-	125	66047179	-	Psyr_3952	-	hypothetical protein
3908	 57.66	0	4699864..4700718	-	284	66047180	-	Psyr_3953	-	Signal peptidase I
3909	 58.21	0	4700728..4702524	-	598	66047181	-	Psyr_3954	-	GTP-binding protein LepA
3910	 60.58	0	4702696..4704141	-	481	66047182	-	Psyr_3955	-	peptidase S1, chymotrypsin:PDZ/DHR/GLGF
3911	 56.88	0	4704426..4705385	-	319	66047183	-	Psyr_3956	-	MucB/RseB
3912	 59.90	0	4705394..4705984	-	196	66047184	-	Psyr_3957	-	anti sigma-E protein RseA, N-terminal:anti sigma-E protein RseA, C-terminal
3913	 54.30	-1	4706018..4706599	-	193	66047185	algU	Psyr_3958	-	RNA polymerase sigma factor AlgU
3914	 60.85	0	4707097..4708713	+	538	66047186	-	Psyr_3959	-	L-aspartate oxidase
3915	 59.57	0	4708682..4709146	-	154	66047187	-	Psyr_3960	-	hypothetical protein
3916	 56.08	0	4709130..4709384	-	84	66047188	-	Psyr_3961	-	hypothetical protein
3917	 59.70	0	4709531..4710478	+	315	66047189	-	Psyr_3962	-	glycine cleavage T protein (aminomethyl transferase)
3918	 57.42	0	4710590..4711411	+	273	66047190	-	Psyr_3963	-	hypothetical protein
3919	 64.43	+1	4711422..4712804	-	460	66047191	-	Psyr_3964	-	sensor histidine kinase
3920	 60.86	0	4712797..4713468	-	223	66047192	-	Psyr_3965	-	response regulator receiver:transcriptional regulatory protein, C-terminal
3921	 61.86	0	4713938..4714915	+	325	66047193	-	Psyr_3966	-	hypothetical protein
3922	 60.78	0	4714978..4715436	+	152	66047194	-	Psyr_3967	-	membrane protein TctB, putative
3923	 62.71	0	4715438..4716952	+	504	66047195	-	Psyr_3968	-	hypothetical protein
3924	 64.35	+1	4716945..4717979	+	344	66047196	-	Psyr_3969	-	putative ammonia monooxygenase
3925	 58.87	0	4718010..4718702	-	230	66047197	-	Psyr_3970	-	uracil-DNA glycosylase
3926	 62.21	0	4718911..4719381	-	156	66047198	-	Psyr_3971	-	putative lipoprotein
3927	 59.46	0	4719943..4721010	+	355	66047199	-	Psyr_3972	-	ABC transporter, periplasmic substrate-binding protein
3928	 64.09	+1	4721038..4721853	+	271	66047200	-	Psyr_3973	-	binding-protein dependent transport system inner membrane protein
3929	 64.75	+1	4721850..4722632	+	260	66047201	-	Psyr_3974	-	ABC transporter
3930	 61.57	0	4722629..4723354	+	241	66047202	-	Psyr_3975	-	hypothetical protein
3931	 61.49	0	4723366..4723983	+	205	66047203	-	Psyr_3976	-	hypothetical protein
3932	 62.75	0	4724093..4728559	+	1488	66047204	-	Psyr_3977	-	Urea amidolyase-related protein
3933	 65.29	+1	4728595..4730409	+	604	66047205	-	Psyr_3978	-	amidase
3934	 60.55	0	4730539..4733874	+	1111	66047206	-	Psyr_3979	-	hypothetical protein
3935	 64.98	+1	4733916..4734152	+	78	66047207	-	Psyr_3980	-	hypothetical protein
3936	 60.61	0	4734188..4734880	+	230	66047208	-	Psyr_3981	-	pseudouridine synthase, Rsu
3937	 57.71	0	4735007..4735888	+	293	66047209	-	Psyr_3982	-	3-hydroxyacyl-CoA-acyl carrier protein transferase
3938	 55.77	0	4736482..4738839	-	785	66047210	-	Psyr_3983	-	serralysin
3939	 57.48	0	4739638..4742901	-	1087	66047211	-	Psyr_3984	-	DNA helicase related protein
3940	 58.85	0	4743013..4744278	-	421	66047212	-	Psyr_3985	-	Pectate lyase/Amb allergen
3941	 60.85	0	4744397..4744843	-	148	66047213	-	Psyr_3986	-	GCN5-related N-acetyltransferase
3942	 59.53	0	4744868..4746016	-	382	66047214	-	Psyr_3987	-	Iron-containing alcohol dehydrogenase
3943	 57.90	0	4746168..4747388	-	406	66047215	-	Psyr_3988	-	hypothetical protein
3944	 51.27	-1	4747685..4748905	+	406	66047216	-	Psyr_3989	-	hypothetical protein
3945	 53.31	-1	4748908..4749918	+	336	66047217	-	Psyr_3990	-	hypothetical protein
3946	 59.71	0	4749978..4750595	-	205	66047218	-	Psyr_3991	-	hypothetical protein
3947	 61.48	0	4750621..4751334	-	237	66047219	-	Psyr_3992	-	hypothetical protein
3948	 59.28	0	4751671..4753932	+	753	66047220	-	Psyr_3993	-	glycoside hydrolase family protein
3949	 62.86	0	4754002..4755759	+	585	66047221	-	Psyr_3994	-	sensor histidine kinase
3950	 64.19	+1	4755766..4757100	+	444	66047222	-	Psyr_3995	-	helix-turn-helix, Fis-type
3951	 61.27	0	4757326..4759716	+	796	66047223	-	Psyr_3996	-	PAS
3952	 59.71	0	4759883..4761577	+	564	66047224	-	Psyr_3997	-	heat shock protein Hsp70
3953	 59.43	0	4761574..4763121	+	515	66047225	-	Psyr_3998	-	heat shock protein DnaJ, N-terminal
3954	 58.45	0	4763337..4764662	+	441	66047226	-	Psyr_3999	-	major facilitator transporter
3955	 44.31	-2	4764833..4765087	-	84	66047227	-	Psyr_4000	-	hypothetical protein
3956	 61.01	0	4765255..4765572	+	105	66047228	-	Psyr_4001	-	hypothetical protein
3957	 61.22	0	4765718..4766341	+	207	66047229	-	Psyr_4002	-	hypothetical protein
3958	 62.08	0	4766342..4766581	-	79	66047230	-	Psyr_4003	-	hypothetical protein
3959	 62.06	0	4767044..4768540	+	498	66047231	-	Psyr_4004	-	EmrB/QacA family drug resistance transporter
3960	 58.20	0	4768555..4769688	-	377	66047232	-	Psyr_4005	-	hypothetical protein
3961	 57.42	0	4770168..4770827	-	219	66047233	-	Psyr_4006	-	regulatory protein, TetR
3962	 61.15	0	4771083..4772243	+	386	66047234	-	Psyr_4007	-	secretion protein HlyD
3963	 59.55	0	4772247..4775381	+	1044	66047235	-	Psyr_4008	-	hydrophobe/amphiphile efflux-1 HAE1
3964	 63.04	0	4775378..4776838	+	486	66047236	-	Psyr_4009	-	RND efflux system, outer membrane lipoprotein, NodT
3965	 58.99	0	4776902..4778203	-	433	66047237	-	Psyr_4010	-	citrate-proton symport
3966	 64.33	+1	4778415..4779614	-	399	66047238	-	Psyr_4011	-	beta-ketoadipyl CoA thiolase
3967	 62.44	0	4779614..4780393	-	259	66047239	-	Psyr_4012	-	glutaconate CoA-transferase
59.35	MEAN

4.19	STD DEV
