IslandPath Analysis: Pseudomonas syringae pv. syringae B728a

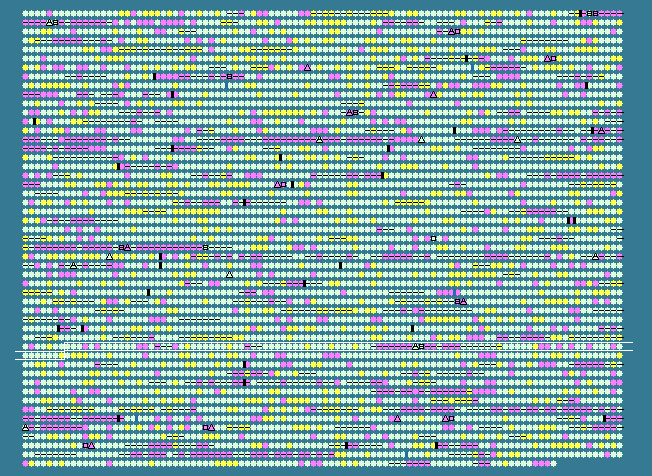

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.35 STD DEV: 4.19
Pseudomonas syringae pv. syringae B728a, complete genome - 1..6093698
5089 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3708	 60.66	0	4469978..4470310	-	110	66046980	-	Psyr_3752	-	hypothetical protein
3709	 60.45	0	4470616..4471500	-	294	66046981	-	Psyr_3753	-	short chain dehydrogenase
3710	 59.58	0	4471534..4471914	-	126	66046982	-	Psyr_3754	-	hypothetical protein
3711	 54.09	-1	4472228..4472386	+	52	66046983	-	Psyr_3755	-	hypothetical protein
3712	 58.71	0	4472506..4474164	-	552	66046984	actP	Psyr_3756	-	acetate permease
3713	 52.24	-1	4474161..4474472	-	103	66046985	-	Psyr_3757	-	hypothetical protein
3714	 57.78	0	4474707..4475561	-	284	66046986	-	Psyr_3758	-	substrate-binding region of ABC-type glycine betaine transport system
3715	 57.97	0	4476742..4478040	+	432	66046987	-	Psyr_3759	-	hypothetical protein
3716	 60.02	0	4478033..4478845	+	270	66046988	-	Psyr_3760	-	VacJ-like lipoprotein
3717	 59.39	0	4478980..4479570	+	196	66046989	-	Psyr_3761	-	hypothetical protein
3718	 61.60	0	4479774..4480976	+	400	66046990	-	Psyr_3762	-	major facilitator transporter
3719	 58.12	0	4481276..4482352	+	358	66046991	-	Psyr_3763	-	GGDEF
3720	 52.30	-1	4482357..4483226	-	289	66046992	-	Psyr_3764	-	hypothetical protein
3721	 51.26	-1	4483281..4483715	-	144	66046993	-	Psyr_3765	-	hypothetical protein
3722	 57.79	0	4483919..4484650	-	243	66046994	-	Psyr_3766	-	hypothetical protein
3723	 52.96	-1	4484833..4485102	-	89	66046995	-	Psyr_3767	-	regulatory protein, LuxR
3724	 61.50	0	4485561..4486877	-	438	66046996	-	Psyr_3768	-	major facilitator transporter
3725	 61.61	0	4487159..4489333	-	724	66046997	-	Psyr_3769	-	TonB-dependent siderophore receptor
3726	 55.02	-1	4489636..4489944	+	102	66046998	-	Psyr_3770	-	peptidase
3727	 58.33	0	4490038..4491201	-	387	66046999	-	Psyr_3771	-	hypothetical protein
3728	 62.93	0	4491257..4491577	-	106	66047000	-	Psyr_3772	-	hypothetical protein
3729	 60.17	0	4491827..4493011	-	394	66047001	-	Psyr_3773	-	GAF:ATP-binding region, ATPase-like:histidine kinase A, N-terminal
3730	 61.53	0	4493125..4494312	-	395	66047002	-	Psyr_3774	-	PAS
3731	 56.08	0	4494302..4495123	-	273	66047003	-	Psyr_3775	-	Alpha/beta hydrolase fold
3732	 57.99	0	4495335..4495772	-	145	66047004	-	Psyr_3776	-	cytosine deaminase
3733	 60.48	0	4495804..4496304	-	166	66047005	-	Psyr_3777	-	hypothetical protein
3734	 59.07	0	4496436..4497449	-	337	66047006	-	Psyr_3778	-	substrate-binding region of ABC-type glycine betaine transport system
3735	 63.09	0	4497536..4497982	+	148	66047007	-	Psyr_3779	-	GCN5-related N-acetyltransferase
3736	 60.56	0	4498007..4498546	-	179	66047008	def	Psyr_3780	-	peptide deformylase
3737	 58.18	0	4498597..4499562	-	321	66047009	-	Psyr_3781	-	ribonuclease BN
3738	 53.65	-1	4499786..4499977	-	63	66047010	-	Psyr_3782	-	CsbD-like
3739	 56.69	0	4500190..4500570	+	126	66047011	-	Psyr_3783	-	hypothetical protein
3740	 60.70	0	4500648..4501049	-	133	66047012	-	Psyr_3784	-	hypothetical protein
3741	 58.61	0	4501194..4501826	+	210	66047013	-	Psyr_3785	-	DSBA oxidoreductase
3742	 56.03	0	4501896..4502732	-	278	66047014	-	Psyr_3786	-	RNA binding S1
3743	 57.67	0	4503341..4503907	+	188	66047015	-	Psyr_3787	-	hypothetical protein
3744	 61.59	0	4504052..4504780	+	242	66047016	-	Psyr_3788	-	hypothetical protein
3745	 59.14	0	4504850..4505713	+	287	66047017	-	Psyr_3789	-	putative lipoprotein
3746	 58.42	0	4506322..4506624	-	100	66047018	-	Psyr_3790	-	hypothetical protein
3747	 62.26	0	4506809..4508146	-	445	66047019	-	Psyr_3791	-	helicase, C-terminal:DEAD/DEAH box helicase, N-terminal
3748	 62.91	0	4508297..4509547	-	416	66047020	-	Psyr_3792	-	sensor histidine kinase
3749	 61.59	0	4509544..4510233	-	229	66047021	-	Psyr_3793	-	response regulator receiver:transcriptional regulatory protein, C-terminal
3750	 59.97	0	4510450..4512822	+	790	66047022	-	Psyr_3794	-	surface antigen (D15):surface antigen variable number
3751	 62.80	0	4512941..4513354	+	137	66047023	-	Psyr_3795	-	hypothetical protein
3752	 63.22	0	4513374..4514273	-	299	66047024	-	Psyr_3796	-	regulatory protein, LysR:LysR, substrate-binding
3753	 60.30	0	4514362..4515162	+	266	66047025	-	Psyr_3797	-	NAD(P)H dehydrogenase (quinone)
3754	 56.59	0	4515280..4515795	+	171	66047026	-	Psyr_3798	-	hypothetical protein
3755	 56.66	0	4515853..4516881	-	342	66047027	-	Psyr_3799	-	hypothetical protein
3756	 63.50	0	4516878..4518140	-	420	66047028	-	Psyr_3800	-	major facilitator transporter
3757	 61.41	0	4518247..4519140	+	297	66047029	-	Psyr_3801	-	regulatory protein, LysR:LysR, substrate-binding
3758	 57.59	0	4519156..4520268	-	370	66047030	-	Psyr_3802	-	hypothetical protein
3759	 61.18	0	4520428..4521720	+	430	66047031	-	Psyr_3803	-	MscS mechanosensitive ion channel
3760	 52.89	-1	4522205..4524301	+	698	66047032	-	Psyr_3804	-	ATP-dependent DNA helicase RecQ
3761	 52.63	-1	4524298..4525665	+	455	66047033	-	Psyr_3805	-	hypothetical protein
3762	 41.15	-2	4526331..4526816	+	161	66047034	-	Psyr_3806	-	hypothetical protein
3763	 40.82	-2	4527902..4529116	+	404	66047035	-	Psyr_3807	-	hypothetical protein
3764	 41.67	-2	4529113..4529592	+	159	66047036	-	Psyr_3808	-	hypothetical protein
3765	 42.73	-2	4529589..4531439	+	616	66047037	-	Psyr_3809	-	hypothetical protein
3766	 56.69	0	4531582..4532403	-	273	66047038	-	Psyr_3810	-	integrase catalytic subunit
3767	 57.00	0	4532460..4532759	-	99	66047039	-	Psyr_3811	-	transposase IS3/IS911
3768	 48.89	-2	4533648..4534502	+	284	66047040	-	Psyr_3813	-	type III effector HopAF1
3769	 51.50	-1	4535275..4535808	+	177	66047041	-	Psyr_3814	-	GCN5-related N-acetyltransferase
3770	 56.48	0	4535995..4538115	+	706	66047042	-	Psyr_3815	-	hypothetical protein
3771	 50.80	-2	4538842..4541103	-	753	66047043	-	Psyr_3816	-	hypothetical protein
3772	 53.82	-1	4541179..4542603	-	474	66047044	-	Psyr_3817	-	hypothetical protein
3773	 51.30	-1	4543818..4544201	+	127	66047045	-	Psyr_3818	-	hypothetical protein
3774	 57.29	0	4544258..4544833	-	191	66047046	-	Psyr_3819	-	hypothetical protein
3775	 62.45	0	4545277..4545822	+	181	66047047	-	Psyr_3820	-	hypothetical protein
3776	 61.36	0	4545901..4546635	+	244	66047048	-	Psyr_3821	-	Short-chain dehydrogenase/reductase SDR
3777	 61.89	0	4546637..4547515	-	292	66047049	-	Psyr_3822	-	hypothetical protein
3778	 62.42	0	4547783..4552615	+	1610	66047050	-	Psyr_3823	-	putative hemolysin-type calcium-binding region
3779	 56.83	0	4552802..4553116	-	104	66047051	-	Psyr_3824	-	hypothetical protein
3780	 65.48	+1	4553184..4554107	+	307	66047052	-	Psyr_3825	-	regulatory protein, LysR:LysR, substrate-binding
3781	 57.09	0	4554341..4554904	+	187	66047053	-	Psyr_3826	-	peptidyl-prolyl cis-trans isomerase, cyclophilin type
3782	 60.72	0	4555006..4556838	+	610	66047054	-	Psyr_3827	-	ABC transporter, transmembrane region:ABC transporter
3783	 61.52	0	4557364..4558491	-	375	66047055	-	Psyr_3828	-	hypothetical protein
3784	 58.95	0	4558531..4563426	-	1631	66047056	-	Psyr_3829	-	leucine-rich repeat-containing protein
3785	 60.43	0	4563547..4564668	-	373	66047057	-	Psyr_3830	-	3-oxoacyl-(acyl carrier protein) synthase III
3786	 62.88	0	4564908..4568819	-	1303	66047058	-	Psyr_3831	-	ATP-dependent helicase HrpA
3787	 49.59	-2	4568993..4569238	+	81	66047059	-	Psyr_3832	-	prevent-host-death protein
3788	 51.20	-1	4569228..4569518	+	96	66047060	-	Psyr_3833	-	plasmid stabilization system protein
3789	 59.46	0	4569836..4571527	-	563	66047061	-	Psyr_3834	-	acyl-CoA synthetase
3790	 43.83	-2	4571596..4571757	-	53	66047062	-	Psyr_3835	-	hypothetical protein
3791	 60.33	0	4571883..4573571	-	562	66047063	-	Psyr_3836	-	acyl-CoA synthetase
3792	 53.47	-1	4573611..4573754	-	47	66047064	-	Psyr_3837	-	hypothetical protein
3793	 58.39	0	4573940..4574410	+	156	66047065	-	Psyr_3838	-	MaoC-like dehydratase
3794	 58.52	0	4574582..4576213	+	543	66047066	-	Psyr_3839	-	type III effector HopAK1
3795	 54.72	-1	4576432..4576590	-	52	66047067	-	Psyr_3840	-	hypothetical protein
3796	 59.36	0	4576691..4577032	-	113	66047068	-	Psyr_3841	-	hypothetical protein
3797	 62.38	0	4577266..4580112	+	948	66047069	-	Psyr_3842	-	ATP-dependent helicase HepA
3798	 59.25	0	4580648..4582939	+	763	66047070	-	Psyr_3843	-	GGDEF
3799	 55.23	0	4583090..4583395	-	101	66047071	-	Psyr_3844	-	hypothetical protein
3800	 59.20	0	4583721..4584845	+	374	66047072	-	Psyr_3845	-	extracellular ligand-binding receptor
3801	 60.06	0	4585073..4585996	+	307	66047073	-	Psyr_3846	-	inner-membrane translocator
3802	 60.66	0	4585993..4587258	+	421	66047074	livM	Psyr_3847	-	leucine/isoleucine/valine transporter permease subunit
3803	 61.46	0	4587255..4588022	+	255	66047075	livG	Psyr_3848	-	leucine/isoleucine/valine transporter ATP-binding subunit
3804	 60.11	0	4588023..4588724	+	233	66047076	-	Psyr_3849	-	ABC transporter
3805	 61.97	0	4588981..4589661	+	226	66047077	-	Psyr_3850	-	putative lipoprotein
3806	 62.83	0	4589759..4591372	+	537	66047078	-	Psyr_3851	-	hypothetical protein
3807	 63.44	0	4591592..4592056	-	154	66047079	-	Psyr_3852	-	lipoprotein SlyB, putative
59.35	MEAN

4.19	STD DEV
