IslandPathversion 1.0

IslandPath Analysis: Pseudomonas syringae pv. syringae B728a

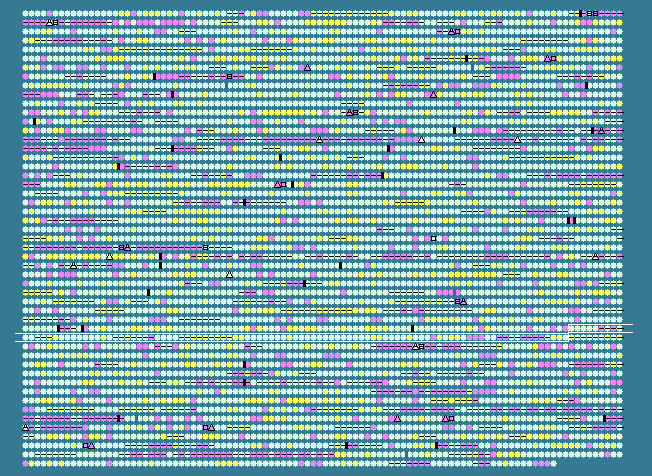

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.35 STD DEV: 4.19
Pseudomonas syringae pv. syringae B728a, complete genome - 1..6093698
5089 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3592	 56.20	0	4316446..4316808	-	120	66046864	-	Psyr_3635	-	competence protein ComEA helix-hairpin-helix region
3593	 56.69	0	4316968..4318962	-	664	66046865	-	Psyr_3636	-	polysaccharide biosynthesis protein CapD
3594	 58.95	0	4319067..4320077	-	336	66046866	-	Psyr_3637	-	glycosyl transferase family protein
3595	 58.00	0	4320070..4321050	-	326	66046867	-	Psyr_3638	-	UDP-glucose 4-epimerase, putative
3596	 56.62	0	4321250..4322692	-	480	66046868	-	Psyr_3639	-	Beta-lactamase-like:RNA-metabolising metallo-beta-lactamase
3597	 54.73	-1	4323108..4323350	-	80	66046869	-	Psyr_3640	-	hypothetical protein
3598	 56.23	0	4323375..4323671	-	98	66046870	ihfB	Psyr_3641	-	integration host factor subunit beta
3599	 54.91	-1	4323992..4325683	-	563	66046871	rpsA	Psyr_3642	-	30S ribosomal protein S1
3600	 61.45	0	4325805..4326494	-	229	66046872	cmk	Psyr_3643	-	cytidylate kinase
3601	 62.12	0	4326491..4328095	-	534	66046873	-	Psyr_3644	-	prephenate dehydrogenase
3602	 59.63	0	4328153..4329247	-	364	66046874	-	Psyr_3645	-	chorismate mutasea
3603	 59.76	0	4329247..4330332	-	361	66046875	-	Psyr_3646	-	phosphoserine aminotransferase
3604	 60.80	0	4330537..4333314	-	925	66046876	-	Psyr_3647	-	DNA gyrase subunit A
3605	 63.84	+1	4333619..4334716	-	365	66046877	mtnA	Psyr_3648	-	methylthioribose-1-phosphate isomerase
3606	 64.19	+1	4334816..4336147	+	443	66046878	-	Psyr_3649	-	N-ethylammeline chlorohydrolase
3607	 62.23	0	4336233..4336931	+	232	66046879	-	Psyr_3650	-	3-demethylubiquinone-9 3-methyltransferase
3608	 62.65	0	4336935..4337606	+	223	66046880	-	Psyr_3651	-	phosphoglycolate phosphatase
3609	 62.62	0	4337619..4338359	+	246	66046881	-	Psyr_3652	-	short chain dehydrogenase
3610	 57.50	0	4338567..4339493	+	308	66046882	-	Psyr_3653	-	GGDEF
3611	 59.39	0	4339521..4340303	-	260	66046883	-	Psyr_3654	-	hypothetical protein
3612	 57.37	0	4340335..4342797	-	820	66046884	-	Psyr_3655	-	PAS:GGDEF
3613	 61.74	0	4342921..4344747	-	608	66046885	-	Psyr_3656	-	ABC transporter, transmembrane region:ABC transporter
3614	 65.88	+1	4344740..4345372	-	210	66046886	-	Psyr_3657	-	DSBA oxidoreductase
3615	 58.60	0	4345376..4346329	-	317	66046887	-	Psyr_3658	-	hypothetical protein
3616	 59.18	0	4346503..4346796	-	97	66046888	-	Psyr_3659	-	BolA-like protein
3617	 59.09	0	4346812..4347339	-	175	66046889	-	Psyr_3660	-	hypothetical protein
3618	 62.87	0	4347509..4348903	+	464	66046890	-	Psyr_3661	-	fumarate hydratase
3619	 61.46	0	4348896..4349510	+	204	66046891	-	Psyr_3662	-	NAD(P)H dehydrogenase (quinone)
3620	 62.50	0	4349531..4350490	-	319	66046892	-	Psyr_3663	-	hypothetical protein
3621	 62.50	0	4350591..4351190	-	199	66046893	-	Psyr_3664	-	DTW
3622	 53.80	-1	4351417..4351719	+	100	66046894	-	Psyr_3665	-	hypothetical protein
3623	 60.04	0	4352128..4353606	-	492	66046895	-	Psyr_3666	-	hypothetical protein
3624	 61.76	0	4354248..4354553	+	101	66046896	-	Psyr_3667	-	hypothetical protein
3625	 57.53	0	4355035..4355253	+	72	66046897	-	Psyr_3668	-	hypothetical protein
3626	 58.33	0	4355493..4356776	+	427	66046898	-	Psyr_3669	-	aromatic hydrocarbon degradation protein
3627	 58.02	0	4357067..4357621	-	184	66046899	-	Psyr_3670	-	glutathione peroxidase
3628	 62.37	0	4357799..4359007	-	402	66046900	-	Psyr_3671	-	major facilitator transporter
3629	 65.98	+1	4359106..4359837	-	243	66046901	cobS	Psyr_3672	-	cobalamin synthase
3630	 64.05	+1	4359839..4360411	-	190	66046902	-	Psyr_3673	-	phosphoglycerate/bisphosphoglycerate mutase
3631	 66.29	+1	4360408..4361460	-	350	66046903	cobT	Psyr_3674	-	nicotinate-nucleotide--dimethylbenzimidazole phosphoribosyltransferase
3632	 62.64	0	4361457..4361978	-	173	66046904	cobU	Psyr_3675	-	adenosylcobinamide kinase/adenosylcobinamide-phosphate guanylyltransferase
3633	 63.72	+1	4361979..4363439	-	486	66046905	-	Psyr_3676	-	cobyric acid synthase
3634	 66.07	+1	4363436..4364440	-	334	66046906	-	Psyr_3677	-	threonine-phosphate decarboxylase
3635	 64.91	+1	4364433..4365341	-	302	66046907	cobD	Psyr_3678	-	cobalamin biosynthesis protein
3636	 64.52	+1	4365338..4365988	-	216	66046908	-	Psyr_3679	-	nitroreductase
3637	 66.05	+1	4365985..4367280	-	431	66046909	-	Psyr_3680	-	cobyrinic acid a,c-diamide synthase
3638	 61.27	0	4367306..4367917	-	203	66046910	-	Psyr_3681	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
3639	 62.60	0	4368342..4369670	+	442	66046911	-	Psyr_3682	-	L-sorbosone dehydrogenase
3640	 61.72	0	4369999..4370544	-	181	66046912	-	Psyr_3683	-	NLP/P60
3641	 59.53	0	4370634..4371362	-	242	66046913	-	Psyr_3684	-	NLP/P60
3642	 59.01	0	4371438..4372181	-	247	66046914	-	Psyr_3685	-	NAD-dependent deacetylase
3643	 60.18	0	4372196..4372981	-	261	66046915	-	Psyr_3686	-	DNA replication initiation factor
3644	 62.01	0	4373117..4374190	-	357	66046916	-	Psyr_3687	-	hypothetical protein
3645	 64.67	+1	4374230..4375333	-	367	66046917	-	Psyr_3688	-	hypothetical protein
3646	 62.51	0	4375674..4376732	+	352	66046918	-	Psyr_3689	-	phosphoribosylaminoimidazole synthetase
3647	 61.44	0	4376732..4377382	+	216	66046919	purN	Psyr_3690	-	phosphoribosylglycinamide formyltransferase
3648	 59.38	0	4377391..4378104	+	237	66046920	-	Psyr_3691	-	hypothetical protein
3649	 57.22	0	4378851..4379030	+	59	66046921	-	Psyr_3692	-	hypothetical protein
3650	 59.07	0	4379109..4379648	-	179	66046922	-	Psyr_3693	-	hypothetical protein
3651	 60.43	0	4379679..4380512	-	277	66046923	mazG	Psyr_3694	-	nucleoside triphosphate pyrophosphohydrolase
3652	 61.05	0	4380642..4382885	-	747	66046924	-	Psyr_3695	-	RelA/SpoT protein
3653	 61.58	0	4383042..4384397	-	451	66046925	rumA	Psyr_3696	-	23S rRNA 5-methyluridine methyltransferase
3654	 61.57	0	4384397..4385338	-	313	66046926	cysM	Psyr_3697	-	cysteine synthase B
3655	 62.75	0	4385550..4388303	+	917	66046927	-	Psyr_3698	-	response regulator receiver:ATP-binding region, ATPase-like:histidine kinase, HAMP region:histidine kinase A, N-terminal:Hpt
3656	 60.27	0	4388384..4388821	+	145	66046928	-	Psyr_3699	-	hypothetical protein
3657	 59.07	0	4388818..4389225	+	135	66046929	-	Psyr_3700	-	hypothetical protein
3658	 58.76	0	4389396..4389863	-	155	66046930	-	Psyr_3701	-	thioredoxin, putative
3659	 65.25	+1	4389992..4390345	+	117	66046931	-	Psyr_3702	-	arsenate reductase
3660	 67.16	+1	4390342..4390947	+	201	66046932	-	Psyr_3703	-	flavodoxin/nitric oxide synthase
3661	 59.52	0	4391047..4391718	+	223	66046933	-	Psyr_3704	-	hypothetical protein
3662	 58.06	0	4391725..4392549	-	274	66046934	-	Psyr_3705	-	hypothetical protein
3663	 61.21	0	4392744..4393238	+	164	66046935	-	Psyr_3706	-	hypothetical protein
3664	 58.02	0	4393305..4394657	-	450	66046936	-	Psyr_3707	-	C4-dicarboxylate transporter DctA
3665	 62.95	0	4395052..4396398	-	448	66046937	-	Psyr_3708	-	sensor histidine kinase
3666	 60.91	0	4396395..4397072	-	225	66046938	-	Psyr_3709	-	response regulator receiver:transcriptional regulatory protein, C-terminal
3667	 58.12	0	4397100..4397450	-	116	66046939	-	Psyr_3710	-	hypothetical protein
3668	 61.22	0	4397623..4398411	+	262	66046940	-	Psyr_3711	-	dienelactone hydrolase
3669	 52.62	-1	4398981..4399514	-	177	66046941	-	Psyr_3712	-	hypothetical protein
3670	 63.13	0	4399936..4400670	+	244	66046942	-	Psyr_3713	-	4'-phosphopantetheinyl transferase
3671	 61.85	0	4400671..4401417	-	248	66046943	-	Psyr_3714	-	ferric iron reductase
3672	 64.68	+1	4401375..4402985	-	536	66046944	-	Psyr_3715	-	sensor histidine kinase
3673	 64.65	+1	4402990..4403733	-	247	66046945	-	Psyr_3716	-	response regulator receiver:transcriptional regulatory protein, C-terminal
3674	 61.21	0	4404442..4407354	+	970	66046946	-	Psyr_3717	-	ribonucleotide-diphosphate reductase subunit alpha
3675	 49.44	-2	4407487..4407840	+	117	66046947	-	Psyr_3718	-	hypothetical protein
3676	 51.39	-1	4407954..4408313	+	119	66046948	-	Psyr_3719	-	hypothetical protein
3677	 50.33	-2	4408636..4409241	+	201	66046949	-	Psyr_3720	-	filamentation induced by cAMP protein Fic
3678	 58.57	0	4409880..4411127	+	415	66046950	-	Psyr_3721	-	ribonucleotide-diphosphate reductase subunit beta
3679	 61.85	0	4411388..4431418	-	6676	66046951	-	Psyr_3722	-	amino acid adenylation
3680	 55.05	-1	4432524..4433780	-	418	66046952	-	Psyr_3724	-	hypothetical protein
3681	 50.90	-2	4433777..4435330	-	517	66046953	-	Psyr_3725	-	ATPas
3682	 60.76	0	4435760..4436335	+	191	66046954	-	Psyr_3726	-	hypothetical protein
3683	 56.35	0	4436388..4436639	-	83	66046955	-	Psyr_3727	-	hypothetical protein
3684	 45.53	-2	4437102..4437470	-	122	66046956	-	Psyr_3728	-	hypothetical protein
3685	 40.06	-2	4437553..4437909	-	118	66046957	-	Psyr_3729	-	hypothetical protein
3686	 36.49	-2	4437934..4438218	-	94	66046958	-	Psyr_3730	-	hypothetical protein
3687	 53.12	-1	4438234..4439577	-	447	66046959	-	Psyr_3731	-	hypothetical protein
3688	 62.78	0	4439857..4440036	-	59	66046960	-	Psyr_3732	-	hypothetical protein
3689	 65.29	+1	4440217..4443333	-	1038	66046961	-	Psyr_3733	-	Outer membrane autotransporter barrel
3690	 63.74	+1	4443425..4446430	-	1001	66046962	-	Psyr_3734	-	Outer membrane autotransporter barrel
3691	 61.75	0	4446990..4448555	-	521	66046963	-	Psyr_3735	-	PAS
59.35	MEAN

4.19	STD DEV
