IslandPath Analysis: Pseudomonas syringae pv. syringae B728a

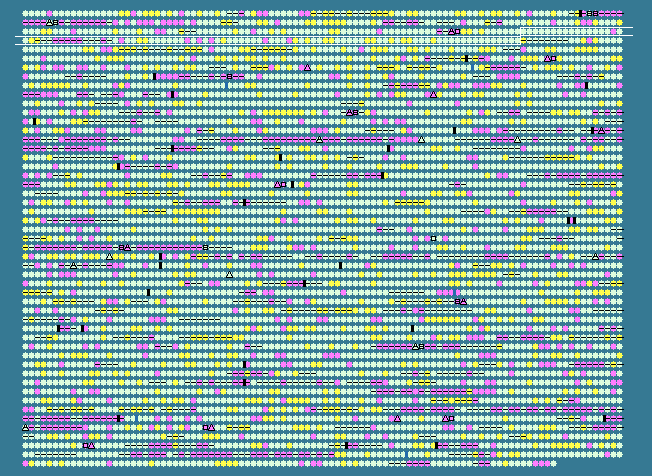

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.35 STD DEV: 4.19
Pseudomonas syringae pv. syringae B728a, complete genome - 1..6093698
5089 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
284	 57.93	0	303388..303879	-	163	66043555	-	Psyr_0285	-	cytochrome C oxidase assembly protein
285	 58.99	0	304127..304777	+	216	66043556	-	Psyr_0286	-	hypothetical protein
286	 61.71	0	304898..306430	-	510	66043557	-	Psyr_0287	-	sulphate transporter
287	 58.57	0	306535..307275	-	246	66043558	-	Psyr_0288	-	carbonate dehydratase
288	 61.19	0	307483..308541	-	352	66043559	-	Psyr_0289	-	radical SAM family protein
289	 61.58	0	308664..309332	-	222	66043560	-	Psyr_0290	-	isoprenoid biosynthesis protein
290	 59.88	0	309519..310181	-	220	66043561	-	Psyr_0291	-	hypothetical protein
291	 60.14	0	310413..311423	+	336	66043562	-	Psyr_0292	-	delta-aminolevulinic acid dehydratase
292	 61.01	0	311440..313650	+	736	66043563	-	Psyr_0293	-	polyphosphate kinase
293	 60.91	0	313637..315217	-	526	66043564	-	Psyr_0294	-	exopolyphosphatase
294	 61.50	0	315811..316545	-	244	66043565	-	Psyr_0295	-	ABC transporter
295	 61.11	0	316532..317179	-	215	66043566	-	Psyr_0296	-	amino acid ABC transporter permease
296	 58.86	0	317179..317844	-	221	66043567	-	Psyr_0297	-	amino acid ABC transporter permease
297	 60.05	0	317876..318661	-	261	66043568	-	Psyr_0298	-	extracellular solute-binding protein
298	 62.55	0	318912..319616	+	234	66043569	-	Psyr_0299	-	transcriptional regulator GntR
299	 53.28	-1	319738..320088	+	116	66043570	-	Psyr_0300	-	thioredoxin
300	 57.38	0	320320..321579	+	419	66043571	rho	Psyr_0301	-	transcription termination factor Rho
301	 60.92	0	321695..323173	+	492	66043572	-	Psyr_0302	-	carboxylyase-like protein
302	 63.05	0	323173..324141	+	322	66043573	-	Psyr_0303	-	CDP-6-deoxy-delta-3,4-glucoseen reductase
303	 63.53	0	324350..325018	+	222	66043574	-	Psyr_0304	-	ChaC-like protein
304	 61.19	0	325019..326368	-	449	66043575	glpT	Psyr_0305	-	sn-glycerol-3-phosphate transporter
305	 62.16	0	326643..327308	+	221	66043576	-	Psyr_0306	-	TonB, C-terminal
306	 44.84	-2	327895..328398	-	167	66043577	-	Psyr_0307	-	hypothetical protein
307	 54.74	-1	328687..329424	-	245	66043578	-	Psyr_0308	-	hypothetical protein
308	 38.46	-2	329472..329744	-	90	66043579	-	Psyr_0309	-	colicin immunity protein/pyocin immunity protein
309	 53.48	-1	329734..331704	-	656	66043580	-	Psyr_0310	-	HNH endonuclease:S-type Pyocin
310	 38.57	-2	332270..332632	-	120	66043581	-	Psyr_0312	-	hypothetical protein
311	 62.31	0	332888..333874	-	328	66043582	-	Psyr_0313	-	zinc-containing alcohol dehydrogenase superfamily protein
312	 55.88	0	334005..334412	+	135	66043583	-	Psyr_0314	-	flagellar basal body-associated protein FliL-like protein
313	 58.22	0	334419..334868	-	149	66043584	-	Psyr_0315	-	hypothetical protein
314	 52.29	-1	335062..335214	+	50	66043585	-	Psyr_0316	-	hypothetical protein
315	 61.76	0	335260..335871	-	203	66043586	-	Psyr_0317	-	5-formyltetrahydrofolate cyclo-ligase
316	 59.39	0	336175..336504	-	109	66043587	-	Psyr_0318	-	hypothetical protein
317	 50.95	-2	336501..336710	-	69	66043588	-	Psyr_0319	-	hypothetical protein
318	 61.58	0	336861..337430	+	189	66043589	-	Psyr_0320	-	hypothetical protein
319	 61.80	0	337506..338840	+	444	66043590	-	Psyr_0321	-	peptidase M24:peptidase M24B, X-Pro dipeptidase/aminopeptidase N-terminal
320	 65.24	+1	338837..340024	+	395	66043591	-	Psyr_0322	-	2-octaprenyl-6-methoxyphenyl hydroxylase
321	 64.96	+1	340076..341305	+	409	66043592	-	Psyr_0323	-	2-octaprenyl-3-methyl-6-methoxy-1,4-benzoquinol hydroxylase
322	 62.54	0	342094..343086	-	330	66043593	-	Psyr_0324	-	helix-turn-helix, AraC type
323	 60.87	0	343698..345008	+	436	66043594	-	Psyr_0325	-	general substrate transporter:TonB box, N-terminal
324	 62.03	0	345222..345803	+	193	66043595	-	Psyr_0326	-	hypothetical protein
325	 61.62	0	345887..346837	+	316	66043596	-	Psyr_0327	-	sigma-54 factor, interaction region
326	 56.19	0	347041..347823	+	260	66043597	-	Psyr_0328	-	NLPA lipoprotein
327	 60.13	0	347986..349239	-	417	66043598	-	Psyr_0329	-	secretory lipase
328	 48.46	-2	349706..350386	+	226	66043599	-	Psyr_0330	-	hypothetical protein
329	 56.94	0	350422..351963	+	513	66043600	-	Psyr_0331	-	AMP-dependent synthetase and ligase
330	 55.14	-1	351980..353011	+	343	66043601	-	Psyr_0332	-	hypothetical protein
331	 61.42	0	353004..354185	+	393	66043602	-	Psyr_0333	-	hypothetical protein
332	 55.30	0	354221..354607	+	128	66043603	ectC	Psyr_0334	-	L-ectoine synthase
333	 59.82	0	354656..355882	+	408	66043604	-	Psyr_0335	-	hypothetical protein
334	 64.73	+1	355995..358982	-	995	66043605	-	Psyr_0336	-	Outer membrane autotransporter barrel
335	 59.53	0	359311..360207	+	298	66043606	-	Psyr_0337	-	taurine dioxygenase
336	 61.87	0	360224..361099	+	291	66043607	-	Psyr_0338	-	ABC transporter
337	 60.15	0	361263..362198	+	311	66043608	-	Psyr_0339	-	binding-protein dependent transport system inner membrane protein
338	 59.51	0	362237..363256	+	339	66043609	-	Psyr_0340	-	ABC transporter, periplasmic substrate-binding protein
339	 57.69	0	363882..364115	+	77	66043610	-	Psyr_0341	-	hypothetical protein
340	 56.43	0	364205..365200	+	331	66043611	-	Psyr_0342	-	hypothetical protein
341	 55.29	0	365313..366428	+	371	66043612	-	Psyr_0343	-	hypothetical protein
342	 62.47	0	366781..367899	+	372	66043613	-	Psyr_0344	-	secretion protein HlyD
343	 62.15	0	367896..368981	+	361	66043614	-	Psyr_0345	-	secretion protein HlyD
344	 60.99	0	368978..372079	+	1033	66043615	-	Psyr_0346	-	acriflavin resistance protein
345	 54.62	-1	372139..372636	-	165	66043616	-	Psyr_0347	-	hypothetical protein
346	 63.00	0	372774..373400	-	208	66043617	-	Psyr_0348	-	hypothetical protein
347	 62.64	0	373457..374101	-	214	66043618	-	Psyr_0349	-	binding-protein dependent transport system inner membrane protein
348	 64.28	+1	374091..375221	-	376	66043619	-	Psyr_0350	-	ABC transporter
349	 59.95	0	375218..376006	-	262	66043620	-	Psyr_0351	-	NLPA lipoprotein
350	 61.22	0	376391..377749	-	452	66043621	-	Psyr_0352	-	DszA family monooxygenase
351	 63.35	0	377749..378954	-	401	66043622	-	Psyr_0353	-	Acyl-CoA dehydrogenase, C-terminal
352	 63.34	0	378980..380302	-	440	66043623	-	Psyr_0354	-	Acyl-CoA dehydrogenase, C-terminal
353	 59.17	0	380690..381409	-	239	66043624	-	Psyr_0355	-	hypothetical protein
354	 60.22	0	381987..382730	-	247	66043625	-	Psyr_0356	-	putative amino-acid ABC transporter ATP-binding protein YecC
355	 60.99	0	382734..383402	-	222	66043626	-	Psyr_0357	-	amino acid ABC transporter permease
356	 56.39	0	383399..384196	-	265	66043627	-	Psyr_0358	-	cystine transporter subunit
357	 62.36	0	384416..385414	-	332	66043628	-	Psyr_0359	-	D-cysteine desulfhydrase
358	 63.10	0	385612..386565	+	317	66043629	-	Psyr_0360	-	Serine O-acetyltransferase
359	 65.25	+1	386578..387285	-	235	66043630	-	Psyr_0361	-	hypothetical protein
360	 58.02	0	387282..387848	-	188	66043631	-	Psyr_0362	-	RNA polymerase sigma factor
361	 60.86	0	387952..388485	-	177	66043632	-	Psyr_0363	-	hypothetical protein
362	 63.78	+1	388591..389766	-	391	66043633	-	Psyr_0364	-	Na+/H+ antiporter NhaA
363	 61.47	0	389816..390412	-	198	66043634	-	Psyr_0365	-	hypothetical protein
364	 63.14	0	390409..391230	-	273	66043635	-	Psyr_0366	-	histidine utilization repressor
365	 64.10	+1	391324..392688	+	454	66043636	-	Psyr_0367	-	N-formimino-L-glutamate deiminase
366	 59.59	0	392869..393447	-	192	66043637	-	Psyr_0368	-	lipoprotein Blc
367	 58.04	0	393451..393705	-	84	66043638	-	Psyr_0369	-	putative lipoprotein
368	 60.93	0	393957..394967	-	336	66043639	-	Psyr_0370	-	fructose-1,6-bisphosphatase
369	 64.57	+1	395102..396481	-	459	66043640	-	Psyr_0371	-	hypothetical protein
370	 61.57	0	397612..400062	-	816	66043641	-	Psyr_0374	-	phosphorylase
371	 61.32	0	400343..401314	+	323	66043642	-	Psyr_0375	-	peptidase S33, proline iminopeptidase 1
372	 57.53	0	401354..401791	+	145	66043643	-	Psyr_0376	-	D-tyrosyl-tRNA deacylase
373	 58.22	0	402055..403983	+	642	66043644	mdoG	Psyr_0377	-	glucan biosynthesis protein G
374	 61.94	0	403976..406558	+	860	66043645	-	Psyr_0378	-	glucosyltransferase MdoH
375	 60.13	0	408100..410043	-	647	66043646	-	Psyr_0379	-	histidine kinase, HAMP region: chemotaxis sensory transducer
376	 60.15	0	410246..412162	-	638	66043647	-	Psyr_0380	-	histidine kinase, HAMP region: chemotaxis sensory transducer
377	 61.72	0	412251..412958	-	235	66043648	-	Psyr_0381	-	hypothetical protein
378	 59.68	0	412955..413755	-	266	66043649	-	Psyr_0382	-	Sec-independent periplasmic protein translocase
379	 62.47	0	413752..414228	-	158	66043650	tatB	Psyr_0383	-	sec-independent translocase
380	 58.33	0	414233..414508	-	91	66043651	tatA	Psyr_0384	-	twin argininte translocase protein A
381	 58.26	0	414553..414885	-	110	66043652	hisE	Psyr_0385	-	phosphoribosyl-ATP pyrophosphatase
382	 56.23	0	414888..415280	-	130	66043653	hisI	Psyr_0386	-	phosphoribosyl-AMP cyclohydrolase
383	 61.98	0	415348..416967	-	539	66043654	-	Psyr_0387	-	2-polyprenylphenol 6-hydroxylase
59.35	MEAN

4.19	STD DEV
