IslandPath Analysis: Pseudomonas syringae pv. syringae B728a

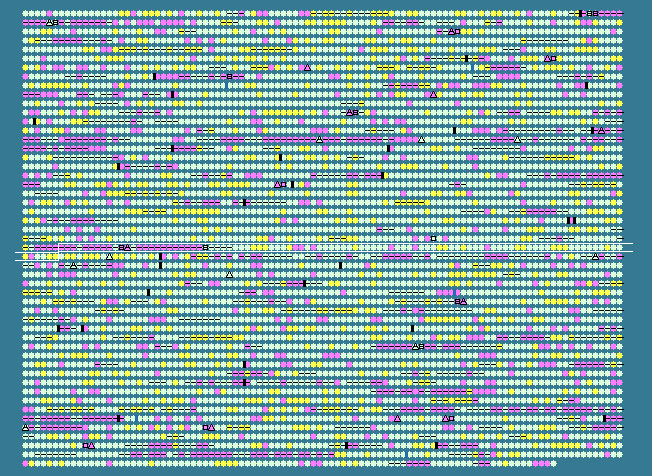

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.35 STD DEV: 4.19
Pseudomonas syringae pv. syringae B728a, complete genome - 1..6093698
5089 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2607	 53.09	-1	3210976..3212205	-	409	66045879	-	Psyr_2643	-	hypothetical protein
2608	 50.67	-2	3212729..3214660	+	643	66045880	-	Psyr_2644	-	hypothetical protein
2609	 54.50	-1	3215082..3215459	-	125	66045881	-	Psyr_2645	-	hypothetical protein
2610	 55.89	0	3216092..3218263	+	723	66045882	-	Psyr_2646	-	radical SAM family protein
2611	 54.76	-1	3218352..3219233	+	293	66045883	-	Psyr_2647	-	hypothetical protein
2612	 54.69	-1	3219218..3220411	+	397	66045884	-	Psyr_2648	-	hypothetical protein
2613	 53.35	-1	3220493..3221476	+	327	66045885	-	Psyr_2649	-	hypothetical protein
2614	 52.56	-1	3221945..3222412	+	155	66045886	-	Psyr_2650	-	hypothetical protein
2615	 52.60	-1	3222424..3223383	+	319	66045887	-	Psyr_2651	-	hypothetical protein
2616	 56.15	0	3223370..3224044	+	224	66045888	-	Psyr_2652	-	hypothetical protein
2617	 53.49	-1	3224311..3224826	+	171	66045889	-	Psyr_2653	-	ISPsy8, transposase OrfA
2618	 53.90	-1	3224856..3225662	+	268	66045890	-	Psyr_2654	-	integrase catalytic subunit
2619	 60.58	0	3225794..3226615	+	273	66045891	-	Psyr_2655	-	nitroreductase
2620	 53.85	-1	3226787..3227137	-	116	66045892	-	Psyr_2656	-	hypothetical protein
2621	 53.45	-1	3227281..3228120	+	279	66045893	-	Psyr_2657	-	hypothetical protein
2622	 49.74	-2	3228318..3229451	-	377	66045894	-	Psyr_2658	-	hypothetical protein
2623	 51.56	-1	3230030..3231307	-	425	66045895	-	Psyr_2659	-	hypothetical protein
2624	 50.35	-2	3231461..3231742	-	93	66045896	-	Psyr_2660	-	hypothetical protein
2625	 53.87	-1	3231832..3232917	-	361	66045897	-	Psyr_2661	-	hypothetical protein
2626	 52.43	-1	3232976..3233530	+	184	66045898	-	Psyr_2662	-	hypothetical protein
2627	 53.06	-1	3233912..3234271	-	119	66045899	-	Psyr_2663	-	hypothetical protein
2628	 52.92	-1	3234416..3235135	-	239	66045900	-	Psyr_2664	-	hypothetical protein
2629	 50.49	-2	3235541..3236047	+	168	66045901	-	Psyr_2665	-	phenazine biosynthesis PhzC/PhzF protein
2630	 51.70	-1	3236226..3236753	-	175	66045902	-	Psyr_2666	-	NUDIX hydrolase
2631	 61.95	0	3236917..3239802	-	961	66045903	-	Psyr_2667	-	transposase Tn3
2632	 60.65	0	3239928..3240542	+	204	66045904	-	Psyr_2668	-	helix-turn-helix, Fis-type
2633	 56.22	0	3240608..3241411	+	267	66045905	-	Psyr_2669	-	aminoglycoside phosphotransferase
2634	 56.08	0	3241417..3242247	+	276	66045906	-	Psyr_2670	-	aminoglycoside/hydroxyurea antibiotic resistance kinase
2635	 56.48	0	3242289..3243230	-	313	66045907	-	Psyr_2671	-	regulatory protein, LysR:LysR, substrate-binding
2636	 60.17	0	3243314..3244606	+	430	66045908	-	Psyr_2672	-	citrate transporter
2637	 61.68	0	3244607..3245971	+	454	66045909	-	Psyr_2673	-	hypothetical protein
2638	 60.61	0	3245968..3246330	+	120	66045910	-	Psyr_2674	-	hypothetical protein
2639	 64.09	+1	3246619..3247356	+	245	66045911	-	Psyr_2675	-	transcriptional regulator GntR
2640	 63.32	0	3247353..3248369	+	338	66045912	-	Psyr_2676	-	oligopeptide/dipeptide ABC transporter, ATP-binding protein, C-terminal
2641	 62.96	0	3248366..3249499	+	377	66045913	-	Psyr_2677	-	oligopeptide/dipeptide ABC transporter, ATP-binding protein, C-terminal
2642	 59.02	0	3249496..3250998	+	500	66045914	-	Psyr_2678	-	extracellular solute-binding protein
2643	 61.27	0	3251027..3251971	+	314	66045915	-	Psyr_2679	-	binding-protein dependent transport system inner membrane protein
2644	 61.86	0	3251971..3252843	+	290	66045916	-	Psyr_2680	-	binding-protein dependent transport system inner membrane protein
2645	 62.97	0	3252821..3254470	+	549	66045917	-	Psyr_2681	-	gamma-glutamyltransferase
2646	 53.73	-1	3254528..3256699	-	723	66045918	-	Psyr_2682	-	histidine kinase, HAMP region: chemotaxis sensory transducer
2647	 53.64	-1	3257181..3258608	+	475	66045919	-	Psyr_2683	-	arginine/ornithine antiporter
2648	 56.56	0	3258644..3259900	+	418	66045920	-	Psyr_2684	-	arginine deiminase
2649	 55.69	0	3259968..3260978	+	336	66045921	-	Psyr_2685	-	ornithine carbamoyltransferase
2650	 58.06	0	3261073..3262002	+	309	66045922	-	Psyr_2686	-	carbamate kinase
2651	 60.57	0	3262145..3263539	-	464	66045923	-	Psyr_2687	-	PepSY-associated TM helix
2652	 58.64	0	3263648..3264058	-	136	66045924	-	Psyr_2688	-	hypothetical protein
2653	 60.49	0	3265023..3266171	+	382	66045925	-	Psyr_2689	-	UDP-4-amino-4-deoxy-L-arabinose--oxoglutarate aminotransferase
2654	 60.55	0	3266168..3267181	+	337	66045926	-	Psyr_2690	-	glycosyl transferase family protein
2655	 59.65	0	3267178..3269172	+	664	66045927	-	Psyr_2691	-	bifunctional UDP-glucuronic acid decarboxylase/UDP-4-amino-4-deoxy-L-arabinose formyltransferase
2656	 63.61	+1	3269172..3270053	+	293	66045928	-	Psyr_2692	-	polysaccharide deacetylase
2657	 61.04	0	3270050..3271702	+	550	66045929	arnT	Psyr_2693	-	4-amino-4-deoxy-L-arabinose transferase
2658	 62.08	0	3271711..3272037	+	108	66045930	-	Psyr_2694	-	hypothetical protein
2659	 60.46	0	3272034..3272468	+	144	66045931	-	Psyr_2695	-	hypothetical protein
2660	 60.57	0	3272446..3273840	+	464	66045932	-	Psyr_2696	-	UDP-glucose 6-dehydrogenase
2661	 59.85	0	3273861..3275342	-	493	66045933	-	Psyr_2697	-	glycosyl transferase family protein
2662	 51.12	-1	3275756..3278167	+	803	66045934	-	Psyr_2698	-	Ricin B lectin
2663	 60.00	0	3278314..3279333	-	339	66045935	-	Psyr_2699	-	hypothetical protein
2664	 56.01	0	3279755..3281359	-	534	66045936	-	Psyr_2700	-	histidine kinase
2665	 58.36	0	3281504..3282646	-	380	66045937	-	Psyr_2701	-	hypothetical protein
2666	 54.57	-1	3282649..3283830	-	393	66045938	-	Psyr_2702	-	UDP-galactopyranose mutase
2667	 56.46	0	3283818..3285002	-	394	66045939	-	Psyr_2703	-	hypothetical protein
2668	 59.09	0	3285422..3286450	+	342	66045940	-	Psyr_2704	-	UDP-glucose 4-epimerase
2669	 58.50	0	3286524..3287135	-	203	66045941	-	Psyr_2705	-	helix-hairpin-helix DNA-binding motif-containing protein
2670	 64.67	+1	3287200..3287949	-	249	66045942	-	Psyr_2706	-	glutamine amidotransferase
2671	 64.64	+1	3288077..3288964	+	295	66045943	-	Psyr_2707	-	regulatory protein, LysR:LysR, substrate-binding
2672	 61.50	0	3289110..3290174	+	354	66045944	-	Psyr_2708	-	Rieske [2Fe-2S] region
2673	 61.20	0	3290248..3291198	+	316	66045945	-	Psyr_2709	-	ferredoxin:oxidoreductase FAD/NAD(P)-binding:oxidoreductase FAD-binding region
2674	 64.28	+1	3291199..3291909	-	236	66045946	-	Psyr_2710	-	transcriptional regulator GntR
2675	 58.60	0	3291984..3293954	-	656	66045947	-	Psyr_2711	-	GGDEF
2676	 58.77	0	3294315..3294998	-	227	66045948	-	Psyr_2712	-	hypothetical protein
2677	 60.00	0	3295137..3296036	-	299	66045949	-	Psyr_2713	-	regulatory protein, LysR:LysR, substrate-binding
2678	 47.31	-2	3296175..3296639	-	154	66045950	-	Psyr_2714	-	putative transmembrane protein
2679	 61.29	0	3297028..3298422	+	464	66045951	-	Psyr_2715	-	major facilitator transporter
2680	 61.10	0	3298441..3299715	+	424	66045952	-	Psyr_2716	-	mandelate racemase/muconate lactonizing protein
2681	 59.87	0	3299916..3300224	-	102	66045953	-	Psyr_2717	-	antibiotic biosynthesis monooxygenase
2682	 61.52	0	3300251..3301435	-	394	66045954	-	Psyr_2718	-	hypothetical protein
2683	 64.26	+1	3301757..3302338	+	193	66045955	-	Psyr_2719	-	regulatory protein, TetR
2684	 63.59	+1	3302344..3303318	-	324	66045956	-	Psyr_2720	-	Urea amidolyase-related protein
2685	 61.05	0	3303315..3304187	-	290	66045957	-	Psyr_2721	-	hypothetical protein
2686	 62.70	0	3304274..3305029	-	251	66045958	-	Psyr_2722	-	hypothetical protein
2687	 60.89	0	3305185..3306102	+	305	66045959	-	Psyr_2723	-	regulatory protein, LysR:LysR, substrate-binding
2688	 58.11	0	3306234..3306689	-	151	66045960	-	Psyr_2724	-	hypothetical protein
2689	 65.16	+1	3306708..3307970	-	420	66045961	-	Psyr_2725	-	thiolase
2690	 62.88	0	3307967..3309868	-	633	66045962	-	Psyr_2726	-	feruloyl-CoA synthase
2691	 64.25	+1	3310036..3311484	-	482	66045963	-	Psyr_2727	-	aldehyde dehydrogenase
2692	 58.84	0	3311551..3312381	-	276	66045964	-	Psyr_2728	-	p-hydroxycinnamoyl CoA hydratase/lyase
2693	 60.94	0	3312593..3313081	+	162	66045965	-	Psyr_2729	-	regulatory protein, MarR
2694	 60.09	0	3313111..3314433	-	440	66045966	-	Psyr_2730	-	outer membrane porin
2695	 62.57	0	3314762..3315982	+	406	66045967	-	Psyr_2731	-	putative 3-hydroxyphenylpropionic transporter MhpT
2696	 56.65	0	3316494..3317441	-	315	66045968	-	Psyr_2732	-	putative signal peptide
2697	 60.03	0	3317526..3318293	-	255	66045969	-	Psyr_2733	-	3-alpha-hydroxysteroid dehydrogenase
2698	 62.96	0	3318380..3319861	-	493	66045970	-	Psyr_2734	-	aldehyde dehydrogenase
2699	 62.41	0	3320139..3321902	+	587	66045971	-	Psyr_2735	-	helix-turn-helix, Fis-type
2700	 61.97	0	3321952..3324015	-	687	66045972	-	Psyr_2736	-	glycosidase, putative
2701	 63.18	0	3324180..3324695	-	171	66045973	-	Psyr_2737	-	hypothetical protein
2702	 53.40	-1	3324746..3325069	-	107	66045974	-	Psyr_2738	-	regulatory protein, LysR
2703	 61.55	0	3325272..3325877	-	201	66045975	-	Psyr_2739	-	ThiJ/PfpI
2704	 62.37	0	3326020..3326973	+	317	66045976	ftrA	Psyr_2740	-	transcriptional activator FtrA
2705	 65.16	+1	3326933..3328123	-	396	66045977	-	Psyr_2741	-	Beta-lactamase
2706	 65.11	+1	3328127..3329281	-	384	66045978	-	Psyr_2742	-	Iron-containing alcohol dehydrogenase
59.35	MEAN

4.19	STD DEV
