IslandPath Analysis: Pseudomonas syringae pv. syringae B728a

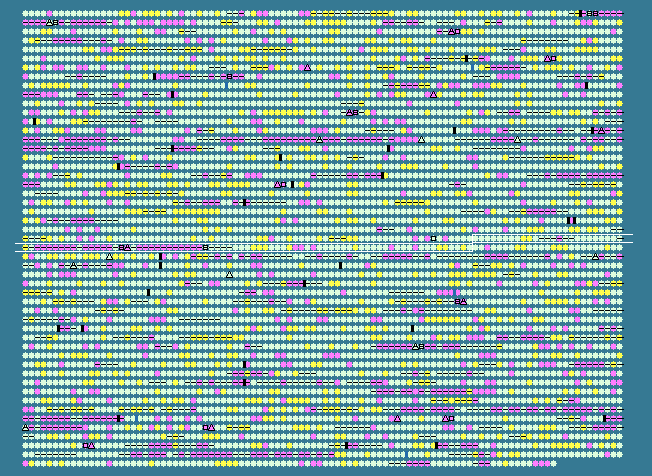

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.35 STD DEV: 4.19
Pseudomonas syringae pv. syringae B728a, complete genome - 1..6093698
5089 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2576	 61.96	0	3095877..3096938	+	353	66045848	-	Psyr_2612	-	syrP protein, putative
2577	 58.67	0	3097019..3098719	+	566	66045849	-	Psyr_2613	-	cyclic peptide transporter
2578	 62.54	0	3098777..3114895	+	5372	66045850	-	Psyr_2614	-	amino acid adenylation
2579	 61.80	0	3114892..3131301	+	5469	66045851	-	Psyr_2615	-	amino acid adenylation
2580	 62.69	0	3131727..3172340	+	13537	66045852	-	Psyr_2616	-	amino acid adenylation
2581	 59.07	0	3172404..3173561	+	385	66045853	-	Psyr_2617	-	secretion protein HlyD
2582	 60.35	0	3173564..3175525	+	653	66045854	-	Psyr_2618	-	ABC transporter
2583	 60.97	0	3175740..3177074	-	444	66045855	-	Psyr_2619	-	diaminobutyrate-2-oxoglutarate transaminase
2584	 63.45	0	3177351..3178781	+	476	66045856	-	Psyr_2620	-	RND efflux system, outer membrane lipoprotein, NodT
2585	 65.67	+1	3178778..3179881	+	367	66045857	-	Psyr_2621	-	secretion protein HlyD
2586	 59.80	0	3179878..3182922	+	1014	66045858	-	Psyr_2622	-	acriflavin resistance protein
2587	 58.33	0	3182993..3184252	-	419	66045859	-	Psyr_2623	-	hypothetical protein
2588	 56.09	0	3184308..3184808	-	166	66045860	-	Psyr_2624	-	putative lipoprotein
2589	 56.10	0	3184816..3185553	-	245	66045861	-	Psyr_2625	-	putative lipoprotein
2590	 55.04	-1	3185586..3187133	-	515	66045862	-	Psyr_2626	-	hypothetical protein
2591	 59.89	0	3187123..3188346	-	407	66045863	-	Psyr_2627	-	hypothetical protein
2592	 57.58	0	3188330..3189022	-	230	66045864	-	Psyr_2628	-	ABC transporter
2593	 57.78	0	3189024..3191015	-	663	66045865	-	Psyr_2629	-	von Willebrand factor, type A
2594	 59.48	0	3191012..3192040	-	342	66045866	-	Psyr_2630	-	hypothetical protein
2595	 60.63	0	3192044..3194743	-	899	66045867	-	Psyr_2631	-	type III effector HopL1
2596	 59.01	0	3194740..3197874	-	1044	66045868	-	Psyr_2632	-	virulence protein SrfB
2597	 59.44	0	3197886..3199241	-	451	66045869	-	Psyr_2633	-	hypothetical protein
2598	 57.83	0	3199820..3201448	+	542	66045870	-	Psyr_2634	-	histidine kinase, HAMP region: chemotaxis sensory transducer
2599	 59.97	0	3201692..3202870	+	392	66045871	-	Psyr_2635	-	hypothetical protein
2600	 58.50	0	3202967..3203407	-	146	66045872	-	Psyr_2636	-	TspO/MBR-related protein
2601	 63.42	0	3203776..3205101	+	441	66045873	-	Psyr_2637	-	FAD dependent oxidoreductase
2602	 58.73	0	3205149..3206219	-	356	66045874	-	Psyr_2638	-	hypothetical protein
2603	 55.48	0	3206701..3207165	+	154	66045875	-	Psyr_2639	-	hypothetical protein
2604	 52.35	-1	3207940..3208386	+	148	66045876	-	Psyr_2640	-	NUDIX hydrolase
2605	 45.34	-2	3209021..3209428	-	135	66045877	-	Psyr_2641	-	hypothetical protein
2606	 49.15	-2	3209425..3210069	-	214	66045878	-	Psyr_2642	-	hypothetical protein
2607	 53.09	-1	3210976..3212205	-	409	66045879	-	Psyr_2643	-	hypothetical protein
2608	 50.67	-2	3212729..3214660	+	643	66045880	-	Psyr_2644	-	hypothetical protein
2609	 54.50	-1	3215082..3215459	-	125	66045881	-	Psyr_2645	-	hypothetical protein
2610	 55.89	0	3216092..3218263	+	723	66045882	-	Psyr_2646	-	radical SAM family protein
2611	 54.76	-1	3218352..3219233	+	293	66045883	-	Psyr_2647	-	hypothetical protein
2612	 54.69	-1	3219218..3220411	+	397	66045884	-	Psyr_2648	-	hypothetical protein
2613	 53.35	-1	3220493..3221476	+	327	66045885	-	Psyr_2649	-	hypothetical protein
2614	 52.56	-1	3221945..3222412	+	155	66045886	-	Psyr_2650	-	hypothetical protein
2615	 52.60	-1	3222424..3223383	+	319	66045887	-	Psyr_2651	-	hypothetical protein
2616	 56.15	0	3223370..3224044	+	224	66045888	-	Psyr_2652	-	hypothetical protein
2617	 53.49	-1	3224311..3224826	+	171	66045889	-	Psyr_2653	-	ISPsy8, transposase OrfA
2618	 53.90	-1	3224856..3225662	+	268	66045890	-	Psyr_2654	-	integrase catalytic subunit
2619	 60.58	0	3225794..3226615	+	273	66045891	-	Psyr_2655	-	nitroreductase
2620	 53.85	-1	3226787..3227137	-	116	66045892	-	Psyr_2656	-	hypothetical protein
2621	 53.45	-1	3227281..3228120	+	279	66045893	-	Psyr_2657	-	hypothetical protein
2622	 49.74	-2	3228318..3229451	-	377	66045894	-	Psyr_2658	-	hypothetical protein
2623	 51.56	-1	3230030..3231307	-	425	66045895	-	Psyr_2659	-	hypothetical protein
2624	 50.35	-2	3231461..3231742	-	93	66045896	-	Psyr_2660	-	hypothetical protein
2625	 53.87	-1	3231832..3232917	-	361	66045897	-	Psyr_2661	-	hypothetical protein
2626	 52.43	-1	3232976..3233530	+	184	66045898	-	Psyr_2662	-	hypothetical protein
2627	 53.06	-1	3233912..3234271	-	119	66045899	-	Psyr_2663	-	hypothetical protein
2628	 52.92	-1	3234416..3235135	-	239	66045900	-	Psyr_2664	-	hypothetical protein
2629	 50.49	-2	3235541..3236047	+	168	66045901	-	Psyr_2665	-	phenazine biosynthesis PhzC/PhzF protein
2630	 51.70	-1	3236226..3236753	-	175	66045902	-	Psyr_2666	-	NUDIX hydrolase
2631	 61.95	0	3236917..3239802	-	961	66045903	-	Psyr_2667	-	transposase Tn3
2632	 60.65	0	3239928..3240542	+	204	66045904	-	Psyr_2668	-	helix-turn-helix, Fis-type
2633	 56.22	0	3240608..3241411	+	267	66045905	-	Psyr_2669	-	aminoglycoside phosphotransferase
2634	 56.08	0	3241417..3242247	+	276	66045906	-	Psyr_2670	-	aminoglycoside/hydroxyurea antibiotic resistance kinase
2635	 56.48	0	3242289..3243230	-	313	66045907	-	Psyr_2671	-	regulatory protein, LysR:LysR, substrate-binding
2636	 60.17	0	3243314..3244606	+	430	66045908	-	Psyr_2672	-	citrate transporter
2637	 61.68	0	3244607..3245971	+	454	66045909	-	Psyr_2673	-	hypothetical protein
2638	 60.61	0	3245968..3246330	+	120	66045910	-	Psyr_2674	-	hypothetical protein
2639	 64.09	+1	3246619..3247356	+	245	66045911	-	Psyr_2675	-	transcriptional regulator GntR
2640	 63.32	0	3247353..3248369	+	338	66045912	-	Psyr_2676	-	oligopeptide/dipeptide ABC transporter, ATP-binding protein, C-terminal
2641	 62.96	0	3248366..3249499	+	377	66045913	-	Psyr_2677	-	oligopeptide/dipeptide ABC transporter, ATP-binding protein, C-terminal
2642	 59.02	0	3249496..3250998	+	500	66045914	-	Psyr_2678	-	extracellular solute-binding protein
2643	 61.27	0	3251027..3251971	+	314	66045915	-	Psyr_2679	-	binding-protein dependent transport system inner membrane protein
2644	 61.86	0	3251971..3252843	+	290	66045916	-	Psyr_2680	-	binding-protein dependent transport system inner membrane protein
2645	 62.97	0	3252821..3254470	+	549	66045917	-	Psyr_2681	-	gamma-glutamyltransferase
2646	 53.73	-1	3254528..3256699	-	723	66045918	-	Psyr_2682	-	histidine kinase, HAMP region: chemotaxis sensory transducer
2647	 53.64	-1	3257181..3258608	+	475	66045919	-	Psyr_2683	-	arginine/ornithine antiporter
2648	 56.56	0	3258644..3259900	+	418	66045920	-	Psyr_2684	-	arginine deiminase
2649	 55.69	0	3259968..3260978	+	336	66045921	-	Psyr_2685	-	ornithine carbamoyltransferase
2650	 58.06	0	3261073..3262002	+	309	66045922	-	Psyr_2686	-	carbamate kinase
2651	 60.57	0	3262145..3263539	-	464	66045923	-	Psyr_2687	-	PepSY-associated TM helix
2652	 58.64	0	3263648..3264058	-	136	66045924	-	Psyr_2688	-	hypothetical protein
2653	 60.49	0	3265023..3266171	+	382	66045925	-	Psyr_2689	-	UDP-4-amino-4-deoxy-L-arabinose--oxoglutarate aminotransferase
2654	 60.55	0	3266168..3267181	+	337	66045926	-	Psyr_2690	-	glycosyl transferase family protein
2655	 59.65	0	3267178..3269172	+	664	66045927	-	Psyr_2691	-	bifunctional UDP-glucuronic acid decarboxylase/UDP-4-amino-4-deoxy-L-arabinose formyltransferase
2656	 63.61	+1	3269172..3270053	+	293	66045928	-	Psyr_2692	-	polysaccharide deacetylase
2657	 61.04	0	3270050..3271702	+	550	66045929	arnT	Psyr_2693	-	4-amino-4-deoxy-L-arabinose transferase
2658	 62.08	0	3271711..3272037	+	108	66045930	-	Psyr_2694	-	hypothetical protein
2659	 60.46	0	3272034..3272468	+	144	66045931	-	Psyr_2695	-	hypothetical protein
2660	 60.57	0	3272446..3273840	+	464	66045932	-	Psyr_2696	-	UDP-glucose 6-dehydrogenase
2661	 59.85	0	3273861..3275342	-	493	66045933	-	Psyr_2697	-	glycosyl transferase family protein
2662	 51.12	-1	3275756..3278167	+	803	66045934	-	Psyr_2698	-	Ricin B lectin
2663	 60.00	0	3278314..3279333	-	339	66045935	-	Psyr_2699	-	hypothetical protein
2664	 56.01	0	3279755..3281359	-	534	66045936	-	Psyr_2700	-	histidine kinase
2665	 58.36	0	3281504..3282646	-	380	66045937	-	Psyr_2701	-	hypothetical protein
2666	 54.57	-1	3282649..3283830	-	393	66045938	-	Psyr_2702	-	UDP-galactopyranose mutase
2667	 56.46	0	3283818..3285002	-	394	66045939	-	Psyr_2703	-	hypothetical protein
2668	 59.09	0	3285422..3286450	+	342	66045940	-	Psyr_2704	-	UDP-glucose 4-epimerase
2669	 58.50	0	3286524..3287135	-	203	66045941	-	Psyr_2705	-	helix-hairpin-helix DNA-binding motif-containing protein
2670	 64.67	+1	3287200..3287949	-	249	66045942	-	Psyr_2706	-	glutamine amidotransferase
2671	 64.64	+1	3288077..3288964	+	295	66045943	-	Psyr_2707	-	regulatory protein, LysR:LysR, substrate-binding
2672	 61.50	0	3289110..3290174	+	354	66045944	-	Psyr_2708	-	Rieske [2Fe-2S] region
2673	 61.20	0	3290248..3291198	+	316	66045945	-	Psyr_2709	-	ferredoxin:oxidoreductase FAD/NAD(P)-binding:oxidoreductase FAD-binding region
2674	 64.28	+1	3291199..3291909	-	236	66045946	-	Psyr_2710	-	transcriptional regulator GntR
2675	 58.60	0	3291984..3293954	-	656	66045947	-	Psyr_2711	-	GGDEF
59.35	MEAN

4.19	STD DEV
