IslandPath Analysis: Pseudomonas syringae pv. syringae B728a

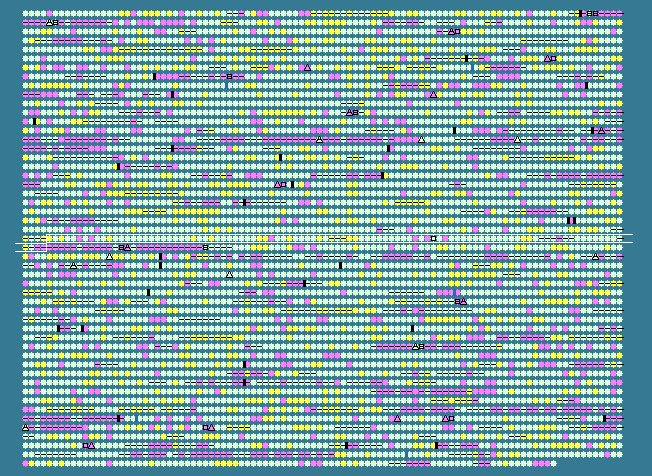

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.35 STD DEV: 4.19
Pseudomonas syringae pv. syringae B728a, complete genome - 1..6093698
5089 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2505	 63.71	+1	2956344..2957357	+	337	66045777	-	Psyr_2541	-	oligopeptide/dipeptide ABC transporter, ATP-binding protein, C-terminal
2506	 60.73	0	2957409..2958974	+	521	66045778	-	Psyr_2542	-	extracellular solute-binding protein
2507	 63.45	0	2959044..2959571	+	175	66045779	-	Psyr_2543	-	hypothetical protein
2508	 60.54	0	2959571..2960158	+	195	66045780	-	Psyr_2544	-	alkylhydroperoxidase AhpD core
2509	 60.15	0	2960263..2961060	+	265	66045781	-	Psyr_2545	-	metallophosphoesterase
2510	 53.33	-1	2961089..2961448	-	119	66045782	-	Psyr_2546	-	DMT superfamily multiple drug (quaternary ammonium compounds) efflux pump
2511	 58.79	0	2961449..2962642	-	397	66045783	-	Psyr_2547	-	Orn/DAP/Arg decarboxylase 2:Orn/DAP/Arg decarboxylase 2
2512	 42.59	-2	2962772..2963041	-	89	66045784	-	Psyr_2548	-	hypothetical protein
2513	 60.32	0	2963117..2964187	+	356	66045785	-	Psyr_2549	-	hypothetical protein
2514	 60.54	0	2964184..2964738	+	184	66045786	-	Psyr_2550	-	hypothetical protein
2515	 64.20	+1	2964735..2965991	+	418	66045787	-	Psyr_2551	-	aminotransferase class-III
2516	 60.47	0	2966004..2966471	+	155	66045788	-	Psyr_2552	-	cyclase/dehydrase
2517	 61.89	0	2966473..2967582	+	369	66045789	-	Psyr_2553	-	dehydrogenase domain-containing protein
2518	 61.36	0	2967617..2968633	+	338	66045790	-	Psyr_2554	-	Fatty acid desaturase
2519	 58.87	0	2968638..2969150	+	170	66045791	-	Psyr_2555	-	(dCTP deaminase), deoxycytidine triphosphate deaminase
2520	 57.48	0	2969153..2969827	+	224	66045792	dcd	Psyr_2556	-	deoxycytidine triphosphate deaminase
2521	 61.50	0	2969817..2971712	+	631	66045793	-	Psyr_2557	-	phosphoenolpyruvate synthase/pyruvate phosphate dikinase
2522	 58.02	0	2971709..2972887	+	392	66045794	-	Psyr_2558	-	hypothetical protein
2523	 61.74	0	2972912..2974048	+	378	66045795	-	Psyr_2559	-	hypothetical protein
2524	 62.75	0	2974045..2975091	+	348	66045796	-	Psyr_2560	-	hypothetical protein
2525	 59.01	0	2975104..2975691	+	195	66045797	-	Psyr_2561	-	hypothetical protein
2526	 62.50	0	2975688..2977271	+	527	66045798	-	Psyr_2562	-	hypothetical protein
2527	 60.28	0	2977310..2978107	+	265	66045799	-	Psyr_2563	-	HAD family hydrolase
2528	 58.16	0	2978136..2978876	+	246	66045800	-	Psyr_2564	-	transcriptional regulator GntR
2529	 63.95	+1	2978988..2979650	-	220	66045801	-	Psyr_2565	-	Dak phosphatase
2530	 61.78	0	2979654..2980655	-	333	66045802	-	Psyr_2566	-	Glycerone kinase
2531	 60.93	0	2980696..2981811	-	371	66045803	-	Psyr_2567	-	zinc-containing alcohol dehydrogenase superfamily protein
2532	 64.42	+1	2981841..2982596	-	251	66045804	-	Psyr_2568	-	short chain dehydrogenase
2533	 59.55	0	2982805..2983815	-	336	66045805	-	Psyr_2569	-	periplasmic binding protein/LacI transcriptional regulator
2534	 60.63	0	2983859..2984836	-	325	66045806	-	Psyr_2570	-	inner-membrane translocator
2535	 61.42	0	2984833..2986320	-	495	66045807	-	Psyr_2571	-	ABC transporter
2536	 59.52	0	2986599..2987060	+	153	66045808	-	Psyr_2572	-	ribose/galactose isomerase
2537	 60.95	0	2987095..2988108	+	337	66045809	-	Psyr_2573	-	putative sugar-binding region
2538	 60.44	0	2988178..2990553	+	791	66045810	-	Psyr_2574	-	quinoprotein
2539	 60.98	0	2990641..2991414	-	257	66045811	-	Psyr_2575	-	regulatory protein, LuxR
2540	 63.08	0	2991703..3001200	+	3165	66045812	-	Psyr_2576	-	amino acid adenylation
2541	 63.05	0	3001197..3018977	+	5926	66045813	-	Psyr_2577	-	amino acid adenylation
2542	 54.92	-1	3019095..3019775	-	226	66045814	-	Psyr_2578	-	regulatory protein, LuxR
2543	 62.07	0	3020119..3021555	-	478	66045815	-	Psyr_2579	-	aldehyde dehydrogenase
2544	 60.00	0	3022000..3022509	+	169	66045816	-	Psyr_2580	-	sigma-70 region 2
2545	 63.66	+1	3022506..3023471	+	321	66045817	-	Psyr_2581	-	FecR protein
2546	 60.94	0	3023541..3025949	+	802	66045818	-	Psyr_2582	-	TonB-dependent siderophore receptor
2547	 59.48	0	3026300..3027676	+	458	66045819	-	Psyr_2583	-	diaminobutyrate--2-oxoglutarate aminotransferase
2548	 61.57	0	3027873..3029657	+	594	66045820	-	Psyr_2584	-	IucA/IucC
2549	 61.12	0	3029650..3030858	+	402	66045821	-	Psyr_2585	-	Orn/DAP/Arg decarboxylase 2:Orn/DAP/Arg decarboxylase 2
2550	 65.17	+1	3030855..3032261	+	468	66045822	-	Psyr_2586	-	EmrB/QacA family drug resistance transporter
2551	 61.18	0	3032283..3034142	+	619	66045823	-	Psyr_2587	-	IucA/IucC
2552	 63.58	+1	3034139..3034915	+	258	66045824	-	Psyr_2588	-	HpcH/HpaI aldolase
2553	 59.71	0	3034919..3036802	+	627	66045825	-	Psyr_2589	-	IucA/IucC
2554	 63.36	0	3036792..3037697	+	301	66045826	-	Psyr_2590	-	periplasmic binding protein
2555	 64.34	+1	3037694..3038683	+	329	66045827	-	Psyr_2591	-	transport system permease protein
2556	 63.76	+1	3038676..3039707	+	343	66045828	-	Psyr_2592	-	transport system permease protein
2557	 61.24	0	3039718..3040509	+	263	66045829	-	Psyr_2593	-	ABC transporter
2558	 60.51	0	3040506..3041285	+	259	66045830	-	Psyr_2594	-	hypothetical protein
2559	 59.22	0	3041282..3041926	+	214	66045831	-	Psyr_2595	-	dimethylmenaquinone methyltransferase
2560	 56.24	0	3042083..3043444	+	453	66045832	-	Psyr_2596	-	PAS
2561	 57.32	0	3043718..3045322	+	534	66045833	-	Psyr_2597	-	GGDEF
2562	 58.12	0	3045628..3051465	+	1945	66045834	-	Psyr_2598	-	putative DNA helicase
2563	 59.07	0	3051490..3052608	-	372	66045835	-	Psyr_2599	-	metallophosphoesterase
2564	 60.78	0	3052805..3053161	+	118	66045836	-	Psyr_2600	-	hypothetical protein
2565	 57.08	0	3053694..3054548	-	284	66045837	-	Psyr_2601	-	regulatory protein, LuxR
2566	 53.04	-1	3055600..3056406	-	268	66045838	-	Psyr_2602	-	regulatory protein, LuxR
2567	 56.15	0	3057159..3058328	+	389	66045839	-	Psyr_2603	-	secretion protein HlyD
2568	 51.32	-1	3058574..3059179	+	201	66045840	-	Psyr_2604	-	hypothetical protein
2569	 57.83	0	3059276..3059773	+	165	66045841	-	Psyr_2605	-	transposase, putative
2570	 60.06	0	3060225..3061661	-	478	66045842	-	Psyr_2606	-	RND efflux system, outer membrane lipoprotein, NodT
2571	 55.11	-1	3061640..3062470	-	276	66045843	-	Psyr_2607	-	regulatory protein, LuxR
2572	 61.96	0	3062695..3091191	-	9498	66045844	-	Psyr_2608	-	amino acid adenylation
2573	 60.31	0	3091468..3092679	-	403	66045845	-	Psyr_2609	-	Alpha/beta hydrolase fold
2574	 56.16	0	3092751..3093683	-	310	66045846	-	Psyr_2610	-	chlorinating enzyme
2575	 62.06	0	3093701..3095545	-	614	66045847	-	Psyr_2611	-	amino acid adenylation
2576	 61.96	0	3095877..3096938	+	353	66045848	-	Psyr_2612	-	syrP protein, putative
2577	 58.67	0	3097019..3098719	+	566	66045849	-	Psyr_2613	-	cyclic peptide transporter
2578	 62.54	0	3098777..3114895	+	5372	66045850	-	Psyr_2614	-	amino acid adenylation
2579	 61.80	0	3114892..3131301	+	5469	66045851	-	Psyr_2615	-	amino acid adenylation
2580	 62.69	0	3131727..3172340	+	13537	66045852	-	Psyr_2616	-	amino acid adenylation
2581	 59.07	0	3172404..3173561	+	385	66045853	-	Psyr_2617	-	secretion protein HlyD
2582	 60.35	0	3173564..3175525	+	653	66045854	-	Psyr_2618	-	ABC transporter
2583	 60.97	0	3175740..3177074	-	444	66045855	-	Psyr_2619	-	diaminobutyrate-2-oxoglutarate transaminase
2584	 63.45	0	3177351..3178781	+	476	66045856	-	Psyr_2620	-	RND efflux system, outer membrane lipoprotein, NodT
2585	 65.67	+1	3178778..3179881	+	367	66045857	-	Psyr_2621	-	secretion protein HlyD
2586	 59.80	0	3179878..3182922	+	1014	66045858	-	Psyr_2622	-	acriflavin resistance protein
2587	 58.33	0	3182993..3184252	-	419	66045859	-	Psyr_2623	-	hypothetical protein
2588	 56.09	0	3184308..3184808	-	166	66045860	-	Psyr_2624	-	putative lipoprotein
2589	 56.10	0	3184816..3185553	-	245	66045861	-	Psyr_2625	-	putative lipoprotein
2590	 55.04	-1	3185586..3187133	-	515	66045862	-	Psyr_2626	-	hypothetical protein
2591	 59.89	0	3187123..3188346	-	407	66045863	-	Psyr_2627	-	hypothetical protein
2592	 57.58	0	3188330..3189022	-	230	66045864	-	Psyr_2628	-	ABC transporter
2593	 57.78	0	3189024..3191015	-	663	66045865	-	Psyr_2629	-	von Willebrand factor, type A
2594	 59.48	0	3191012..3192040	-	342	66045866	-	Psyr_2630	-	hypothetical protein
2595	 60.63	0	3192044..3194743	-	899	66045867	-	Psyr_2631	-	type III effector HopL1
2596	 59.01	0	3194740..3197874	-	1044	66045868	-	Psyr_2632	-	virulence protein SrfB
2597	 59.44	0	3197886..3199241	-	451	66045869	-	Psyr_2633	-	hypothetical protein
2598	 57.83	0	3199820..3201448	+	542	66045870	-	Psyr_2634	-	histidine kinase, HAMP region: chemotaxis sensory transducer
2599	 59.97	0	3201692..3202870	+	392	66045871	-	Psyr_2635	-	hypothetical protein
2600	 58.50	0	3202967..3203407	-	146	66045872	-	Psyr_2636	-	TspO/MBR-related protein
2601	 63.42	0	3203776..3205101	+	441	66045873	-	Psyr_2637	-	FAD dependent oxidoreductase
2602	 58.73	0	3205149..3206219	-	356	66045874	-	Psyr_2638	-	hypothetical protein
2603	 55.48	0	3206701..3207165	+	154	66045875	-	Psyr_2639	-	hypothetical protein
2604	 52.35	-1	3207940..3208386	+	148	66045876	-	Psyr_2640	-	NUDIX hydrolase
59.35	MEAN

4.19	STD DEV
