IslandPath Analysis: Pseudomonas syringae pv. syringae B728a

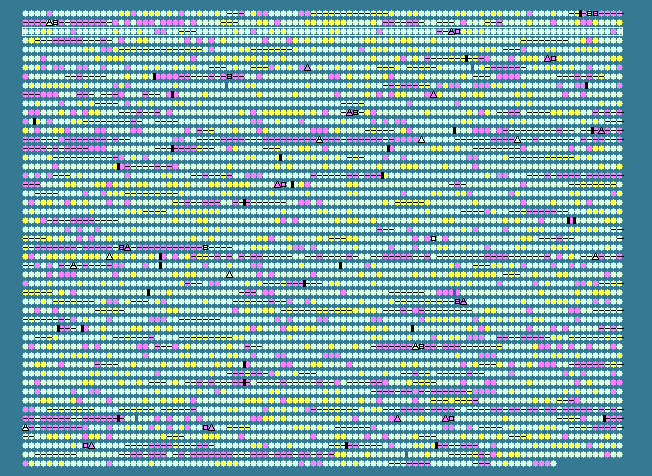

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.35 STD DEV: 4.19
Pseudomonas syringae pv. syringae B728a, complete genome - 1..6093698
5089 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
201	 60.50	0	217547..218470	-	307	66043472	-	Psyr_0202	-	regulatory protein, LysR:LysR, substrate-binding
202	 61.98	0	218563..219309	-	248	66043473	-	Psyr_0203	-	TonB, C-terminal
203	 58.45	0	219306..219731	-	141	66043474	-	Psyr_0204	-	biopolymer transport protein ExbD
204	 63.45	0	219735..220697	-	320	66043475	-	Psyr_0205	-	MotA/TolQ/ExbB proton channel
205	 63.49	0	220906..221754	+	282	66043476	-	Psyr_0206	-	hypothetical protein
206	 61.11	0	221807..222544	-	245	66043477	-	Psyr_0207	-	putative lipoprotein
207	 56.69	0	222599..222979	-	126	66043478	-	Psyr_0208	-	YjgF-like protein
208	 60.40	0	223004..225127	-	707	66043479	-	Psyr_0209	-	RelA/SpoT protein
209	 54.55	-1	225170..225433	-	87	66043480	rpoZ	Psyr_0210	-	DNA-directed RNA polymerase subunit omega
210	 60.31	0	225581..226225	-	214	66043481	gmk	Psyr_0211	-	guanylate kinase
211	 61.92	0	226239..227102	-	287	66043482	-	Psyr_0212	-	hypothetical protein
212	 61.27	0	227415..228137	+	240	66043483	rph	Psyr_0213	-	ribonuclease PH
213	 56.37	0	228159..228527	+	122	66043484	-	Psyr_0214	-	hypothetical protein
214	 59.23	0	228597..229376	-	259	66043485	-	Psyr_0215	-	exodeoxyribonuclease III xth
215	 60.75	0	229459..230100	+	213	66043486	pyrE	Psyr_0216	-	orotate phosphoribosyltransferase
216	 64.61	+1	230111..230743	+	210	66043487	-	Psyr_0217	-	hypothetical protein
217	 60.60	0	231075..231980	-	301	66043488	-	Psyr_0218	-	acetylglutamate kinase
218	 59.59	0	232009..233406	-	465	66043489	-	Psyr_0219	-	phosphomannomutase
219	 62.50	0	234646..235101	-	151	66043490	dut	Psyr_0220	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
220	 64.82	+1	235108..236355	-	415	66043491	-	Psyr_0221	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
221	 60.44	0	236452..237126	+	224	66043492	radC	Psyr_0222	-	DNA repair protein RadC
222	 59.23	0	237260..238846	-	528	66043493	-	Psyr_0223	-	extracellular solute-binding protein
223	 50.85	-2	239211..239444	+	77	66043494	rpmB	Psyr_0224	-	50S ribosomal protein L28
224	 44.23	-2	239456..239611	+	51	66043495	rpmG	Psyr_0225	-	50S ribosomal protein L33
225	 57.72	0	239693..240061	-	122	66043496	-	Psyr_0226	-	hypothetical protein
226	 61.93	0	240295..241794	+	499	66043497	-	Psyr_0227	-	aldehyde dehydrogenase
227	 65.10	+1	242037..243185	+	382	66043498	-	Psyr_0228	-	major facilitator transporter
228	 61.99	0	243182..244762	-	526	66043499	-	Psyr_0229	-	phospholipase D/transphosphatidylase
229	 62.24	0	244835..246256	-	473	66043500	-	Psyr_0230	-	transcriptional regulator GntR
230	 61.90	0	246432..246683	+	83	66043501	-	Psyr_0231	-	hypothetical protein
231	 62.40	0	246686..247999	-	437	66043502	-	Psyr_0232	-	FAD dependent oxidoreductase
232	 61.30	0	248105..248458	+	117	66043503	-	Psyr_0233	-	hypothetical protein
233	 58.90	0	248466..248954	-	162	66043504	-	Psyr_0234	-	regulatory proteins, AsnC/Lrp
234	 60.75	0	249112..250413	+	433	66043505	-	Psyr_0235	-	D-amino acid dehydrogenase small subunit
235	 61.30	0	250385..250738	+	117	66043506	-	Psyr_0236	-	endoribonuclease L-PSP
236	 63.69	+1	250813..251886	+	357	66043507	dadX	Psyr_0237	-	alanine racemase
237	 57.67	0	251961..252560	+	199	66043508	-	Psyr_0238	-	helix-hairpin-helix DNA-binding motif-containing protein
238	 61.42	0	252586..252909	+	107	66043509	-	Psyr_0239	-	cytochrome c5
239	 55.29	0	252906..253160	+	84	66043510	-	Psyr_0240	-	hypothetical protein
240	 62.32	0	253210..255141	+	643	66043511	-	Psyr_0241	-	hypothetical protein
241	 62.67	0	255189..255713	-	174	66043512	-	Psyr_0242	-	hypothetical protein
242	 64.56	+1	255795..256505	+	236	66043513	-	Psyr_0243	-	cyclic nucleotide-binding
243	 60.88	0	256622..257623	+	333	66043514	-	Psyr_0244	-	extracellular solute-binding protein
244	 64.19	+1	257895..259511	+	538	66043515	-	Psyr_0245	-	binding-protein dependent transport system inner membrane protein
245	 60.39	0	259665..260747	+	360	66043516	gcvT	Psyr_0246	-	glycine cleavage system aminomethyltransferase T
246	 59.95	0	260791..261177	+	128	66043517	gcvH	Psyr_0247	-	glycine cleavage system protein H
247	 57.32	0	261247..261567	-	106	66043518	-	Psyr_0248	-	hypothetical protein
248	 61.29	0	261709..263493	-	594	66043519	-	Psyr_0249	-	type II secretion system protein E
249	 58.07	0	263604..263987	-	127	66043520	-	Psyr_0250	-	hypothetical protein
250	 58.17	0	264077..264547	+	156	66043521	-	Psyr_0251	-	regulatory proteins, AsnC/Lrp
251	 62.82	0	264861..266315	-	484	66043522	-	Psyr_0252	-	adenylate cyclase
252	 63.89	+1	266353..267540	+	395	66043523	-	Psyr_0253	-	acetylornithine deacetylase
253	 64.05	+1	267685..268983	+	432	66043524	-	Psyr_0254	-	N-acetylglutamate synthase
254	 59.76	0	269298..270905	-	535	66043525	-	Psyr_0255	-	glutamate--cysteine ligase
255	 61.98	0	271132..271515	-	127	66043526	-	Psyr_0256	-	phenylacetic acid degradation-related protein
256	 61.92	0	271515..273833	-	772	66043527	-	Psyr_0257	-	RNA binding S1
257	 61.00	0	274133..274873	+	246	66043528	ompR	Psyr_0258	-	osmolarity response regulator
258	 62.06	0	275025..276347	+	440	66043529	-	Psyr_0259	-	sensor histidine kinase
259	 56.62	0	276603..277070	-	155	66043530	-	Psyr_0260	-	hypothetical protein
260	 51.39	-1	277295..277582	-	95	66043531	-	Psyr_0261	-	hypothetical protein
261	 60.00	0	277811..278650	-	279	66043532	-	Psyr_0262	-	transport-associated protein
262	 60.58	0	278848..280194	+	448	66043533	-	Psyr_0263	-	helix-turn-helix, Fis-type
263	 61.30	0	280205..281992	+	595	66043534	-	Psyr_0264	-	PAS
264	 59.04	0	282046..282897	-	283	66043535	-	Psyr_0265	-	N-acetylmuramoyl-L-alanine amidase
265	 62.57	0	282921..284993	-	690	66043536	-	Psyr_0266	-	GGDEF
266	 61.19	0	284990..285865	-	291	66043537	-	Psyr_0267	-	endonuclease/exonuclease/phosphatase
267	 58.14	0	285875..286519	-	214	66043538	-	Psyr_0268	-	DSBA oxidoreductase
268	 60.03	0	286741..287448	+	235	66043539	-	Psyr_0269	-	GTPase EngB
269	 61.89	0	287690..290455	-	921	66043540	-	Psyr_0270	-	DNA polymerase I
270	 51.39	-1	290530..290817	+	95	66043541	-	Psyr_0271	-	hypothetical protein
271	 61.30	0	290854..291804	+	316	66043542	-	Psyr_0272	-	homoserine kinase
272	 50.66	-2	291899..292735	-	278	66043543	-	Psyr_0273	-	integrase catalytic subunit
273	 52.59	-1	292735..293274	-	179	66043544	-	Psyr_0274	-	ISPsy9, transposase OrfA
274	 63.06	0	293509..294450	-	313	66043545	-	Psyr_0275	-	periplasmic solute binding protein
275	 64.18	+1	294518..295000	+	160	66043546	-	Psyr_0276	-	zinc uptake regulation protein, putative
276	 62.10	0	295000..295788	+	262	66043547	-	Psyr_0277	-	ABC transporter
277	 62.99	0	295781..296569	+	262	66043548	-	Psyr_0278	-	hypothetical protein
278	 59.97	0	296608..297324	+	238	66043549	-	Psyr_0279	-	putative lipoprotein
279	 59.93	0	297477..299627	-	716	66043550	katE	Psyr_0280	-	hydroperoxidase II
280	 62.60	0	299935..300942	+	335	66043551	-	Psyr_0281	-	ABC transporter
281	 61.19	0	300942..301616	+	224	66043552	-	Psyr_0282	-	binding-protein dependent transport system inner membrane protein
282	 58.66	0	301667..302440	+	257	66043553	-	Psyr_0283	-	NLPA lipoprotein
283	 60.98	0	302686..303318	-	210	66043554	-	Psyr_0284	-	electron transport protein SCO1/SenC
284	 57.93	0	303388..303879	-	163	66043555	-	Psyr_0285	-	cytochrome C oxidase assembly protein
285	 58.99	0	304127..304777	+	216	66043556	-	Psyr_0286	-	hypothetical protein
286	 61.71	0	304898..306430	-	510	66043557	-	Psyr_0287	-	sulphate transporter
287	 58.57	0	306535..307275	-	246	66043558	-	Psyr_0288	-	carbonate dehydratase
288	 61.19	0	307483..308541	-	352	66043559	-	Psyr_0289	-	radical SAM family protein
289	 61.58	0	308664..309332	-	222	66043560	-	Psyr_0290	-	isoprenoid biosynthesis protein
290	 59.88	0	309519..310181	-	220	66043561	-	Psyr_0291	-	hypothetical protein
291	 60.14	0	310413..311423	+	336	66043562	-	Psyr_0292	-	delta-aminolevulinic acid dehydratase
292	 61.01	0	311440..313650	+	736	66043563	-	Psyr_0293	-	polyphosphate kinase
293	 60.91	0	313637..315217	-	526	66043564	-	Psyr_0294	-	exopolyphosphatase
294	 61.50	0	315811..316545	-	244	66043565	-	Psyr_0295	-	ABC transporter
295	 61.11	0	316532..317179	-	215	66043566	-	Psyr_0296	-	amino acid ABC transporter permease
296	 58.86	0	317179..317844	-	221	66043567	-	Psyr_0297	-	amino acid ABC transporter permease
297	 60.05	0	317876..318661	-	261	66043568	-	Psyr_0298	-	extracellular solute-binding protein
298	 62.55	0	318912..319616	+	234	66043569	-	Psyr_0299	-	transcriptional regulator GntR
299	 53.28	-1	319738..320088	+	116	66043570	-	Psyr_0300	-	thioredoxin
300	 57.38	0	320320..321579	+	419	66043571	rho	Psyr_0301	-	transcription termination factor Rho
59.35	MEAN

4.19	STD DEV
