IslandPath Analysis: Pseudomonas syringae pv. syringae B728a

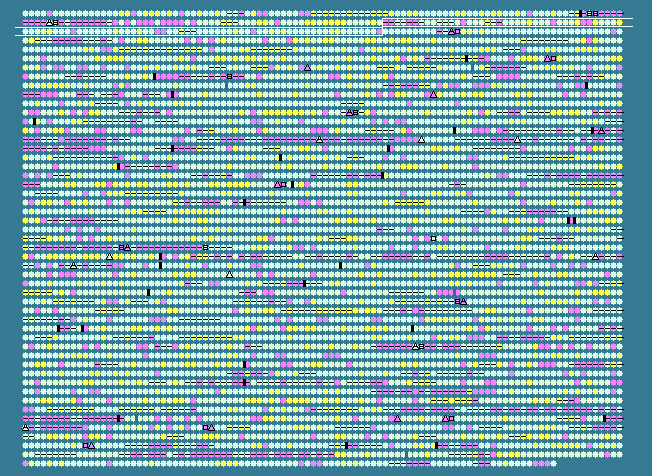

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.35 STD DEV: 4.19
Pseudomonas syringae pv. syringae B728a, complete genome - 1..6093698
5089 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
161	 52.67	-1	177069..177518	+	149	66043432	-	Psyr_0162	-	hypothetical protein
162	 53.25	-1	177649..178356	+	235	66043433	-	Psyr_0163	-	hypothetical protein
163	 58.30	0	178366..179082	+	238	66043434	-	Psyr_0164	-	hypothetical protein
164	 58.33	0	179100..179543	-	147	66043435	-	Psyr_0165	-	GCN5-related N-acetyltransferase
165	 42.03	-2	180107..181417	+	436	66043436	-	Psyr_0166	-	hypothetical protein
166	 42.79	-2	181423..181845	+	140	66043437	-	Psyr_0167	-	hypothetical protein
167	 60.84	0	182216..183760	-	514	66043438	-	Psyr_0168	-	phosphoenolpyruvate carboxykinase
168	 62.13	0	183940..184842	-	300	66043439	hslO	Psyr_0169	-	Hsp33-like chaperonin
169	 62.01	0	185020..185427	-	135	66043440	-	Psyr_0170	-	RNA-binding S4
170	 56.19	0	185595..186377	+	260	66043441	-	Psyr_0171	-	EAL
171	 58.28	0	186394..186870	+	158	66043442	-	Psyr_0172	-	hypothetical protein
172	 59.27	0	186867..187772	+	301	66043443	-	Psyr_0173	-	S6 modification enzyme RimK
173	 58.03	0	188229..189560	+	443	66043444	gltP	Psyr_0174	-	glutamate/aspartate:proton symporter
174	 55.80	0	189651..189926	+	91	66043445	-	Psyr_0175	-	hypothetical protein
175	 58.63	0	190143..190391	+	82	66043446	-	Psyr_0176	-	hypothetical protein
176	 60.98	0	190574..193420	+	948	66043447	cyaA	Psyr_0177	-	adenylate cyclase
177	 60.54	0	193552..193959	-	135	66043448	-	Psyr_0178	-	nucleoside diphosphate kinase regulator
178	 65.82	+1	194094..194330	-	78	66043449	-	Psyr_0179	-	hypothetical protein
179	 56.76	0	194333..194665	-	110	66043450	cyaY	Psyr_0180	-	frataxin-like protein
180	 54.42	-1	194904..195050	+	48	66043451	-	Psyr_0181	-	lipoprotein LppL
181	 62.58	0	195060..196307	+	415	66043452	-	Psyr_0182	-	diaminopimelate decarboxylase
182	 61.01	0	196313..197143	+	276	66043453	dapF	Psyr_0183	-	diaminopimelate epimerase
183	 62.45	0	197157..197891	+	244	66043454	-	Psyr_0184	-	hypothetical protein
184	 62.22	0	197894..198793	+	299	66043455	xerC	Psyr_0185	-	site-specific tyrosine recombinase XerC
185	 64.79	+1	198786..199478	+	230	66043456	-	Psyr_0186	-	HAD family hydrolase
186	 60.55	0	199549..199875	-	108	66043457	-	Psyr_0187	-	hypothetical protein
187	 60.56	0	199974..200399	-	141	66043458	-	Psyr_0188	-	hypothetical protein
188	 61.21	0	200642..201979	-	445	66043459	-	Psyr_0189	-	ammonium transporter
189	 52.80	-1	202013..202351	-	112	66043460	-	Psyr_0190	-	nitrogen regulatory protein P-II
190	 61.96	0	202769..203044	+	91	66043461	-	Psyr_0191	-	hypothetical protein
191	 62.06	0	203272..203901	+	209	66043462	-	Psyr_0192	-	hypothetical protein
192	 61.33	0	203917..204834	-	305	66043463	-	Psyr_0193	-	helix-turn-helix, AraC type:AraC-type transcriptional regulator, N-terminal
193	 63.27	0	205070..205804	+	244	66043464	-	Psyr_0194	-	Short-chain dehydrogenase/reductase SDR
194	 50.40	-2	205820..206563	-	247	66043465	-	Psyr_0195	-	hypothetical protein
195	 55.81	0	206567..209947	-	1126	66043466	-	Psyr_0196	-	hypothetical protein
196	 65.86	+1	210345..211838	+	497	66043467	-	Psyr_0197	-	Mg chelatase-related protein
197	 61.93	0	211908..213215	-	435	66043468	-	Psyr_0198	-	citrate transporter
198	 62.69	0	213512..213913	+	133	66043469	-	Psyr_0199	-	glutathione-dependent formaldehyde-activating, GFA
199	 60.94	0	213976..215373	-	465	66043470	-	Psyr_0200	-	hypothetical protein
200	 63.73	+1	215460..217535	-	691	66043471	-	Psyr_0201	-	ATP-dependent DNA helicase RecG
201	 60.50	0	217547..218470	-	307	66043472	-	Psyr_0202	-	regulatory protein, LysR:LysR, substrate-binding
202	 61.98	0	218563..219309	-	248	66043473	-	Psyr_0203	-	TonB, C-terminal
203	 58.45	0	219306..219731	-	141	66043474	-	Psyr_0204	-	biopolymer transport protein ExbD
204	 63.45	0	219735..220697	-	320	66043475	-	Psyr_0205	-	MotA/TolQ/ExbB proton channel
205	 63.49	0	220906..221754	+	282	66043476	-	Psyr_0206	-	hypothetical protein
206	 61.11	0	221807..222544	-	245	66043477	-	Psyr_0207	-	putative lipoprotein
207	 56.69	0	222599..222979	-	126	66043478	-	Psyr_0208	-	YjgF-like protein
208	 60.40	0	223004..225127	-	707	66043479	-	Psyr_0209	-	RelA/SpoT protein
209	 54.55	-1	225170..225433	-	87	66043480	rpoZ	Psyr_0210	-	DNA-directed RNA polymerase subunit omega
210	 60.31	0	225581..226225	-	214	66043481	gmk	Psyr_0211	-	guanylate kinase
211	 61.92	0	226239..227102	-	287	66043482	-	Psyr_0212	-	hypothetical protein
212	 61.27	0	227415..228137	+	240	66043483	rph	Psyr_0213	-	ribonuclease PH
213	 56.37	0	228159..228527	+	122	66043484	-	Psyr_0214	-	hypothetical protein
214	 59.23	0	228597..229376	-	259	66043485	-	Psyr_0215	-	exodeoxyribonuclease III xth
215	 60.75	0	229459..230100	+	213	66043486	pyrE	Psyr_0216	-	orotate phosphoribosyltransferase
216	 64.61	+1	230111..230743	+	210	66043487	-	Psyr_0217	-	hypothetical protein
217	 60.60	0	231075..231980	-	301	66043488	-	Psyr_0218	-	acetylglutamate kinase
218	 59.59	0	232009..233406	-	465	66043489	-	Psyr_0219	-	phosphomannomutase
219	 62.50	0	234646..235101	-	151	66043490	dut	Psyr_0220	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
220	 64.82	+1	235108..236355	-	415	66043491	-	Psyr_0221	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
221	 60.44	0	236452..237126	+	224	66043492	radC	Psyr_0222	-	DNA repair protein RadC
222	 59.23	0	237260..238846	-	528	66043493	-	Psyr_0223	-	extracellular solute-binding protein
223	 50.85	-2	239211..239444	+	77	66043494	rpmB	Psyr_0224	-	50S ribosomal protein L28
224	 44.23	-2	239456..239611	+	51	66043495	rpmG	Psyr_0225	-	50S ribosomal protein L33
225	 57.72	0	239693..240061	-	122	66043496	-	Psyr_0226	-	hypothetical protein
226	 61.93	0	240295..241794	+	499	66043497	-	Psyr_0227	-	aldehyde dehydrogenase
227	 65.10	+1	242037..243185	+	382	66043498	-	Psyr_0228	-	major facilitator transporter
228	 61.99	0	243182..244762	-	526	66043499	-	Psyr_0229	-	phospholipase D/transphosphatidylase
229	 62.24	0	244835..246256	-	473	66043500	-	Psyr_0230	-	transcriptional regulator GntR
230	 61.90	0	246432..246683	+	83	66043501	-	Psyr_0231	-	hypothetical protein
231	 62.40	0	246686..247999	-	437	66043502	-	Psyr_0232	-	FAD dependent oxidoreductase
232	 61.30	0	248105..248458	+	117	66043503	-	Psyr_0233	-	hypothetical protein
233	 58.90	0	248466..248954	-	162	66043504	-	Psyr_0234	-	regulatory proteins, AsnC/Lrp
234	 60.75	0	249112..250413	+	433	66043505	-	Psyr_0235	-	D-amino acid dehydrogenase small subunit
235	 61.30	0	250385..250738	+	117	66043506	-	Psyr_0236	-	endoribonuclease L-PSP
236	 63.69	+1	250813..251886	+	357	66043507	dadX	Psyr_0237	-	alanine racemase
237	 57.67	0	251961..252560	+	199	66043508	-	Psyr_0238	-	helix-hairpin-helix DNA-binding motif-containing protein
238	 61.42	0	252586..252909	+	107	66043509	-	Psyr_0239	-	cytochrome c5
239	 55.29	0	252906..253160	+	84	66043510	-	Psyr_0240	-	hypothetical protein
240	 62.32	0	253210..255141	+	643	66043511	-	Psyr_0241	-	hypothetical protein
241	 62.67	0	255189..255713	-	174	66043512	-	Psyr_0242	-	hypothetical protein
242	 64.56	+1	255795..256505	+	236	66043513	-	Psyr_0243	-	cyclic nucleotide-binding
243	 60.88	0	256622..257623	+	333	66043514	-	Psyr_0244	-	extracellular solute-binding protein
244	 64.19	+1	257895..259511	+	538	66043515	-	Psyr_0245	-	binding-protein dependent transport system inner membrane protein
245	 60.39	0	259665..260747	+	360	66043516	gcvT	Psyr_0246	-	glycine cleavage system aminomethyltransferase T
246	 59.95	0	260791..261177	+	128	66043517	gcvH	Psyr_0247	-	glycine cleavage system protein H
247	 57.32	0	261247..261567	-	106	66043518	-	Psyr_0248	-	hypothetical protein
248	 61.29	0	261709..263493	-	594	66043519	-	Psyr_0249	-	type II secretion system protein E
249	 58.07	0	263604..263987	-	127	66043520	-	Psyr_0250	-	hypothetical protein
250	 58.17	0	264077..264547	+	156	66043521	-	Psyr_0251	-	regulatory proteins, AsnC/Lrp
251	 62.82	0	264861..266315	-	484	66043522	-	Psyr_0252	-	adenylate cyclase
252	 63.89	+1	266353..267540	+	395	66043523	-	Psyr_0253	-	acetylornithine deacetylase
253	 64.05	+1	267685..268983	+	432	66043524	-	Psyr_0254	-	N-acetylglutamate synthase
254	 59.76	0	269298..270905	-	535	66043525	-	Psyr_0255	-	glutamate--cysteine ligase
255	 61.98	0	271132..271515	-	127	66043526	-	Psyr_0256	-	phenylacetic acid degradation-related protein
256	 61.92	0	271515..273833	-	772	66043527	-	Psyr_0257	-	RNA binding S1
257	 61.00	0	274133..274873	+	246	66043528	ompR	Psyr_0258	-	osmolarity response regulator
258	 62.06	0	275025..276347	+	440	66043529	-	Psyr_0259	-	sensor histidine kinase
259	 56.62	0	276603..277070	-	155	66043530	-	Psyr_0260	-	hypothetical protein
260	 51.39	-1	277295..277582	-	95	66043531	-	Psyr_0261	-	hypothetical protein
59.35	MEAN

4.19	STD DEV
