IslandPath Analysis: Pseudomonas syringae pv. syringae B728a

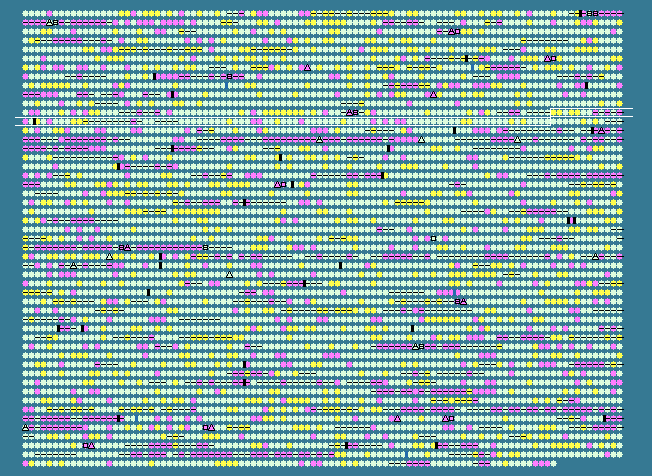

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.35 STD DEV: 4.19
Pseudomonas syringae pv. syringae B728a, complete genome - 1..6093698
5089 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1189	 65.83	+1	1367316..1368032	-	238	66044461	-	Psyr_1210	-	type III secretion protein HrcQa
1190	 63.70	+1	1368029..1368601	-	190	66044462	-	Psyr_1211	-	type III secretion protein HrpP
1191	 59.28	0	1368608..1369054	-	148	66044463	-	Psyr_1212	-	type III secretion protein HrpO
1192	 65.70	+1	1369057..1370406	-	449	66044464	HrcN	Psyr_1213	-	type III secretion cytoplasmic ATPase HrcN
1193	 62.97	0	1370403..1371377	-	324	66044465	-	Psyr_1214	-	type III secretion protein HrpQ
1194	 60.34	0	1371411..1373498	-	695	66044466	-	Psyr_1215	-	Type III secretion protein HrcV
1195	 60.58	0	1373498..1374679	-	393	66044467	-	Psyr_1216	-	type III secretion protein HrpJ
1196	 55.68	0	1374846..1375400	+	184	66044468	-	Psyr_1217	-	sigma-70 region 2:sigma-70 region 4
1197	 59.53	0	1375465..1377777	+	770	66044469	-	Psyr_1218	-	type III helper protein HrpK1
1198	 50.62	-2	1377971..1378942	+	323	79093592	AvrB3	Psyr_1219	-	type III effector protein AvrB3
1199	 57.88	0	1379091..1380239	+	382	66044471	-	Psyr_1220	-	type III effector HopX1
1200	 49.03	-2	1382497..1383732	-	411	66044472	-	Psyr_1224	-	type III effector HopZ3
1201	 51.21	-1	1383729..1384181	-	150	66044473	-	Psyr_1225	-	hypothetical protein
1202	 61.30	0	1384596..1384949	-	117	66044474	-	Psyr_1226	-	hypothetical protein
1203	 63.10	0	1385354..1386418	+	354	66044475	queA	Psyr_1227	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
1204	 60.05	0	1386415..1387548	+	377	66044476	tgt	Psyr_1228	-	queuine tRNA-ribosyltransferase
1205	 55.06	-1	1387602..1387937	+	111	66044477	yajC	Psyr_1229	-	preprotein translocase subunit YajC
1206	 58.86	0	1388001..1389869	+	622	66044478	secD	Psyr_1230	-	preprotein translocase subunit SecD
1207	 60.20	0	1389879..1390790	+	303	66044479	secF	Psyr_1231	-	preprotein translocase subunit SecF
1208	 56.85	0	1390899..1391438	+	179	66044480	-	Psyr_1232	-	hypothetical protein
1209	 62.87	0	1391505..1392320	-	271	66044481	-	Psyr_1233	-	inositol monophosphatase
1210	 63.27	0	1392536..1393300	+	254	66044482	-	Psyr_1234	-	RNA methyltransferase TrmH, group 1
1211	 63.45	0	1393300..1394076	+	258	66044483	-	Psyr_1235	-	Serine O-acetyltransferase
1212	 57.32	0	1394236..1394727	+	163	66044484	-	Psyr_1236	-	transcription factor IscR
1213	 58.93	0	1394772..1395986	+	404	66044485	iscS	Psyr_1237	-	cysteine desulfurase
1214	 57.36	0	1396068..1396454	+	128	66044486	-	Psyr_1238	-	scaffold protein
1215	 57.72	0	1396526..1396849	+	107	66044487	-	Psyr_1239	-	HesB/YadR/YfhF:Iron-sulphur cluster assembly protein IscA
1216	 58.43	0	1396860..1397381	+	173	161486736	hscB	Psyr_1240	-	co-chaperone HscB
1217	 61.94	0	1397426..1399288	+	620	66044489	hscA	Psyr_1241	-	chaperone protein HscA
1218	 58.77	0	1399292..1399633	+	113	66044490	-	Psyr_1242	-	ferredoxin, 2Fe-2S type
1219	 55.72	0	1399648..1399848	+	66	66044491	-	Psyr_1243	-	hypothetical protein
1220	 56.57	0	1399945..1400370	+	141	66044492	-	Psyr_1244	-	nucleoside-diphosphate kinase
1221	 57.79	0	1400404..1401552	+	382	66044493	-	Psyr_1245	-	hypothetical protein
1222	 57.18	0	1401579..1402337	+	252	66044494	-	Psyr_1246	-	TPR repeat-containing protein
1223	 62.09	0	1402337..1403341	+	334	66044495	-	Psyr_1247	-	hypothetical protein
1224	 60.00	0	1403345..1404454	+	369	66044496	ispG	Psyr_1248	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
1225	 60.70	0	1404477..1405766	+	429	66044497	hisS	Psyr_1249	-	histidyl-tRNA synthetase
1226	 60.44	0	1405806..1406447	+	213	66044498	-	Psyr_1250	-	hypothetical protein
1227	 61.08	0	1406449..1407594	+	381	66044499	-	Psyr_1251	-	quinoprotein
1228	 60.35	0	1407732..1409204	+	490	66044500	engA	Psyr_1252	-	GTP-binding protein EngA
1229	 59.70	0	1409314..1410462	+	382	66044501	-	Psyr_1253	-	putative aminotransferase
1230	 60.48	0	1410450..1411241	+	263	66044502	-	Psyr_1254	-	Nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
1231	 57.99	0	1411352..1411789	-	145	66044503	-	Psyr_1255	-	hypothetical protein
1232	 59.89	0	1411859..1412728	-	289	66044504	-	Psyr_1256	-	carboxyphosphonoenolpyruvate phosphonomutase
1233	 60.74	0	1413086..1414756	-	556	66044505	-	Psyr_1257	-	2-isopropylmalate synthase
1234	 61.70	0	1415130..1415954	-	274	66044506	-	Psyr_1258	-	peptidase M23B
1235	 64.80	+1	1415962..1417353	-	463	66044507	xseA	Psyr_1259	-	exodeoxyribonuclease VII large subunit
1236	 58.47	0	1417473..1418021	+	182	66044508	-	Psyr_1260	-	hypothetical protein
1237	 60.14	0	1418116..1419585	+	489	66044509	-	Psyr_1261	-	inositol-5-monophosphate dehydrogenase
1238	 61.09	0	1419709..1421286	+	525	66044510	guaA	Psyr_1262	-	bifunctional GMP synthase/glutamine amidotransferase protein
1239	 51.67	-1	1421368..1426062	+	1564	66044511	-	Psyr_1263	-	ATPas
1240	 53.29	-1	1426659..1427144	+	161	66044512	-	Psyr_1264	-	hypothetical protein
1241	 56.95	0	1427595..1429571	+	658	66044513	-	Psyr_1265	-	hypothetical protein
1242	 61.64	0	1429748..1431121	+	457	66044514	-	Psyr_1266	-	twin-arginine translocation pathway signal
1243	 64.12	+1	1431121..1431630	+	169	66044515	-	Psyr_1267	-	cytidine/deoxycytidylate deaminase, zinc-binding region
1244	 58.65	0	1431627..1433123	-	498	66044516	-	Psyr_1268	-	extracellular solute-binding protein
1245	 61.77	0	1433337..1437233	+	1298	66044517	-	Psyr_1269	-	phosphoribosylformylglycinamidine synthase
1246	 59.62	0	1437239..1437550	+	103	66044518	-	Psyr_1270	-	hypothetical protein
1247	 54.96	-1	1437672..1438235	-	187	66044519	-	Psyr_1271	-	ErfK/YbiS/YcfS/YnhG
1248	 59.24	0	1438297..1438848	-	183	66044520	-	Psyr_1272	-	NUDIX hydrolase
1249	 60.30	0	1438999..1439595	+	198	66044521	-	Psyr_1273	-	NUDIX hydrolase
1250	 57.14	0	1439665..1440189	+	174	66044522	-	Psyr_1274	-	hexapaptide repeat-containing transferase
1251	 62.56	0	1440189..1440407	+	72	66044523	-	Psyr_1275	-	hypothetical protein
1252	 59.62	0	1441772..1442239	+	155	66044524	-	Psyr_1276	-	hypothetical protein
1253	 62.44	0	1442343..1443524	+	393	66044525	purT	Psyr_1277	-	phosphoribosylglycinamide formyltransferase 2
1254	 62.95	0	1443602..1444972	-	456	66044526	-	Psyr_1278	-	citrate-proton symport
1255	 58.65	0	1445063..1446310	-	415	66044527	-	Psyr_1279	-	CBS:transporter-associated region
1256	 58.60	0	1446323..1447177	-	284	66044528	-	Psyr_1280	-	cytochrome c assembly protein
1257	 60.49	0	1447349..1448725	+	458	66044529	-	Psyr_1281	-	Signal recognition particle protein
1258	 57.36	0	1448973..1449230	+	85	66044530	rpsP	Psyr_1282	-	30S ribosomal protein S16
1259	 53.89	-1	1449236..1449775	+	179	66044531	rimM	Psyr_1283	-	16S rRNA-processing protein
1260	 56.71	0	1449781..1450533	+	250	66044532	trmD	Psyr_1284	-	tRNA (guanine-N(1)-)-methyltransferase
1261	 52.14	-1	1450578..1450928	+	116	66044533	rplS	Psyr_1285	-	50S ribosomal protein L19
1262	 62.21	0	1451032..1451928	+	298	66044534	xerD	Psyr_1286	-	site-specific tyrosine recombinase XerD
1263	 48.87	-2	1452259..1452657	+	132	66044535	-	Psyr_1287	-	hypothetical protein
1264	 48.55	-2	1453055..1453777	+	240	66044536	-	Psyr_1288	-	hypothetical protein
1265	 59.38	0	1453992..1454732	+	246	66044537	-	Psyr_1289	-	glutaredoxin
1266	 58.55	0	1454782..1456173	+	463	66044538	-	Psyr_1290	-	homoserine dehydrogenase
1267	 58.79	0	1456278..1457687	+	469	66044539	-	Psyr_1291	-	threonine synthase
1268	 60.11	0	1457808..1461437	+	1209	66044540	-	Psyr_1292	-	PAS
1269	 61.23	0	1461470..1462831	+	453	66044541	-	Psyr_1293	-	EAL:response regulator receiver
1270	 61.54	0	1462804..1463466	-	220	66044542	-	Psyr_1294	-	LuxR response regulator receiver
1271	 58.25	0	1463756..1464052	+	98	66044543	-	Psyr_1295	-	hypothetical protein
1272	 59.04	0	1464224..1465102	-	292	66044544	-	Psyr_1296	-	hypothetical protein
1273	 58.08	0	1465245..1465931	+	228	66044545	-	Psyr_1297	-	YaeQ
1274	 62.88	0	1465993..1467708	+	571	66044546	-	Psyr_1298	-	RecJ exonuclease
1275	 62.87	0	1467821..1468927	+	368	66044547	-	Psyr_1299	-	NADH:flavin oxidoreductase/NADH oxidase
1276	 59.77	0	1468991..1471078	-	695	66044548	-	Psyr_1300	-	PAS
1277	 61.45	0	1471377..1472123	+	248	66044549	-	Psyr_1301	-	hypothetical protein
1278	 60.69	0	1472181..1478153	-	1990	66044550	-	Psyr_1302	-	leucine-rich repeat-containing protein
1279	 61.31	0	1478451..1480073	+	540	66044551	-	Psyr_1303	-	histidine kinase, HAMP region: chemotaxis sensory transducer
1280	 61.08	0	1480081..1480617	+	178	66044552	-	Psyr_1304	-	CheW-like protein
1281	 61.90	0	1480614..1481894	+	426	66044553	-	Psyr_1305	-	protein-glutamate O-methyltransferase
1282	 63.77	+1	1481894..1482583	+	229	66044554	-	Psyr_1306	-	CheW-like protein
1283	 62.53	0	1482580..1484949	+	789	66044555	-	Psyr_1307	-	response regulator receiver:CheW-like protein:ATP-binding region, ATPase-like:Hpt
1284	 62.91	0	1484946..1485956	+	336	66044556	-	Psyr_1308	-	chemotaxis-specific methylesterase
1285	 61.09	0	1486002..1487006	+	334	66044557	-	Psyr_1309	-	GGDEF
1286	 61.31	0	1487230..1488219	+	329	66044558	-	Psyr_1310	-	peptide chain release factor 2
1287	 60.01	0	1488289..1489791	+	500	66044559	lysS	Psyr_1311	-	lysyl-tRNA synthetase
1288	 59.64	0	1489883..1490608	+	241	66044560	-	Psyr_1312	-	regulatory protein, TetR
59.35	MEAN

4.19	STD DEV
