IslandPath Analysis: Pseudomonas syringae pv. syringae B728a

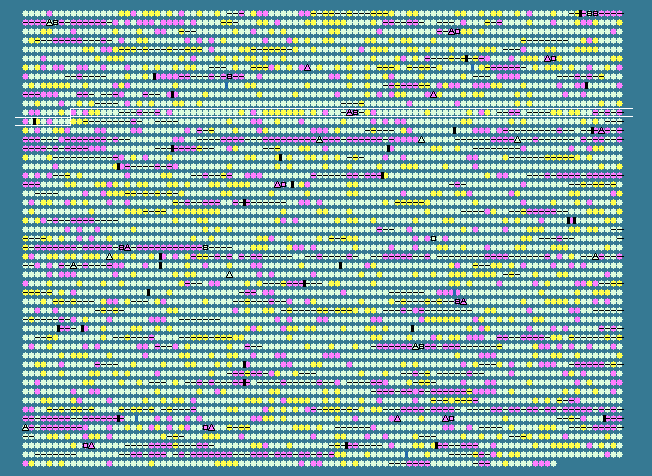

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.35 STD DEV: 4.19
Pseudomonas syringae pv. syringae B728a, complete genome - 1..6093698
5089 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1109	 53.54	-1	1281587..1281967	+	126	66044381	-	Psyr_1130	-	hypothetical protein
1110	 57.09	0	1282298..1282882	+	194	66044382	-	Psyr_1131	-	fimbrial protein
1111	 55.60	0	1282904..1283698	+	264	66044383	-	Psyr_1132	-	pili assembly chaperone: pili assembly chaperone
1112	 62.84	0	1283830..1286364	+	844	66044384	-	Psyr_1133	-	fimbrial biogenesis outer membrane usher protein
1113	 64.12	+1	1286361..1287146	+	261	66044385	-	Psyr_1134	-	pili assembly chaperone
1114	 57.46	0	1287148..1288146	+	332	66044386	-	Psyr_1135	-	hypothetical protein
1115	 60.44	0	1288240..1288464	+	74	66044387	-	Psyr_1136	-	hypothetical protein
1116	 60.05	0	1288482..1289237	-	251	66044388	-	Psyr_1137	-	hypothetical protein
1117	 60.39	0	1289354..1289815	-	153	66044389	-	Psyr_1138	-	GCN5-related N-acetyltransferase
1118	 59.53	0	1289881..1290777	-	298	66044390	-	Psyr_1139	-	response regulator receiver:CheW-like protein
1119	 59.61	0	1291384..1291893	+	169	66044391	-	Psyr_1140	-	disulfide bond formation protein B
1120	 54.46	-1	1292357..1293298	+	313	66044392	-	Psyr_1141	-	cytochrome o ubiquinol oxidase subunit II
1121	 57.72	0	1293302..1295314	+	670	66044393	-	Psyr_1142	-	cytochrome-c oxidase
1122	 57.35	0	1295318..1295950	+	210	66044394	-	Psyr_1143	-	cytochrome c oxidase, subunit III
1123	 52.25	-1	1295950..1296282	+	110	66044395	-	Psyr_1144	-	cytochrome C oxidase subunit IV
1124	 55.97	0	1296293..1297180	+	295	66044396	-	Psyr_1145	-	protoheme IX farnesyltransferase
1125	 54.35	-1	1297436..1298320	+	294	66044397	-	Psyr_1146	-	glycosyl transferase family protein
1126	 56.23	0	1298359..1299000	+	213	66044398	-	Psyr_1147	-	acetyltransferase
1127	 59.12	0	1299152..1300171	+	339	66044399	-	Psyr_1148	-	branched-chain amino acid aminotransferase
1128	 59.21	0	1300228..1301220	-	330	66044400	-	Psyr_1149	-	hypothetical protein
1129	 58.39	0	1301387..1303042	-	551	66044401	-	Psyr_1150	-	chemotaxis sensory transducer
1130	 58.21	0	1303150..1303941	-	263	66044402	-	Psyr_1151	-	prephenate dehydratase
1131	 57.28	0	1304087..1304395	+	102	66044403	-	Psyr_1152	-	regulatory protein, ArsR
1132	 60.63	0	1304459..1305469	+	336	66044404	-	Psyr_1153	-	zinc-containing alcohol dehydrogenase superfamily protein
1133	 60.69	0	1305713..1306231	+	172	66044405	-	Psyr_1154	-	copper/Zinc superoxide dismutase
1134	 57.14	0	1306345..1306554	-	69	66044406	-	Psyr_1155	-	hypothetical protein
1135	 56.78	0	1306913..1308652	+	579	66044407	-	Psyr_1156	-	hypothetical protein
1136	 57.76	0	1308739..1309995	-	418	66044408	-	Psyr_1157	-	PAS:GGDEF
1137	 62.87	0	1310315..1311685	+	456	66044409	-	Psyr_1158	-	gluconate transporter
1138	 57.32	0	1311737..1313983	-	748	66044410	-	Psyr_1159	-	PAS:GGDEF
1139	 49.93	-2	1314808..1315554	+	248	66044411	-	Psyr_1160	-	hypothetical protein
1140	 58.37	0	1315662..1316348	-	228	66044412	-	Psyr_1161	-	transcriptional regulator GntR
1141	 62.88	0	1316345..1316740	-	131	66044413	-	Psyr_1162	-	hypothetical protein
1142	 63.13	0	1316740..1317417	-	225	66044414	-	Psyr_1163	-	isochorismatase hydrolase
1143	 64.13	+1	1317414..1318949	-	511	66044415	-	Psyr_1164	-	ABC transporter
1144	 63.90	+1	1318952..1319638	-	228	66044416	-	Psyr_1165	-	isochorismatase hydrolase
1145	 63.23	0	1319643..1320659	-	338	66044417	amiF	Psyr_1166	-	formamidase
1146	 66.78	+1	1320687..1321607	-	306	66044418	-	Psyr_1167	-	inner-membrane translocator
1147	 66.04	+1	1321600..1322709	-	369	66044419	-	Psyr_1168	-	inner-membrane translocator
1148	 60.09	0	1322719..1323828	-	369	66044420	-	Psyr_1169	-	twin-arginine translocation pathway signal
1149	 64.03	+1	1323843..1325663	-	606	66044421	-	Psyr_1170	-	amidase
1150	 58.27	0	1325875..1326255	-	126	66044422	-	Psyr_1171	-	hypothetical protein
1151	 55.83	0	1326317..1326796	-	159	66044423	-	Psyr_1172	-	regulatory proteins, AsnC/Lrp
1152	 56.20	0	1326969..1327589	+	206	66044424	-	Psyr_1173	-	lysine exporter protein LysE/YggA
1153	 60.83	0	1327638..1329059	-	473	66044425	-	Psyr_1174	-	sugar transporter
1154	 58.53	0	1329470..1330096	+	208	66044426	-	Psyr_1175	-	glutathione S-transferase
1155	 50.66	-2	1330328..1331164	-	278	66044427	-	Psyr_1176	-	integrase catalytic subunit
1156	 52.59	-1	1331164..1331703	-	179	66044428	-	Psyr_1177	-	ISPsy9, transposase OrfA
1157	 57.41	0	1332053..1332214	-	53	66044429	-	Psyr_1178	-	hypothetical protein
1158	 63.12	0	1332278..1334023	-	581	66044430	-	Psyr_1179	-	OPT superfamily oligopeptide transporter
1159	 55.56	0	1334228..1334713	-	161	66044431	-	Psyr_1180	-	hypothetical protein
1160	 56.25	0	1334788..1335075	-	95	66044432	-	Psyr_1181	-	hypothetical protein
1161	 57.46	0	1335471..1336415	-	314	66044433	-	Psyr_1182	-	hypothetical protein
1162	 61.91	0	1336758..1338209	+	483	66044434	-	Psyr_1183	-	type III effector HopAA1
1163	 59.13	0	1338293..1339618	-	441	66044435	-	Psyr_1184	-	type III helper protein HrpW1
1164	 57.98	0	1339922..1340416	+	164	66044436	-	Psyr_1185	-	effector locus protein
1165	 62.77	0	1340413..1342569	+	718	66044437	-	Psyr_1186	-	type III effector HopM1
1166	 59.23	0	1342667..1343056	+	129	66044438	-	Psyr_1187	-	DspFAvrF
1167	 60.03	0	1343119..1348479	-	1786	66044439	AvrE1	Psyr_1188	-	type III effector protein AvrE1
1168	 63.45	0	1348699..1350222	+	507	66044440	-	Psyr_1189	-	SLT:MLTD_N
1169	 57.99	0	1351297..1352241	+	314	66044441	HrpR	Psyr_1190	-	type III transcriptional regulator HrpR
1170	 60.95	0	1352287..1353195	+	302	66044442	HrpS	Psyr_1191	-	type III transcriptional regulator HrpS
1171	 58.10	0	1353288..1353614	+	108	66044443	HrpA2	Psyr_1192	-	type III helper protein HrpA2
1172	 60.76	0	1353667..1354698	+	343	66044444	-	Psyr_1193	-	type III helper protein HrpZ1
1173	 58.93	0	1354726..1355100	+	124	66044445	HrpB	Psyr_1194	-	type III secretion protein HrpB
1174	 60.47	0	1355109..1355915	+	268	66044446	HrcJ	Psyr_1195	-	type III secretion protein HrcJ
1175	 63.64	+1	1355915..1356442	+	175	66044447	-	Psyr_1196	-	type III secretion protein HrpD
1176	 62.20	0	1356477..1357058	+	193	66044448	HrpE	Psyr_1197	-	type III secretion protein HrpE
1177	 52.44	-1	1357142..1357366	+	74	66044449	HrpF	Psyr_1198	-	type III secretion protein HrpF
1178	 63.72	+1	1357344..1357784	+	146	66044450	-	Psyr_1199	-	type III secretion protein HrpG
1179	 60.29	0	1357786..1359888	+	700	66044451	HrcC	Psyr_1200	-	outer-membrane type III secretion protein HrcC
1180	 60.29	0	1359885..1360088	+	67	66044452	-	Psyr_1201	-	type III secretion protein HrpT
1181	 57.76	0	1360091..1360438	+	115	66044453	-	Psyr_1202	-	negative regulator of hrp expression HrpV
1182	 46.11	-2	1361041..1361901	-	286	66044454	-	Psyr_1203	-	hypothetical protein
1183	 49.12	-2	1361898..1363601	-	567	66044455	-	Psyr_1204	-	hypothetical protein
1184	 57.31	0	1364133..1365212	-	359	66044456	HrcU	Psyr_1205	-	type III secretion protein HrcU
1185	 60.25	0	1365209..1366003	-	264	66044457	HrcT	Psyr_1206	-	type III secretion protein HrcT
1186	 60.67	0	1366004..1366270	-	88	66044458	HrcS	Psyr_1207	-	type III secretion protein HrcS
1187	 57.65	0	1366278..1366931	-	217	66044459	HrcR	Psyr_1208	-	type III secretion system protein
1188	 60.90	0	1366928..1367326	-	132	66044460	HrcQb	Psyr_1209	-	type III secretion protein HrcQb
1189	 65.83	+1	1367316..1368032	-	238	66044461	-	Psyr_1210	-	type III secretion protein HrcQa
1190	 63.70	+1	1368029..1368601	-	190	66044462	-	Psyr_1211	-	type III secretion protein HrpP
1191	 59.28	0	1368608..1369054	-	148	66044463	-	Psyr_1212	-	type III secretion protein HrpO
1192	 65.70	+1	1369057..1370406	-	449	66044464	HrcN	Psyr_1213	-	type III secretion cytoplasmic ATPase HrcN
1193	 62.97	0	1370403..1371377	-	324	66044465	-	Psyr_1214	-	type III secretion protein HrpQ
1194	 60.34	0	1371411..1373498	-	695	66044466	-	Psyr_1215	-	Type III secretion protein HrcV
1195	 60.58	0	1373498..1374679	-	393	66044467	-	Psyr_1216	-	type III secretion protein HrpJ
1196	 55.68	0	1374846..1375400	+	184	66044468	-	Psyr_1217	-	sigma-70 region 2:sigma-70 region 4
1197	 59.53	0	1375465..1377777	+	770	66044469	-	Psyr_1218	-	type III helper protein HrpK1
1198	 50.62	-2	1377971..1378942	+	323	79093592	AvrB3	Psyr_1219	-	type III effector protein AvrB3
1199	 57.88	0	1379091..1380239	+	382	66044471	-	Psyr_1220	-	type III effector HopX1
1200	 49.03	-2	1382497..1383732	-	411	66044472	-	Psyr_1224	-	type III effector HopZ3
1201	 51.21	-1	1383729..1384181	-	150	66044473	-	Psyr_1225	-	hypothetical protein
1202	 61.30	0	1384596..1384949	-	117	66044474	-	Psyr_1226	-	hypothetical protein
1203	 63.10	0	1385354..1386418	+	354	66044475	queA	Psyr_1227	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
1204	 60.05	0	1386415..1387548	+	377	66044476	tgt	Psyr_1228	-	queuine tRNA-ribosyltransferase
1205	 55.06	-1	1387602..1387937	+	111	66044477	yajC	Psyr_1229	-	preprotein translocase subunit YajC
1206	 58.86	0	1388001..1389869	+	622	66044478	secD	Psyr_1230	-	preprotein translocase subunit SecD
1207	 60.20	0	1389879..1390790	+	303	66044479	secF	Psyr_1231	-	preprotein translocase subunit SecF
1208	 56.85	0	1390899..1391438	+	179	66044480	-	Psyr_1232	-	hypothetical protein
59.35	MEAN

4.19	STD DEV
