IslandPath Analysis: Pseudomonas syringae pv. syringae B728a

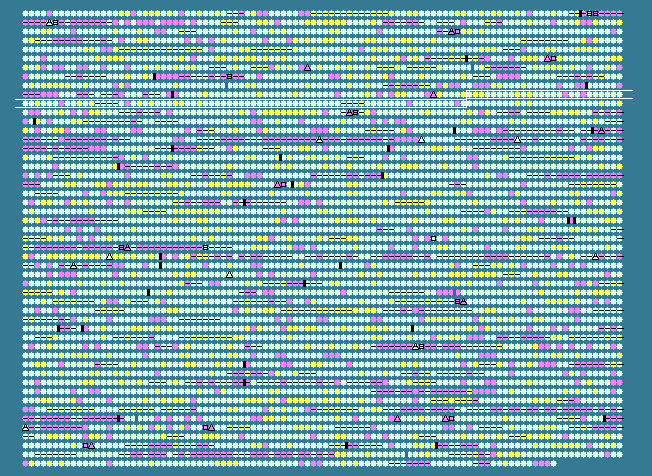

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.35 STD DEV: 4.19
Pseudomonas syringae pv. syringae B728a, complete genome - 1..6093698
5089 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
975	 60.41	0	1128435..1129616	-	393	66044247	-	Psyr_0994	-	metal-dependent phosphohydrolase
976	 63.87	+1	1129873..1130409	-	178	66044248	-	Psyr_0995	-	flavin reductase-like
977	 63.21	0	1130436..1131215	-	259	66044249	-	Psyr_0996	-	Alpha/beta hydrolase fold
978	 61.20	0	1131257..1131640	-	127	66044250	-	Psyr_0997	-	endoribonuclease L-PSP
979	 62.74	0	1131651..1132388	-	245	66044251	-	Psyr_0998	-	isochorismatase hydrolase
980	 61.03	0	1132388..1133470	-	360	66044252	-	Psyr_0999	-	luciferase
981	 62.14	0	1133764..1134492	+	242	66044253	-	Psyr_1000	-	regulatory protein, TetR
982	 61.45	0	1134706..1135797	+	363	66044254	-	Psyr_1001	-	basic membrane lipoprotein
983	 64.55	+1	1135794..1137305	+	503	66044255	-	Psyr_1002	-	ABC transporter
984	 60.45	0	1137298..1138407	+	369	66044256	-	Psyr_1003	-	inner-membrane translocator
985	 66.34	+1	1138407..1139333	+	308	66044257	-	Psyr_1004	-	inner-membrane translocator
986	 60.29	0	1139440..1140129	+	229	66044258	-	Psyr_1005	-	OmpA/MotB
987	 58.28	0	1140362..1141267	-	301	66044259	-	Psyr_1006	-	phospholipid/glycerol acyltransferase
988	 62.79	0	1141331..1143421	-	696	66044260	-	Psyr_1007	-	phosphate acetyltransferase
989	 56.58	0	1143499..1143726	-	75	66044261	-	Psyr_1008	-	hypothetical protein
990	 59.26	0	1143819..1144304	+	161	66044262	-	Psyr_1009	-	peptidylprolyl isomerase, FKBP-type
991	 55.62	0	1144436..1144924	+	162	66044263	-	Psyr_1010	-	glutathione peroxidase
992	 62.68	0	1145082..1146185	+	367	66044264	-	Psyr_1011	-	NADH:flavin oxidoreductase/NADH oxidase
993	 62.49	0	1146154..1147374	-	406	66044265	-	Psyr_1012	-	glycosyl transferase, group 1
994	 50.78	-2	1147555..1147875	-	106	66044266	-	Psyr_1013	-	hypothetical protein
995	 56.81	0	1148192..1148536	-	114	66044267	-	Psyr_1014	-	hypothetical protein
996	 60.76	0	1148721..1149482	-	253	66044268	-	Psyr_1015	-	putative sulfate transport protein CysZ
997	 62.72	0	1149858..1150820	+	320	66044269	-	Psyr_1016	-	thioredoxin reductase
998	 59.16	0	1150934..1151386	-	150	79093591	-	Psyr_1017	-	type III effector HopJ1
999	 57.00	0	1151268..1151567	-	99	66044271	-	Psyr_1018	-	hypothetical protein
1000	 58.06	0	1151611..1151982	-	123	66044272	folX	Psyr_1019	-	D-erythro-7,8-dihydroneopterin triphosphate 2'-epimerase
1001	 56.03	0	1151982..1152545	-	187	66044273	folE	Psyr_1020	-	GTP cyclohydrolase I
1002	 59.35	0	1152567..1153277	-	236	66044274	-	Psyr_1021	-	short chain dehydrogenase
1003	 62.96	0	1153512..1154078	-	188	66044275	-	Psyr_1022	-	hypothetical protein
1004	 56.77	0	1154230..1154835	-	201	66044276	-	Psyr_1023	-	hypothetical protein
1005	 62.47	0	1155042..1155494	+	150	66044277	-	Psyr_1024	-	flavodoxin
1006	 62.17	0	1155606..1156517	+	303	66044278	-	Psyr_1025	-	Short-chain dehydrogenase/reductase SDR
1007	 52.87	-1	1156731..1157288	+	185	66044279	-	Psyr_1026	-	hypothetical protein
1008	 61.94	0	1157518..1158321	-	267	66044280	-	Psyr_1027	-	hypothetical protein
1009	 62.20	0	1158403..1159275	-	290	66044281	-	Psyr_1028	-	hypothetical protein
1010	 62.90	0	1159307..1161271	-	654	66044282	-	Psyr_1029	-	peptidase aspartic, active site
1011	 60.30	0	1161268..1163388	-	706	66044283	nfrB	Psyr_1030	-	bacteriophage N4 adsorption protein B
1012	 64.19	+1	1163401..1165617	-	738	66044284	-	Psyr_1031	-	hypothetical protein
1013	 61.47	0	1165785..1167035	-	416	66044285	-	Psyr_1032	-	UDP-N-acetylglucosamine 2-epimerase
1014	 58.80	0	1167739..1168005	-	88	66044286	-	Psyr_1033	-	YebG
1015	 56.24	0	1168417..1168905	+	162	66044287	-	Psyr_1034	-	phosphate-starvation-inducible E
1016	 60.66	0	1168967..1169299	-	110	66044288	-	Psyr_1035	-	putative lipoprotein
1017	 57.66	0	1169564..1169896	-	110	66044289	-	Psyr_1036	-	hypothetical protein
1018	 55.24	0	1170795..1171223	-	142	66044290	-	Psyr_1037	-	ribosomal subunit interface protein, putative
1019	 62.41	0	1171497..1173845	-	782	66044291	-	Psyr_1038	-	TonB-dependent siderophore receptor
1020	 64.52	+1	1174500..1175477	-	325	66044292	-	Psyr_1039	-	FecR protein
1021	 62.70	0	1175474..1175977	-	167	66044293	-	Psyr_1040	-	RNA polymerase sigma factor
1022	 63.58	+1	1176188..1177063	-	291	66044294	-	Psyr_1041	-	helix-turn-helix, AraC type:Arac protein, arabinose-binding/dimerisation
1023	 61.46	0	1177200..1178102	+	300	66044295	-	Psyr_1042	-	hypothetical protein
1024	 62.46	0	1178149..1179123	-	324	66044296	-	Psyr_1043	-	2-hydroxyacid dehydrogenase
1025	 61.06	0	1179211..1180209	-	332	66044297	-	Psyr_1044	-	regulatory protein, LysR:LysR, substrate-binding
1026	 65.52	+1	1180342..1181826	+	494	66044298	-	Psyr_1045	-	RND efflux system, outer membrane lipoprotein, NodT
1027	 63.15	0	1181823..1184012	+	729	66044299	-	Psyr_1046	-	fusaric acid resistance protein region
1028	 59.80	0	1183999..1184202	+	67	66044300	-	Psyr_1047	-	hypothetical protein
1029	 61.32	0	1184228..1185088	+	286	66044301	-	Psyr_1048	-	secretion protein HlyD
1030	 63.00	0	1185160..1185978	-	272	66044302	-	Psyr_1049	-	short chain dehydrogenase
1031	 62.37	0	1185994..1186458	-	154	66044303	-	Psyr_1050	-	hypothetical protein
1032	 56.03	0	1186670..1189453	+	927	66044304	-	Psyr_1051	-	YD repeat-containing protein
1033	 59.85	0	1189612..1191063	-	483	66044305	-	Psyr_1052	-	mannose-1-phosphate guanylyltransferase/mannose-6-phosphate isomerase
1034	 60.09	0	1191183..1191851	-	222	66044306	-	Psyr_1053	-	alginate biosynthesis protein AlgF
1035	 60.29	0	1191864..1193039	-	391	66044307	-	Psyr_1054	-	alginate biosynthesis protein AlgJ
1036	 58.51	0	1193050..1194606	-	518	66044308	-	Psyr_1055	-	membrane bound O-acyl transferase, MBOAT
1037	 58.66	0	1194797..1195933	-	378	66044309	algL	Psyr_1056	-	poly(beta-D-mannuronate) lyase
1038	 58.61	0	1195942..1197381	-	479	66044310	-	Psyr_1057	-	alginate biosynthesis protein AlgX
1039	 58.47	0	1197396..1199006	-	536	66044311	-	Psyr_1058	-	parallel beta-helix repeat-containing protein
1040	 62.09	0	1199033..1200517	-	494	66044312	-	Psyr_1059	-	alginate biosynthesis protein AlgE
1041	 62.28	0	1200514..1201926	-	470	66044313	-	Psyr_1060	-	Sel1 repeat-containing protein
1042	 61.04	0	1201929..1203101	-	390	66044314	-	Psyr_1061	-	alginate biosynthesis protein Alg44
1043	 58.97	0	1203142..1204623	-	493	66044315	-	Psyr_1062	-	alginate biosynthesis protein Alg8
1044	 57.33	0	1204724..1206040	-	438	66044316	-	Psyr_1063	-	GDP-mannose 6-dehydrogenase
1045	 59.36	0	1206856..1207635	-	259	66044317	-	Psyr_1064	-	hypothetical protein
1046	 60.90	0	1207838..1209016	+	392	66044318	-	Psyr_1065	-	polysaccharide deacetylase
1047	 58.42	0	1209311..1210705	+	464	66044319	-	Psyr_1066	-	PhoH-like protein
1048	 60.91	0	1211047..1211532	+	161	66044320	moaC	Psyr_1067	-	molybdenum cofactor biosynthesis protein C
1049	 60.16	0	1211529..1211774	+	81	66044321	-	Psyr_1068	-	molybdopterin converting factor, subunit 1:MoaD,
1050	 60.22	0	1211777..1212226	+	149	66044322	-	Psyr_1069	-	molybdopterin biosynthesis MoaE
1051	 61.36	0	1212230..1213681	-	483	161486737	-	Psyr_1070	-	ATP-dependent RNA helicase RhlB
1052	 60.76	0	1213803..1214462	-	219	66044324	-	Psyr_1071	-	carboxylesterase
1053	 58.31	0	1214948..1215976	+	342	66044325	-	Psyr_1072	-	extracellular solute-binding protein
1054	 58.38	0	1216047..1217228	+	393	66044326	-	Psyr_1073	-	amino acid ABC transporter permease
1055	 59.74	0	1217239..1218336	+	365	66044327	-	Psyr_1074	-	amino acid ABC transporter permease
1056	 57.52	0	1218347..1219111	+	254	66044328	-	Psyr_1075	-	ABC transporter
1057	 65.14	+1	1219265..1220509	+	414	66044329	-	Psyr_1076	-	cyanate transport system protein
1058	 60.49	0	1220552..1221490	-	312	66044330	-	Psyr_1077	-	isoflavone reductase
1059	 59.01	0	1221539..1221982	+	147	66044331	-	Psyr_1078	-	hypothetical protein
1060	 58.54	0	1222071..1222562	+	163	66044332	-	Psyr_1079	-	hypothetical protein
1061	 61.40	0	1222555..1222896	+	113	66044333	-	Psyr_1080	-	GIY-YIG nuclease superfamily protein
1062	 59.81	0	1222961..1223893	+	310	66044334	-	Psyr_1081	-	hypothetical protein
1063	 58.12	0	1223955..1224305	-	116	66044335	-	Psyr_1082	-	glutaredoxin
1064	 58.98	0	1224311..1225312	-	333	66044336	ndpA	Psyr_1083	-	nucleoid-associated protein NdpA
1065	 51.42	-1	1225706..1225987	+	93	66044337	-	Psyr_1084	-	histone-like DNA-binding protein
1066	 62.41	0	1226571..1227557	-	328	66044338	-	Psyr_1085	-	putative SAM-dependent methyltransferase
1067	 60.87	0	1227714..1230560	-	948	66044339	valS	Psyr_1086	-	valyl-tRNA synthetase
1068	 60.46	0	1231728..1232162	-	144	66044340	-	Psyr_1089	-	hypothetical protein
1069	 61.77	0	1232170..1232598	-	142	66044341	-	Psyr_1090	-	DNA polymerase III subunit chi
1070	 61.77	0	1232656..1234146	-	496	66044342	pepA	Psyr_1091	-	leucyl aminopeptidase
1071	 60.82	0	1234466..1235593	+	375	66044343	-	Psyr_1092	-	permease YjgP/YjgQ
1072	 62.24	0	1235580..1236641	+	353	66044344	-	Psyr_1093	-	permease YjgP/YjgQ
1073	 52.11	-1	1236770..1236982	-	70	66044345	-	Psyr_1094	-	cold-shock protein, DNA-binding
1074	 61.07	0	1237394..1238518	-	374	66044346	-	Psyr_1095	-	glycine cleavage system T protein
59.35	MEAN

4.19	STD DEV
