IslandPath Analysis: Pseudomonas syringae pv. tomato str. DC3000

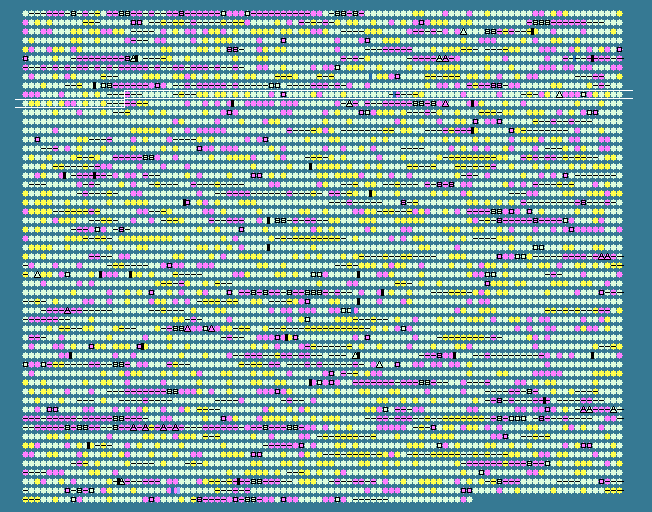

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.61 STD DEV: 4.14
Pseudomonas syringae pv. tomato str. DC3000, complete genome - 1..6397126
5475 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
918	 51.56	-1	1019855..1020304	+	149	28868162	terB	PSPTO_0942	-	tellurium resistance protein TerB
919	 56.04	0	1020331..1021365	+	344	28868163	terC	PSPTO_0943	-	tellurium resistance protein TerC
920	 55.73	0	1021393..1021968	+	191	28868164	terD	PSPTO_0944	-	tellurium resistance protein TerD
921	 56.82	0	1022006..1022584	+	192	28868165	terE	PSPTO_0945	-	tellurium resistance protein TerE
922	 57.71	0	1022855..1024093	-	412	28868166	-	PSPTO_0946	-	tellurium resistance protein, putative
923	 61.63	0	1024154..1024888	-	244	28868167	-	PSPTO_0947	-	hypothetical protein
924	 61.60	0	1025270..1026118	-	282	28868168	nadC	PSPTO_0948	-	nicotinate-nucleotide pyrophosphorylase
925	 59.13	0	1026472..1028727	+	751	28868169	-	PSPTO_0949	-	hypothetical protein
926	 57.92	0	1029038..1029586	+	182	28868170	ampD	PSPTO_0950	-	N-acetyl-anhydromuranmyl-L-alanine amidase
927	 62.49	0	1029602..1030438	+	278	28868171	-	PSPTO_0951	-	ampE protein
928	 59.66	0	1030586..1031284	-	232	28868172	-	PSPTO_0952	-	TatD family hydrolase
929	 60.04	0	1031386..1032381	-	331	28868173	-	PSPTO_0953	-	DNA-binding transcriptional regulator FruR
930	 64.23	+1	1032736..1035603	+	955	28868174	-	PSPTO_0954	-	phosphoenolpyruvate-protein phosphotransferase,EI/HPr/EIIA components
931	 63.91	+1	1035603..1036544	+	313	28868175	fruK	PSPTO_0955	-	1-phosphofructokinase
932	 61.99	0	1036557..1038311	+	584	28868176	-	PSPTO_0956	-	phosphotransferase system, fructose-specific IIBC component
933	 63.61	+1	1038333..1039511	-	392	28868177	phbA-1	PSPTO_0957	-	acetyl-CoA acetyltransferase
934	 64.94	+1	1039650..1040516	-	288	28868178	-	PSPTO_0958	-	hypothetical protein
935	 60.42	0	1040763..1042427	-	554	28868179	pgi	PSPTO_0959	-	glucose-6-phosphate isomerase
936	 62.21	0	1042670..1043521	-	283	28868180	panC	PSPTO_0960	-	pantoate--beta-alanine ligase
937	 62.05	0	1043518..1044318	-	266	28868181	panB	PSPTO_0961	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
938	 62.72	0	1044547..1045053	-	168	28868182	folK-2	PSPTO_0962	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
939	 60.26	0	1045046..1046449	-	467	28868183	pcnB	PSPTO_0963	-	poly(A) polymerase
940	 60.75	0	1047150..1048586	-	478	28868184	-	PSPTO_0964	-	sigma-54 dependent transcriptional regulator/response regulator
941	 61.95	0	1048609..1051557	-	982	28868185	-	PSPTO_0965	-	sensor histidine kinase
942	 53.11	-1	1051547..1051723	-	58	28868186	-	PSPTO_0966	-	hypothetical protein
943	 61.71	0	1051822..1052709	-	295	28868187	-	PSPTO_0967	-	glutamyl-Q tRNA(Asp) synthetase
944	 54.07	-1	1053296..1054756	-	486	28868188	-	PSPTO_0968	-	ISPsy6, transposase
945	 55.33	0	1054836..1055276	-	146	28868189	dksA	PSPTO_0969	-	dnaK suppressor protein
946	 61.13	0	1055626..1056798	+	390	28868190	-	PSPTO_0970	-	hypothetical protein
947	 61.76	0	1056798..1057511	+	237	28868191	sfsA	PSPTO_0971	-	sugar fermentation stimulation protein A
948	 58.86	0	1057534..1057866	-	110	28868192	-	PSPTO_0972	-	Rieske family iron-sulfur cluster-binding protein
949	 62.44	0	1058084..1058863	+	259	28868193	deoC	PSPTO_0973	-	deoxyribose-phosphate aldolase
950	 53.70	-1	1059152..1059259	+	35	28868194	-	PSPTO_0974	-	hypothetical protein
951	 58.84	0	1059244..1059588	-	114	28868195	-	PSPTO_0975	-	pentapeptide repeat-containing protein
952	 58.67	0	1059690..1061228	-	512	28868196	-	PSPTO_0976	-	hypothetical protein
953	 59.39	0	1061359..1063680	+	773	28868197	-	PSPTO_0977	-	penicillin-binding protein
954	 62.78	+1	1063668..1064438	+	256	28868198	-	PSPTO_0978	-	hypothetical protein
955	 58.48	0	1064438..1064767	+	109	28868199	-	PSPTO_0979	-	hypothetical protein
956	 61.94	0	1064777..1065220	-	147	28868200	-	PSPTO_0980	-	hypothetical protein
957	 58.38	0	1065591..1067315	+	574	28868201	ilvB	PSPTO_0981	-	acetolactate synthase 3 catalytic subunit
958	 58.74	0	1067318..1067809	+	163	28868202	ilvN	PSPTO_0982	-	acetolactate synthase 3 regulatory subunit
959	 56.64	0	1067857..1068873	+	338	28868203	ilvC	PSPTO_0983	-	ketol-acid reductoisomerase
960	 59.27	0	1069018..1069869	+	283	28868204	pssA-1	PSPTO_0984	-	CDP-diacylglycerol--serine O-phosphatidyltransferase
961	 58.38	0	1069934..1070947	+	337	28868205	-	PSPTO_0985	-	putative sulfite oxidase subunit YedY
962	 56.24	0	1070947..1071579	+	210	28868206	-	PSPTO_0986	-	putative sulfite oxidase subunit YedZ
963	 50.22	-2	1077352..1077582	+	76	28868207	-	PSPTO_0987	-	hypothetical protein
964	 59.50	0	1077641..1080460	-	939	28868208	-	PSPTO_0988	-	hypothetical protein
965	 61.02	0	1080457..1081164	-	235	28868209	-	PSPTO_0989	-	hypothetical protein
966	 62.36	0	1081154..1082431	-	425	28868210	-	PSPTO_0990	-	hypothetical protein
967	 65.30	+1	1082577..1083380	+	267	28868211	-	PSPTO_0991	-	hypothetical protein
968	 56.14	0	1083373..1083828	+	151	28868212	rimI	PSPTO_0992	-	ribosomal-protein-alanine acetyltransferase
969	 59.07	0	1083838..1084245	-	135	28868213	-	PSPTO_0993	-	hypothetical protein
970	 59.31	0	1084494..1085132	+	212	28868214	-	PSPTO_0994	-	carbonic anhydrase
971	 59.02	0	1085145..1086818	-	557	28868215	-	PSPTO_0995	-	methyl-accepting chemotaxis protein
972	 60.61	0	1086926..1087585	-	219	28868216	-	PSPTO_0996	-	HD domain-containing protein
973	 59.28	0	1087661..1089664	-	667	28868217	-	PSPTO_0997	-	acyltransferase family protein
974	 54.93	0	1089883..1090257	+	124	28868218	-	PSPTO_0998	-	alkylphosphonate utilization operon protein PhnA, putative
975	 61.36	0	1090603..1091826	+	407	28868219	-	PSPTO_0999	-	sugar efflux transporter
976	 57.92	0	1091889..1092608	-	239	28868220	-	PSPTO_1000	-	CDP-alcohol phosphatidyltransferase family protein
977	 59.23	0	1092695..1094710	-	671	28868221	-	PSPTO_1001	-	hypothetical protein
978	 57.99	0	1096637..1097074	-	145	28868222	-	PSPTO_1003	-	acetyltransferase
979	 56.76	0	1097150..1098391	-	413	28868223	-	PSPTO_1004	-	GGDEF domain-containing protein
980	 53.87	-1	1098690..1099736	+	348	28868224	gmd	PSPTO_1005	-	GDP-mannose 4,6-dehydratase
981	 56.86	0	1099737..1099838	+	33	28868225	-	PSPTO_1006	-	hypothetical protein
982	 58.75	0	1099814..1100773	-	319	28868226	-	PSPTO_1007	-	GDP-6-deoxy-D-lyxo-4-hexulose reductase
983	 59.67	0	1100918..1102318	+	466	28868227	-	PSPTO_1008	-	methyl-accepting chemotaxis protein
984	 58.05	0	1102902..1103528	-	208	28868228	-	PSPTO_1009	-	isochorismatase family protein
985	 62.28	0	1103683..1105254	-	523	28868229	phoD	PSPTO_1010	-	alkaline phosphatase D
986	 60.11	0	1105251..1105814	-	187	28868230	-	PSPTO_1011	-	acetyltransferase
987	 54.66	0	1106014..1106421	+	135	28868231	-	PSPTO_1012	-	TonB system transport protein
988	 64.12	+1	1106421..1107206	+	261	28868232	-	PSPTO_1013	-	TonB domain-containing protein
989	 57.56	0	1107227..1109509	+	760	28868233	-	PSPTO_1014	-	TonB-dependent receptor, putative
990	 58.36	0	1109641..1110651	+	336	28868234	-	PSPTO_1015	-	integrase/recombinase XerC, putative
991	 53.08	-1	1110675..1112279	+	534	28868235	-	PSPTO_1016	-	hypothetical protein
992	 48.33	-2	1112173..1112532	+	119	28868236	-	PSPTO_1017	-	ISPsy5, Orf1
993	 48.33	-2	1112778..1113137	+	119	28868237	-	PSPTO_1019	-	ISPsy5, Orf1
994	 56.31	0	1113155..1114708	+	517	28868238	-	PSPTO_1020	-	ISPsy5, transposase
995	 39.71	-2	1115514..1116344	-	276	28868239	hopAM1-1	PSPTO_1022	-	type III effector HopAM1-1
996	 62.66	0	1116554..1117102	+	182	28868240	-	PSPTO_1023	-	MotA/TolQ/ExbB proton channel family protein
997	 60.28	0	1117166..1118434	+	422	28868241	-	PSPTO_1024	-	phospholipase D family protein
998	 62.83	+1	1118505..1119704	+	399	28868242	-	PSPTO_1025	-	transglycosylase, putative
999	 60.99	0	1119987..1121132	+	381	28868243	wssA	PSPTO_1026	-	cell morphology protein
1000	 60.32	0	1121129..1123348	+	739	28868244	wssB	PSPTO_1027	-	cellulose synthase, catalytic subunit
1001	 61.70	0	1123363..1125618	+	751	28868245	-	PSPTO_1028	-	cellulose synthase regulator protein
1002	 65.02	+1	1125622..1126833	+	403	28868246	wssD	PSPTO_1029	-	endo-1,4-D-glucanase
1003	 63.93	+1	1127013..1130705	+	1230	28868247	wssE	PSPTO_1030	-	cellulose synthase operon protein C
1004	 60.51	0	1130721..1131386	+	221	28868248	wssF	PSPTO_1031	-	cell morphology protein
1005	 62.52	0	1131383..1132057	+	224	28868249	wssG	PSPTO_1032	-	cell morphology protein
1006	 62.01	0	1132076..1133491	+	471	28868250	wssH	PSPTO_1033	-	cellulose acetylase, subunit WssH
1007	 63.80	+1	1133503..1134654	+	383	28868251	wssI	PSPTO_1034	-	cell morphology protein
1008	 53.55	-1	1135027..1136406	-	459	28868252	-	PSPTO_1035	-	colicin/pyosin nuclease family protein
1009	 47.62	-2	1136613..1137074	-	153	28868253	-	PSPTO_1036	-	hypothetical protein
1010	 61.26	0	1137307..1137768	-	153	28868254	-	PSPTO_1037	-	hypothetical protein
1011	 63.33	+1	1137765..1138214	-	149	28868255	-	PSPTO_1038	-	hypothetical protein
1012	 60.30	0	1138505..1139509	+	334	28868256	-	PSPTO_1039	-	response regulator
1013	 55.28	0	1139513..1139995	+	160	28868257	-	PSPTO_1040	-	sensory box protein
1014	 63.64	+1	1140091..1141347	+	418	28868258	aroA	PSPTO_1041	-	3-phosphoshikimate 1-carboxyvinyltransferase
1015	 61.24	0	1141370..1142032	-	220	28868259	-	PSPTO_1042	-	transcriptional activator ChrR
1016	 56.65	0	1142032..1142640	-	202	28868260	-	PSPTO_1043	-	RNA polymerase sigma factor RpoE
1017	 55.56	0	1143054..1143233	-	59	28868261	-	PSPTO_1044	-	hypothetical protein
58.61	MEAN

4.14	STD DEV
