IslandPath Analysis: Pseudomonas syringae pv. tomato str. DC3000

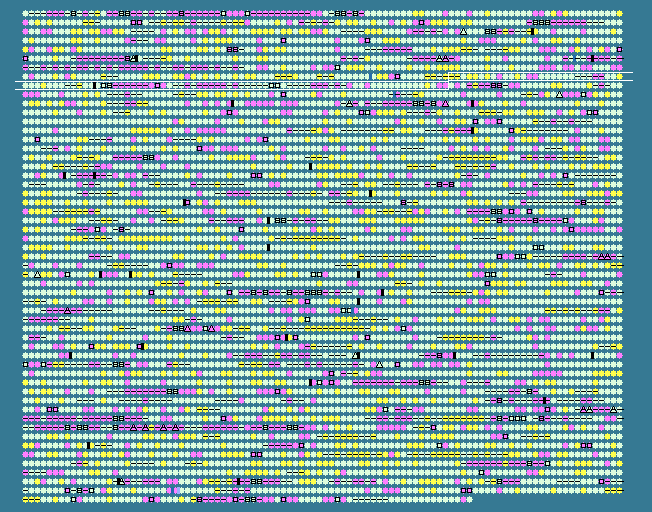

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.61 STD DEV: 4.14
Pseudomonas syringae pv. tomato str. DC3000, complete genome - 1..6397126
5475 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
772	 65.70	+1	856374..857201	-	275	28868017	-	PSPTO_0789	-	phosphonate ABC transporter, permease protein, putative
773	 65.79	+1	857195..857992	-	265	28868018	-	PSPTO_0790	-	phosphonate ABC transporter, ATP-binding protein, putative
774	 61.50	0	857989..858840	-	283	28868019	-	PSPTO_0791	-	phosphonate ABC transporter, periplasmic phosphonate-binding protein, putative
775	 64.44	+1	858886..859020	+	44	28868020	-	PSPTO_0792	-	hypothetical protein
776	 63.29	+1	859077..860111	+	344	28868021	selD	PSPTO_0793	-	selenophosphate synthetase
777	 61.22	0	860111..861211	+	366	28868022	-	PSPTO_0794	-	tRNA 2-selenouridine synthase
778	 63.92	+1	861246..862010	+	254	28868023	-	PSPTO_0795	-	hypothetical protein
779	 61.92	0	862083..863051	-	322	28868024	ispB	PSPTO_0796	-	octylprenyl diphosphate synthase
780	 51.28	-1	863291..863602	+	103	28868025	rplU	PSPTO_0797	-	50S ribosomal protein L21
781	 56.52	0	863635..863910	+	91	28868026	rpmA	PSPTO_0798	-	50S ribosomal protein L27
782	 59.15	0	864127..865350	+	407	28868027	-	PSPTO_0799	-	GTPase ObgE
783	 63.99	+1	865441..866559	+	372	28868028	proB	PSPTO_0800	-	gamma-glutamyl kinase
784	 60.08	0	866585..867055	+	156	28868029	creA	PSPTO_0801	-	creA protein
785	 52.33	-1	867260..867538	-	92	28868030	rpsT	PSPTO_0802	-	30S ribosomal protein S20
786	 51.52	-1	867642..867740	+	32	28868031	-	PSPTO_0803	-	hypothetical protein
787	 59.19	0	867789..869327	+	512	28868032	-	PSPTO_0804	-	MviN family membrane protein
788	 62.03	0	869460..870386	+	308	28868033	ribF	PSPTO_0805	-	bifunctional riboflavin kinase/FMN adenylyltransferase
789	 60.38	0	870407..873238	+	943	28868034	ileS	PSPTO_0806	-	isoleucyl-tRNA synthetase
790	 58.43	0	873231..873752	+	173	28868035	lspA	PSPTO_0807	-	lipoprotein signal peptidase
791	 56.18	0	873745..874221	+	158	28868036	-	PSPTO_0808	-	peptidyl-prolyl cis-trans isomerase, FKBP-type
792	 61.92	0	874305..875252	+	315	28868037	ispH	PSPTO_0809	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
793	 57.29	0	875259..875759	-	166	28868038	-	PSPTO_0810	-	type IV pilus biogenesis protein
794	 57.17	0	875891..876364	+	157	28868039	-	PSPTO_0811	-	pillin, putative
795	 60.47	0	876364..876879	+	171	28868040	-	PSPTO_0812	-	hypothetical protein
796	 53.81	-1	876876..877583	+	235	28868041	-	PSPTO_0813	-	hypothetical protein
797	 54.04	-1	877595..878101	+	168	28868042	-	PSPTO_0814	-	hypothetical protein
798	 55.15	0	878088..881291	+	1067	28868043	-	PSPTO_0815	-	type IV pilus-associated protein, putative
799	 56.22	0	881303..881704	+	133	28868044	-	PSPTO_0816	-	type IV pilus biogenesis protein
800	 62.59	0	881733..882836	+	367	28868045	-	PSPTO_0817	-	oxidoreductase, FAD-binding
801	 59.01	0	882967..883410	+	147	28868046	-	PSPTO_0818	-	MarR family transcriptional regulator
802	 58.23	0	883449..884195	+	248	28868047	-	PSPTO_0819	-	hypothetical protein
803	 61.56	0	884192..887302	-	1036	28868048	-	PSPTO_0820	-	AcrB/AcrD/AcrF family protein
804	 64.52	+1	887299..888414	-	371	28868049	-	PSPTO_0821	-	RND family efflux transporter MFP subunit
805	 55.99	0	888496..889113	-	205	28868050	-	PSPTO_0822	-	TetR family transcriptional regulator
806	 60.25	0	889587..890927	-	446	28868051	pilR	PSPTO_0823	-	type 4 fimbriae expression regulatory protein pilR
807	 60.09	0	890930..892525	-	531	28868052	pilS	PSPTO_0824	-	sensor protein PilS
808	 60.55	0	892515..892841	-	108	28868053	-	PSPTO_0825	-	hypothetical protein
809	 59.88	0	892888..893904	-	338	28868054	-	PSPTO_0826	-	competence lipoprotein ComL, putative
810	 62.20	0	894060..895022	+	320	162533081	rluD	PSPTO_0827	-	ribosomal large subunit pseudouridine synthase D
811	 61.73	0	895019..895747	+	242	28868055	-	PSPTO_0828	-	hypothetical protein
812	 59.92	0	895919..898483	+	854	28868056	clpB	PSPTO_0829	-	clpB protein
813	 55.94	0	900988..902916	-	642	28868057	-	PSPTO_0831	-	hypothetical protein
814	 57.78	0	903025..903834	-	269	28868058	-	PSPTO_0832	-	transposase/IS protein
815	 59.24	0	903831..904853	-	340	28868059	-	PSPTO_0833	-	ISPsy4, transposase
816	 48.02	-2	905575..906534	+	319	28868060	-	PSPTO_0834	-	alcohol dehydrogenase, zinc-containing
817	 47.85	-2	906604..907278	+	224	28868061	-	PSPTO_0835	-	riboflavin biosynthesis protein RibD domain-containing protein
818	 45.75	-2	907344..907931	+	195	28868062	-	PSPTO_0836	-	hypothetical protein
819	 43.95	-2	907933..908535	+	200	28868063	-	PSPTO_0837	-	hypothetical protein
820	 52.76	-1	908556..909749	+	397	28868064	-	PSPTO_0838	-	major facilitator family transporter
821	 50.12	-2	910795..911211	+	138	28868065	-	PSPTO_0840	-	hypothetical protein
822	 48.33	-2	911777..912136	+	119	28868066	-	PSPTO_0842	-	ISPsy5, Orf1
823	 54.19	-1	912397..913374	-	325	28868067	-	PSPTO_0844	-	ISPssy, transposase
824	 49.86	-2	916047..916415	-	122	28868068	-	PSPTO_0847	-	hypothetical protein
825	 57.71	0	916412..917785	-	457	28868069	-	PSPTO_0848	-	hypothetical protein
826	 59.42	0	917806..918744	-	312	28868070	-	PSPTO_0849	-	hypothetical protein
827	 58.27	0	918744..919160	-	138	28868071	-	PSPTO_0850	-	hypothetical protein
828	 51.53	-1	919701..920189	-	162	28868072	-	PSPTO_0851	-	hypothetical protein
829	 55.72	0	920451..921692	-	413	28868073	hopAJ1	PSPTO_0852	-	type III effector HopAJ1
830	 53.33	-1	923360..923584	+	74	90818605	-	PSPTO_5621	-	PSPTO5621
831	 55.07	0	923620..924033	+	137	28868074	-	PSPTO_0853	-	dnaK suppressor protein, putative
832	 50.45	-1	924071..924292	+	73	28868075	-	PSPTO_0854	-	hypothetical protein
833	 47.09	-2	925982..927079	+	365	28868076	-	PSPTO_0855	-	ParA family protein
834	 51.89	-1	927082..927900	+	272	28868077	-	PSPTO_0856	-	hypothetical protein
835	 57.87	0	928074..928778	-	234	28868078	-	PSPTO_0857	-	hypothetical protein
836	 53.00	-1	928775..929074	-	99	28868079	-	PSPTO_0858	-	hypothetical protein
837	 56.07	0	929071..931740	-	889	28868080	-	PSPTO_0859	-	hypothetical protein
838	 57.89	0	932028..932483	-	151	28868081	-	PSPTO_0860	-	hypothetical protein
839	 58.18	0	932461..933957	-	498	28868082	-	PSPTO_0861	-	hypothetical protein
840	 58.33	0	933947..934870	-	307	28868083	-	PSPTO_0862	-	hypothetical protein
841	 59.49	0	934867..935535	-	222	28868084	-	PSPTO_0863	-	hypothetical protein
842	 57.78	0	935655..936464	-	269	28868085	-	PSPTO_0864	-	transposase/IS protein
843	 59.24	0	936461..937483	-	340	28868086	-	PSPTO_0865	-	ISPsy4, transposase
844	 59.56	0	937527..937892	-	121	28868087	-	PSPTO_0866	-	hypothetical protein
845	 58.54	0	937908..938276	-	122	28868088	-	PSPTO_0867	-	hypothetical protein
846	 60.67	0	938296..938445	-	49	28868089	-	PSPTO_0868	-	hypothetical protein
847	 61.48	0	938532..938897	-	121	28868090	-	PSPTO_0869	-	hypothetical protein
848	 56.46	0	939884..941068	+	394	28868092	-	PSPTO_0871	-	macrolide efflux protein, putative
849	 50.41	-1	942019..943119	+	366	28868093	-	PSPTO_0873	-	amidinotransferase family protein
850	 49.20	-2	943206..944459	+	417	28868094	-	PSPTO_0874	-	nikkomycin biosynthesis domain-containing protein
851	 48.27	-2	944512..945756	+	414	28868095	-	PSPTO_0875	-	hypothetical protein
852	 55.19	0	946222..948339	+	705	28868096	hopD1	PSPTO_0876	-	type III effector HopD1
853	 51.04	-1	948455..949798	-	447	28868097	hopQ1-1	PSPTO_0877	-	type III effector HopQ1-1
854	 59.12	0	949832..950149	+	105	28868098	-	PSPTO_0878	-	hypothetical protein
855	 55.08	0	950387..951844	-	485	28868099	-	PSPTO_0879	-	hypothetical protein
856	 56.80	0	951854..952603	-	249	28868100	-	PSPTO_0880	-	hypothetical protein
857	 57.82	0	952643..953524	-	293	28868101	-	PSPTO_0881	-	hypothetical protein
858	 50.75	-1	953552..954085	-	177	28868102	-	PSPTO_0882	-	hypothetical protein
859	 59.40	0	954407..960280	+	1957	28868103	hopR1	PSPTO_0883	-	type III effector HopR1
860	 57.80	0	960352..961344	-	330	28868104	-	PSPTO_0884	-	LacI family transcription regulator
861	 61.34	0	961425..962906	-	493	28868105	-	PSPTO_0885	-	sucrose-6-phosphate hydrolase
862	 60.21	0	962924..964069	-	381	28868106	malK	PSPTO_0886	-	maltose/maltodextrin ABC transporter, ATP-binding protein
863	 60.74	0	964097..964939	-	280	28868107	-	PSPTO_0887	-	sugar ABC transporter, permease protein
864	 59.29	0	964936..965898	-	320	28868108	-	PSPTO_0888	-	sugar ABC transporter, permease protein
865	 60.00	0	965920..967194	-	424	28868109	-	PSPTO_0889	-	sugar ABC transporter, periplasmic sugar-binding protein
866	 58.60	0	967317..968939	+	540	28868110	scrY	PSPTO_0890	-	sucrose porin precursor
867	 56.71	0	969035..969265	+	76	28868111	-	PSPTO_0891	-	hypothetical protein
868	 62.21	0	969369..972419	-	1016	28868112	-	PSPTO_0892	-	autotransporter, putative
869	 58.39	0	972764..974032	+	422	28868113	-	PSPTO_0893	-	outer membrane protein P1, putative
870	 49.10	-2	974212..974712	+	166	28868114	-	PSPTO_0894	-	putative lipoprotein
871	 50.30	-2	974837..975343	-	168	28868115	-	PSPTO_0895	-	hypothetical protein
58.61	MEAN

4.14	STD DEV
