IslandPath Analysis: Pseudomonas syringae pv. tomato str. DC3000

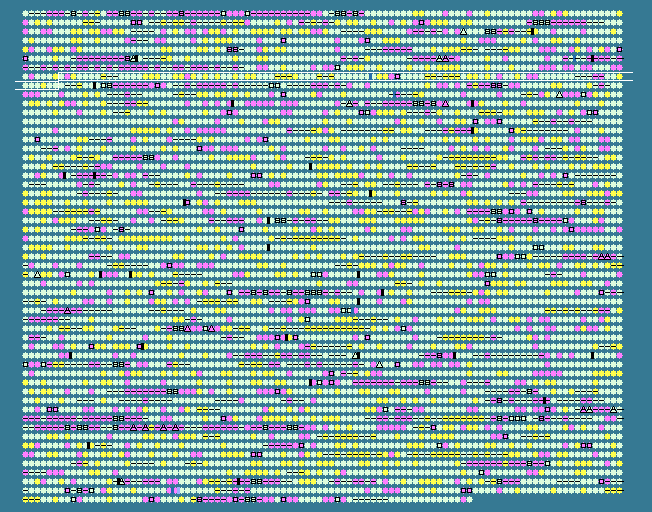

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.61 STD DEV: 4.14
Pseudomonas syringae pv. tomato str. DC3000, complete genome - 1..6397126
5475 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
707	 62.04	0	773250..773897	-	215	28867952	-	PSPTO_0724	-	DedA family protein
708	 53.08	-1	774090..774560	-	156	28867953	-	PSPTO_0725	-	acetyltransferase
709	 63.31	+1	774632..775495	-	287	28867954	eutC	PSPTO_0726	-	ethanolamine ammonia-lyase small subunit
710	 61.72	0	775492..776886	-	464	28867955	eutB	PSPTO_0727	-	ethanolamine ammonia-lyase, heavy subunit
711	 60.82	0	777182..778702	-	506	28867956	-	PSPTO_0728	-	aldehyde dehydrogenase family protein
712	 60.96	0	778928..780277	+	449	28867957	mpl	PSPTO_0729	-	UDP-N-acetylmuramate:L-alanyl-gamma-D-glutamyl-meso-diaminopimelate ligase
713	 61.90	0	780274..780903	+	209	28867958	-	PSPTO_0730	-	aromatic acid decarboxylase
714	 64.98	+1	780884..781180	+	98	28867959	-	PSPTO_0731	-	putative lipoprotein
715	 61.84	0	781219..781860	-	213	28867960	-	PSPTO_0732	-	hypothetical protein
716	 61.05	0	781888..783615	-	575	28867961	-	PSPTO_0733	-	MORN repeat-containing protein
717	 56.14	0	783756..784211	-	151	28867962	-	PSPTO_0734	-	MaoC-like domain-containing protein
718	 59.50	0	784409..784771	+	120	28867963	-	PSPTO_0735	-	LrgA family protein
719	 60.11	0	784768..785484	+	238	28867964	-	PSPTO_0736	-	hypothetical protein
720	 57.87	0	785498..786088	+	196	28867965	-	PSPTO_0737	-	ATP-dependent protease La
721	 63.30	+1	786218..786781	-	187	28867966	-	PSPTO_0738	-	putative lipoprotein
722	 63.38	+1	786811..787449	-	212	28867967	-	PSPTO_0739	-	putative lipoprotein
723	 62.46	0	787469..788134	-	221	28867968	smtA	PSPTO_0740	-	smtA protein
724	 59.15	0	788215..788520	-	101	28867969	-	PSPTO_0741	-	hypothetical protein
725	 61.89	0	788635..789492	-	285	28867970	-	PSPTO_0742	-	MaoC-like domain-containing protein
726	 64.31	+1	789523..790878	-	451	28867971	-	PSPTO_0743	-	3-ketoacyl-(acyl-carrier-protein) reductase
727	 63.30	+1	790987..792264	+	425	28867972	-	PSPTO_0744	-	acetyl-CoA acetyltransferase
728	 54.55	0	792445..792675	+	76	28867973	-	PSPTO_0745	-	hypothetical protein
729	 62.30	0	792708..794105	+	465	28867974	-	PSPTO_0746	-	hypothetical protein
730	 60.06	0	794113..795141	-	342	28867975	-	PSPTO_0747	-	transporter, putative
731	 63.43	+1	795585..796481	+	298	28867976	-	PSPTO_0748	-	hypothetical protein
732	 61.69	0	796601..797002	-	133	28867977	-	PSPTO_0749	-	transcriptional regulator, heavy metal-dependent
733	 63.94	+1	796999..799197	-	732	28867978	-	PSPTO_0750	-	copper-translocating P-type ATPase
734	 60.89	0	799267..799647	-	126	28867979	-	PSPTO_0751	-	hypothetical protein
735	 56.06	0	799794..799991	+	65	28867980	-	PSPTO_0752	-	copZ protein, putative
736	 62.49	0	800138..801334	+	398	28867981	-	PSPTO_0753	-	drug resistance transporter, Bcr/CflA family protein
737	 60.76	0	801383..802432	-	349	28867982	-	PSPTO_0754	-	alcohol dehydrogenase, zinc-containing
738	 62.34	0	802509..803432	+	307	28867983	-	PSPTO_0755	-	LysR family transcriptional regulator
739	 64.79	+1	803869..804561	+	230	28867984	-	PSPTO_0756	-	transcriptional regulator, putative
740	 60.06	0	804854..805807	-	317	28867985	add	PSPTO_0757	-	adenosine deaminase
741	 61.70	0	805886..806851	-	321	28867986	-	PSPTO_0758	-	2OG-Fe(II) oxygenase family oxidoreductase
742	 60.18	0	806929..808023	-	364	28867987	-	PSPTO_0759	-	bmp family protein
743	 64.65	+1	808253..809044	-	263	28867988	-	PSPTO_0760	-	iron-dicitrate transporter ATP-binding subunit
744	 62.54	0	809048..810016	-	322	28867989	fecD	PSPTO_0761	-	iron(III) dicitrate transport system, permease protein FecD
745	 65.23	+1	810013..810987	-	324	28867990	fecC	PSPTO_0762	-	iron-dicitrate transporter permease subunit
746	 62.21	0	811003..811923	-	306	28867991	fecB	PSPTO_0763	-	iron-dicitrate transporter substrate-binding subunit
747	 59.56	0	812170..813267	+	365	28867992	-	PSPTO_0764	-	calcium/proton antiporter, putative
748	 62.09	0	813434..814789	-	451	28867993	atzB	PSPTO_0765	-	hydroxydechloroatrazine ethylaminohydrolase
749	 59.64	0	814913..815638	-	241	28867994	-	PSPTO_0766	-	short chain dehydrogenase
750	 63.54	+1	815889..816815	-	308	28867995	-	PSPTO_0767	-	ABC transporter, permease protein
751	 62.03	0	816815..817915	-	366	28867996	-	PSPTO_0768	-	ABC transporter, permease protein, putative
752	 62.93	+1	817927..819480	-	517	28867997	-	PSPTO_0769	-	ABC transporter, ATP-binding protein
753	 60.77	0	820004..820597	-	197	28867998	-	PSPTO_0770	-	hypothetical protein
754	 57.69	0	820630..821286	-	218	28867999	-	PSPTO_0771	-	TetR family transcriptional regulator
755	 60.66	0	821385..822782	-	465	28868000	-	PSPTO_0772	-	xanthine/uracil permease family protein
756	 59.39	0	822968..823888	-	306	28868001	-	PSPTO_0773	-	LysR family transcriptional regulator
757	 57.54	0	824016..825362	+	448	28868002	-	PSPTO_0774	-	beta alanine--pyruvate transaminase
758	 59.64	0	825456..826949	+	497	28868003	mmsA-1	PSPTO_0775	-	methylmalonate-semialdehyde dehydrogenase
759	 60.89	0	832977..836453	+	1158	28868004	recC	PSPTO_0776	-	exodeoxyribonuclease V, gamma subunit
760	 62.58	0	836450..840142	+	1230	28868005	recB	PSPTO_0777	-	exodeoxyribonuclease V, beta subunit
761	 63.80	+1	840139..842232	+	697	28868006	recD	PSPTO_0778	-	exodeoxyribonuclease V, alpha subunit
762	 51.43	-1	842459..843613	-	384	28868007	-	PSPTO_0779	-	hypothetical protein
763	 54.19	-1	843955..844932	+	325	28868008	-	PSPTO_0780	-	ISPssy, transposase
764	 59.79	0	845447..846391	-	314	28868009	-	PSPTO_0781	-	LysR family transcriptional regulator
765	 61.56	0	846549..848075	+	508	28868010	mmsA-2	PSPTO_0782	-	methylmalonate-semialdehyde dehydrogenase
766	 61.95	0	848110..849000	+	296	28868011	mmsB	PSPTO_0783	-	3-hydroxyisobutyrate dehydrogenase
767	 60.22	0	849115..851085	+	656	28868012	-	PSPTO_0784	-	TonB-dependent siderophore receptor, putative
768	 63.55	+1	851370..852716	-	448	28868013	-	PSPTO_0785	-	sensor histidine kinase
769	 64.58	+1	852746..853510	-	254	28868014	-	PSPTO_0786	-	DNA-binding response regulator
770	 60.76	0	853803..855530	+	575	28868015	ggt	PSPTO_0787	-	gamma-glutamyltranspeptidase
771	 65.23	+1	855610..856377	-	255	28868016	-	PSPTO_0788	-	phosphonate ABC transporter, permease protein, putative
772	 65.70	+1	856374..857201	-	275	28868017	-	PSPTO_0789	-	phosphonate ABC transporter, permease protein, putative
773	 65.79	+1	857195..857992	-	265	28868018	-	PSPTO_0790	-	phosphonate ABC transporter, ATP-binding protein, putative
774	 61.50	0	857989..858840	-	283	28868019	-	PSPTO_0791	-	phosphonate ABC transporter, periplasmic phosphonate-binding protein, putative
775	 64.44	+1	858886..859020	+	44	28868020	-	PSPTO_0792	-	hypothetical protein
776	 63.29	+1	859077..860111	+	344	28868021	selD	PSPTO_0793	-	selenophosphate synthetase
777	 61.22	0	860111..861211	+	366	28868022	-	PSPTO_0794	-	tRNA 2-selenouridine synthase
778	 63.92	+1	861246..862010	+	254	28868023	-	PSPTO_0795	-	hypothetical protein
779	 61.92	0	862083..863051	-	322	28868024	ispB	PSPTO_0796	-	octylprenyl diphosphate synthase
780	 51.28	-1	863291..863602	+	103	28868025	rplU	PSPTO_0797	-	50S ribosomal protein L21
781	 56.52	0	863635..863910	+	91	28868026	rpmA	PSPTO_0798	-	50S ribosomal protein L27
782	 59.15	0	864127..865350	+	407	28868027	-	PSPTO_0799	-	GTPase ObgE
783	 63.99	+1	865441..866559	+	372	28868028	proB	PSPTO_0800	-	gamma-glutamyl kinase
784	 60.08	0	866585..867055	+	156	28868029	creA	PSPTO_0801	-	creA protein
785	 52.33	-1	867260..867538	-	92	28868030	rpsT	PSPTO_0802	-	30S ribosomal protein S20
786	 51.52	-1	867642..867740	+	32	28868031	-	PSPTO_0803	-	hypothetical protein
787	 59.19	0	867789..869327	+	512	28868032	-	PSPTO_0804	-	MviN family membrane protein
788	 62.03	0	869460..870386	+	308	28868033	ribF	PSPTO_0805	-	bifunctional riboflavin kinase/FMN adenylyltransferase
789	 60.38	0	870407..873238	+	943	28868034	ileS	PSPTO_0806	-	isoleucyl-tRNA synthetase
790	 58.43	0	873231..873752	+	173	28868035	lspA	PSPTO_0807	-	lipoprotein signal peptidase
791	 56.18	0	873745..874221	+	158	28868036	-	PSPTO_0808	-	peptidyl-prolyl cis-trans isomerase, FKBP-type
792	 61.92	0	874305..875252	+	315	28868037	ispH	PSPTO_0809	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
793	 57.29	0	875259..875759	-	166	28868038	-	PSPTO_0810	-	type IV pilus biogenesis protein
794	 57.17	0	875891..876364	+	157	28868039	-	PSPTO_0811	-	pillin, putative
795	 60.47	0	876364..876879	+	171	28868040	-	PSPTO_0812	-	hypothetical protein
796	 53.81	-1	876876..877583	+	235	28868041	-	PSPTO_0813	-	hypothetical protein
797	 54.04	-1	877595..878101	+	168	28868042	-	PSPTO_0814	-	hypothetical protein
798	 55.15	0	878088..881291	+	1067	28868043	-	PSPTO_0815	-	type IV pilus-associated protein, putative
799	 56.22	0	881303..881704	+	133	28868044	-	PSPTO_0816	-	type IV pilus biogenesis protein
800	 62.59	0	881733..882836	+	367	28868045	-	PSPTO_0817	-	oxidoreductase, FAD-binding
801	 59.01	0	882967..883410	+	147	28868046	-	PSPTO_0818	-	MarR family transcriptional regulator
802	 58.23	0	883449..884195	+	248	28868047	-	PSPTO_0819	-	hypothetical protein
803	 61.56	0	884192..887302	-	1036	28868048	-	PSPTO_0820	-	AcrB/AcrD/AcrF family protein
804	 64.52	+1	887299..888414	-	371	28868049	-	PSPTO_0821	-	RND family efflux transporter MFP subunit
805	 55.99	0	888496..889113	-	205	28868050	-	PSPTO_0822	-	TetR family transcriptional regulator
806	 60.25	0	889587..890927	-	446	28868051	pilR	PSPTO_0823	-	type 4 fimbriae expression regulatory protein pilR
58.61	MEAN

4.14	STD DEV
