IslandPathversion 1.0

IslandPath Analysis: Pseudomonas syringae pv. tomato str. DC3000

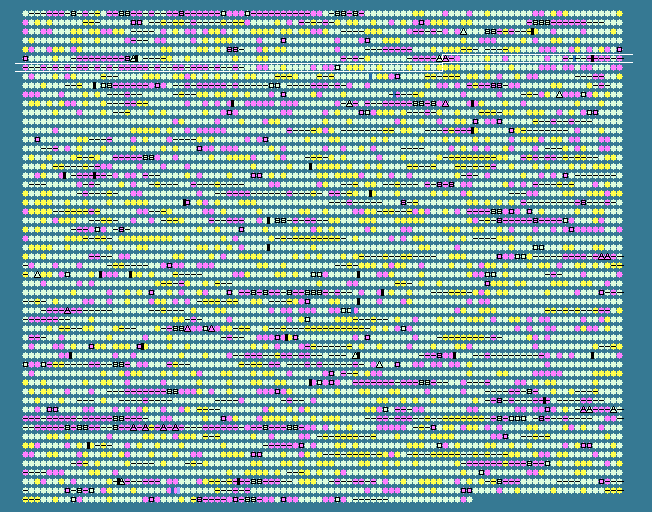

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.61 STD DEV: 4.14
Pseudomonas syringae pv. tomato str. DC3000, complete genome - 1..6397126
5475 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
571	 53.83	-1	645345..647486	+	713	28867815	-	PSPTO_0587	-	phage integrase family site specific recombinase
572	 47.34	-2	647588..648244	-	218	28867816	hopH1	PSPTO_0588	-	type III effector HopH1
573	 46.91	-2	648896..649705	-	269	28867817	hopC1	PSPTO_0589	-	type III effector HopC1
574	 56.86	0	649880..650980	+	366	28867819	-	PSPTO_0591	-	impB/mucB/samB family protein
575	 58.83	0	651383..651982	+	199	28867820	trpG	PSPTO_0592	-	anthranilate synthase component II
576	 60.57	0	652004..653053	+	349	28867821	trpD	PSPTO_0593	-	anthranilate phosphoribosyltransferase
577	 60.10	0	653050..653886	+	278	28867822	trpC	PSPTO_0594	-	indole-3-glycerol-phosphate synthase
578	 62.50	0	653921..654616	+	231	28867823	-	PSPTO_0595	-	hypothetical protein
579	 59.38	0	654628..655272	-	214	28867824	crp	PSPTO_0596	-	cAMP-regulatory protein
580	 56.26	0	655482..655904	+	140	28867825	-	PSPTO_0597	-	OsmC/Ohr family protein
581	 51.95	-1	656147..656941	+	264	28867826	speD	PSPTO_0598	-	S-adenosylmethionine decarboxylase
582	 61.88	0	657002..657649	-	215	28867827	-	PSPTO_0599	-	hypothetical protein
583	 55.46	0	657771..658109	-	112	28867828	-	PSPTO_0600	-	HIT family protein
584	 59.97	0	658212..658988	-	258	28867829	-	PSPTO_0601	-	short chain dehydrogenase/reductase family oxidoreductase
585	 59.70	0	659042..659974	-	310	28867830	-	PSPTO_0602	-	hypothetical protein
586	 55.94	0	660073..660501	-	142	28867831	-	PSPTO_0603	-	hypothetical protein
587	 61.93	0	660635..661669	+	344	28867832	argC	PSPTO_0604	-	N-acetyl-gamma-glutamyl-phosphate reductase
588	 54.70	0	661872..662222	+	116	28867833	-	PSPTO_0605	-	iron-sulfur cluster insertion protein ErpA
589	 59.94	0	662286..663356	-	356	28867834	-	PSPTO_0606	-	anhydro-N-acetylmuramic acid kinase
590	 56.84	0	663384..664808	-	474	28867835	-	PSPTO_0607	-	M24/M37 family peptidase
591	 30.39	-2	664805..664906	-	33	28867836	-	PSPTO_0608	-	hypothetical protein
592	 56.44	0	665010..666221	+	403	28867837	tyrS	PSPTO_0609	-	tyrosyl-tRNA synthetase
593	 56.04	0	672113..673072	+	319	28867838	birA	PSPTO_0610	-	biotin--protein ligase
594	 55.73	0	673062..673811	+	249	28867839	-	PSPTO_0611	-	pantothenate kinase
595	 52.91	-1	673819..674247	+	142	28867840	-	PSPTO_0612	-	hypothetical protein
596	 51.22	-1	674963..675331	+	122	28867841	secE	PSPTO_0613	-	preprotein translocase subunit SecE
597	 53.00	-1	675341..675874	+	177	28867842	nusG	PSPTO_0614	-	transcription antitermination protein NusG
598	 54.40	-1	675993..676424	+	143	28867843	rplK	PSPTO_0615	-	50S ribosomal protein L11
599	 55.17	0	676424..677119	+	231	28867844	rplA	PSPTO_0616	-	50S ribosomal protein L1
600	 55.09	0	677322..677822	+	166	28867845	rplJ	PSPTO_0617	-	50S ribosomal protein L10
601	 50.82	-1	677902..678267	+	121	28867846	rplL	PSPTO_0618	-	50S ribosomal protein L7/L12
602	 55.52	0	678489..682562	+	1357	28867847	rpoB	PSPTO_0619	-	DNA-directed RNA polymerase subunit beta
603	 55.69	0	682627..686826	+	1399	28867848	rpoC	PSPTO_0620	-	DNA-directed RNA polymerase subunit beta'
604	 55.11	0	687024..687395	+	123	28867849	rpsL	PSPTO_0621	-	30S ribosomal protein S12
605	 56.26	0	687518..687988	+	156	28867850	rpsG	PSPTO_0622	-	30S ribosomal protein S7
606	 54.27	-1	688019..690124	+	701	28867851	fusA	PSPTO_0623	-	elongation factor G
607	 55.86	0	690156..691349	+	397	28867852	tuf	PSPTO_0624	-	elongation factor Tu
608	 53.21	-1	691491..691802	+	103	28867853	rpsJ	PSPTO_0625	-	30S ribosomal protein S10
609	 55.97	0	691884..692519	+	211	28867854	rplC	PSPTO_0626	-	50S ribosomal protein L3
610	 54.23	-1	692532..693134	+	200	28867855	rplD	PSPTO_0627	-	50S ribosomal protein L4
611	 50.67	-1	693131..693430	+	99	28867856	rplW	PSPTO_0628	-	50S ribosomal protein L23
612	 55.64	0	693445..694269	+	274	28867857	rplB	PSPTO_0629	-	50S ribosomal protein L2
613	 50.00	-2	694286..694561	+	91	28867858	rpsS	PSPTO_0630	-	30S ribosomal protein S19
614	 57.06	0	694575..694907	+	110	28867859	rplV	PSPTO_0631	-	50S ribosomal protein L22
615	 53.13	-1	694921..695607	+	228	28867860	rpsC	PSPTO_0632	-	30S ribosomal protein S3
616	 57.25	0	695620..696033	+	137	28867861	rplP	PSPTO_0633	-	50S ribosomal protein L16
617	 52.08	-1	696033..696224	+	63	28867862	rpmC	PSPTO_0634	-	50S ribosomal protein L29
618	 52.81	-1	696227..696493	+	88	28867863	rpsQ	PSPTO_0635	-	30S ribosomal protein S17
619	 54.47	0	696517..696885	+	122	28867864	rplN	PSPTO_0636	-	50S ribosomal protein L14
620	 51.75	-1	696897..697211	+	104	28867865	rplX	PSPTO_0637	-	50S ribosomal protein L24
621	 51.85	-1	697232..697771	+	179	28867866	rplE	PSPTO_0638	-	50S ribosomal protein L5
622	 56.54	0	697785..698090	+	101	28867867	rpsN	PSPTO_0639	-	30S ribosomal protein S14
623	 54.20	-1	698305..698697	+	130	28867868	rpsH	PSPTO_0640	-	30S ribosomal protein S8
624	 55.24	0	698710..699243	+	177	28867869	rplF	PSPTO_0641	-	50S ribosomal protein L6
625	 58.97	0	699254..699604	+	116	28867870	rplR	PSPTO_0642	-	50S ribosomal protein L18
626	 53.49	-1	699608..700108	+	166	28867871	rpsE	PSPTO_0643	-	30S ribosomal protein S5
627	 49.72	-2	700111..700287	+	58	28867872	rpmD	PSPTO_0644	-	50S ribosomal protein L30
628	 57.70	0	700291..700725	+	144	28867873	rplO	PSPTO_0645	-	50S ribosomal protein L15
629	 54.98	0	700726..702060	+	444	28867874	secY	PSPTO_0646	-	preprotein translocase subunit SecY
630	 50.43	-1	702089..702205	+	38	28867875	rpmJ	PSPTO_0647	-	50S ribosomal protein L36
631	 54.34	-1	702336..702692	+	118	28867876	rpsM	PSPTO_0648	-	30S ribosomal protein S13
632	 56.67	0	702723..703112	+	129	28867877	rpsK	PSPTO_0649	-	30S ribosomal protein S11
633	 53.46	-1	703131..703751	+	206	28867878	rpsD	PSPTO_0650	-	30S ribosomal protein S4
634	 55.49	0	703774..704775	+	333	28867879	rpoA	PSPTO_0651	-	DNA-directed RNA polymerase subunit alpha
635	 55.56	0	704817..705203	+	128	28867880	rplQ	PSPTO_0652	-	50S ribosomal protein L17
636	 54.62	0	705466..705930	+	154	28867881	-	PSPTO_0653	-	bacterioferritin
637	 59.11	0	706024..709002	-	992	28867882	uvrA	PSPTO_0654	-	excinuclease ABC subunit A
638	 60.50	0	708988..710382	+	464	28867883	-	PSPTO_0655	-	major facilitator family transporter
639	 59.12	0	710392..710961	+	189	28867884	ssB	PSPTO_0656	-	single-strand DNA-binding protein
640	 54.82	0	711177..711767	-	196	28867885	-	PSPTO_0657	-	hypothetical protein
641	 49.63	-2	711853..712398	+	181	28867886	-	PSPTO_0658	-	hypothetical protein
642	 60.89	0	712538..713281	-	247	28867887	-	PSPTO_0659	-	inositol monophosphatase family protein
643	 60.24	0	713278..714039	-	253	28867888	-	PSPTO_0660	-	glycerophosphoryl diester phosphodiesterase, putative
644	 62.87	+1	714046..715152	-	368	28867889	ugpC	PSPTO_0661	-	glycerol-3-phosphate ABC transporter, ATP-binding protein
645	 61.74	0	715149..716042	-	297	28867890	ugpE	PSPTO_0662	-	glycerol-3-phosphate ABC transporter, permease protein
646	 59.51	0	716039..716932	-	297	28867891	ugpA	PSPTO_0663	-	glycerol-3-phosphate ABC transporter, permease protein
647	 60.75	0	716929..718365	-	478	28867892	ugpB	PSPTO_0664	-	glycerol-3-phosphate ABC transporter, periplasmic glycerol-3-phosphate-binding protein
648	 60.04	0	718531..719661	+	376	28867893	-	PSPTO_0665	-	ROK family protein
649	 52.68	-1	719689..720210	-	173	28867894	-	PSPTO_0666	-	hypothetical protein
650	 56.68	0	720816..721586	-	256	28867895	-	PSPTO_0667	-	short chain dehydrogenase/reductase family oxidoreductase
651	 54.86	0	721761..722429	-	222	28867896	-	PSPTO_0668	-	hypothetical protein
652	 48.33	-2	723766..724125	+	119	28867897	-	PSPTO_0669	-	ISPsy5, Orf1
653	 56.31	0	724143..725696	+	517	28867898	-	PSPTO_0670	-	ISPsy5, transposase
654	 59.56	0	726055..728361	-	768	28867899	-	PSPTO_0671	-	TonB-dependent receptor, putative
655	 63.21	+1	728432..728836	-	134	28867900	exbD-2	PSPTO_0672	-	TonB system transport protein ExbD
656	 62.34	0	728838..729530	-	230	28867901	exbB-2	PSPTO_0673	-	TonB system transport protein ExbB
657	 67.29	+2	729541..730344	-	267	28867902	-	PSPTO_0674	-	TonB domain-containing protein
658	 59.34	0	730513..731331	-	272	28867903	-	PSPTO_0675	-	arylesterase
659	 60.94	0	731587..733890	+	767	28867904	-	PSPTO_0676	-	mechanosensitive ion channel family protein
660	 63.14	+1	734058..734936	+	292	28867905	-	PSPTO_0677	-	lipopolysaccharide biosynthesis protein, putative
661	 60.43	0	734929..735858	+	309	28867906	-	PSPTO_0678	-	NAD-dependent epimerase/dehydratase family protein
662	 59.68	0	736029..736715	-	228	28867907	-	PSPTO_0679	-	outer membrane protein OmpW
663	 59.05	0	736819..737343	-	174	28867908	-	PSPTO_0680	-	putative lipoprotein
664	 60.66	0	737352..738617	-	421	28867909	-	PSPTO_0681	-	permease, putative
665	 62.45	0	738619..739329	-	236	28867910	-	PSPTO_0682	-	ABC transporter, ATP-binding protein
666	 57.99	0	739399..739986	-	195	28867911	-	PSPTO_0683	-	hypothetical protein
667	 56.16	0	740161..740712	+	183	28867912	-	PSPTO_0684	-	hypothetical protein
668	 63.59	+1	740788..741144	+	118	28867913	-	PSPTO_0685	-	hypothetical protein
669	 59.34	0	741199..742071	-	290	28867914	trx-1	PSPTO_0686	-	thioredoxin
670	 64.07	+1	742244..742897	-	217	28867915	-	PSPTO_0687	-	hypothetical protein
58.61	MEAN

4.14	STD DEV
