IslandPath Analysis: Pseudomonas syringae pv. tomato str. DC3000

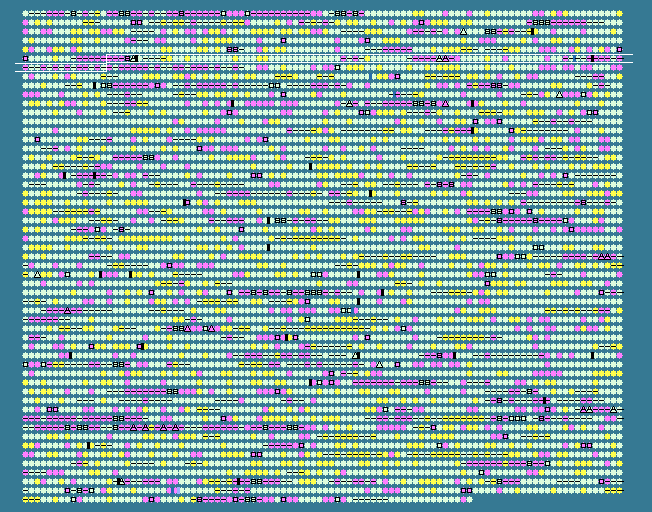

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.61 STD DEV: 4.14
Pseudomonas syringae pv. tomato str. DC3000, complete genome - 1..6397126
5475 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
515	 53.83	-1	579598..580119	-	173	28867759	-	PSPTO_0530	-	hypothetical protein
516	 52.29	-1	580669..581433	+	254	28867760	-	PSPTO_0531	-	type IV secretion system protein, putative
517	 52.55	-1	581917..582171	+	84	28867761	-	PSPTO_0532	-	putative lipoprotein
518	 54.19	-1	583081..584058	+	325	28867762	-	PSPTO_0534	-	ISPssy, transposase
519	 55.80	0	584780..586021	-	413	28867763	-	PSPTO_0535	-	phage integrase family site specific recombinase
520	 59.20	0	586100..588589	-	829	28867764	-	PSPTO_0536	-	sensory box protein
521	 57.16	0	588846..590696	-	616	28867765	rpoD	PSPTO_0537	-	RNA polymerase sigma factor RpoD
522	 59.57	0	590764..592722	-	652	28867766	dnaG	PSPTO_0538	-	DNA primase
523	 55.56	0	593192..593407	-	71	28867767	rpsU	PSPTO_0539	-	30S ribosomal protein S21
524	 63.94	+1	593605..594630	+	341	28867768	gcp	PSPTO_0540	-	O-sialoglycoprotein endopeptidase
525	 65.46	+1	594683..595261	-	192	28867769	-	PSPTO_0541	-	putative glycerol-3-phosphate acyltransferase PlsY
526	 60.45	0	595327..595680	+	117	28867770	folB-1	PSPTO_0542	-	dihydroneopterin aldolase
527	 59.05	0	595671..596195	+	174	28867771	folK-1	PSPTO_0543	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
528	 62.28	0	596465..597694	-	409	28867772	cca	PSPTO_0544	-	multifunctional tRNA nucleotidyl transferase/2'3'-cyclic phosphodiesterase/2'nucleotidase/phosphatase
529	 57.01	0	597792..599354	-	520	28867773	-	PSPTO_0545	-	hypothetical protein
530	 56.76	0	599351..600622	-	423	28867774	-	PSPTO_0546	-	hypothetical protein
531	 55.28	0	600744..602666	-	640	28867775	-	PSPTO_0547	-	hypothetical protein
532	 57.94	0	602952..603272	-	106	28867776	-	PSPTO_0548	-	thiosulfate sulfurtransferase
533	 58.80	0	603269..604171	-	300	28867777	apaH	PSPTO_0549	-	diadenosine tetraphosphatase
534	 57.74	0	604171..604551	-	126	28867778	apaG	PSPTO_0550	-	ApaG
535	 60.22	0	604665..605471	-	268	28867779	ksgA	PSPTO_0551	-	dimethyladenosine transferase
536	 63.94	+1	605468..606457	-	329	28867780	pdxA	PSPTO_0552	-	4-hydroxythreonine-4-phosphate dehydrogenase
537	 58.43	0	606454..607740	-	428	28867781	surA	PSPTO_0553	-	peptidyl-prolyl cis-trans isomerase SurA
538	 57.62	0	607757..610474	-	905	28867782	-	PSPTO_0554	-	organic solvent tolerance protein, putative
539	 57.41	0	610670..611695	+	341	28867783	-	PSPTO_0555	-	hypothetical protein
540	 62.72	0	611814..612446	+	210	28867784	-	PSPTO_0556	-	nucleotidyltransferase family protein
541	 63.93	+1	612447..613214	+	255	28867785	-	PSPTO_0557	-	DnaJ-like protein DjlA, putative
542	 61.66	0	613245..614243	-	332	28867786	-	PSPTO_0558	-	hypothetical protein
543	 60.91	0	614343..616358	+	671	28867787	-	PSPTO_0559	-	sensory box histidine kinase
544	 59.68	0	616355..616984	+	209	28867788	-	PSPTO_0560	-	LuxR family DNA-binding response regulator
545	 60.92	0	617232..617405	+	57	28867789	-	PSPTO_0561	-	hypothetical protein
546	 60.62	0	617525..618649	+	374	28867790	-	PSPTO_0562	-	polyamine ABC transporter, ATP-binding protein
547	 58.74	0	618732..619766	+	344	28867791	-	PSPTO_0563	-	polyamine ABC transporter, periplasmic polyamine-binding protein
548	 60.74	0	619844..621091	+	415	28867792	-	PSPTO_0564	-	polyamine ABC transporter, permease protein
549	 61.07	0	621103..621924	+	273	28867793	-	PSPTO_0565	-	polyamine ABC transporter, permease protein
550	 59.70	0	622080..622754	+	224	28867794	rpe	PSPTO_0566	-	ribulose-phosphate 3-epimerase
551	 61.42	0	622769..623569	+	266	28867795	gph-1	PSPTO_0567	-	phosphoglycolate phosphatase
552	 59.99	0	623639..625120	+	493	28867796	trpE	PSPTO_0568	-	anthranilate synthase component I
553	 61.47	0	625342..627264	-	640	28867797	-	PSPTO_0569	-	autotransporting lipase
554	 54.68	0	627371..627637	-	88	28867798	-	PSPTO_0570	-	transcriptional regulator PrtN, putative
555	 60.19	0	628136..628783	-	215	28867799	-	PSPTO_0571	-	repressor protein c2
556	 50.78	-1	629847..630677	+	276	28867800	-	PSPTO_0572	-	bacteriocin, putative
557	 59.24	0	631257..631727	+	156	28867801	-	PSPTO_0573	-	hypothetical protein
558	 62.87	+1	631705..632046	+	113	28867802	-	PSPTO_0574	-	putative lipoprotein
559	 61.76	0	632092..632682	+	196	28867803	-	PSPTO_0575	-	hypothetical protein
560	 60.85	0	632679..632867	+	62	28867804	-	PSPTO_0576	-	hypothetical protein
561	 60.72	0	632886..634382	+	498	28867805	-	PSPTO_0577	-	tail sheath protein, putative
562	 56.61	0	634443..634790	+	115	28867806	-	PSPTO_0578	-	hypothetical protein
563	 57.91	0	634787..635083	+	98	28867807	-	PSPTO_0579	-	sigma factor domain-containing protein
564	 60.61	0	635214..637358	+	714	28867808	-	PSPTO_0580	-	tail tape meausure protein
565	 58.77	0	637355..639178	+	607	28867809	-	PSPTO_0581	-	DNA circulation protein, putative
566	 50.93	-1	639401..640042	+	213	28867810	-	PSPTO_0582	-	hypothetical protein
567	 47.10	-2	640284..640973	-	229	28867811	-	PSPTO_0583	-	hypothetical protein
568	 51.80	-1	641322..642014	-	230	28867812	-	PSPTO_0584	-	Sir2 family transcriptional regulator
569	 50.43	-1	642156..642623	-	155	28867813	-	PSPTO_0585	-	hypothetical protein
570	 58.65	0	644311..645321	+	336	28867814	-	PSPTO_0586	-	phage integrase family site specific recombinase
571	 53.83	-1	645345..647486	+	713	28867815	-	PSPTO_0587	-	phage integrase family site specific recombinase
572	 47.34	-2	647588..648244	-	218	28867816	hopH1	PSPTO_0588	-	type III effector HopH1
573	 46.91	-2	648896..649705	-	269	28867817	hopC1	PSPTO_0589	-	type III effector HopC1
574	 56.86	0	649880..650980	+	366	28867819	-	PSPTO_0591	-	impB/mucB/samB family protein
575	 58.83	0	651383..651982	+	199	28867820	trpG	PSPTO_0592	-	anthranilate synthase component II
576	 60.57	0	652004..653053	+	349	28867821	trpD	PSPTO_0593	-	anthranilate phosphoribosyltransferase
577	 60.10	0	653050..653886	+	278	28867822	trpC	PSPTO_0594	-	indole-3-glycerol-phosphate synthase
578	 62.50	0	653921..654616	+	231	28867823	-	PSPTO_0595	-	hypothetical protein
579	 59.38	0	654628..655272	-	214	28867824	crp	PSPTO_0596	-	cAMP-regulatory protein
580	 56.26	0	655482..655904	+	140	28867825	-	PSPTO_0597	-	OsmC/Ohr family protein
581	 51.95	-1	656147..656941	+	264	28867826	speD	PSPTO_0598	-	S-adenosylmethionine decarboxylase
582	 61.88	0	657002..657649	-	215	28867827	-	PSPTO_0599	-	hypothetical protein
583	 55.46	0	657771..658109	-	112	28867828	-	PSPTO_0600	-	HIT family protein
584	 59.97	0	658212..658988	-	258	28867829	-	PSPTO_0601	-	short chain dehydrogenase/reductase family oxidoreductase
585	 59.70	0	659042..659974	-	310	28867830	-	PSPTO_0602	-	hypothetical protein
586	 55.94	0	660073..660501	-	142	28867831	-	PSPTO_0603	-	hypothetical protein
587	 61.93	0	660635..661669	+	344	28867832	argC	PSPTO_0604	-	N-acetyl-gamma-glutamyl-phosphate reductase
588	 54.70	0	661872..662222	+	116	28867833	-	PSPTO_0605	-	iron-sulfur cluster insertion protein ErpA
589	 59.94	0	662286..663356	-	356	28867834	-	PSPTO_0606	-	anhydro-N-acetylmuramic acid kinase
590	 56.84	0	663384..664808	-	474	28867835	-	PSPTO_0607	-	M24/M37 family peptidase
591	 30.39	-2	664805..664906	-	33	28867836	-	PSPTO_0608	-	hypothetical protein
592	 56.44	0	665010..666221	+	403	28867837	tyrS	PSPTO_0609	-	tyrosyl-tRNA synthetase
593	 56.04	0	672113..673072	+	319	28867838	birA	PSPTO_0610	-	biotin--protein ligase
594	 55.73	0	673062..673811	+	249	28867839	-	PSPTO_0611	-	pantothenate kinase
595	 52.91	-1	673819..674247	+	142	28867840	-	PSPTO_0612	-	hypothetical protein
596	 51.22	-1	674963..675331	+	122	28867841	secE	PSPTO_0613	-	preprotein translocase subunit SecE
597	 53.00	-1	675341..675874	+	177	28867842	nusG	PSPTO_0614	-	transcription antitermination protein NusG
598	 54.40	-1	675993..676424	+	143	28867843	rplK	PSPTO_0615	-	50S ribosomal protein L11
599	 55.17	0	676424..677119	+	231	28867844	rplA	PSPTO_0616	-	50S ribosomal protein L1
600	 55.09	0	677322..677822	+	166	28867845	rplJ	PSPTO_0617	-	50S ribosomal protein L10
601	 50.82	-1	677902..678267	+	121	28867846	rplL	PSPTO_0618	-	50S ribosomal protein L7/L12
602	 55.52	0	678489..682562	+	1357	28867847	rpoB	PSPTO_0619	-	DNA-directed RNA polymerase subunit beta
603	 55.69	0	682627..686826	+	1399	28867848	rpoC	PSPTO_0620	-	DNA-directed RNA polymerase subunit beta'
604	 55.11	0	687024..687395	+	123	28867849	rpsL	PSPTO_0621	-	30S ribosomal protein S12
605	 56.26	0	687518..687988	+	156	28867850	rpsG	PSPTO_0622	-	30S ribosomal protein S7
606	 54.27	-1	688019..690124	+	701	28867851	fusA	PSPTO_0623	-	elongation factor G
607	 55.86	0	690156..691349	+	397	28867852	tuf	PSPTO_0624	-	elongation factor Tu
608	 53.21	-1	691491..691802	+	103	28867853	rpsJ	PSPTO_0625	-	30S ribosomal protein S10
609	 55.97	0	691884..692519	+	211	28867854	rplC	PSPTO_0626	-	50S ribosomal protein L3
610	 54.23	-1	692532..693134	+	200	28867855	rplD	PSPTO_0627	-	50S ribosomal protein L4
611	 50.67	-1	693131..693430	+	99	28867856	rplW	PSPTO_0628	-	50S ribosomal protein L23
612	 55.64	0	693445..694269	+	274	28867857	rplB	PSPTO_0629	-	50S ribosomal protein L2
613	 50.00	-2	694286..694561	+	91	28867858	rpsS	PSPTO_0630	-	30S ribosomal protein S19
614	 57.06	0	694575..694907	+	110	28867859	rplV	PSPTO_0631	-	50S ribosomal protein L22
58.61	MEAN

4.14	STD DEV
