IslandPathversion 1.0

IslandPath Analysis: Pseudomonas syringae pv. tomato str. DC3000

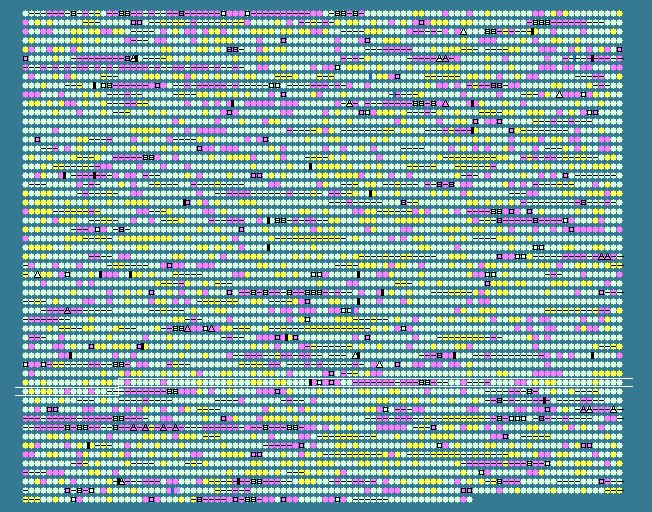

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.61 STD DEV: 4.14
Pseudomonas syringae pv. tomato str. DC3000, complete genome - 1..6397126
5475 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4117	 61.88	0	4750298..4750987	-	229	28871359	rnc	PSPTO_4217	-	ribonuclease III
4118	 47.09	-2	4750984..4751361	-	125	28871360	-	PSPTO_4218	-	hypothetical protein
4119	 56.73	0	4751478..4752332	-	284	28871361	lepB	PSPTO_4219	-	signal peptidase I
4120	 58.05	0	4752342..4754129	-	595	28871362	lepA	PSPTO_4220	-	GTP-binding protein LepA
4121	 59.72	0	4754310..4755749	-	479	28871363	-	PSPTO_4221	-	serine protease, MucD
4122	 55.17	0	4756035..4756991	-	318	28871364	mucB	PSPTO_4222	-	sigma factor algU regulatory protein MucB
4123	 58.88	0	4757000..4757590	-	196	28871365	mucA	PSPTO_4223	-	sigma factor algU negative regulatory protein MucA
4124	 53.95	-1	4757624..4758205	-	193	28871366	rpoE	PSPTO_4224	-	RNA polymerase sigma factor AlgU
4125	 60.85	0	4758704..4760320	+	538	28871367	nadB	PSPTO_4225	-	L-aspartate oxidase
4126	 60.86	0	4760289..4760753	-	154	28871368	-	PSPTO_4226	-	hypothetical protein
4127	 57.65	0	4760737..4760991	-	84	28871369	-	PSPTO_4227	-	hypothetical protein
4128	 59.81	0	4761138..4762085	+	315	28871370	-	PSPTO_4228	-	hypothetical protein
4129	 56.69	0	4762199..4763020	+	273	28871371	-	PSPTO_4229	-	hypothetical protein
4130	 63.05	+1	4763026..4764408	-	460	28871372	-	PSPTO_4230	-	sensor histidine kinase TctE
4131	 60.86	0	4764401..4765072	-	223	28871373	tctD	PSPTO_4231	-	DNA-binding response regulator TctD
4132	 61.45	0	4765571..4766548	+	325	28871374	-	PSPTO_4232	-	TctC protein, putative
4133	 60.13	0	4766611..4767069	+	152	28871375	-	PSPTO_4233	-	membrane protein TctB, putative
4134	 60.86	0	4767071..4768585	+	504	28871376	-	PSPTO_4234	-	membrane protein TctA, putative
4135	 63.57	+1	4768578..4769612	+	344	28871377	-	PSPTO_4235	-	hypothetical protein
4136	 59.31	0	4769631..4770323	-	230	28871378	ung	PSPTO_4236	-	uracil-DNA glycosylase
4137	 60.78	0	4770504..4770962	-	152	28871379	-	PSPTO_4237	-	putative lipoprotein
4138	 58.15	0	4771535..4772602	+	355	28871380	-	PSPTO_4238	-	ABC transporter, periplasmic substrate-binding protein
4139	 62.87	+1	4772630..4773445	+	271	28871381	-	PSPTO_4239	-	ABC transporter, permease protein
4140	 63.47	+1	4773442..4774224	+	260	28871382	-	PSPTO_4240	-	ABC transporter, ATP-binding protein
4141	 61.43	0	4774221..4774946	+	241	28871383	-	PSPTO_4241	-	hypothetical protein
4142	 59.22	0	4774958..4775575	+	205	28871384	-	PSPTO_4242	-	hypothetical protein
4143	 63.08	+1	4775685..4779365	+	1226	28871385	-	PSPTO_4243	-	urea amidolyase-related protein
4144	 64.08	+1	4779401..4781215	+	604	28871386	-	PSPTO_4244	-	amidase
4145	 60.22	0	4781326..4784661	+	1111	28871387	-	PSPTO_4245	-	hypothetical protein
4146	 61.04	0	4784654..4784902	+	82	28871388	-	PSPTO_4246	-	hypothetical protein
4147	 58.44	0	4784962..4785654	+	230	162533084	rsuA	PSPTO_4247	-	ribosomal small subunit pseudouridine synthase A
4148	 58.08	0	4785951..4786835	+	294	28871389	phaG-2	PSPTO_4248	-	3-hydroxyacyl-CoA-acyl carrier protein transferase
4149	 53.12	-1	4788681..4789817	+	378	28871390	-	PSPTO_4250	-	DNA-binding protein
4150	 56.31	0	4790778..4792331	-	517	28871391	-	PSPTO_4251	-	ISPsy5, transposase
4151	 48.33	-2	4792349..4792708	-	119	28871392	-	PSPTO_4252	-	ISPsy5, Orf1
4152	 54.19	-1	4793542..4794519	-	325	28871393	-	PSPTO_4253	-	ISPssy, transposase
4153	 54.60	0	4794539..4795939	+	466	28871394	gor-2	PSPTO_4254	-	glutathione reductase
4154	 55.86	0	4796392..4796724	+	110	28871395	-	PSPTO_4255	-	carboxymuconolactone decarboxylase family protein
4155	 55.28	0	4796769..4797875	+	368	28871396	-	PSPTO_4256	-	NADH:flavin oxidoreductase/NADH oxidase family protein
4156	 49.77	-2	4797904..4798122	+	72	28871397	-	PSPTO_4257	-	4-oxalocrotonate tautomerase family protein
4157	 48.28	-2	4798233..4798754	+	173	28871398	-	PSPTO_4258	-	glutathione-regulated potassium-efflux system ancillary protein KefF
4158	 54.06	-1	4798755..4800578	+	607	28871399	kefC	PSPTO_4259	-	glutathione-regulated potassium-efflux system protein KefC
4159	 48.79	-2	4800613..4800942	-	109	28871400	trxA	PSPTO_4260	-	thioredoxin
4160	 50.36	-1	4801007..4801705	-	232	28871401	-	PSPTO_4261	-	isomerase, putative
4161	 52.45	-1	4801709..4802299	-	196	28871402	-	PSPTO_4262	-	TetR family transcriptional regulator
4162	 54.26	-1	4802393..4803166	-	257	28871403	-	PSPTO_4263	-	short chain dehydrogenase/reductase family oxidoreductase
4163	 55.32	0	4803256..4803810	-	184	28871404	-	PSPTO_4264	-	hypothetical protein
4164	 51.71	-1	4804230..4805399	+	389	28871405	metC-2	PSPTO_4265	-	cystathionine beta-lyase
4165	 50.11	-2	4805477..4806364	+	295	28871406	-	PSPTO_4266	-	hypothetical protein
4166	 49.65	-2	4806458..4807027	-	189	28871407	-	PSPTO_4267	-	TetR family transcriptional regulator
4167	 59.24	0	4807947..4808969	+	340	28871408	-	PSPTO_4269	-	ISPsy4, transposase
4168	 57.78	0	4808966..4809775	+	269	28871409	-	PSPTO_4270	-	transposase/IS protein
4169	 47.81	-2	4811663..4813147	-	494	28871410	-	PSPTO_4272	-	hypothetical protein
4170	 59.13	0	4814851..4815513	-	220	28871411	-	PSPTO_4274	-	TetR family transcriptional regulator
4171	 59.41	0	4815638..4816423	+	261	28871412	-	PSPTO_4275	-	short chain dehydrogenase/reductase family oxidoreductase
4172	 55.95	0	4817118..4818041	-	307	28871413	-	PSPTO_4276	-	LysR family transcriptional regulator
4173	 57.19	0	4818257..4819090	+	277	28871414	-	PSPTO_4277	-	esterase/lipase/thioesterase family protein
4174	 54.22	-1	4819268..4820440	+	390	28871415	-	PSPTO_4278	-	major facilitator family transporter
4175	 56.80	0	4820633..4820926	+	97	28871416	-	PSPTO_4279	-	hypothetical protein
4176	 59.84	0	4820934..4821812	+	292	28871417	-	PSPTO_4280	-	nickel/cobalt efflux protein RcnA
4177	 58.05	0	4821822..4822262	+	146	28871418	-	PSPTO_4281	-	hypothetical protein
4178	 53.90	-1	4822314..4822454	+	46	28871419	-	PSPTO_4282	-	hypothetical protein
4179	 59.44	0	4822443..4823687	-	414	28871420	pnlA	PSPTO_4283	-	pectin lyase
4180	 59.73	0	4823844..4824290	-	148	28871421	-	PSPTO_4284	-	acetyltransferase
4181	 59.79	0	4824315..4825463	-	382	28871422	adhB	PSPTO_4285	-	alcohol dehydrogenase II
4182	 57.00	0	4825598..4826818	-	406	28871423	-	PSPTO_4286	-	hypothetical protein
4183	 49.92	-2	4827116..4828339	+	407	158146059	-	PSPTO_5625	-	binary cytotoxin component, putative
4184	 51.93	-1	4828342..4829352	+	336	28871424	-	PSPTO_4287	-	binary cytotoxin component, putative
4185	 58.90	0	4829410..4830027	-	205	28871425	-	PSPTO_4288	-	hypothetical protein
4186	 62.14	0	4830062..4830679	-	205	28871426	-	PSPTO_4289	-	hypothetical protein
4187	 58.92	0	4831075..4833372	+	765	28871427	bglX	PSPTO_4290	-	beta-glucosidase
4188	 62.23	0	4833443..4835200	+	585	28871428	-	PSPTO_4291	-	sensor histidine kinase
4189	 62.70	0	4835207..4836541	+	444	28871429	-	PSPTO_4292	-	sigma-54 dependent transcriptional regulator/response regulator
4190	 60.16	0	4836767..4839148	+	793	28871430	-	PSPTO_4293	-	sensory box histidine kinase/response regulator
4191	 59.65	0	4839316..4841010	+	564	28871431	hscC	PSPTO_4294	-	chaperone protein HscC
4192	 55.70	0	4841016..4842656	+	546	28871432	-	PSPTO_4295	-	DnaJ domain-containing protein
4193	 58.97	0	4842839..4844164	+	441	28871433	-	PSPTO_4296	-	metabolite-proton symporter, putative
4194	 59.78	0	4844667..4845029	+	120	28871434	-	PSPTO_4297	-	hypothetical protein
4195	 59.78	0	4845168..4845791	+	207	28871435	-	PSPTO_4298	-	hypothetical protein
4196	 62.92	+1	4845792..4846031	-	79	28871436	-	PSPTO_4299	-	hypothetical protein
4197	 61.52	0	4846462..4847976	+	504	28871437	-	PSPTO_4300	-	EmrB/QacA family drug resistance transporter
4198	 58.02	0	4847990..4849123	-	377	28871438	-	PSPTO_4301	-	hypothetical protein
4199	 56.55	0	4849586..4850257	-	223	28871439	-	PSPTO_4302	-	TetR family transcriptional regulator
4200	 60.12	0	4850512..4851672	+	386	28871440	-	PSPTO_4303	-	RND family efflux transporter MFP subunit
4201	 59.30	0	4851676..4854810	+	1044	28871441	-	PSPTO_4304	-	AcrB/AcrD/AcrF family protein
4202	 62.22	0	4854807..4856267	+	486	28871442	-	PSPTO_4305	-	outer membrane efflux protein
4203	 58.68	0	4856343..4857644	-	433	28871443	pcaT	PSPTO_4306	-	dicarboxylic acid transport protein
4204	 65.08	+1	4857791..4858990	-	399	28871444	catF	PSPTO_4307	-	beta-ketoadipyl CoA thiolase
4205	 62.31	0	4858990..4859769	-	259	28871445	catJ	PSPTO_4308	-	3-oxoadipate:succinyl-CoA transferase, subunit B
4206	 59.32	0	4859769..4860626	-	285	28871446	catI	PSPTO_4309	-	3-oxoadipate:succinyl-CoA transferase, subunit A
4207	 59.19	0	4860784..4861626	-	280	28871447	pcaR	PSPTO_4310	-	Pca regulon regulatory protein PcaR
4208	 53.33	-1	4862471..4862695	-	74	28871448	-	PSPTO_4311	-	hypothetical protein
4209	 59.67	0	4862886..4864358	+	490	28871449	-	PSPTO_4312	-	phosphate transporter family protein
4210	 60.48	0	4864414..4864623	-	69	28871450	-	PSPTO_4313	-	hypothetical protein
4211	 57.98	0	4864702..4865553	-	283	28871451	purU-3	PSPTO_4314	-	formyltetrahydrofolate deformylase
4212	 53.28	-1	4865912..4866292	+	126	28871452	-	PSPTO_4315	-	transcriptional regulator, putative
4213	 56.46	0	4866365..4867795	-	476	28871453	sbcB	PSPTO_4316	-	exonuclease I
4214	 61.86	0	4868002..4868709	+	235	28871454	-	PSPTO_4317	-	hypothetical protein
4215	 61.57	0	4868706..4869686	+	326	28871455	-	PSPTO_4318	-	integral membrane protein
4216	 60.51	0	4869673..4871265	+	530	28871456	-	PSPTO_4319	-	hypothetical protein
58.61	MEAN

4.14	STD DEV
