IslandPath Analysis: Pseudomonas syringae pv. tomato str. DC3000

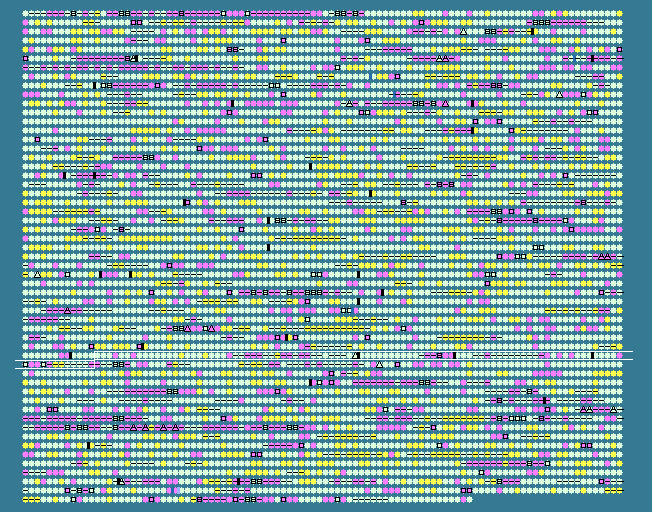

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.61 STD DEV: 4.14
Pseudomonas syringae pv. tomato str. DC3000, complete genome - 1..6397126
5475 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3813	 56.98	0	4416569..4417507	-	312	28871053	-	PSPTO_3901	-	hypothetical protein
3814	 59.28	0	4417685..4418659	-	324	28871054	cysK	PSPTO_3902	-	cysteine synthase A
3815	 57.61	0	4418787..4419857	+	356	28871055	-	PSPTO_3903	-	hypothetical protein
3816	 50.98	-1	4419919..4420071	-	50	28871056	-	PSPTO_3904	-	hypothetical protein
3817	 58.27	0	4420195..4421040	+	281	28871057	-	PSPTO_3905	-	AAA family ATPase
3818	 57.59	0	4421080..4422258	+	392	28871058	-	PSPTO_3906	-	hypothetical protein
3819	 53.78	-1	4422424..4423176	+	250	28871059	-	PSPTO_3907	-	hypothetical protein
3820	 56.57	0	4423209..4423733	-	174	28871060	-	PSPTO_3908	-	hypothetical protein
3821	 59.44	0	4423780..4424568	-	262	28871061	-	PSPTO_3909	-	hypothetical protein
3822	 61.22	0	4424645..4425121	-	158	28871062	-	PSPTO_3910	-	hypothetical protein
3823	 61.52	0	4425254..4427311	+	685	28871063	-	PSPTO_3911	-	protease II
3824	 60.00	0	4427438..4427872	+	144	28871064	-	PSPTO_3912	-	cyclic nucleotide-binding protein
3825	 60.80	0	4427938..4428312	+	124	28871065	-	PSPTO_3913	-	hypothetical protein
3826	 60.68	0	4428608..4430377	+	589	28871066	copA	PSPTO_3914	-	copper resistance protein A
3827	 62.55	0	4430482..4431258	+	258	28871067	-	PSPTO_3915	-	copper resistance protein B
3828	 60.44	0	4431331..4431828	+	165	28871068	-	PSPTO_3916	-	hypothetical protein
3829	 60.37	0	4431937..4432317	+	126	28871069	-	PSPTO_3917	-	hypothetical protein
3830	 57.11	0	4432322..4432771	-	149	28871070	-	PSPTO_3918	-	hypothetical protein
3831	 62.12	0	4432983..4433576	+	197	28871071	-	PSPTO_3919	-	nitroreductase family protein
3832	 60.45	0	4433652..4434584	-	310	28871072	-	PSPTO_3920	-	D-isomer specific 2-hydroxyacid dehydrogenase family protein
3833	 56.12	0	4434655..4434948	-	97	28871073	-	PSPTO_3921	-	hypothetical protein
3834	 61.55	0	4434945..4436078	-	377	28871074	rnd	PSPTO_3922	-	ribonuclease D
3835	 52.98	-1	4436285..4437928	-	547	28871075	-	PSPTO_3923	-	hypothetical protein
3836	 59.47	0	4438161..4439882	-	573	28871076	sfcA	PSPTO_3924	-	malate dehydrogenase
3837	 56.52	0	4440165..4440647	-	160	28871077	-	PSPTO_3925	-	gas vesicle protein, putative
3838	 54.05	-1	4441402..4442067	-	221	28871078	-	PSPTO_3927	-	hypothetical protein
3839	 43.84	-2	4442900..4443118	-	72	28871079	-	PSPTO_3929	-	cold shock domain-contain protein
3840	 42.81	-2	4443121..4444302	-	393	28871080	-	PSPTO_3930	-	retron reverse transcriptase
3841	 59.72	0	4445395..4445538	+	47	28871081	-	PSPTO_3931	-	hypothetical protein
3842	 60.12	0	4445527..4446045	-	172	28871082	-	PSPTO_3932	-	hypothetical protein
3843	 62.36	0	4446042..4446575	-	177	28871083	-	PSPTO_3933	-	lysozyme, putative
3844	 54.48	0	4446636..4446914	-	92	28871084	-	PSPTO_3934	-	tail fiber assembly domain-containing protein
3845	 49.30	-2	4446907..4447263	-	118	28871085	-	PSPTO_3935	-	hypothetical protein
3846	 55.46	0	4447263..4448261	-	332	28871086	-	PSPTO_3936	-	tail fiber domain-containing protein
3847	 50.83	-1	4448289..4448951	-	220	28871087	-	PSPTO_3937	-	hypothetical protein
3848	 49.32	-2	4448948..4449316	-	122	28871088	-	PSPTO_3938	-	hypothetical protein
3849	 59.37	0	4453493..4454095	+	200	28871089	-	PSPTO_3942	-	hypothetical protein
3850	 59.49	0	4454139..4454333	+	64	28871090	-	PSPTO_3943	-	carbon storage regulator, putative
3851	 58.70	0	4454323..4455000	+	225	28871091	-	PSPTO_3944	-	hypothetical protein
3852	 60.70	0	4454997..4455197	+	66	28871092	-	PSPTO_3945	-	hypothetical protein
3853	 56.41	0	4455286..4455753	+	155	28871093	-	PSPTO_3946	-	hypothetical protein
3854	 55.43	0	4455743..4456000	+	85	28871094	-	PSPTO_3947	-	hypothetical protein
3855	 61.72	0	4455993..4456376	+	127	28871095	-	PSPTO_3948	-	hypothetical protein
3856	 55.75	0	4457531..4458574	-	347	28871096	-	PSPTO_3949	-	phage integrase family site specific recombinase
3857	 55.98	0	4458800..4459510	-	236	28871097	purC	PSPTO_3950	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
3858	 60.74	0	4459539..4460297	-	252	28871098	-	PSPTO_3951	-	metallo-beta-lactamase superfamily protein
3859	 60.77	0	4460298..4461416	-	372	28871099	-	PSPTO_3952	-	putative lipoprotein
3860	 59.50	0	4461435..4462313	-	292	28871100	dapA	PSPTO_3953	-	dihydrodipicolinate synthase
3861	 60.11	0	4462639..4463202	+	187	28871101	-	PSPTO_3954	-	hypothetical protein
3862	 55.70	0	4463212..4463685	+	157	28871102	-	PSPTO_3955	-	AhpC/Tsa family protein
3863	 60.88	0	4463752..4464822	-	356	28871103	-	PSPTO_3956	-	PerM family membrane protein
3864	 61.51	0	4464855..4465106	-	83	28871104	-	PSPTO_3957	-	hypothetical protein
3865	 60.04	0	4465247..4466680	+	477	28871105	-	PSPTO_3958	-	hypothetical protein
3866	 60.06	0	4466782..4467840	-	352	28871106	nadA	PSPTO_3959	-	quinolinate synthetase
3867	 59.29	0	4468247..4469845	+	532	28871107	pglA	PSPTO_3960	-	polygalacturonase
3868	 40.80	-2	4470140..4470340	+	66	28871108	-	PSPTO_3961	-	hypothetical protein
3869	 42.86	-2	4470547..4470651	+	34	28871109	-	PSPTO_3962	-	hypothetical protein
3870	 54.19	-1	4470781..4471758	-	325	28871110	-	PSPTO_3963	-	ISPssy, transposase
3871	 51.16	-1	4472738..4474291	+	517	28871111	-	PSPTO_3965	-	hypothetical protein
3872	 52.22	-1	4474543..4474902	+	119	28871112	-	PSPTO_3966	-	ISPsy5, Orf1
3873	 61.23	0	4476573..4477253	-	226	28871113	exsB	PSPTO_3968	-	exsB protein
3874	 58.80	0	4477264..4477911	-	215	28871114	-	PSPTO_3969	-	radical SAM domain-containing protein
3875	 58.73	0	4478083..4478901	-	272	28871115	-	PSPTO_3970	-	hypothetical protein
3876	 57.29	0	4478908..4479408	-	166	28871116	pal	PSPTO_3971	-	peptidoglycan-associated lipoprotein
3877	 55.76	0	4479461..4480762	-	433	28871117	tolB	PSPTO_3972	-	translocation protein TolB
3878	 53.59	-1	4480759..4481829	-	356	28871118	tolA	PSPTO_3973	-	tolA protein
3879	 55.48	0	4481829..4482293	-	154	28871119	tolR-2	PSPTO_3974	-	tolR protein
3880	 58.05	0	4482308..4483003	-	231	28871120	tolQ-2	PSPTO_3975	-	tolQ protein
3881	 56.62	0	4482993..4483460	-	155	28871121	-	PSPTO_3976	-	hypothetical protein
3882	 60.38	0	4483595..4484533	-	312	28871122	ruvB	PSPTO_3977	-	Holliday junction DNA helicase B
3883	 58.95	0	4484657..4485265	-	202	28871123	ruvA	PSPTO_3978	-	Holliday junction DNA helicase motor protein
3884	 61.96	0	4485374..4485904	-	176	28871124	ruvC	PSPTO_3979	-	Holliday junction resolvase
3885	 58.10	0	4486035..4486781	-	248	28871125	-	PSPTO_3980	-	hypothetical protein
3886	 59.40	0	4486896..4488671	-	591	28871126	aspS	PSPTO_3981	-	aspartyl-tRNA synthetase
3887	 52.71	-1	4488956..4489213	-	85	28871127	-	PSPTO_3982	-	hypothetical protein
3888	 51.27	-1	4489660..4490133	-	157	28871128	-	PSPTO_3983	-	Dps family protein
3889	 57.21	0	4490988..4491209	+	73	28871129	-	PSPTO_3984	-	cold shock domain-contain protein
3890	 54.11	-1	4491291..4491497	-	68	28871130	-	PSPTO_3985	-	hypothetical protein
3891	 56.71	0	4491494..4491925	-	143	28871131	-	PSPTO_3986	-	hypothetical protein
3892	 54.94	0	4492830..4494176	+	448	28871132	oprD	PSPTO_3987	-	porin D
3893	 59.21	0	4494353..4496068	+	571	28871133	proS	PSPTO_3988	-	prolyl-tRNA synthetase
3894	 57.68	0	4496135..4497091	+	318	28871134	-	PSPTO_3989	-	putative lipoprotein
3895	 58.76	0	4497127..4498188	-	353	28871135	dinP	PSPTO_3990	-	DNA polymerase IV
3896	 61.52	0	4499143..4501785	+	880	28871136	-	PSPTO_3991	-	hypothetical protein
3897	 60.45	0	4501785..4503119	+	444	28871137	-	PSPTO_3992	-	hypothetical protein
3898	 60.44	0	4503214..4505109	-	631	28871138	kup	PSPTO_3993	-	potassium uptake protein
3899	 59.23	0	4505431..4506519	+	362	28871139	-	PSPTO_3994	-	hypothetical protein
3900	 43.19	-2	4507088..4508254	+	388	28871140	-	PSPTO_3995	-	abortive infection protein, internal deletion
3901	 56.24	0	4509044..4510597	-	517	28871141	-	PSPTO_3996	-	ISPsy5, transposase
3902	 48.33	-2	4510615..4510974	-	119	28871142	-	PSPTO_3997	-	ISPsy5, Orf1
3903	 48.33	-2	4511447..4511806	+	119	28871143	-	PSPTO_3998	-	ISPsy5, Orf1
3904	 56.31	0	4511824..4513377	+	517	28871144	-	PSPTO_3999	-	ISPsy5, transposase
3905	 49.49	-2	4514766..4515260	-	164	28871145	avrPto1	PSPTO_4001	-	type III effector protein AvrPto1
3906	 62.76	+1	4517028..4517564	-	178	28871146	-	PSPTO_4003	-	hypothetical protein
3907	 63.02	+1	4517561..4518493	-	310	28871147	-	PSPTO_4004	-	hypothetical protein
3908	 58.04	0	4518582..4519010	+	142	28871148	-	PSPTO_4005	-	hypothetical protein
3909	 59.74	0	4518980..4521406	-	808	28871149	-	PSPTO_4006	-	tail fiber protein H, putative
3910	 61.71	0	4521415..4521939	-	174	28871150	-	PSPTO_4007	-	hypothetical protein
3911	 59.56	0	4521997..4522404	-	135	28871151	-	PSPTO_4008	-	hypothetical protein
3912	 51.95	-1	4522401..4522631	-	76	28871152	cro	PSPTO_4009	-	regulatory protein Cro
58.61	MEAN

4.14	STD DEV
