IslandPath Analysis: Pseudomonas syringae pv. tomato str. DC3000

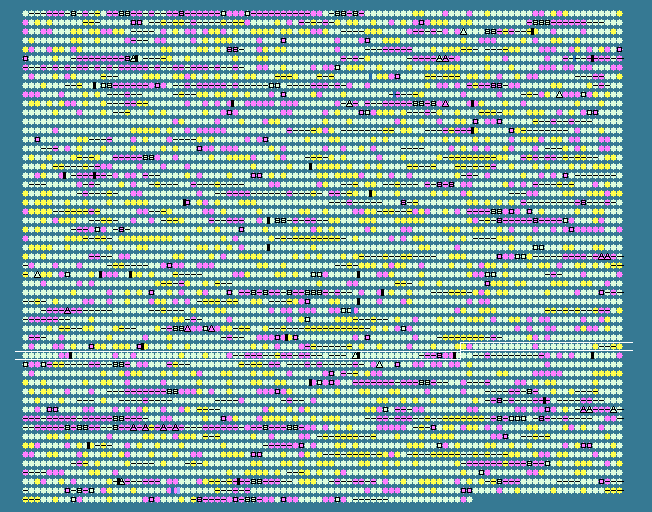

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.61 STD DEV: 4.14
Pseudomonas syringae pv. tomato str. DC3000, complete genome - 1..6397126
5475 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3774	 62.95	+1	4375583..4376686	-	367	28871015	-	PSPTO_3862	-	hypothetical protein
3775	 51.75	-1	4376977..4377720	+	247	28871016	psyR	PSPTO_3863	-	transcriptional regulator PsyR
3776	 55.37	0	4377652..4378386	-	244	28871017	psyI	PSPTO_3864	-	autoinducer synthesis protein PsyI
3777	 56.14	0	4378606..4379802	+	398	28871018	-	PSPTO_3865	-	hypothetical protein
3778	 57.30	0	4379795..4380328	+	177	28871019	-	PSPTO_3866	-	hypothetical protein
3779	 59.40	0	4380318..4381115	+	265	28871020	-	PSPTO_3867	-	dihydrodipicolinate synthetase family protein
3780	 57.93	0	4381115..4381972	+	285	28871021	-	PSPTO_3868	-	hypothetical protein
3781	 61.60	0	4381956..4382192	+	78	28871022	-	PSPTO_3869	-	hypothetical protein
3782	 61.34	0	4382255..4383436	-	393	28871023	-	PSPTO_3870	-	patatin family protein
3783	 58.95	0	4383469..4384401	-	310	28871024	htrB	PSPTO_3871	-	lipid A biosynthesis lauroyl acyltransferase
3784	 60.73	0	4384522..4385262	+	246	28871025	minC	PSPTO_3872	-	septum formation inhibitor
3785	 58.79	0	4385492..4386304	+	270	28871026	minD	PSPTO_3873	-	septum site-determining protein MinD
3786	 50.98	-1	4386304..4386558	+	84	28871027	minE	PSPTO_3874	-	cell division topological specificity factor MinE
3787	 59.91	0	4386649..4387284	+	211	162533083	rluA	PSPTO_3875	-	ribosomal large subunit pseudouridine synthase A
3788	 60.62	0	4387656..4388945	+	429	28871028	-	PSPTO_3876	-	putative aminopeptidase 2
3789	 59.86	0	4389003..4389722	-	239	28871029	-	PSPTO_3877	-	GntR family transcriptional regulator
3790	 56.84	0	4390080..4391147	+	355	28871030	-	PSPTO_3878	-	ABC transporter, periplasmic substrate-binding protein
3791	 61.92	0	4391168..4392031	+	287	28871031	-	PSPTO_3879	-	hypothetical protein
3792	 58.72	0	4392028..4392870	+	280	28871032	-	PSPTO_3880	-	polyamine ABC transporter, permease protein, putative
3793	 59.40	0	4392857..4393654	+	265	28871033	-	PSPTO_3881	-	polyamine ABC transporter, permease protein, putative
3794	 61.11	0	4393656..4394645	+	329	28871034	-	PSPTO_3882	-	polyamine ABC transporter, ATP-binding protein, putative
3795	 59.11	0	4394799..4395380	+	193	28871035	-	PSPTO_3883	-	HAD-superfamily hydrolase
3796	 62.10	0	4395399..4396361	-	320	28871036	-	PSPTO_3884	-	oxidoreductase, zinc-binding
3797	 58.36	0	4396500..4398581	+	693	28871037	prc	PSPTO_3885	-	tail-specific protease
3798	 60.01	0	4398715..4400487	+	590	28871038	-	PSPTO_3886	-	EAL/GGDEF domain-containing protein
3799	 66.39	+1	4400679..4401044	-	121	28871039	-	PSPTO_3887	-	hypothetical protein
3800	 63.45	+1	4401047..4401388	-	113	28871040	-	PSPTO_3888	-	hypothetical protein
3801	 59.95	0	4401489..4401890	-	133	28871041	-	PSPTO_3889	-	hypothetical protein
3802	 56.20	0	4402330..4403103	-	257	28871042	-	PSPTO_3890	-	peptidyl-prolyl cis-trans isomerase, FKBP-type
3803	 59.39	0	4403310..4404725	-	471	28871043	-	PSPTO_3891	-	hypothetical protein
3804	 59.87	0	4404888..4405505	+	205	28871044	-	PSPTO_3892	-	hypothetical protein
3805	 57.69	0	4405578..4405967	-	129	28871045	-	PSPTO_3893	-	glyoxalase, putative
3806	 61.88	0	4406024..4407214	-	396	28871046	-	PSPTO_3894	-	CAIB/BAIF family protein
3807	 51.77	-1	4407337..4407732	-	131	28871047	-	PSPTO_3895	-	hypothetical protein
3808	 50.79	-1	4407959..4408084	+	41	28871048	-	PSPTO_3896	-	hypothetical protein
3809	 60.59	0	4408438..4409358	+	306	28871049	-	PSPTO_3897	-	recombination associated protein
3810	 60.34	0	4409447..4410394	+	315	28871050	-	PSPTO_3898	-	sodium/bile acid symporter family protein
3811	 58.03	0	4410922..4412796	-	624	28871051	-	PSPTO_3899	-	acyltransferase family protein
3812	 61.37	0	4413040..4416513	+	1157	28871052	-	PSPTO_3900	-	sensory box histidine kinase/response regulator
3813	 56.98	0	4416569..4417507	-	312	28871053	-	PSPTO_3901	-	hypothetical protein
3814	 59.28	0	4417685..4418659	-	324	28871054	cysK	PSPTO_3902	-	cysteine synthase A
3815	 57.61	0	4418787..4419857	+	356	28871055	-	PSPTO_3903	-	hypothetical protein
3816	 50.98	-1	4419919..4420071	-	50	28871056	-	PSPTO_3904	-	hypothetical protein
3817	 58.27	0	4420195..4421040	+	281	28871057	-	PSPTO_3905	-	AAA family ATPase
3818	 57.59	0	4421080..4422258	+	392	28871058	-	PSPTO_3906	-	hypothetical protein
3819	 53.78	-1	4422424..4423176	+	250	28871059	-	PSPTO_3907	-	hypothetical protein
3820	 56.57	0	4423209..4423733	-	174	28871060	-	PSPTO_3908	-	hypothetical protein
3821	 59.44	0	4423780..4424568	-	262	28871061	-	PSPTO_3909	-	hypothetical protein
3822	 61.22	0	4424645..4425121	-	158	28871062	-	PSPTO_3910	-	hypothetical protein
3823	 61.52	0	4425254..4427311	+	685	28871063	-	PSPTO_3911	-	protease II
3824	 60.00	0	4427438..4427872	+	144	28871064	-	PSPTO_3912	-	cyclic nucleotide-binding protein
3825	 60.80	0	4427938..4428312	+	124	28871065	-	PSPTO_3913	-	hypothetical protein
3826	 60.68	0	4428608..4430377	+	589	28871066	copA	PSPTO_3914	-	copper resistance protein A
3827	 62.55	0	4430482..4431258	+	258	28871067	-	PSPTO_3915	-	copper resistance protein B
3828	 60.44	0	4431331..4431828	+	165	28871068	-	PSPTO_3916	-	hypothetical protein
3829	 60.37	0	4431937..4432317	+	126	28871069	-	PSPTO_3917	-	hypothetical protein
3830	 57.11	0	4432322..4432771	-	149	28871070	-	PSPTO_3918	-	hypothetical protein
3831	 62.12	0	4432983..4433576	+	197	28871071	-	PSPTO_3919	-	nitroreductase family protein
3832	 60.45	0	4433652..4434584	-	310	28871072	-	PSPTO_3920	-	D-isomer specific 2-hydroxyacid dehydrogenase family protein
3833	 56.12	0	4434655..4434948	-	97	28871073	-	PSPTO_3921	-	hypothetical protein
3834	 61.55	0	4434945..4436078	-	377	28871074	rnd	PSPTO_3922	-	ribonuclease D
3835	 52.98	-1	4436285..4437928	-	547	28871075	-	PSPTO_3923	-	hypothetical protein
3836	 59.47	0	4438161..4439882	-	573	28871076	sfcA	PSPTO_3924	-	malate dehydrogenase
3837	 56.52	0	4440165..4440647	-	160	28871077	-	PSPTO_3925	-	gas vesicle protein, putative
3838	 54.05	-1	4441402..4442067	-	221	28871078	-	PSPTO_3927	-	hypothetical protein
3839	 43.84	-2	4442900..4443118	-	72	28871079	-	PSPTO_3929	-	cold shock domain-contain protein
3840	 42.81	-2	4443121..4444302	-	393	28871080	-	PSPTO_3930	-	retron reverse transcriptase
3841	 59.72	0	4445395..4445538	+	47	28871081	-	PSPTO_3931	-	hypothetical protein
3842	 60.12	0	4445527..4446045	-	172	28871082	-	PSPTO_3932	-	hypothetical protein
3843	 62.36	0	4446042..4446575	-	177	28871083	-	PSPTO_3933	-	lysozyme, putative
3844	 54.48	0	4446636..4446914	-	92	28871084	-	PSPTO_3934	-	tail fiber assembly domain-containing protein
3845	 49.30	-2	4446907..4447263	-	118	28871085	-	PSPTO_3935	-	hypothetical protein
3846	 55.46	0	4447263..4448261	-	332	28871086	-	PSPTO_3936	-	tail fiber domain-containing protein
3847	 50.83	-1	4448289..4448951	-	220	28871087	-	PSPTO_3937	-	hypothetical protein
3848	 49.32	-2	4448948..4449316	-	122	28871088	-	PSPTO_3938	-	hypothetical protein
3849	 59.37	0	4453493..4454095	+	200	28871089	-	PSPTO_3942	-	hypothetical protein
3850	 59.49	0	4454139..4454333	+	64	28871090	-	PSPTO_3943	-	carbon storage regulator, putative
3851	 58.70	0	4454323..4455000	+	225	28871091	-	PSPTO_3944	-	hypothetical protein
3852	 60.70	0	4454997..4455197	+	66	28871092	-	PSPTO_3945	-	hypothetical protein
3853	 56.41	0	4455286..4455753	+	155	28871093	-	PSPTO_3946	-	hypothetical protein
3854	 55.43	0	4455743..4456000	+	85	28871094	-	PSPTO_3947	-	hypothetical protein
3855	 61.72	0	4455993..4456376	+	127	28871095	-	PSPTO_3948	-	hypothetical protein
3856	 55.75	0	4457531..4458574	-	347	28871096	-	PSPTO_3949	-	phage integrase family site specific recombinase
3857	 55.98	0	4458800..4459510	-	236	28871097	purC	PSPTO_3950	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
3858	 60.74	0	4459539..4460297	-	252	28871098	-	PSPTO_3951	-	metallo-beta-lactamase superfamily protein
3859	 60.77	0	4460298..4461416	-	372	28871099	-	PSPTO_3952	-	putative lipoprotein
3860	 59.50	0	4461435..4462313	-	292	28871100	dapA	PSPTO_3953	-	dihydrodipicolinate synthase
3861	 60.11	0	4462639..4463202	+	187	28871101	-	PSPTO_3954	-	hypothetical protein
3862	 55.70	0	4463212..4463685	+	157	28871102	-	PSPTO_3955	-	AhpC/Tsa family protein
3863	 60.88	0	4463752..4464822	-	356	28871103	-	PSPTO_3956	-	PerM family membrane protein
3864	 61.51	0	4464855..4465106	-	83	28871104	-	PSPTO_3957	-	hypothetical protein
3865	 60.04	0	4465247..4466680	+	477	28871105	-	PSPTO_3958	-	hypothetical protein
3866	 60.06	0	4466782..4467840	-	352	28871106	nadA	PSPTO_3959	-	quinolinate synthetase
3867	 59.29	0	4468247..4469845	+	532	28871107	pglA	PSPTO_3960	-	polygalacturonase
3868	 40.80	-2	4470140..4470340	+	66	28871108	-	PSPTO_3961	-	hypothetical protein
3869	 42.86	-2	4470547..4470651	+	34	28871109	-	PSPTO_3962	-	hypothetical protein
3870	 54.19	-1	4470781..4471758	-	325	28871110	-	PSPTO_3963	-	ISPssy, transposase
3871	 51.16	-1	4472738..4474291	+	517	28871111	-	PSPTO_3965	-	hypothetical protein
3872	 52.22	-1	4474543..4474902	+	119	28871112	-	PSPTO_3966	-	ISPsy5, Orf1
3873	 61.23	0	4476573..4477253	-	226	28871113	exsB	PSPTO_3968	-	exsB protein
58.61	MEAN

4.14	STD DEV
