IslandPath Analysis: Pseudomonas syringae pv. tomato str. DC3000

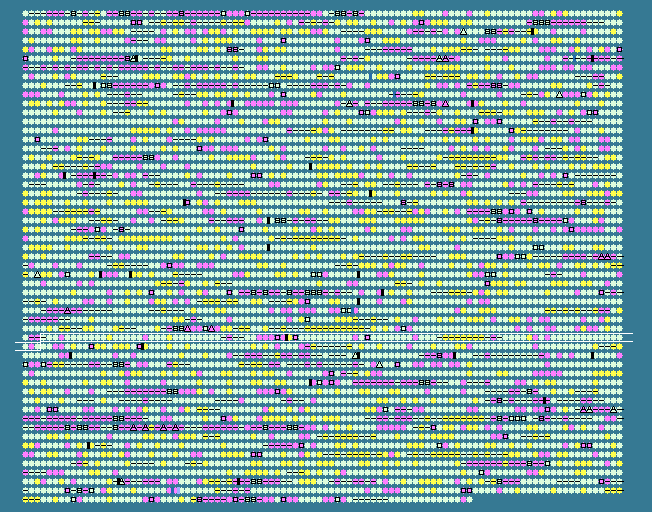

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.61 STD DEV: 4.14
Pseudomonas syringae pv. tomato str. DC3000, complete genome - 1..6397126
5475 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3604	 59.89	0	4160122..4162290	+	722	28870847	-	PSPTO_3692	-	TonB-dependent siderophore receptor
3605	 60.07	0	4162721..4163008	+	95	28870848	-	PSPTO_3693	-	hypothetical protein
3606	 58.13	0	4163440..4165758	+	772	28870849	-	PSPTO_3694	-	glycosy hydrolase family protein
3607	 54.03	-1	4165817..4166473	-	218	28870850	-	PSPTO_3695	-	TetR family transcriptional regulator
3608	 61.15	0	4166962..4169445	+	827	28870851	-	PSPTO_3696	-	sensory box histidine kinase/response regulator
3609	 59.83	0	4169483..4169599	+	38	28870852	-	PSPTO_3697	-	hypothetical protein
3610	 59.77	0	4169607..4170215	+	202	28870853	-	PSPTO_3698	-	TetR family transcriptional regulator
3611	 58.58	0	4170590..4172221	+	543	28870854	-	PSPTO_3699	-	methyl-accepting chemotaxis protein
3612	 61.68	0	4172325..4173146	+	273	28870855	-	PSPTO_3700	-	aldo/keto reductase family oxidoreductase
3613	 60.29	0	4173317..4174336	+	339	28870856	-	PSPTO_3701	-	cation transporter, putative
3614	 61.51	0	4174615..4176069	+	484	28870857	-	PSPTO_3702	-	phosphate transporter family protein
3615	 62.63	0	4176175..4177338	-	387	28870858	-	PSPTO_3703	-	HlyD family secretion protein
3616	 61.08	0	4177335..4178963	-	542	28870859	-	PSPTO_3704	-	transporter, putative
3617	 60.75	0	4179326..4180423	+	365	28870860	-	PSPTO_3705	-	enoly-CoA hydratase/isomerase family protein
3618	 60.50	0	4180427..4181578	+	383	28870861	acdA	PSPTO_3706	-	acyl-CoA dehydrogenase
3619	 56.57	0	4181623..4186854	-	1743	28870862	-	PSPTO_3707	-	hypothetical protein
3620	 57.78	0	4186991..4187575	-	194	162533073	-	PSPTO_3708	-	FMN reductase, NADPH-dependent
3621	 51.93	-1	4187546..4187986	+	146	28870864	-	PSPTO_3709	-	hypothetical protein
3622	 57.30	0	4188036..4188590	-	184	28870865	-	PSPTO_3710	-	acetyltransferase
3623	 60.59	0	4188612..4189385	-	257	28870866	dnaQ	PSPTO_3711	-	DNA polymerase III subunit epsilon
3624	 62.03	0	4189457..4189909	-	150	28870867	rnhA	PSPTO_3712	-	ribonuclease H
3625	 64.30	+1	4189956..4190717	-	253	28870868	-	PSPTO_3713	-	hypothetical protein
3626	 61.15	0	4190799..4191578	+	259	28870869	-	PSPTO_3714	-	hydroxyacylglutathione hydrolase, putative
3627	 60.33	0	4191678..4193270	+	530	28870870	mltD	PSPTO_3715	-	membrane-bound lytic murein transglycosylase D
3628	 60.87	0	4193408..4195237	+	609	28870871	-	PSPTO_3716	-	ABC transporter, periplasmic substrate-binding protein
3629	 59.40	0	4195234..4197090	+	618	28870872	-	PSPTO_3717	-	ABC transporter, periplasmic substrate-binding protein
3630	 57.36	0	4197092..4198165	+	357	28870873	-	PSPTO_3718	-	ABC transporter, permease protein
3631	 60.59	0	4198167..4199186	+	339	28870874	-	PSPTO_3719	-	ABC transporter, permease protein
3632	 59.65	0	4199188..4200798	+	536	28870875	-	PSPTO_3720	-	ABC transporter, ATP-binding protein
3633	 62.01	0	4200823..4201617	+	264	28870876	fabI	PSPTO_3721	-	enoyl-(acyl-carrier-protein) reductase
3634	 56.32	0	4201727..4203610	-	627	28870877	-	PSPTO_3722	-	peptidyl-prolyl cis-trans isomerase D, putative
3635	 53.11	-1	4203816..4204088	-	90	28870878	hupB	PSPTO_3723	-	DNA-binding protein HU-beta
3636	 56.82	0	4204235..4206631	-	798	28870879	lon-1	PSPTO_3724	-	ATP-dependent protease La
3637	 57.09	0	4206842..4208125	-	427	28870880	clpX	PSPTO_3725	-	ATP-dependent protease ATP-binding subunit
3638	 57.30	0	4208232..4208882	-	216	28870881	clpP-2	PSPTO_3726	-	ATP-dependent Clp protease proteolytic subunit
3639	 55.99	0	4208965..4210275	-	436	28870882	tig	PSPTO_3727	-	trigger factor
3640	 54.70	0	4210718..4210834	-	38	28870883	-	PSPTO_3728	-	hypothetical protein
3641	 47.29	-2	4211413..4211892	+	159	28870884	-	PSPTO_3729	-	putative lipoprotein
3642	 49.22	-2	4212288..4214144	-	618	28870885	-	PSPTO_3730	-	hypothetical protein
3643	 54.19	-1	4214279..4215256	+	325	28870886	-	PSPTO_3731	-	ISPssy, transposase
3644	 52.08	-1	4215455..4215694	-	79	28870887	-	PSPTO_3732	-	hypothetical protein
3645	 63.74	+1	4216904..4217758	+	284	28870888	folD-2	PSPTO_3733	-	methylenetetrahydrofolate dehydrogenase/methenyltetrahydrofolate cyclohydrolase
3646	 54.07	-1	4217893..4219353	-	486	28870889	-	PSPTO_3734	-	ISPsy6, transposase
3647	 57.64	0	4219432..4221204	-	590	28870890	-	PSPTO_3735	-	ABC transporter, periplasmic substrate-binding protein, putative
3648	 56.78	0	4221290..4221562	-	90	28870891	-	PSPTO_3736	-	hypothetical protein
3649	 55.93	0	4221575..4222375	-	266	28870892	-	PSPTO_3737	-	ABC transporter, permease protein
3650	 58.13	0	4222386..4223252	-	288	28870893	-	PSPTO_3738	-	ABC transporter, permease protein
3651	 57.97	0	4223245..4224360	-	371	28870894	-	PSPTO_3739	-	ABC transporter, ATP-binding protein
3652	 59.45	0	4224360..4225454	-	364	28870895	-	PSPTO_3740	-	ABC transporter, ATP-binding protein
3653	 59.33	0	4225753..4227606	+	617	28870896	-	PSPTO_3741	-	sigma-54 dependent transcriptional regulator
3654	 60.74	0	4227791..4229173	-	460	28870897	cysS	PSPTO_3742	-	cysteinyl-tRNA synthetase
3655	 59.59	0	4229193..4230902	-	569	28870898	glnS	PSPTO_3743	-	glutaminyl-tRNA synthetase
3656	 54.37	-1	4231095..4231598	+	167	28870899	ppiB	PSPTO_3744	-	peptidyl-prolyl cis-trans isomerase B
3657	 59.97	0	4231595..4232341	+	248	28870900	lpxH	PSPTO_3745	-	UDP-2,3-diacylglucosamine hydrolase
3658	 53.27	-1	4232799..4233821	-	340	28870901	-	PSPTO_3746	-	ISPsy7, transposase
3659	 60.82	0	4234161..4235699	-	512	28870902	-	PSPTO_3747	-	EmrB/QacA family drug resistance transporter
3660	 61.46	0	4235726..4236934	-	402	28870903	-	PSPTO_3748	-	multidrug resistance protein
3661	 57.87	0	4237025..4237513	-	162	28870904	-	PSPTO_3749	-	multiple antibiotic resistance protein MarR, putative
3662	 58.65	0	4237660..4238283	-	207	28870905	-	PSPTO_3750	-	hypothetical protein
3663	 59.02	0	4238367..4238837	-	156	28870906	-	PSPTO_3751	-	hypothetical protein
3664	 61.32	0	4239241..4241841	+	866	28870907	acnB	PSPTO_3752	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
3665	 55.40	0	4242087..4243355	-	422	28870908	-	PSPTO_3753	-	methyl-accepting chemotaxis protein
3666	 50.67	-1	4243461..4244354	-	297	28870909	-	PSPTO_3754	-	hypothetical protein
3667	 59.51	0	4245060..4245632	+	190	28870910	-	PSPTO_3755	-	hypothetical protein
3668	 55.90	0	4245936..4247096	+	386	28870911	-	PSPTO_3756	-	hypothetical protein
3669	 61.33	0	4249716..4254572	-	1618	28870912	-	PSPTO_3757	-	hypothetical protein
3670	 62.00	0	4255345..4256094	+	249	28870913	-	PSPTO_3758	-	hypothetical protein
3671	 62.92	+1	4256300..4257259	+	319	28870914	-	PSPTO_3759	-	moxR protein, putative
3672	 63.39	+1	4257264..4258208	+	314	28870915	-	PSPTO_3760	-	hypothetical protein
3673	 64.85	+1	4258205..4258699	+	164	28870916	-	PSPTO_3761	-	hypothetical protein
3674	 63.64	+1	4258692..4259750	+	352	28870917	-	PSPTO_3762	-	von Willebrand factor type A domain-containing protein
3675	 64.98	+1	4259747..4261465	+	572	28870918	-	PSPTO_3763	-	TPR domain-containing protein
3676	 63.89	+1	4261462..4263117	+	551	28870919	-	PSPTO_3764	-	hypothetical protein
3677	 63.69	+1	4263160..4264404	+	414	28870920	sbcD	PSPTO_3765	-	exonuclease SbcD
3678	 61.95	0	4264401..4268045	+	1214	28870921	sbcC	PSPTO_3766	-	exonuclease SbcC
3679	 52.49	-1	4268271..4268531	+	86	28870922	-	PSPTO_3767	-	hypothetical protein
3680	 57.63	0	4268669..4269841	-	390	28870923	-	PSPTO_3768	-	hypothetical protein
3681	 56.64	0	4269921..4270319	-	132	28870924	-	PSPTO_3769	-	hypothetical protein
3682	 60.83	0	4270412..4271404	-	330	28870925	-	PSPTO_3770	-	hypothetical protein
3683	 59.79	0	4271484..4272791	-	435	28870926	-	PSPTO_3771	-	major facilitator family transporter
3684	 61.27	0	4273005..4274747	+	580	28870927	-	PSPTO_3772	-	dihydroxy-acid dehydratase
3685	 62.75	0	4274862..4275575	+	237	28870928	-	PSPTO_3773	-	GntR family transcriptional regulator
3686	 54.19	-1	4275912..4276496	+	194	28870929	-	PSPTO_3774	-	hypothetical protein
3687	 59.30	0	4276503..4276787	+	94	28870930	-	PSPTO_3775	-	hypothetical protein
3688	 47.43	-2	4277420..4277866	+	148	28870931	-	PSPTO_3776	-	hypothetical protein
3689	 57.97	0	4278166..4280556	-	796	28870932	-	PSPTO_3777	-	hypothetical protein
3690	 61.29	0	4280584..4281606	-	340	28870933	-	PSPTO_3778	-	BNR/Asp-box repeat-containing protein
3691	 60.69	0	4281838..4283193	-	451	28870934	-	PSPTO_3779	-	hypothetical protein
3692	 58.03	0	4283714..4284871	-	385	28870935	-	PSPTO_3780	-	glutathionylspermidine synthase family protein
3693	 61.27	0	4284883..4285605	-	240	28870936	-	PSPTO_3781	-	hypothetical protein
3694	 59.07	0	4285657..4286064	-	135	28870937	-	PSPTO_3782	-	hypothetical protein
3695	 59.36	0	4286096..4286752	-	218	28870938	-	PSPTO_3783	-	hypothetical protein
3696	 59.26	0	4286749..4287774	-	341	28870939	-	PSPTO_3784	-	potassium channel protein, putative
3697	 58.24	0	4287862..4288419	-	185	28870940	-	PSPTO_3785	-	rhomboid family protein
3698	 61.58	0	4288450..4289157	-	235	28870941	-	PSPTO_3786	-	PspA/IM30 family protein
3699	 55.50	0	4289184..4289837	-	217	28870942	-	PSPTO_3787	-	hypothetical protein
3700	 60.25	0	4290096..4292762	-	888	28870943	pepN	PSPTO_3788	-	aminopeptidase N
3701	 59.05	0	4292775..4293575	-	266	28870944	-	PSPTO_3789	-	hypothetical protein
3702	 54.02	-1	4293605..4293865	-	86	28870945	-	PSPTO_3790	-	hypothetical protein
3703	 60.82	0	4293894..4294748	-	284	28870946	-	PSPTO_3791	-	rhomboid family protein
58.61	MEAN

4.14	STD DEV
